Process & Quality Control

z1LcdMuH

Temperature > rH Monitoring
Back to the TEMPERATURE MENU

zLogg usb temperature datalogger,
Designed, Produced and Calibrated
in the USA.


All zLogg Data Loggers are:
  • Plug & Play (PDF, CSV, TXT) and can be read directly without installing any software
  • USB Mass Storage Device. Seen by any computer as external flash drive
  • Individually calibrated for temperature and humidity and come with a certificate of calibration that is directly accessible online with a direct link in the PDF
  • Temperature measuring range of -40°C ~ +80°C (-40°F ~ +176°F)
  • Accuracy of from ±0.1°C to ±0.3°C over the complete measuring range
  • Accuracy of from ±1%RH to ±1.8%RH from 0% to 100%
  • Resolution 0.01°C & 0.01%RH
  • Automatic Firmware & software upgrade

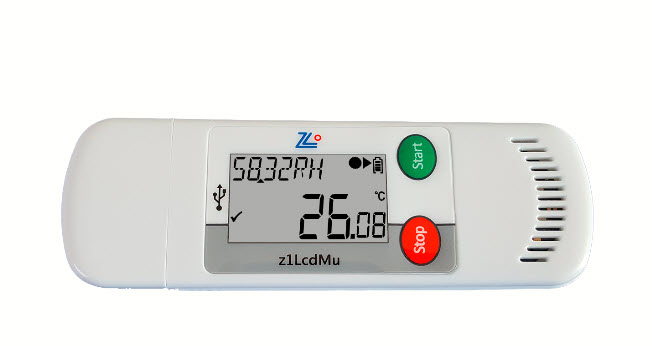

z1LcdMuH
Multi-use USB PDF Temperature & Humidity Data Logger
LCD display with advanced information.
Order cocdMuHde: 350-z1L
Product Info
The zLogg z1LcdMuH is an extremely accurate multi-use data logger for temperature and humidity, with a detailed, multi-screen display. In addition to things like current date and time, serial number, firmware version, battery power, etc... the display also shows you information on logging interval, how it starts (manual, time, temperature) and stops (period, time or manual), start delay, running or stopped state, various alarm levels and alarm states, minimum, maximum, average and Mean Kinetic Temperature, etc — all by a simple click of the button.
Once plugged into the USB port, the logger works like a USB stick that holds the automatically generated ZLG, TXT, CSV and PDF files. No zLogg software needed.
Where other suppliers choose to accompany their loggers with a basic manufacturers certificate, mentioning specifications based on theoretical calculations and prefabrication tests, every zLogg z1 can be individually calibrated before it leaves our lab. Its unique, traceable calibration certificate can be found 'in the cloud' by clicking a link on the PDF generated by the logger.
Highlights 1
  • Extremely accurate over its whole measuring range
  • Ultra fine resolution of 0.015°C and 0.01%RH.
  • Online calibration certicate direct from link in PDF
  • Auto-generated PDF build in
  • Customizable PDF reports
  • Auto-generated CSV and TXT reports

Highlights 2
  • Multi-screen display
  • One-click information of most trip parameters
  • Extra large memory (>48.000 records)
  • Mark Readings
  • Multi configurable, visual alarms
  • Supports Windows/MacOSX/Linux
  • Upgrade firmware with USB connection
  • Free zLoggManager Software
Specifications 1
Logger type: Multi-use Temperature & Humidity Data Logger
Sensor: Digital Sensirion SHT40/SHT45
Memory: >48.000 records
Operating range: -40°C ~ +80°C & 0 ~ 100%RH
Measuring range: -40°C ~ +80°C & 0 ~ 100%RH
Accuracy: ±0.1°C from -40°C to +85°C, ±1.8%RH from 0% to 100%
Resolution:  0.015 °C and 0.01 %RH
Time accuracy: ±15 minutes per year
Buttons: 2, Start & Stop
Start Options:
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Stop Options:
Auto Stop after a set period
Auto Stop on date and time
Manual Stop

Specifications 2
Mark Readings: 8x
Log Interval: 1 second to 24 hours
Alarms: 4, total and/or consecutive
Sensor Response Time: better than 7 minutes (T90) in moving air.
Battery: CR2032, 3V Lithium button cell
Display: LCD reflective, 30 x 17mm
Connection/Interface: Direct to computer/USB Mass Storage Device
Auto Generated Files: ZLG, TXT, CSV, PDF (in all supported languages)
Export File Types: ZLG, TXT, CSV PDF
Software Support: zLoggManager
Compatibility: Windows, MacOSX, Linux
Calibration: individual calibration certificate per logger
Certificates: CE, RoHS
Dimensions: 35 x 103 x 11 mm
Weight: 31 gr.
Housing: ABS or Polycarbonate
Protection Class: IP30
Security: Password Protection

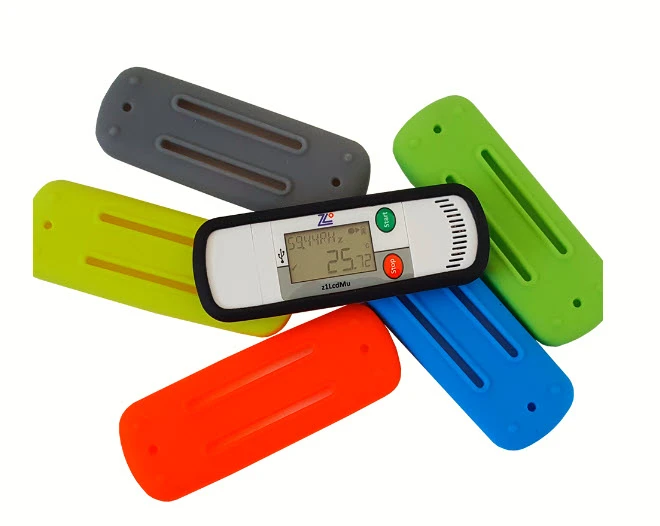

Optional Accessories: Protective rubber boot (5 colors)
Warranty: 1 year
zLoggManager

zLoggManager is a free multi-platform desktop application designed to be fast, reactive and evolutive. Windows and Mac OS X releases are available.

Linux is coming soon. Once installed, it detects new releases and updates automatically.

All zLogg data loggers are seen as Mass Storage Devices.

There is no need to install drivers.

zLoggManager allows you to configure, view graphics and data from connected zLogg data loggers, as well as many other export and automation functions.
Configuration
The whole configuration is visible from one form including:
  • Description
  • 4 x alarms thresholds with consecutive and or total delay
  • Record sampling rate
  • Start conditions:
    - Manual start with or without delay
    - Auto start on date & time
    - Auto start on set temperature with or without delay
  • Stop conditions:
    - Auto stop after a set period - Auto stop on date & time
    - Manual stop
Graph
This graph viewer has powerful advanced funtions such as:
  • Realtime scrolling with the mouse
  • Zoom in & out onX or Y or both axis
  • Cursor on trace to indicate the time & value
  • Legend & Statistics
  • Fully customizeable colors, background, thickness, alarms thresholds type...
  • Right click popup menu for quick access
  • Fit to screen
  • Capture graph to clipboard
Settings
  • Support for multi-languages and time zones.
  • Temperature unit: °C & °F + MKT constant
  • The application can generate and automatically save files when a logger is detected:
    - ZLG
    - TXT
    - CSV
    - PDF
    - JPG
Summary, Files Open & Export:
  • Generates a full summary table report with configuration, alarms, statistics... and data.
  • Open multiple documents can be opened at the same time.
  • Export documents to the following formats:
  • Create template for batch programing.
    - ZLG (zLogg format)
    - PDF with customizeable colors and thickness
    - TXT
    - CSV
    - JPG
Download for Windows   After the download:
  • Extract the zip file.
  • Execute the zLoggManagerSetup.exe file to start the installation.
  • Follow the installation wizard instructions.
https://dataloggermanager.com/app/Windows/zLoggManagerSetup.zip

Download for MAC OS X   After the download:
  • Execute the zLoggManager.dmg file to start the installation.
  • In the installation window, move the zLoggManager icon into the App icon
  • Installation is done, zLoogManager is in the Application folder.
https://dataloggermanager.com/app/Mac/zLoggManager.dmg

Download for Linux   After the download:
  • Right click on the downloaded file, Properties, Permissions, Allow executing...
  • You can now start zLoggManager
https://dataloggermanager.com/app/Linux/zLoggManager

Download the complete user guide
https://dataloggermanager.com/doc/zLoggManagerUserGuideEn.pdf
