DATA TRANSMISSION WITHOUT CABLE OR RADIO MODULE

  • Measurement   without the nuisance of additional modules:

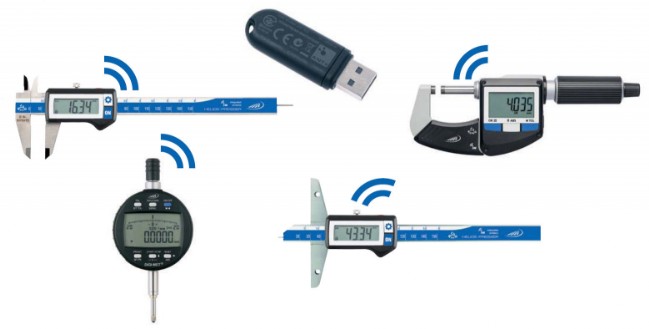

     Unlike conventional wireless solutions, which have a large external transmitter with separate battery, the transmitter in Integrated Wireless is fully integrated.
  • Highly mobile: Integrated Wireless gives you much more mobility.
     There is no cable to get in the way, either at the measuring station or when measuring on or at the machine or at large workpieces
  • Easy data transfer:

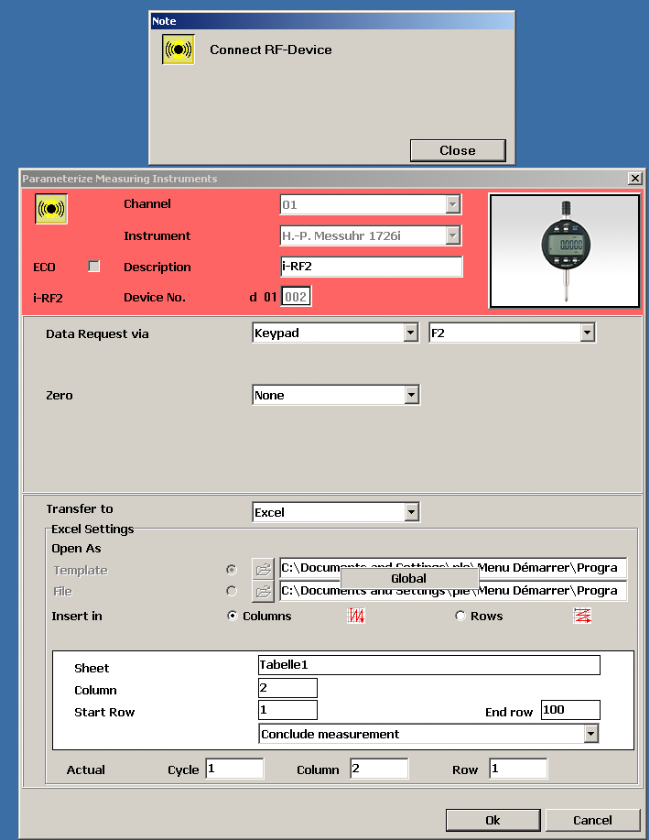

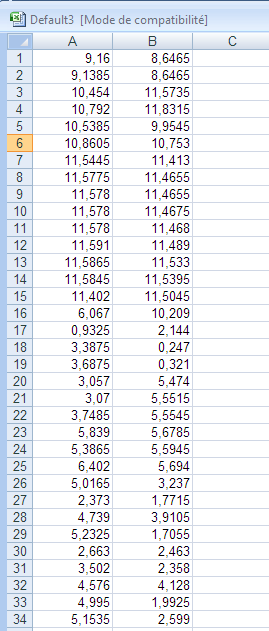

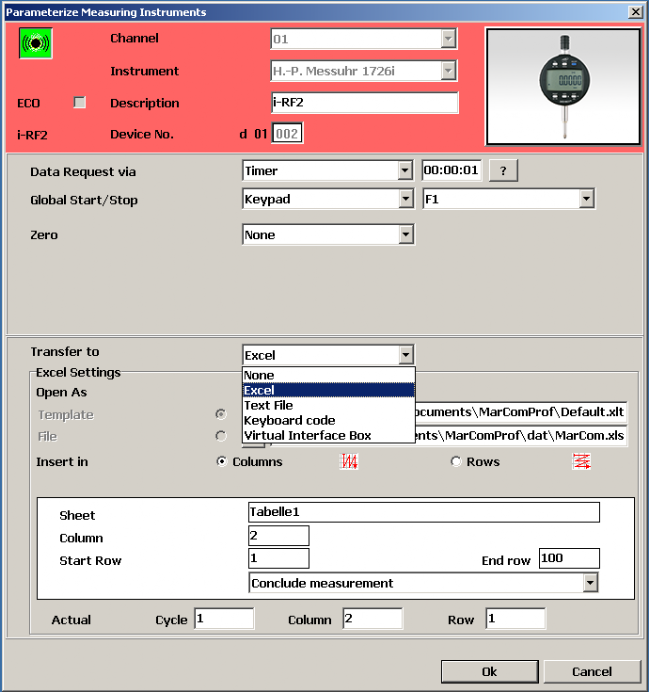

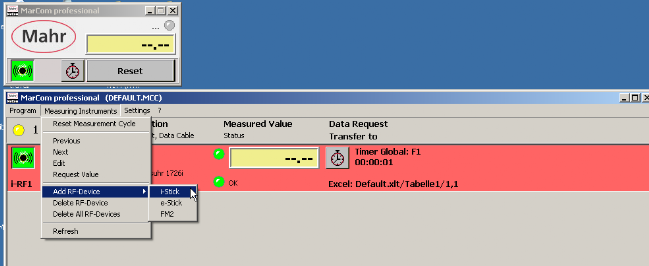

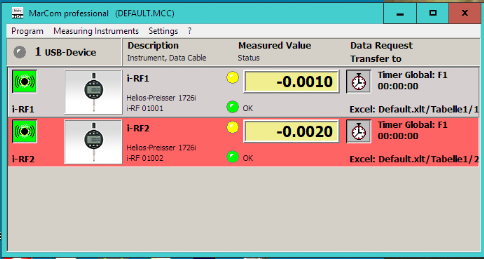

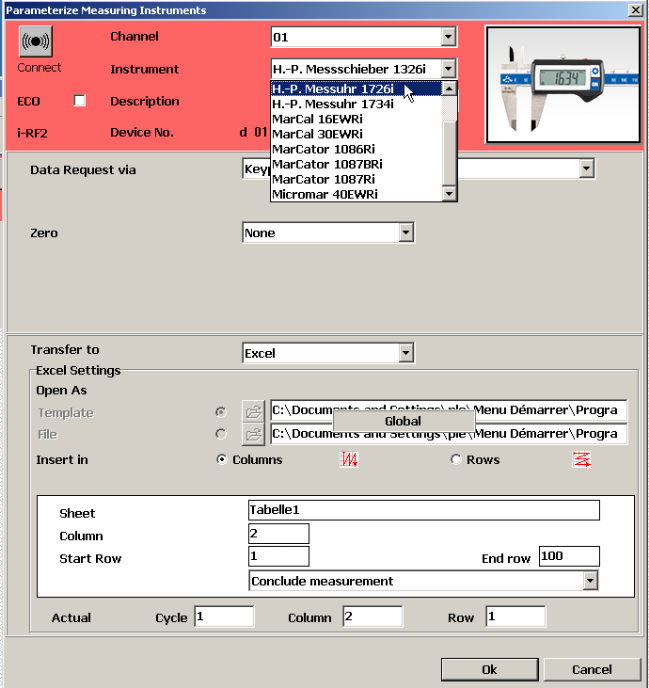

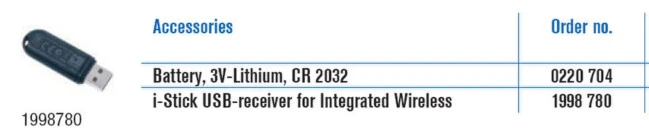

     With Integrated Wireless you can transfer your measured values to the PC simply using the i-Stick. As with a data cable, the measured values are accepted via the MarCom software directly into MS Excel© or via a keyboard code into any Windows application
  • Reliable transfer:
      With Integrated Wireless you can be sure that your data will arrive safely. Measuring instruments with Integrated Wireless   display messages to confirm whether the transmitted data has been correctly transferred or whether you are within receiving range of the i-Stick receiver
  • Long battery life:
      The integrated wireless interface makes the measuring instrument exceptionally energy-efficient. And unlike conventional wireless systems, no additional battery is required
  • Affordable:
     With Integrated Wireless you can connect up to 8 measuring instruments per i-Stick receiver. Expensive interface boxes are no longer necessary. With even one connected measuring instrument you get a wireless connection for the price of a cable
1326i DIGI-MET® Functions

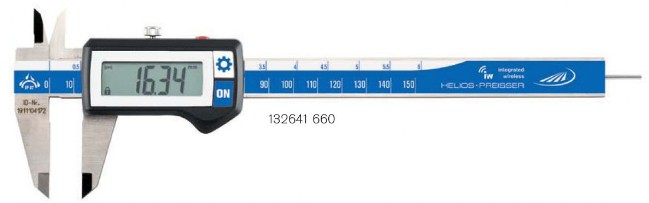

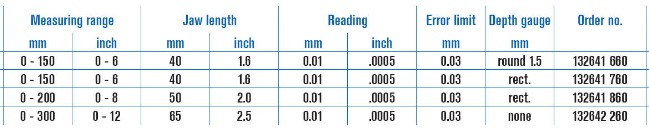

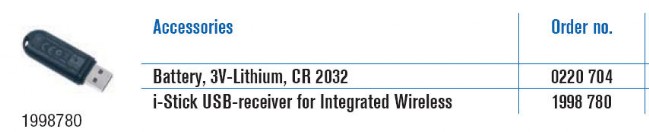

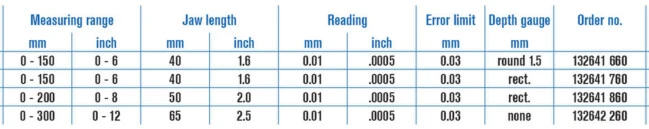

1326i DIGI-MET® Pocket calipers IP67 with integrated wireless

• Measuring system is insensitive to fluid and cooling agents
• Protection class IP67
• Stainless steel
• LCD display 11 mm
• DIN 862
• Housing and operating keys have an excellent chemical resistance
• Locking screw
• Inside cross points
• Four way measurements
Functions
• ON / OFF
• Quick-Start
• Quick-Lock (key lock)
• Set to zero at any point
• mm / inch switching
• PRESET-Function (setting a numerical value)
• Integrated Wireless

Delivery
• Plastic case
1866i Functions Delivery

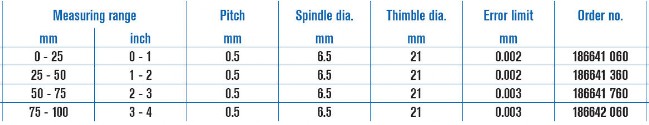

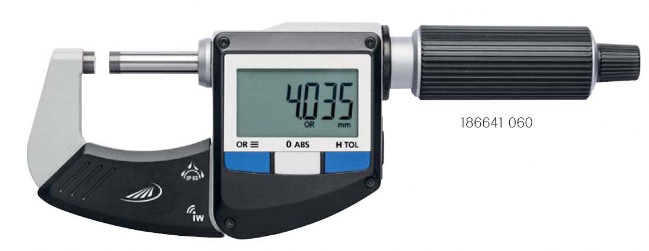

1866i Digital micrometers IP65 with integrated wireless

• Reading: 0.001 mm /.00005 inch
• Protection class IP65
• LCD display: 10 mm
• Rapid drive
• Carbide measuring faces
• Spindle stainless. hardened and smoothed
• Frame lacquered
• Thermally insulated
• Factory standard
Functions

• ON / OFF
• Quick-Start
• Quick-Lock (key lock)
• Set to zero at any point
• mm / inch switching
• ABS (display can be set to zero without losing the Preset value)
• Hold
• ORIGIN (Preset value)
• TOL(tolerance value input)
• Integrated Wireless
Delivery

• Plastic case
• From measuring range 25 mm upwards includes a setting standard
1726i / 1734i Functions

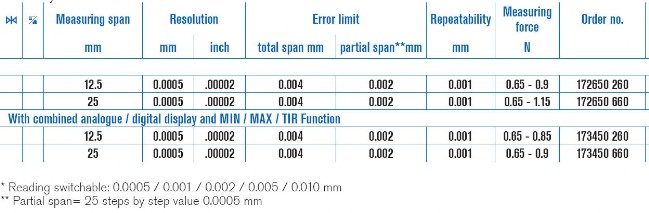

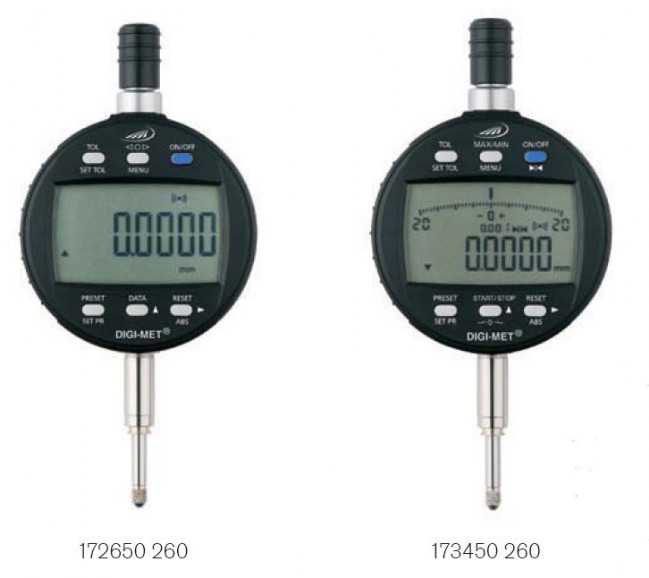

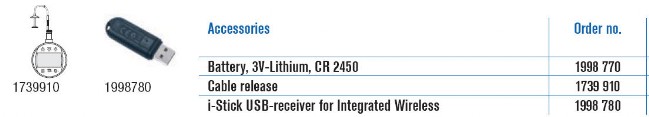

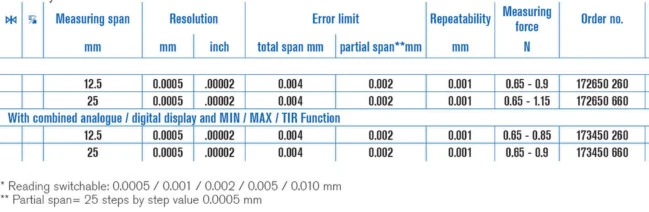

1726i / 1734i DIGI-MET® Indicators with integrated wireless

• Aluminium housing
• Outer ring (Bezel) Ø 60 mm
• Replacement probe tip M2.5
• Protection class IP42
• Clamping shank Ø 8mm
• Display can be rotated through 280°
• LCD display with 11 mm high numerals
• Factory standard

Delivery
• Cardboard box
Functions
• ON / OFF
• Quick-Start
• Quick-Lock (key lock)
• Set to zero at any point
• mm / inch switching
• ABS (display can be set to zero without losing the Preset value)
• TOL (tolerance value input)
• Reversal of counting direction
• Factor input
• Individual key lock
• PRESET-Function (setting a numerical value)
• Variable data output RS 232 + Digimatic + USB
