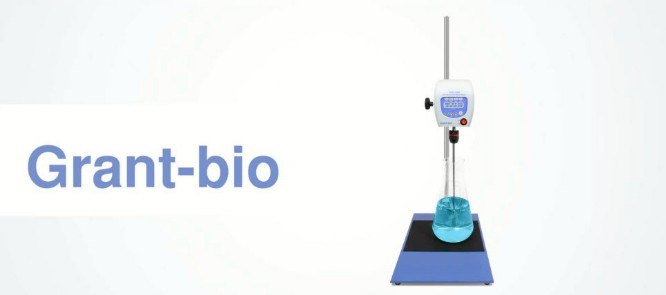

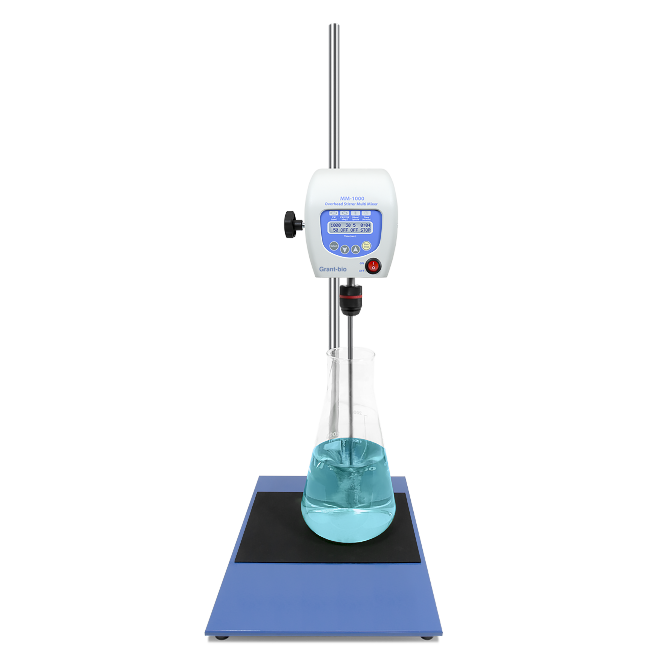

MM-1000 Overhead Stirrer Multi Mixer
• MM-1000, Overhead Stirrer Multi Mixer at a glance
• Designed for stirring liquids up to 20L
• Range of paddles and stirrers available
• Continuous mixing for up to 7 days
• 3 types of motion
• Rotational• Reciprocal• Vibration
• Speed, angle and time of operation is under microprocessor control
• Can be used for medium viscosity ranges 1,000 to 10,000 mP.a.s
Targeting and application
• Mixing, stirring and shearing in• Biotechnology• Organic synthesis• Analytical laboratories• Sample preparation
Specifications
Rotation - Speed control range : 40-1000 rpm
Rotation - Time : 0-250 s
Reciprocal motion - Turning angle : 0-360° (increment 30°)
Rotation motion - Turning angle : 0°-5° (increment 1°)
Rotation motion - Time 0-5 s
Timer Sound Signal yes
Stirring volume up to (water) 20 L
Digital time setting : 1 min-96hrs/non-stop (increment 1 min)
Overall dimensions (WxDxH) : 140x135x250 mm
Weight : 2,4 kg
Input current/power consumption : 12 V, 700 mA / 8,4 W
External power supply : Input AC 100-240 V ; 50/60 Hz ; Output DC 12 V
Product Code : 113MM-1000
Warranty : 2 years

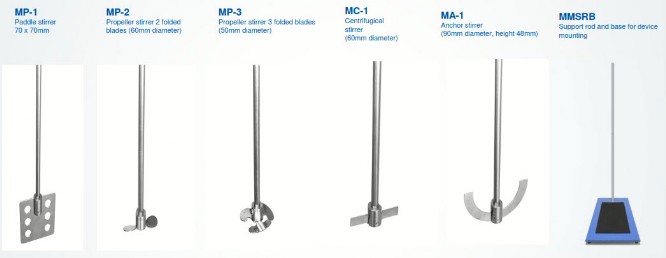

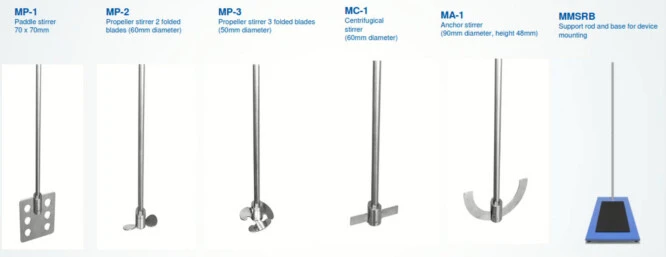

Accessories
- MP-1
- MP-2
- MP-3
- MC-1
- MA-1
- MMSRB
Support rod and base for device mounting
