OPTIONAL MEASURING GEOMETRIES
• Spindles L 1 to 4
• Spindles R 1 to 7
• Measuring system MS DIN 1 to 3
• Measuring system MS BV 1 to 1000
• Measuring system FANN R1-B1
• Measuring system MS-R 1 to 5

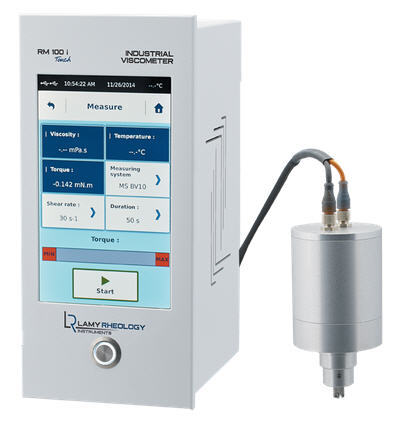

RM 100 i Touch
Industrial viscometer
The RM 100 i TOUCH guarantees industrial measurements identical to in a laboratory in immersion tanks.
Specifications
Type of instrument: Rotating viscometer in immersion tank
Speed range : Unlimited number of speeds between 0.3 and 1500 rpm
Torque Range : From 0.05 to 20 mNm
Temperature : The RM 100 i TOUCH can be equipped with an optional PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy : +/- 1 % of the full scale
Repeatability: +/- 0,2 %
Viscosity Range : 1 - 540,000,000 mPa·s depending on the measuring geometry.
Display : 7" Touch screen
Display Settings : Viscosity | Speed | Torque | Time | Measuring geometry | Level of sensitivity | Temperature (if sensor connected) | Date/ hour | Choice of viscosity units: cP or mPa·s | Language: French/English
Security and Confidentiality : An "operator" function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Supply Voltage: 90-240 VAC 50/60 Hz
Analog Output : 4 – 20 mA | Torque range to be defined by user
PC Connections : RS232 Port and USB
Printer Connection : USB Host Port
Benefits for you : Save your measurement protocols directly on your viscometer. You can connect a USB printer. External control thanks to the optional VISCO RM software
Dimensions and weight : Head: Diameter 85 mm Height 180 mm
Box: L120 x W145 x H261mm | Weight: 3 kg
• Bobs MK-24 / MK-30 / MK-31 / MK-2015
• Installation cell CD75 / LD75 / CD50 / LD100 / CD25

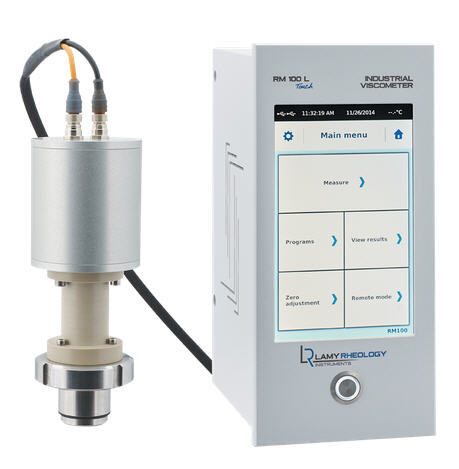

RM 100 L Touch
Viscometer on the production line
The RM 100 L TOUCH can be installed directly on your production lines; its magnetic coupling principle provides the perfect seal .
Specifications
Type of instrument: Rotating viscometer on the production line
Speed range : Unlimited number of speeds between 5 and 600 rpm
Torque Range : From 0.05 to 20 mNm
Temperature : An external PT 100 sensor can be connected to the RM 100 L TOUCH for readings between -20 °C
to 100°C (sensor not included)
Accuracy : +/- 1 % of the full scale
Repeatability: +/- 0,2 %
Viscosity Range : 1 - 500,000 mPa·s depending on the measuring geometry
Display : 7" Touch screen
Display Settings : Viscosity | Speed | Torque |
Time | Measuring geometry | Level of sensitivity | Temperature (if
sensor connected) | Date/ hour | Choice of viscosity units: cP or mPa·s |
Language: French/English
Security and Confidentiality : An "operator"
function allows you to enter a username for your instrument. This user
must then be identified using a 4-digit code. There is also a protected
mode that locks your measurement conditions.
Supply Voltage: 90-240 VAC 50/60 Hz
Analog Output : 4 – 20 mA | Torque range to be defined by user
PC Connections : RS232 Port and USB
Printer Connection : USB Host Port
Benefits for you : Carry out your rheological
curves continuously on your production line. No disassembly required
for the RM 100 L TOUCH during the cleaning phases of your production
lines
Dimensions and weight : Head: Diameter 85 mm Height 312 mm | Box: L120 x W145 x H261mm | Weight: 4 kg
