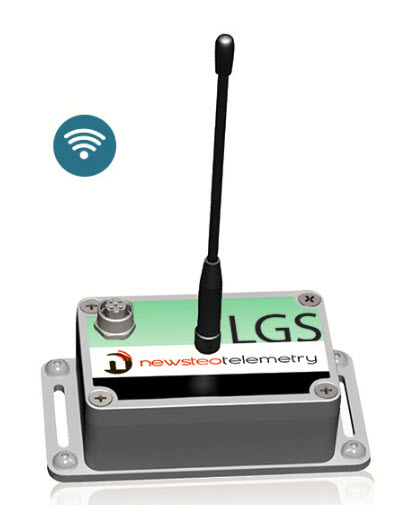

DATA LOGGER FOR VOLTAGE LEVEL SENSORS

Newsteo data loggers make it possible to transform any voltage level sensor into a wireless sensor
  • Voltage level: 0 … 10 V, 0 … 2.5 V, -50 mV … +50 mV
  • Long battery life
  • Data transmission on PC or in the Cloud

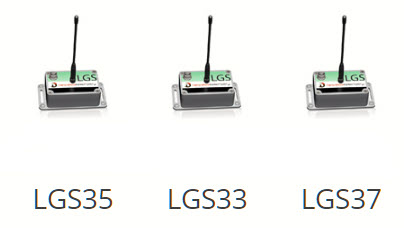

3 Models available :

The advantages of voltage level data loggers

  • SIMPLE AND FAST
    Quick and easy to install. You can move the data logger and the associated sensor at will.
  • DATA SECURITY
    All your measurements are stored in the recorder and then transmitted by radio to a PC or to the Newsteo Cloud
  • DISPLAY OF MEASUREMENTSS
    Display configurable on the Webmonitor software, conversion of voltage levels into value



                                                  LGS35                                  LGS335                                  LGS37
Ref :                                         221-PFPN-LGS35-001                  221-PFPN-LGS33-001          221-PFPN-LGS37-001

Range :                                                  0…10 V                                                     0… 2.5 V                                   -0.05 V à +0.05 V
Accuracy :                                       ± 0.008 V                                                   ± 0.008 V                                               ± 1.6 µV
Resolution :                                    0.0003 V                                                    0.0003 V                                               ± 1.6 µV
Operating temperature :                                                                           -40°C to +85°C
Temperature measurement :                                                         Integrated temperature sensor
Measurement frequency :                                         Can be set from one measure every second to one every 4 hours
Memory Capacity :                                                                    Up to 32 768 measurements with date and time
Measurement securisation :                                              Acknowledgment process between the transmitter and the receiver
                                                                                                                         to ensure that no data is lost during radio transmission
                                                                      Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

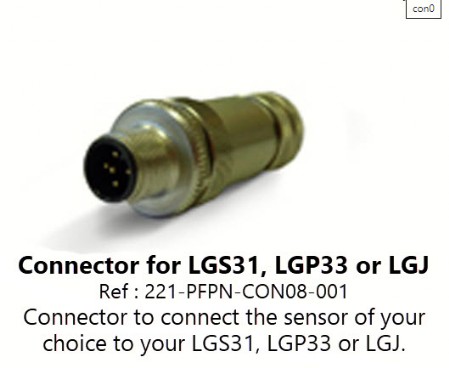

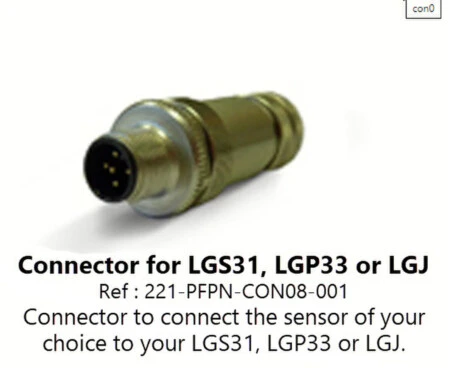

Sensor connection :                                                           Through connector available on the top of the logger
Radio range :                                                                           Up to 900 meters (with supplied antenna)
Autonomy :                                                                                                             3 years*
                                                                                           *Assessed at a measurement frequency of every 10 minutes, at 25°C.
                                                                                                        Average value which may vary according to use.
                                                                                                  Value given without switching to product alert mode.
