HiTemp140-M12 Data Logger

Coatings & Industry > Oven C° Monitoring

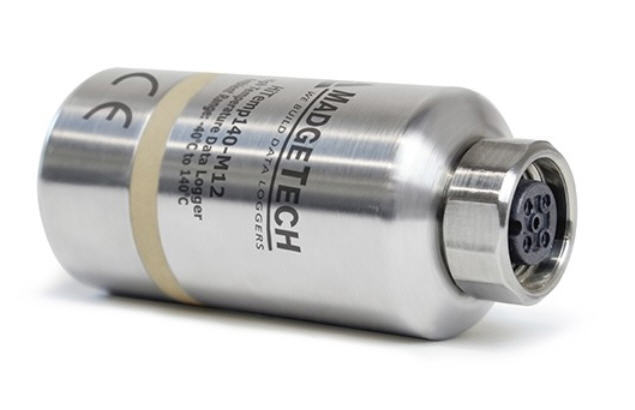

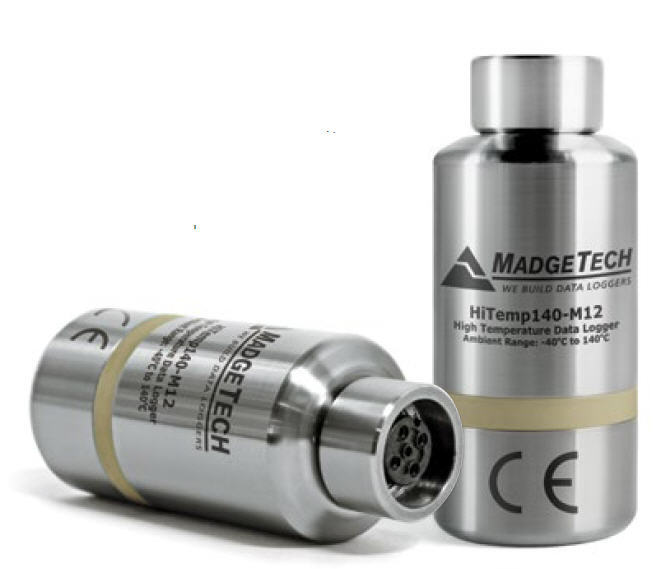

HiTemp140-M12

High Temperature Data Logger with an M12 Probe Connector

The HiTemp140-M12 features the same rugged stainless steel body as the other HiTemp140 data loggers in the series, but offers interchangeable probe options using an M12 type connector.
The M12 connectivity makes this versatile data logger compatible with the large variety of M12 RTD probes available today.

The HiTemp140-M12 is capable of measuring and recording temperatures from -200 °C to +850 °C  (probe dependent).

All of MadgeTech’s HiTemp140  data loggers have a water tight body enclosure made of food grade  stainless steel and can be placed in environments with temperatures as  high as 140 °C. The operating range of the data logger body can  be extended to higher temperatures when used with MadgeTech’s thermal  barrier options and suitable probe.

The HiTemp140-M12 records and  stores up to 43,690 time stamped readings and is equipped with  non-volatile solid state memory which retains data even if the battery  becomes discharged.

A wide selection of compatible M12 probes  are available on the market to choose from, making the HiTemp140-M12 the  most dynamic data logger of its kind. With the ability to change probes  as needed, this device satisfies a multitude of application needs with  one powerful data logger versus the need for multiple loggers.

Note: Calibration Certificate standard calibration is two points at 50 Ω and 150 Ω and is verified at 100 Ω.
TEMPERATURE
Temperature Sensor :            Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution :      0.0001 Ω, 0.01 °C  (Probe Dependent)
Temperature Calibrated Accuracy :  ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
                       Calibrated Accuracy Range:
         *18 Ω to 200 Ω,  -200 °C to +265 °C
          *Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range.
Probe Temperature Range :       18 Ω to 400 Ω, -200 °C to +850 °C  (Probe Dependent)
GENERAL
Memory :          43,690 readings
Reading Rate :         4 readings per second up to 1 reading every 24 hours
Baud Rate :      125,000
Battery Life :    2 years typical (1 minute reading rate at +25 °C / +77 °F)
                          User Replaceable Battery
Material :           316 Stainless Steel
Dimensions :     54.5 mm x 24.6 mm x 24.6 mm
IP Rating :        IP40 - logger alone (with no probe connected)
                          The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K).
Submersible :    Yes (with probe attached)
Operating Environment : -40 °C to +140 °C
                                           0 %RH to 100 %RH non-condensing,
                                           0.002 PSIA to 60 PSIA
Required Interface Package : IFC400 or IFC406
Approvals :                       CE
PROBES

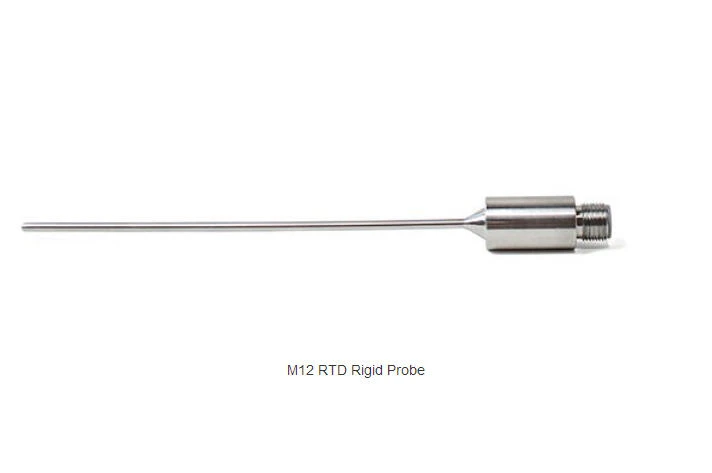

M12 RTD Rigid Probe
100 Ω platinum RTD probe with M12 connector.

RTD-6-1/8-1/2NPT-M12 Probe
100 Ω platinum RTD probe with NPT mounting thread and M12 connector.

M12 CIP Probe
3-A approved 100 Ω platinum RTD probe with clean-in-place (CIP) design and M12 connector.

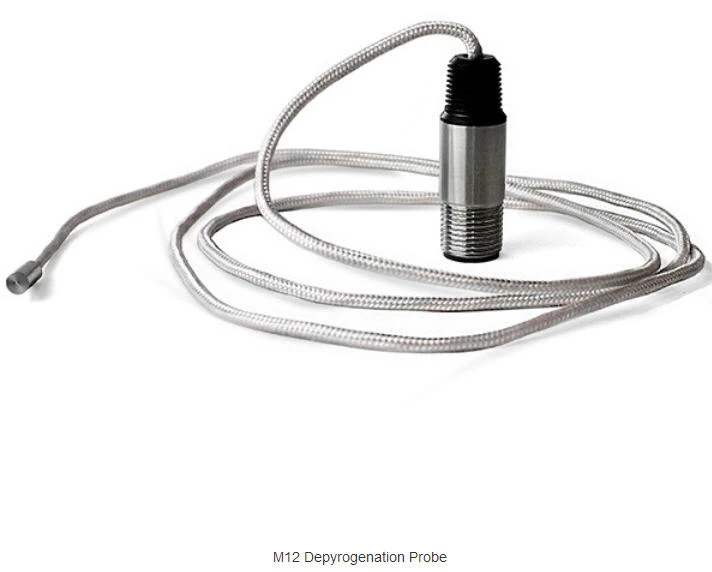

M12 Depyrogenation Probe
36 " High Temperature, Dry Heat, Flexible Probe with M12 connector.

M12 CIP Thermowell Probe
3-A approved 100 Ω platinum RTD probe with clean-in-place (CIP) design and M12 connector.

M12 Flexible Probe
36" High Temperature, Flexible Probe with M12 connector.

MicroDisc Surface Temperature Probe Attachment
Surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP and M12


Accessories

ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.

HiTemp140-O-Ring
One Set of Replacement O-Rings for the HiTemp140.

MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.

Key Ring End Cap
This is an optional "Key Ring" end cap for use with the PR140, RHTemp1000 or HiTemp140 series data loggers.

MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

IFC400 Data Logger Interface
Interface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.

IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.

M12 PROBES :

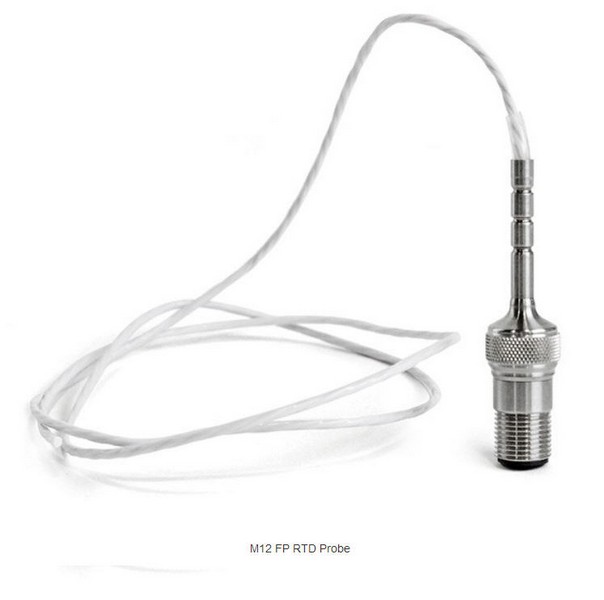

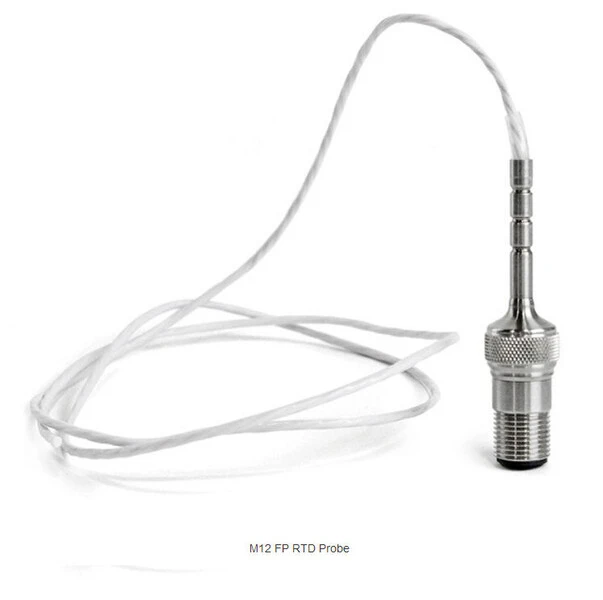

M 12 Flexible Probe
High Temperature, Flexible Probe with M12 connector.

Probe Type : Flexible RTD Probe
Temperature Range : -60 °C to 260 °C
Material : Stainless Steel, PFA, Polyamide 6-6 GF
Probe Length : 76.2 mm
Probe Diameter : 2.18 mm
Weight : 26 g
IP Rating : IP67
M12 Depyrogenation Probe
High Temperature, Dry Heat, Flexible Probe with M12 connector.

Probe Type : Flexible RTD Probe with Flat Tip
Temperature Range : -50 °C to 450 °C
Material : Stainless Steel, Fiberglass, PEEK
Probe Length : 76.2 mm
Probe Diameter : 2.54 mm
Weight : 29,77 gr.
IP Rating : Not rated, intended for use in dry applications only

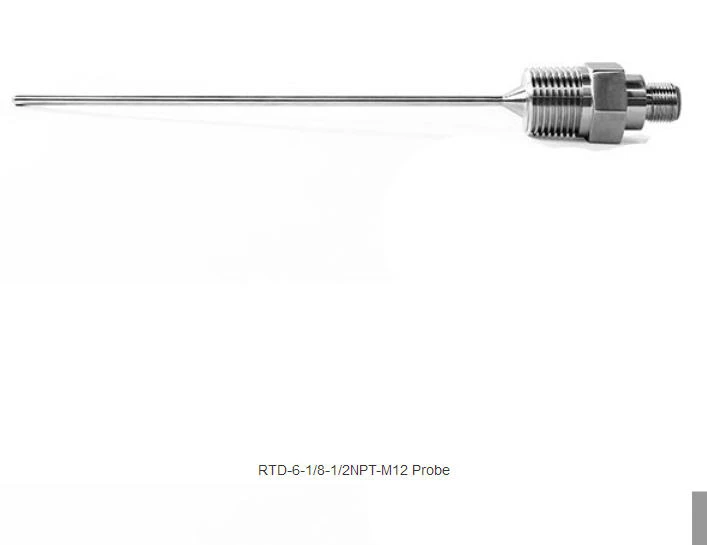

RTD-6-1/8-1/2NPT-M12 Probe
100 Ω platinum RTD probe with NPT mounting thread and M12 connector.

Probe Type : Platinum RTD Probe
Temperature Range :-50 °C to 250 °C
Material : Platinum and Stainless Steel
Probe Length : 152.4 mm
Probe Diameter : 3.2 mm
NPT Length : 12.7 mm
Weight : 5.67 gr.
M12 RTD
100 Ω platinum RTD probe with M12 connector.

Probe Type : Platinum RTD Probe
Temperature Range : -50 °C to 250 °C
Material : Platinum and Stainless Steel
Length : 152.4 mm
Diameter : 3.2 mm
Weight : 45.36 gr.

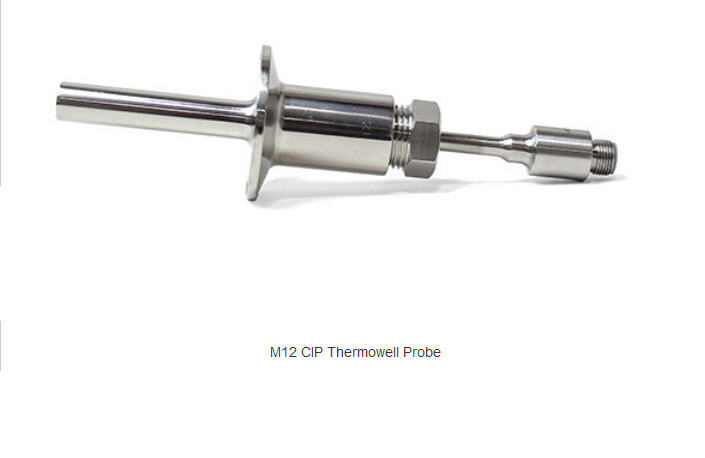

M12 CIP Thermowell Probe

This RTD probe is designed for clean-in-place (CIP) sanitary applications where sensor corrosion and product contamination are critical factors. This rugged probe is spring loaded and equipped with an M12 connector, compatible with the MadgeTech HiTemp140-M12 data logger (sold separately).
The 100 Ohm platinum sensor offers the fast response time needed for CIP applications. The M12 connectivity provides device flexibility and expanded application use. The M12 CIP Thermowell Probe meets the 3-A Sanitary Standard for design and fabrication. This probe is well suited for sanitary applications in food, dairy and pharmaceutical processes.

Probe Type :  Platinum RTD Probe
Temperature Range : -50 °C to 200 °C
Material : Platinum and Stainless Steel
Insertion Length : 63.5 mm
Probe Diameter : 12.7 mm
Weight : 340 gr.
Surface Temperature Measurement

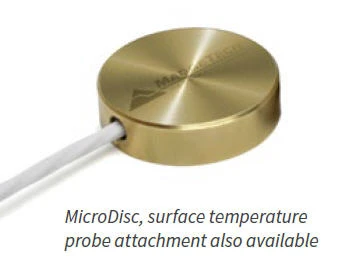

For surface temperature measurement, you can use the HiTemp 140-M12 and the M12 RTD FLEXIBLE PROBE connected to the MicroDisc  Surface  temperature probe attachment.
Thermal Shield
For Extended High Temperature Monitoring

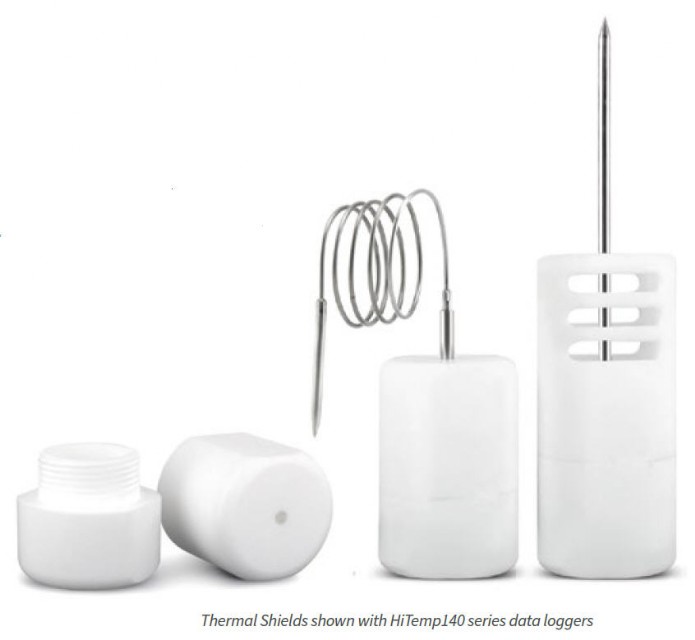

For applications above 140 °C, a thermal shield is available for most models of the HiTemp140 and HiTemp140-PT series data loggers. The thermal shield extends the operating temperature of the data logger, allowing it to be exposed to higher temperatures for a longer amount of time.
Flush and vented models are available to help provide probe protection.

ThermoVault Max Extreme Temperature Thermal Barrier
Submersible, Stainless Steel, Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.

The ThermoVault Max is an extreme, high temperature thermal barrier  designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and  HiTemp140-PT data logger models. This durable enclosure is made from  stainless steel with PTFE insulation. The ThermoVault Max barrier can  withstand temperatures up to +400 °C in dry heat applications and +250  °C for wet applications when used with the TMAX Wet Seal Kit (sold separately).

With unparalleled time versus temperature performance, the ThermoVault  Max provides a best-in-class solution for the harshest of applications.  Designed to endure extreme temperature monitoring environments such as  furnace profiling, geothermal down-hole recording, dry heat  sterilization and oven data logging.

MadgeTech also offers a turnkey Dry Heat Sterilization System including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.

The ThermoVault Max is built for use in harsh applications that require  extreme temperature monitoring, such as depyrogenation, food processing,  oven monitoring, geothermal down-hole recording, and furnace profiling.


Time vs. Temperature Chart part 1
Ambient Temperature    Maximum Exposure Time (air)  Maximum Exposure Time (Liquid)
-200 °C                               128 minutes                                   n/a
-180 °C                               137 minutes                                   n/a
-160 °C                               148 minutes                                   n/a
-140 °C                               163 minutes                                   n/a
-120 °C                                183 minutes                                  n/a
-100 °C                                213 minutes                                  n/a
-80 °C                                  263 minutes                                  n/a
-60 °C                                  368 minutes                                  319 minutes
-40 °C to +140 °C                 Indefinitely                                   Indefinitely
150 °C                                 601 minutes                                  542 minutes
160 °C                                 468 minutes                                  414 minutes
170 °C                                 396 minutes                                  345 minutes
180 °C                                 348 minutes                                  300 minutes
190 °C                                 313 minutes                                  266 minutes
200 °C                                 286 minutes                                  241 minutes
Time vs. Temperature Chart part 2
Ambient Temperature    Maximum Exposure Time (air)  Maximum Exposure Time (Liquid)
210 °C                               265 minutes                                    221 minutes
220 °C                               247 minutes                                    204 minutes
230 °C                               233 minutes                                    190 minutes
240 °C                               220 minutes                                    178 minutes
250 °C                               209 minutes                                    168 minutes
260 °C                               200 minutes                                    n/a
270 °C                               192 minutes                                    n/a
280 °C                               184 minutes                                    n/a
290 °C                               178 minutes                                    n/a
300 °C                               172 minutes                                    n/a
310 °C                               166 minutes                                    n/a
320 °C                               161 minutes                                    n/a
330 °C                               157 minutes                                    n/a
340 °C                               153 minutes                                    n/a
350 °C - 400 °C                  60 minutes                                      n/a


SPECIFICATIONS :

PRESSURE
Pressure Range :    Max Sustainable Pressure: 60 PSIA

GENERAL
Material :                316 Stainless Steel, PTFE, Silicone
Dimensions :           44.45 mm OD x 243.8 mm L
IP Rating :              IP68 rating may be obtained with seal kit installed from -60 ºC to 250 ºC.
                             Rapid temperature fluctations may cause ingress.

Compatible Data Loggers:
• HiTemp140-PT Data Logger
• HiTemp140-FP Data Logger
• HiTemp140-M12 Data Logger
Accessories

TMAX Wet Seal Kit

The TMAX Wet Seal Kit is used with the ThermoVault Max, extreme, high temperature thermal barrier for wet application to withstand temperatures up to 250 °C.

The TMAX Wet Seal Kit Includes:
• Fitting Body
• Nut
• Ferrules: Teflon (5), Stainless Steel (1)
• O-Ring

Compatible Data Loggers:
• HiTemp140-FP
• HiTemp140-PT
