EL-IOT-CO2 Specifications Easy to set up CO2 CALIBRATION
Need to Monitor Air Quality?

Now available, the cloud-connected EL-IOT-CO2 continuously monitors air quality and comfort levels, including temperature, humidity and CO2, a key indicator of adequate ventilation.
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     Giving you the real-time data you need to take informed action to improve air quality, EL-IOT-CO2 is perfect for a wide range of applications in public, educational, healthcare, commercial and industrial facilities.
  • Measures:
    • Temperature
    • Humidity
    • Carbon Dioxide (CO2)
  • Wi-Fi connected
  • Automatically uploads data to the EasyLog Cloud
  • Displays current, maximum and minimum readings
  • Status indicator and sounder
  • Set up real-time alarms and remote notifications by email or SMS
  • CO2 sensor automatically self-calibrates
  • Monitors temperature, humidity, and CO2
  • Automatically uploads data to the EasyLog Cloud
  • LCD display shows current, maximum and minimum readings
  • Customisable alarm limits
  • Typical battery life of six months or can be mains powered
              CO2 Measurement
              Range 0 to 40,000ppm
              Accuracy 400 to 2,000 ppm ±(50 ppm +5% of reading)
              Resolution 1ppm
              Auto-calibration Yes
              Units ppm

              Temperature Measurement
              Range -20 to +60°C (-4 to +140°F)
              Accuracy ±0.3°C (±0.54°F) typical
              Resolution 0.1°
              Units °C or °F

              Relative Humidity Measurement
              Range 0 to 100%RH
              Accuracy ±2% typical
              Resolution 0.1%
              Dew Point Accuracy* 1.5°C typical (40 to 100%RH)
              Data Logging Rate 10 seconds to 12 hours (user selectable)
              Transmission Interval 1 minute to 24 hours (user selectable)
              Internal Memory 300,000 readings
              Dimensions 97 x 87 x 33mm

              Operating Temperature
              Battery Power -18 to +55°C (0 to +131°F)
              USB Power -20 to +60°C (-4 to +140°F)
              Environmental Rating IP4X
              The EL-IOT-CO2 continuously monitors air quality and comfort levels, including CO2 , a key indicator of adequate ventilation.
              It automatically uploads data to the EasyLog Cloud, allowing your complete set of data measurements to be viewed, analysed and downloaded from any internet-enabled device.

              It takes only a few minutes to set up your EL-IOT-CO2, and you can configure your own high and low alarms for each measured parameter.
              If one of your set levels is breached an instant alarm is activated on the device, and notification options include email and SMS messages to your chosen contacts.

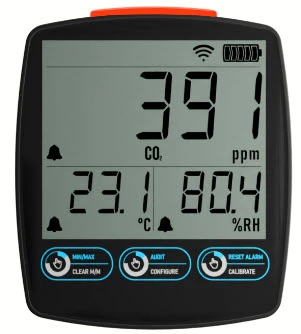

              The display shows current, maximum and minimum readings for carbon dioxide, temperature and humidity, as well as alarm and device status.

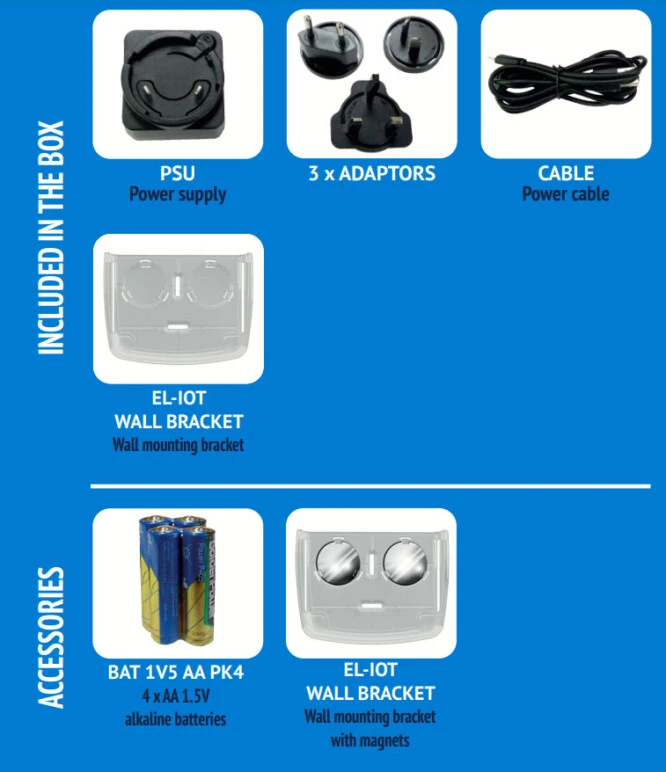

              The EL-IOT-CO2 runs from a USB power supply (supplied with the product) and can use AA batteries to provide a short-term backup if the power supply is interrupted.
              It is also provided with a wall mountable bracket for easy installation.
              CO2 CALIBRATION

              To maintain the accuracy of your EL-IOT-CO2, there are two calibration features on the device.

              Automatic self-calibration ensures the long-term stability without the need for any manual action from the user.
              This method of calibration assumes that the sensor is exposed to atmospheric CO2 concentrations of ~400ppm at least once per week.

              Manual recalibration can be carried out to restore the accuracy of the CO2 reading immediately; expose the device to fresh air by placing it outside or next to an open window. Press the CALIBRATE button to start the process and the display will change to show you it is under way.
              After a few minutes the process will finish and the display will resume showing the current readings.
              If there are any issues during the process, a warning screen will inform you.
              Ensure the supply of fresh air is adequate and try again.
              If your EL-IOT-CO2 ever needs you to carry out a manual calibration, it will prompt you to do so.
