Scout STX Advantages

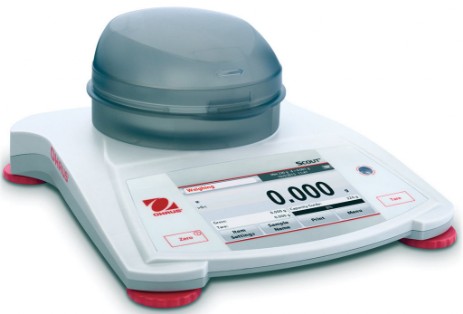

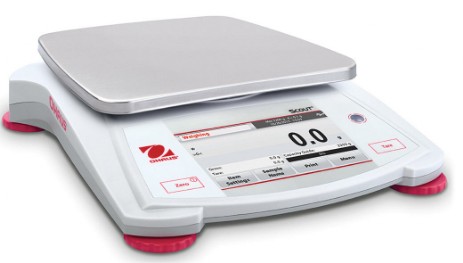

Portable Balances Scout^® STX

Setting New Standards in Laboratory & Industrial Weighing - The Next Generation of Scout Balances

Ideal for laboratory & industrial applications, the OHAUS Scout features an easy to navigate color touchscreen display & a slim design which allows stackable storage.

Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications.

Features also include superior overload protection and expanded connectivity options.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing

Display

4.3" (109mm) full-color VGA graphic touchscreen display with user-controlled brightness

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory)

Construction

ABS housing, stainless steel pan, ABS draftshield (1mg models only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator

Design Features

Stability indicator, stackable design with included storage cover (excluding 1mg models), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity

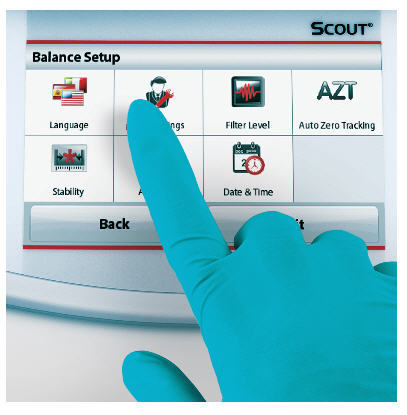

Large, resilient color touchscreen allows for effortless operation of the Scout through its informative icon driven menu structure, guiding the user through every step of the weighing application.

Stabilization time as fast as 1 sec means increased productivity in your facility.

Equipped with advanced weighing technology, the Scout also ensures repeatable and reliable weighing results.

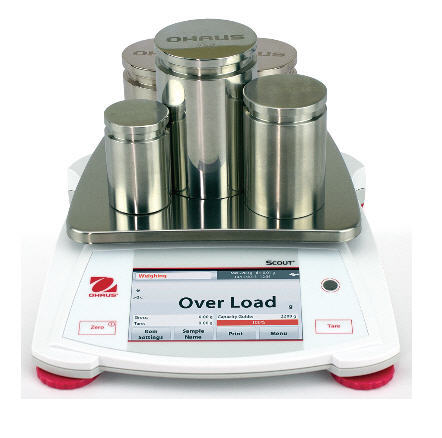

Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments.

The space-saving, slim design allows for stackable storage.

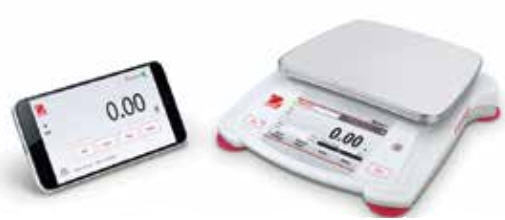

Expanded Connectivity Options for Versatile Data Collection and Transfer

Scout offers 9 application modes which address even the most complex of weighing applications.

Users also have the option of operating the balance in their own language.

9 language options are available—English, Spanish, German, Italian, French, Polish, Hungarian, Czech and Turkish.

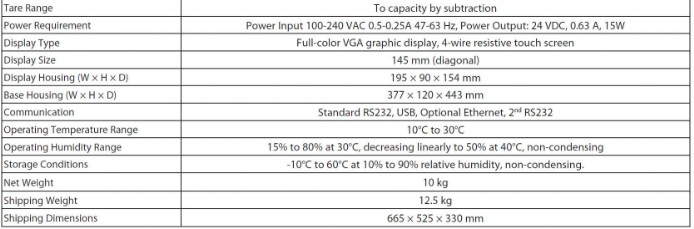

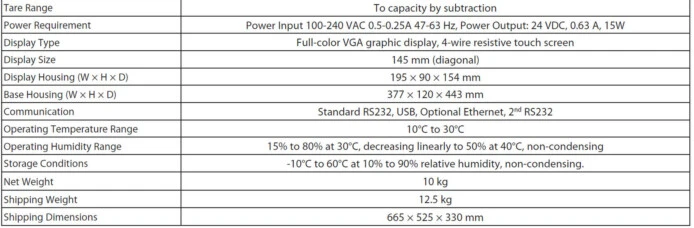

Specifications Description Compliance

Precision Balances

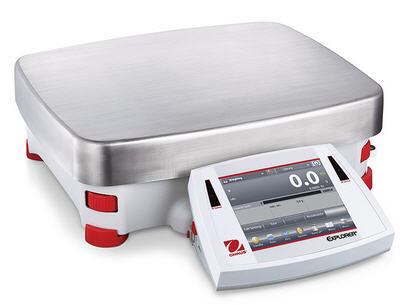

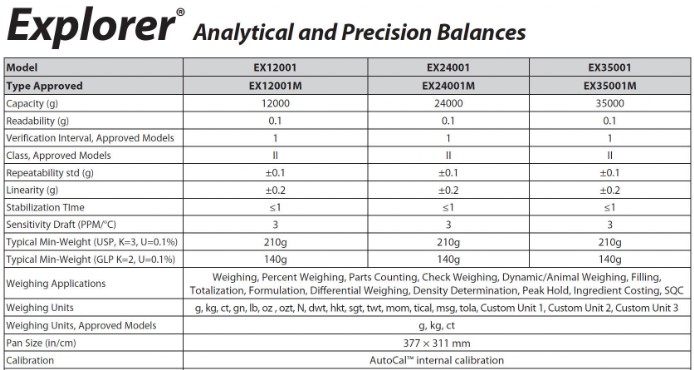

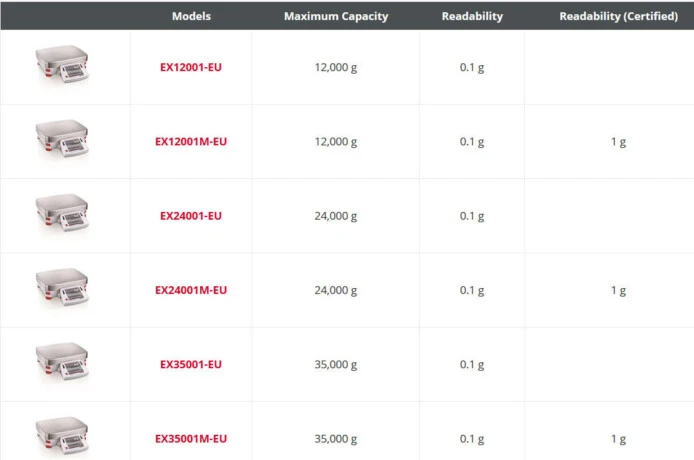

Explorer® Precision High Capacity

Intelligent Performance No Matter How Difficult the Task!

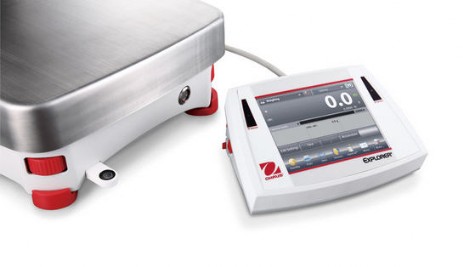

OHAUS Explorer High Capacity balances provide unmatched functionality in a line of high-performance, high-capacity balances unlike any other on the market!

This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics

Display

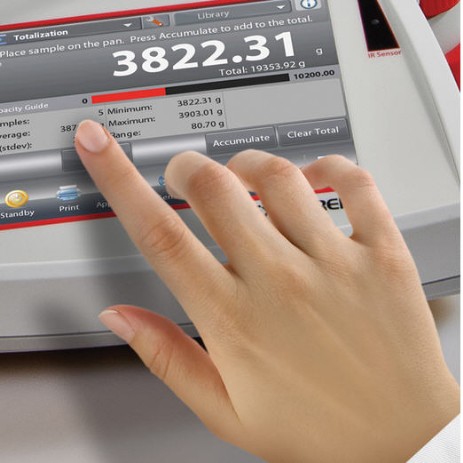

5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness

Operation

AC Adapter (included) or rechargeable battery (accessory sold separately)

Communication

RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.

Compliance

• Metrology: EC, OIML, NTEP, Measurement Canada (Class I, 320000e; Class II, 42000e)

• Product Safety: IEC/EN 61010-1:2001; CAN/CSA-C22.2 No. 61010-1-04; UL Std. No. 61010-1 (2nd Edition)

• Electromagnetic Compatibility: EN61326-1:2006 (Class B); C-Tick; FCC, Part 15, Class A ; ICES-003

• Environment: RoHS; WEEE

Construction

Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover

Design

Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan
