Process & Quality Control

Magnifier lamps

Laboratory Product > Magnifiers & Microscopes
2033 2033-90 2033-100 2033-115

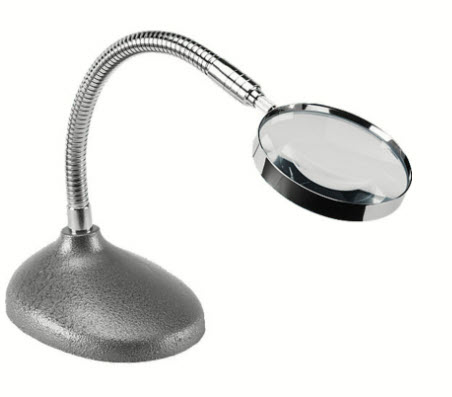

PEAK working magnifiers 2x magnification with round lens

Order number: 233-2033

The classic shape of the working magnifier with a good glass lens in three diameters.
The heavy base provides a secure hold at all angles

This classic work magnifier with good glass lens is available in three diameters.
The heavy base offers stability at all angles.
The lens can be turned infinitely to the required position in the flexible extension arm.
Series 2033 work magnifiers are available with lens diameters of 90, 100 or 115 mm

Cardboard box Included
PEAK Working Magnifier 2033-90

  • Magnification 2,2x
  • Lens size 90 mm
  • Optics Biconvex
  • Length of arm 330 mm
  • Diameter of stand 145 x 120 mm
  • Weight 1,427 grams
  • Cardboard box Included

PEAK working magnifier 2033-100

  • Magnification 2x
  • Lens size 100 mm
  • Optics Biconvex
  • Length of arm 330 mm
  • Diameter of stand 145 x 120 mm
  • Weight 1,484 grams
  • Cardboard box Included

PEAK working magnifier 2033-115

  • Magnification 1.7x
  • Lens size 115 mm
  • Optics Biconvex
  • Length of arm 330 mm
  • Diameter of stand 145 x 120 mm
  • Weight 1,700 grams
  • Cardboard box Included
2043 Specifications

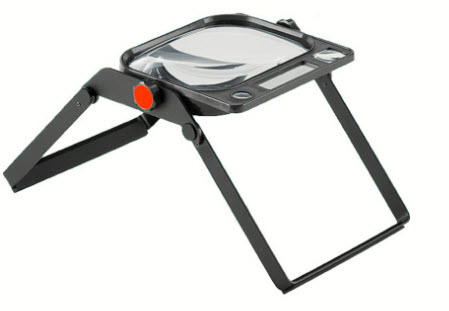

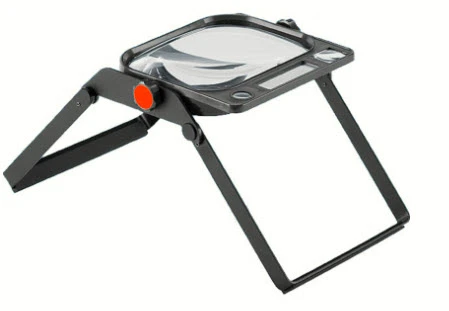

PEAK Working magnifier 2x with additional lenses 5x and 10x
Order number: 233-2043

Peak table magnifier rectangular with biconvex plastic lens. Foldable large field magnifier
with dimensions 103 x 139 mm and two additional integrated magnifications

Practical and simple-to-use working magnifier with four lenses.
The main lens, produced of acrylic resin with hard silicon coating, offers very clear and bright images.
The two auxiliary lenses with magnification factors of 5x and 10x as well as a cylindrical lens can be used in
addition when a higher magnification factor is required.
Two folding legs allow precise adjustment of the distance.
When folded together the magnifier has dimensions of only 180 x 180 x 39 mm.
The lens is supplied with a plastic cover.

PEAK Working Magnifier 2053
  • Magnification 2x
  • Additional lenses 5x and 10x
  • Lens sizes 139 x 103 mm
  • 15 mm (10x)
  • 20 X 25 mm (5x)
  • Optics Biconvex plastic lens,
  • Hard coated
  • Dimensions 180 x 295 x 145 mm
  • Weight 456 gram
  • Cardboard box included
Magnifier 2057 2057-35 2057-55 2057-75

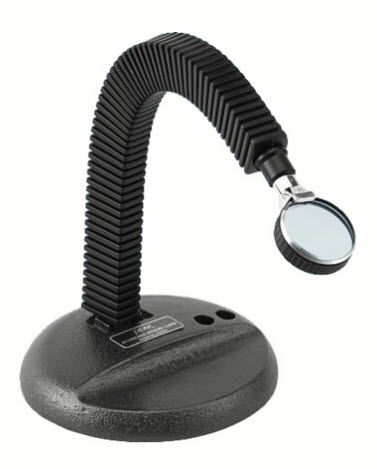

PEAK Stand Magnifier 2057

The three round achromatic PEAK working magnifiers have new achromatic optics consisting of two lenses cemented together made of optically pure white glass

Order number: 233-2057

Absolutely perfect lenses:
All three round, achromatic PEAK work magnifiers have new achromatic optical systems, consisting of two, optically pure white glass lenses
cemented to one another.
Available with different three diameters and enlargement factors, these colour-corrected lenses are distinguished
by their excellent correction factor, completely eliminating unsharp lines over the entire image field.
The extension arm can be adjusted as required in all directions and the heavy base keeps the magnifier from tipping over even in complex positions.
The solid lens frames make these achromatic working magnifiers a valuable aid in every respect.
Provides valuable help for assembly, testing or restoration work. Lenses coated on both sides to prevent reflection.

PEAK Working Magnifier 233-2057-35

  • Magnification 4x
  • Lens size 35 mm
  • Optics Achromat, distortion-free
  • Length of arm 330 mm
  • Diameter of stand 140 mm
  • Weight 1,290 grams
  • Cardboard box included

PEAK working magnifier 233- 2057-55

  • Magnification 3x
  • Lens size 55 mm
  • Optics Achromat, distortion-free
  • Length of arm 330 mm
  • Diameter of stand 140 mm
  • Weight 1,340 grams
  • Cardboard box included

PEAK working magnifier 233-2057-75
  • Magnification 2x
  • Lens size 75 mm
  • Optics Achromat, distortion-free
  • Length of arm 330 mm
  • Diameter of stand 140 mm
  • Weight 1.500 gram
  • Cardboard box included
2041 Specifications

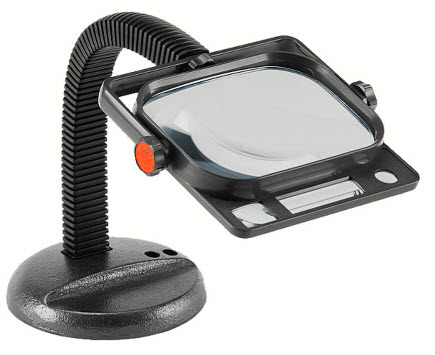

PEAK Working Magnifier 2x with additional lenses 5x and 10x and stand

Order number: 233-2041

Peak table magnifier rectangular with biconvex plastic lens.
Large field magnifier with dimensions 103 x 139 mm and two additional integrated magnifications and stand

Practical and simple-to-use working magnifier with four lenses.
The main lens, produced of acrylic resin with hard silicon coating, offers very clear and bright images.
The two auxiliary lenses with magnification factors of 5x and 10x as well as a cylindrical lens can be used in addition when a
higher magnification factor is required.
Instead of two folding legs the 2041 version is supplied with a cast aluminium base to ensure stability from all angles.
The columns can be bent as required to obtain the optimum distance.
PEAK Working Magnifier 2041
  • Magnification 2x
  • Additional lenses 5x and 10x
  • Lens sizes 139 x 103 mm
  • 15 mm (10x)
  • 20 X 25 mm (5x)
  • Optics Biconvex plastic lens
  • Length of arm 330 mm
  • Diameter of stand 140 mm
  • Weight 1.500 gram
  • Cardboard box included
TEVISIO Specifications 1 Specifications 2

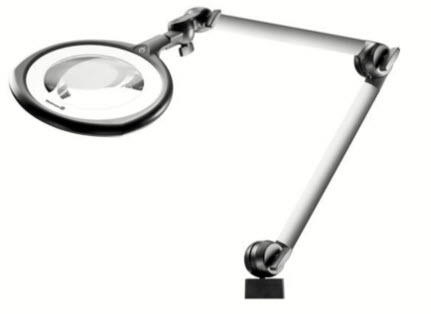

TEVISIO Magnifier luminaire RLLQ 48/2 R from Waldmann

Order number: 233-RLLQ 48/2 R


TEVISIO magnifier luminaire RLLQ 48/2 R with :
  • Visualizer, lens: 3.5 diopters,
  • boom length A = 484 mm / B = 500 mm
  • the perfect magnifier luminaire from Waldmann
The LED magnifier luminaire from Waldmann is characterised by absolute top quality in terms of illumination,
optics and workmanship.
Not many words need to be lost here, so here are just the technical data and facts about this high-tech product:
  •  3.5 dpt for almost 2x magnification
  •    Delivery includes table clamp for panel thickness up to 65 mm
  •    Over 40 % energy saving with the same high light output as conventional magnifier luminaires
  •    Maintenance-free operation without downtime
  •    Highly developed, LED-based lighting technology
  •    Average illuminance (Em) approx. 4,002 lx - 20 cm distance
  •    Average illuminance (Em) approx. 4,002 lx - 20 cm distance
  •    Average illuminance (Em) approx. 4,002 lx - 20 cm distance
  •    Average illuminance (Em) approx. 4,002 lx - 20 cm distance
  •    Maximum illuminance (Emax) approx. 6,141 lx - 20 cm distance
  •    Power consumption approx. 14 W
  •    LED service life (L70) of up to 50,000 operating hours and more
  •    Relief for the eyes - improved work results
  •    Very good colour recognition and the amount of light is adjustable to the visual task
  •    48 LEDs and advanced reflector technology
  •    Colour temperature 4,000 K - colour rendering index Ra = 90 (colour rendering level 1A)
  •    Stepless dimming from 100 to 10%
  •   Detection of smallest defects, e.g. cracks, or finest differences in surface structure
  •   Biconvex loupe Ø 160 mm (field of view Ø 153 mm) with a quasi distortion-free loupe core of Ø 120 mm, optimised to pupil distance

      •   Long life - magnifier made of glass (only glass is scratch-resistant like glass)
      •    Visible metal parts made of anodised aluminium
      •    NON-metal parts made of high-performance plastic GRIVORY® GVX
      •    One-time adjustment of the joints, no readjustment required for a long time afterwards
      •    Adjustable with little effort - exact adjustment of the luminaire head in any position
      •    Mounting at different heights possible thanks to very good mobility of the arm as well as mounting with a table clamp (accessory) possible
      •    New, finely adjustable boom rigidity and intelligent, position-dependent spring relief of the boom
      •    Spring-relieved 3D head joint, middle and foot joint with very large movement radius
      •    Boom versions with 484 and 500 mm - the switch is always in the field of vision
      •    The light functions (on-off / dimming) can be operated intuitively with only one switch
      •    Membrane switch with several functions
      •    Simple actuation to switch on the luminaire (status indicated by illuminated LED)
      •    Easy cleaning - Ergonomic operation
      •    Very slim luminaire head (only ~ 21 mm) as well as flat and closed surfaces without dirt corners
      •    Membrane switch visibly integrated in luminaire head and moulded grip areas for ergonomic operation
      •    Large radius of movement, pronounced flexibility and high functionality (handling) thanks to the patented Waldmann rod system
      •    Long LED service life, switchable segments, low energy consumption and high light quality are evidence of outstanding lighting technology
      •    Optics - Excellent magnification with outstanding illumination support the inspection process

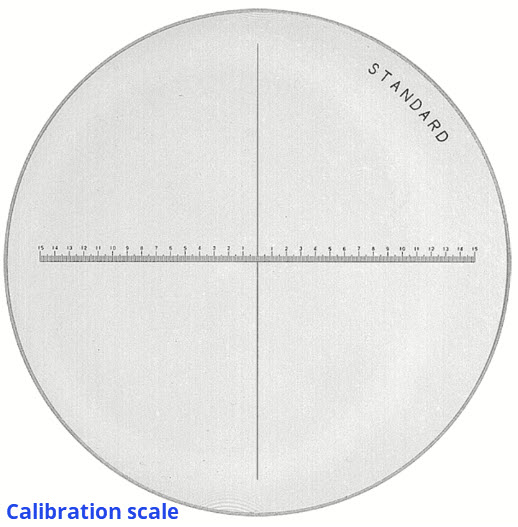

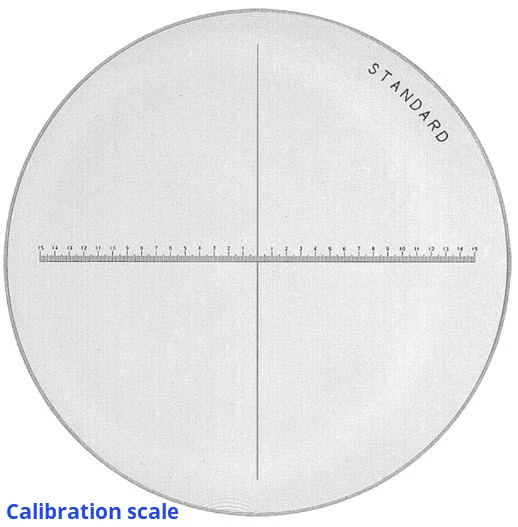

      Calibration scale with DAkkS protocol
      Calibration scale with 0.1 mm graduation and DAkkS protocol, measuring length 30 mm

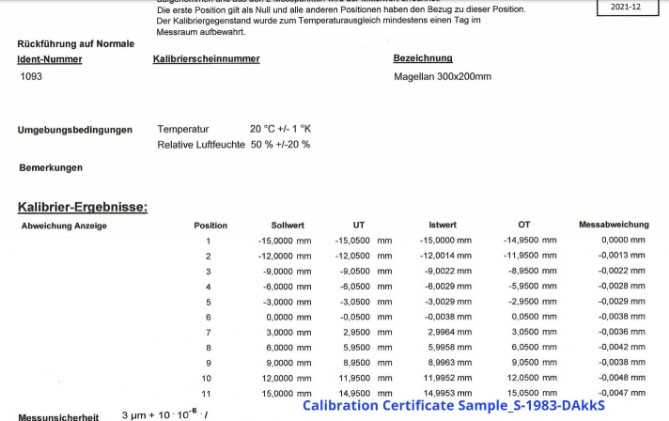

      If you would like to order a calibration device for the internal creation of a calibration certificate, we can offer you two models:

      1 Calibration disc 0.01 mm - graduation 100µm - total length 30 mm
      - Order. No. 233-S-1983-DAkkS
      - dimensions 35 x 1.28 mm
      - Delivery time: approx. 3 - 4 weeks after order

      1 Calibration disc 0.01 mm - graduation 10µm - total length 2 mm
      - Order. No. 233-S-1983-001-DAkkS
      - dimensions 35 x 1.28 mm
      - Delivery time: approx. 3 - 4 weeks after order
