Process & Quality Control

Accessories

Laboratory Product > Glass Thermometer
Stands Components

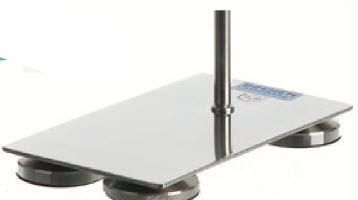

Standbases Din 12892
Standbases made of 18/10 Steel  (feet with non-slip rubber covering)
3 fixed feet, 1 adjustable foot, hole withe thread M 10
Ref.                                           L          W        H     Weight
                                                   mm    mm   mm   kg
162-31 5 05000              210     130    3       1.6
162-31 5 05001              250     160    3       1.9
162-31 5 05002              300     150    3        2.0
162-31 5 05003              315     200    3        2.4

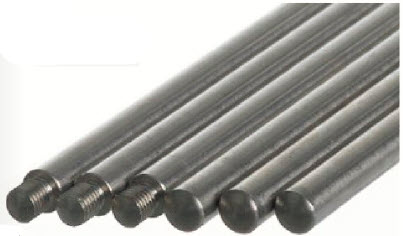

Frame Rods for Standbases

With thread             Length        Diameter
M10                              mm               mm

162-3105 0510           500                 12
162-3105 0511           600                 12
162-3105 0512           750                 12
162-3105 0513          1000               12
162-3105 0516          1000               16
162-3105 0514           1250              12
162-3105 0517           1250              16
162-3105 0515           1500               12
162-3105 0518           1500               12

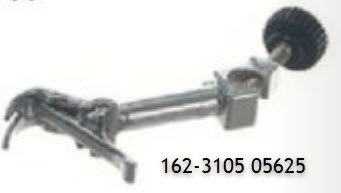

Burette & Thermometer clamp "Automatic" with bosshead (13,5 mm)

Ref                                  Material                Shaft diam        Clamp width mm       Angle °

162-3105 05625        Chromium-plated      13,5                                0-25                              90

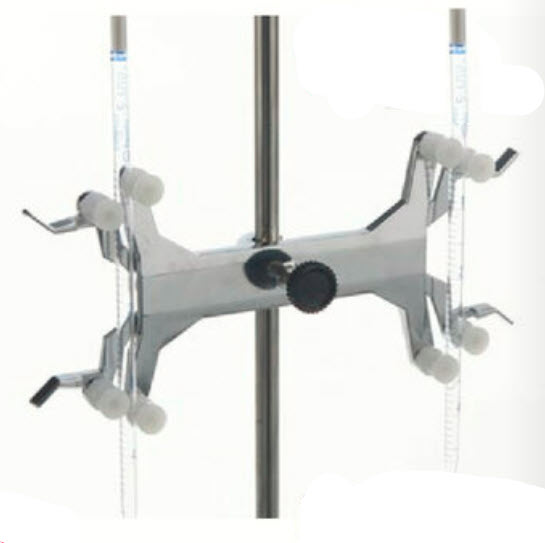

Burette & Thermometer Clamps

Burette clamps made of aluminium two sided, with roller type fastener and clamp holder for rods up to 13 mm diameter, clamping range : 0 to 25 mm.
Roller spacing 170 mm, rollers made of PVC.

Ref  :  162-3105 05600
Designation : burette & thermometer holder

supplied without illustrateld accessories

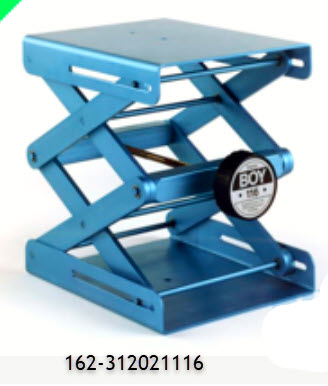

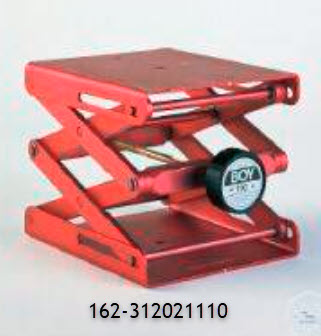

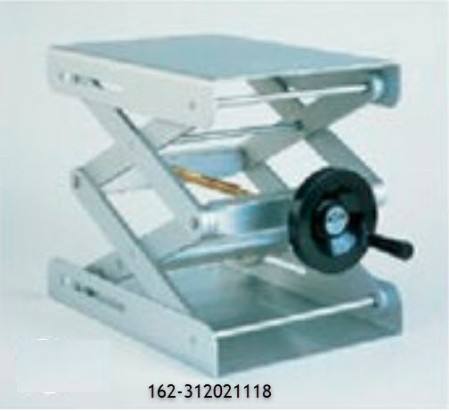

Ja cks BOY
Boy is an adjustable-height table for supporting oil baths, heating plates, electrical instruments, Dewars jars, etc, at the desired height without having to be locked in place.
A scissors-type mechanism, is used to adjust the height.
Manual operation using a rotary knob or motor assist (optional).
Boy can simply be placed on a tabletop or can be mounted on a stand up to 16 mm diameter, using additional stand plates.
It is made of anodized light alloy and is corrosion resistant.

Ref.                                Type                                    Platform size       Stroke        Load capacity
                                                                                       mm                             mm                       kg

162-312021110   Jack BOY type 110      120x140              60-243                30
162-312021116   Jack BOY type 116      180x216              95-398                60
162-312021118    Jack BOY type 118     240x320              120-500             70

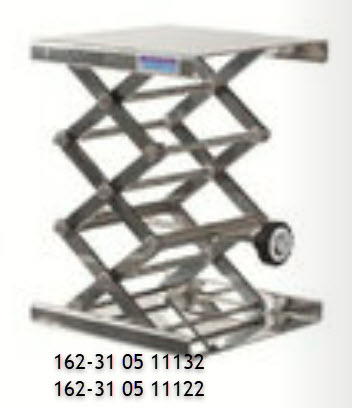

Jacks MAXI
Adjustable-height table for supporting oil baths, heating plates, electrical instruments, Dewars jars, etc, at the desired height without having to be locked in place.
Made of 18/10 steel, with setting wheel.
Scissors construction
Plus : 30% more height

Ref.                                Type                                    Platform size       Stroke        Load capacity
                                                                                      mm                             mm                        kg

162-310511132   Jack MAXI                     160x130                  75-400                30
162-310511122   Jack MAXI                     200x200                  75-400                30
