RF CO2 RH Temp2000A
Temperature > CO2 Monitoring

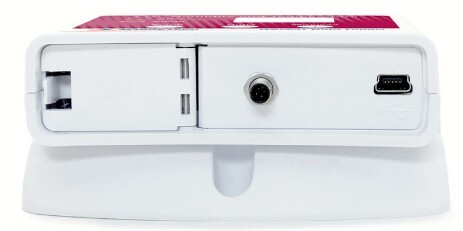

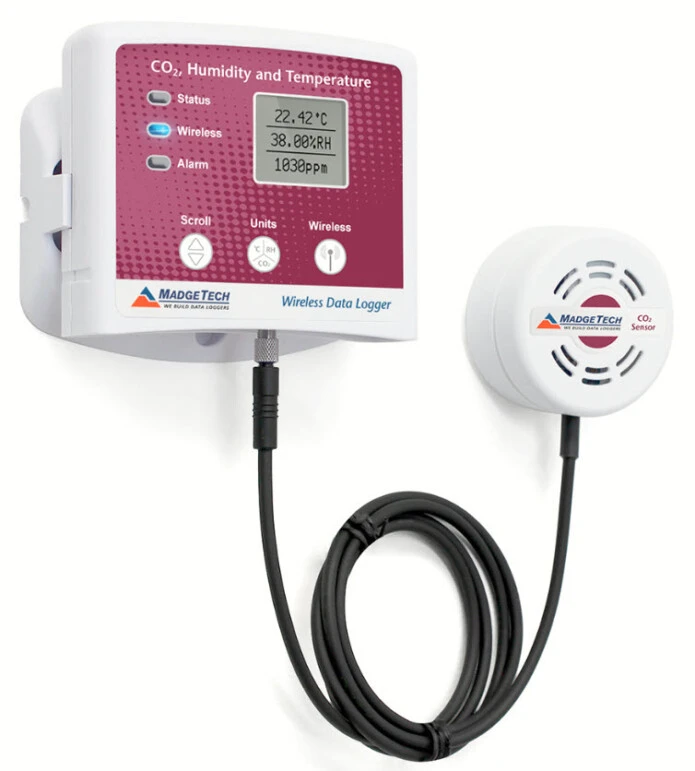

The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature.
Includes standard calibration certificate.
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
It’s the all-in-one solution for acquiring a complete environmental profile.

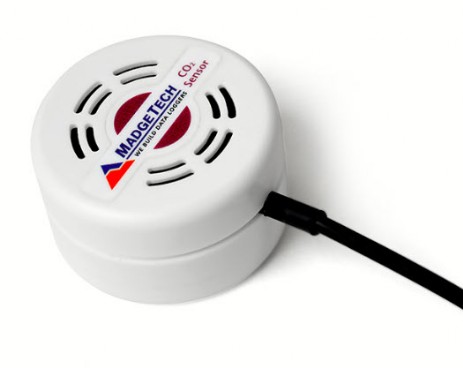

The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments.
This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics.
Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

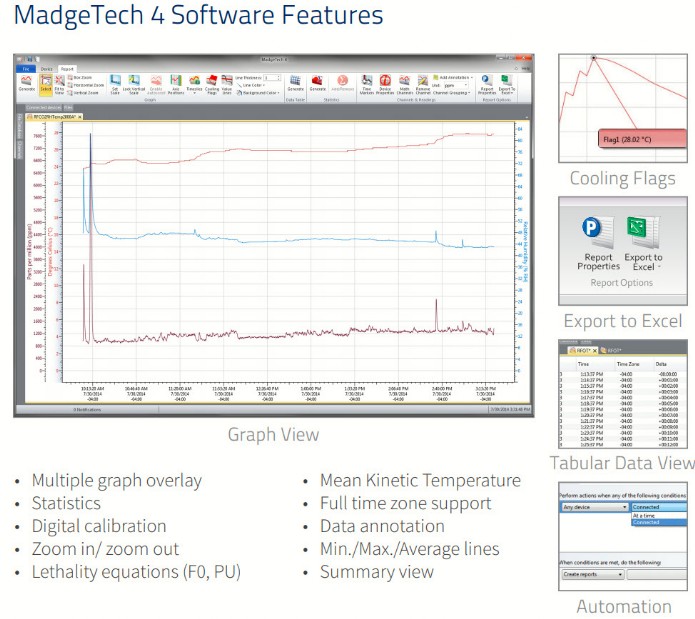

The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Includes standard calibration certificate.
Note: RFC wireless interface required.
Memory 10,752 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 16 months typical at a 10 minute reading rate
Material ABS plastic
Dimensions Data logger: 76.2 mm x 88.9 mm x 24.1 mm
Sensor: 50.3 mm x 50.3 mm x 29.2 mm Cable Length: 48,7 cm
IP Rating IP22
Operating Environment 0 °C to +55 °C
0 %RH to 95 %RH non-condensing,
13.77 PSIA to 100 PSIA
Required Interface Package RFC1000
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
The RFCO2RHTemp2000A data logger comes with a 48,7 cm cable connected to the CO2 sensor, making it ideal for placement within enclosed environments such as an incubator to ensure optimum levels.
Internal Channel Temperature Sensor Silicon
Internal Channel Temperature Range 0 °C to +55 °C
Internal Channel Temperature Resolution 0.08 °C
Internal Channel Temperature Calibrated Accuracy ±1.0 °C
Humidity Sensor Silicon
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.08 %RH
Humidity Calibrated Accuracy ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C,
7 %RH otherwise
Carbon Dioxide Range 0 ppm to 200,000 ppm
Carbon Dioxide Resolution 10 ppm
Carbon Dioxide Accuracy 70 ppm ± 5% of the reading
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 600 m
Typical Indoors line of sight Up to 150 m
Item Item nr Description
RFCO2RHTemp2000A 269-901391-00 Wireless CO2, Humidity & Temperature data logger
RFC1000-CE 269-901338-00 Wireless RF transceiver/repeater, CE approved for Europe. USB to mini USB
adapter & power supply included
RFC1000-IP69K 269-901389-00 Wireless RF transceiver/repeater, splash proof with an IP69K rating. USB to
mini USB adapter included
RFC1000-CE Cloud Relay 269-901901-00 MadgeTech Cloud Services Data Logging Hub, CE approved for Europe
Power Adapter 269-901839-00 Replacement USB universal power adapter
U9VL-J 269-901804-00 Replacement battery for RFCO2RHTemp2000A
• Incubator Monitoring• Building Studies (hospitals, schools, offices)• HVAC System Testing• Agricultural Studies• Indoor Air Quality (IAQ) StudiesYour Benefits
• Digital Display Provides Instant Access to Current Readings and Statistics• Minimal Long-Term Maintenance• Readings Displayed in User Selected Measurement Unit• Time and Money Saving with Battery Life Management• Continuous Monitoring• E-mail, Text Message and Audible Alerts Provide Assurance and Quality Control

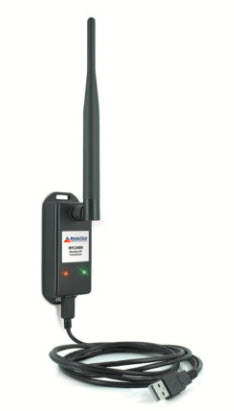

Wireless transceiver for the RFOT, ThermAlert and RF2000A series.
Includes MadgeTech Software, Software Manual, Quick Start Guide, USB to mini USB adapter and RFC1000 wireless transceiver.
The new design includes a higher powered transceiver and a substantially longer transmit range, meaning better performance in all environments.
The RFC1000 features a 7 in. pivoting external antenna, which increases the transmission distance and provides greater signal strength.
The pivoting antenna also allows more flexibility with mounting orientation.
The RFC1000 can be used as a repeater or plugged directly into your PC.

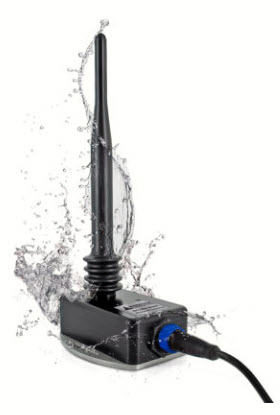

RFC1000-IP69K SPLASH PROOF TRANSCEIVER
Splash proof wireless transceiver for the RFOT, ThermAlert and RF2000A series.
Includes MadgeTech Software, Software Manual, Quick Start Guide, USB to mini USB adapter and RFC1000-IP69K wireless transceiver.
The splash proof transceiver can be installed directly in the wash down location, ensuring 100% communication throughout the entire process.
This model includes a high powered transceiver with an IP69K ingress protection rating.
The RFC1000-IP69K has a substantial transmit range, providing superior performance in occluded environments such as ovens and refrigerators.
The RFC1000-IP69K also includes an external antenna which is protected by a neoprene boot, allowing more flexibility with mounting positions in both orientation and proximity to metal walls.
The RFC1000-IP69K is designed to communicate between MadgeTech’s two-way wireless data loggers and the MadgeTech software.
Connects to a maximum of 64 data loggers.

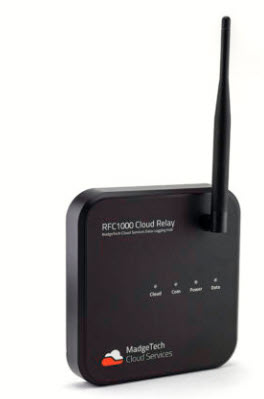

The RFC1000 Cloud Relay
The RFC1000 Cloud Relay is a compact, versatile device connecting MadgeTech wireless loggers directly to the cloud, eliminating the need for a central PC.
With the RFC1000 Cloud Relay, real-time data can easily be transmitted to the MadgeTech Cloud where it can be viewed from any internet enabled device.
The simple design of the RFC1000 Cloud Relay allows for it to be seamlessly integrated into wireless data logging systems.
Featuring a seven inch pivoting antenna, the RFC1000 Cloud Relay can be wall mounted or placed on any flat surface.
Connecting directly to an Ethernet port allows for cloud connectivity without the need for a computer.
Each RFC1000 Cloud Relay can transmit data from up to 64 wireless data loggers, with no limit on the number of Cloud Relays that can be connected to a cloud account.
All data is stored in the cloud, with the option to download and print .CSV files for easy record keeping and further analysis.
