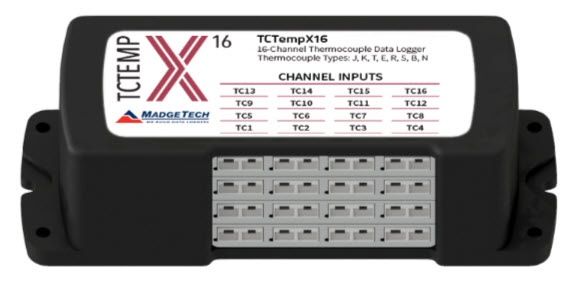

TCTempX16

The TCTempX16 is a 16-channel thermocouple-based temperature data logger with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.

This device simultaneously measures and records 131,008 readings per channel, and users can disable channels to maximize memory capacity. For easy identification, each channel can be named with up to a ten digit title.

In addition, the TCTempX16 features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.

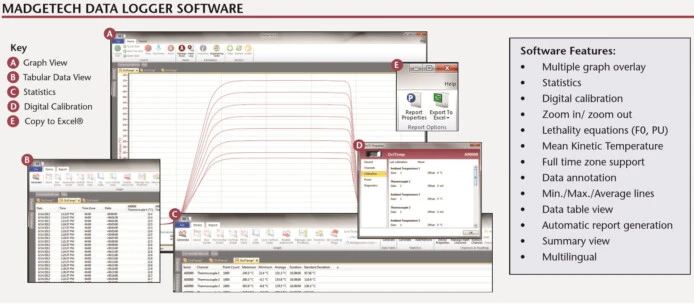

The TCTempX16 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General

Memory (all 16 Channels enabled)                  131,008 readings per channel;
                                                                                              4,192,256 total readings
Reading Rate                                                                 4Hz up to 1 reading every 24 hrs
Cold Junction Compensation                              Automatic, based on internal channel
Battery Life                                                                    18 Months Typical
Material                                                                            Black Anodized aluminum
Dimensions                                                                     69mm x 184 mm x 54 mm
Required Interface Package                                 USB(Interface Cable Required); 115,200
Operating Environment                                          -20 °C to +60 °C, 0 %RH to 95 %RH, non-condensing
Approvals                                                                         CE
Temperature

Internal Channel Temperature                                                     Range-20°C to +60°C
Internal Channel Temperature Resolution                            0.01°C
Internal Channel Calibrated Accuracy                                     +/-0.5°C(-20°C to +60°C)
Remote Channel Thermocouple                                                  TypesJ, K, T, E, R, S, B, N
Remote Channel Thermocouple Connection                       Female subminiature(SMP)
Cold Junction Compensation                                                         Automatic, based on internal channel
Maximum Thermocouple Resistance                                       1000 Ω, < 100Ω recommended
Remote Channel Temperature Sensor                                     Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range                                      Thermocouple Dependent
Remote Channel Temperature Resolution                            Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy       Thermocouple Dependent
