HiTemp140
Data Logger for High Temperatures
The HiTemp140 and HiTemp140-PT series data loggers are MadgeTech’s solution for precise high temperature monitoring. These data loggers can indefinitely withstand temperatures of up to 140 °C (284 °F) and have an accuracy of ±0.1 °C. The HiTemp140 features a rigid external RTD probe capable of measuring extended temperatures, up to 260 °C (500 °F). Varied probe lengths are available up to 7 inches.
The HiTemp140-PT features a 24 inch flexible steel RTD probe capable of measuring extended temperatures, up to 350 °C (662 °F).
The HiTemp140X2 series of dual probe high temperature data loggers offer extreme flexibility for high temperature monitoring
applications. This product is ideal for applications such as autoclave validation, sterilization processes and much more.
The HiTemp140-FR is a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger is capable of recording as fast as 4 Hz.
The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, test tubes and other small diameter or delicate applications. The flexible lightweight probe minimizes the risks of breakage (both vial and probe) and makes
placement of the probe is easy to manipulate.
The HiTemp140-M12 is a high temperature data logger designed with a built in M12 probe connecter. This logger is compatible with dozens of M12 RTD probes and capable of measuring up to 850 °C (probe dependent).
HiTemp140 Data Logger
The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments.
This stainless steel device is submersible, can withstand temperatures up to 140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F).
The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260°C (500°F).
Custom probe lengths up to 7" are available.
The device records date and time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged.

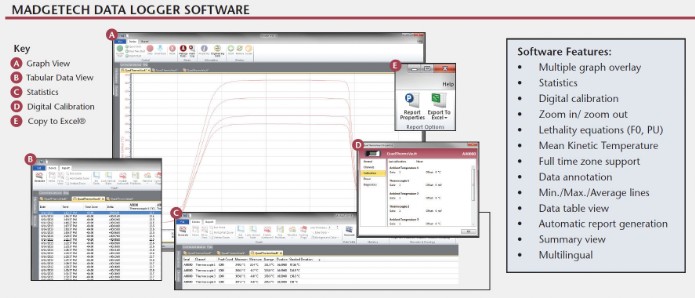

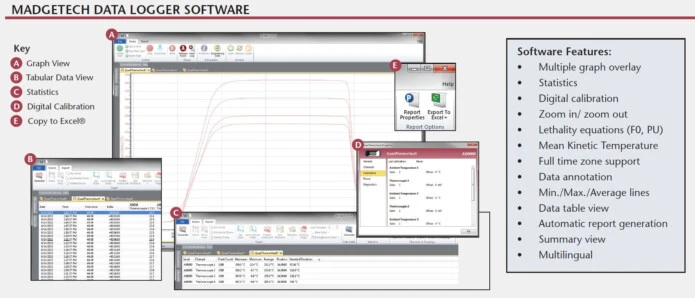

Using the MadgeTech Software, starting, stopping and downloading the HiTemp140 is simple and easy.
Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R.
The data can also be automatically exported to Excel® for further calculations.
Start Modes
• Software programmable immediate start
• Delay start up to 18 months in advance
Trigger Settings
High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed.
Users can specify the number of readings to take after the device triggers.
Readings in Trigger Settings Mode : 10,922 readings
Temperature
Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution 0.01 °C
Temperature Calibrated Accuracy ±0.1 °C (20 °C to +140 °C
±0.3 °C (-20 °C to +19.99 °C
±0.4 °C (-40 °C to -20.01 °C
Probe Temperature Range -200 °C to +260 °C

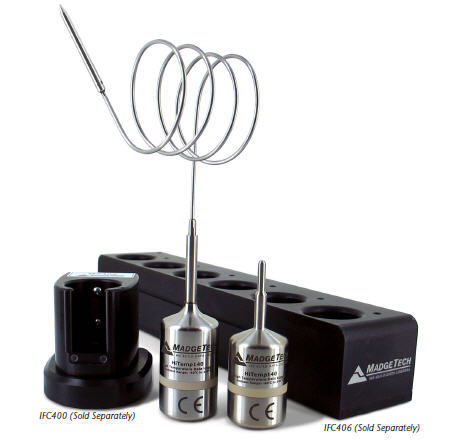

HiTemp140 Series
High Temperature Data Loggers
***Probe lengths up to 7” available upon request.

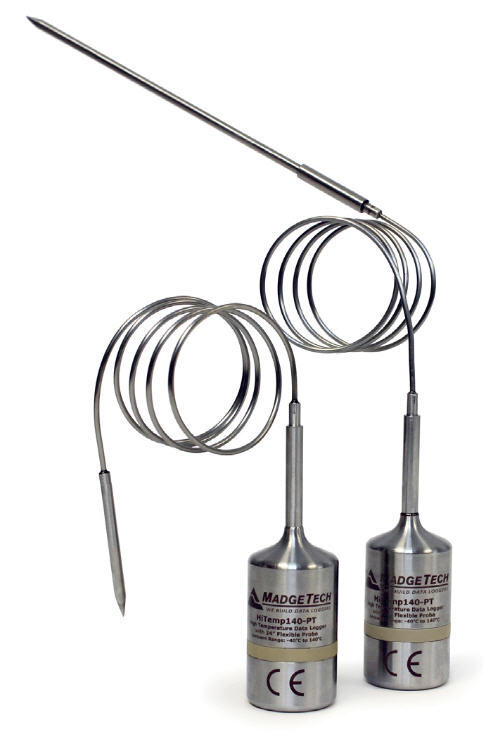

HiTemp140-PT Series
High Temperature Data Loggers with 24” Flexible Stainless Steel Probes
HiTemp140 Series
High Temperature Data Loggers

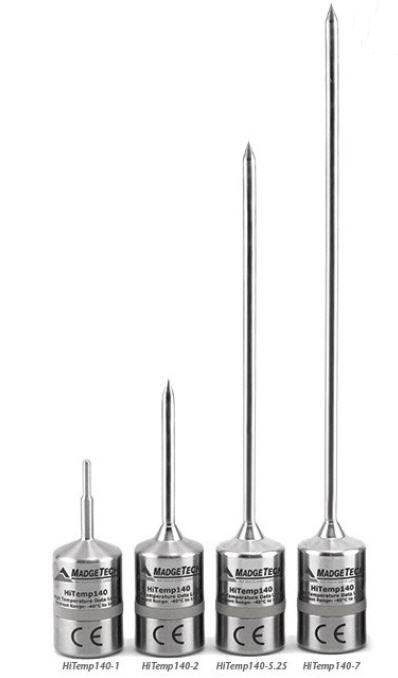

Probe Selection Chart

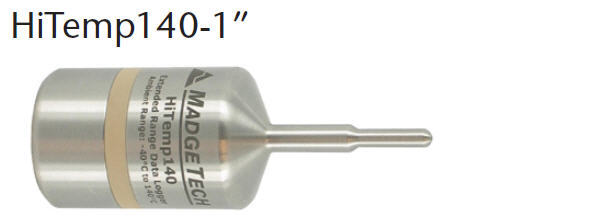

HiTemp 140-1"
Probe: 25mm x 3.2mm dia.
(4.8mm transitional dia.)
• Autoclave Monitoring
• Refrigerator and Freezer Monitoring/Mapping
• Pasteurization
• Incubator Monitoring
• Oven Monitoring

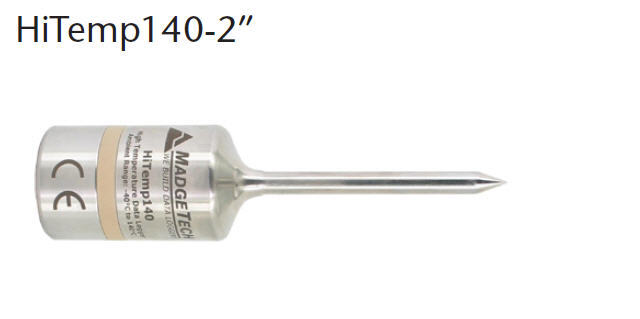

HiTemp 140-2"
HiTemp140-2 : 51mm x 4.8mm)
HiTemp140-2-TD: 51mm x 3.2mm dia.
(4.8 mm transitional dia.)
• Meat Processing
• Complying with USDA Regulations
• Dishwasher/Dryer Studies
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Nut Roasting
• Smoke Houses
• Canning
• Meat Storage
• HACCP Compliance
• Retort Packaging

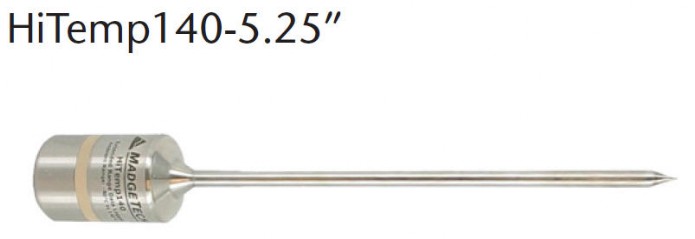

HiTemp 140-5,25"
Body : 45mm x 25mm dia.
HiTemp140-5.25: 134mm x 4.8mm
• Meat Processing - Internal temperature monitoring
• Complying with USDA Regulations
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Canning
• Smoke Houses
• Meat Storage
• HACCP Compliance
• Retort Packaging

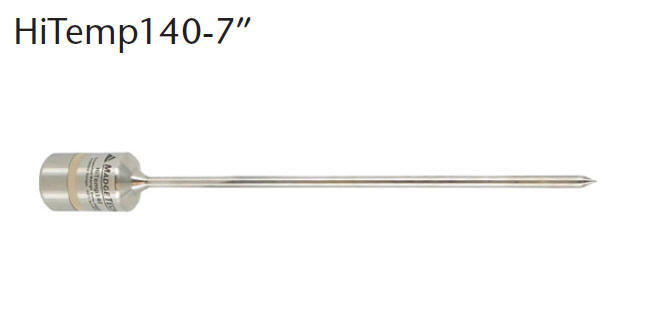

HiTemp 140-7"
HiTemp140-7: 178mm x 4.8mm dia.
• Meat Processing – Internal temperature monitoring
• Complying with USDA Regulations
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Canning
• Smoke Houses
• Meat Storage
• HACCP Compliance
• Retort Packaging

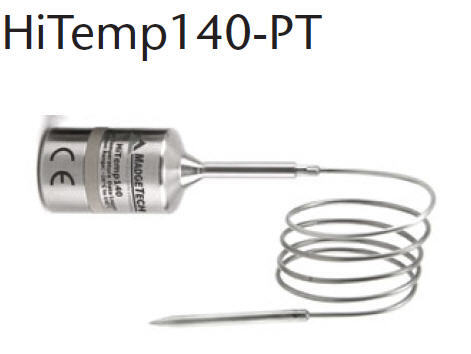

HiTemp 140 PT
Body: 45mm x 25mm dia.
HiTemp140-PT-1:
HiTemp140-PT-1:
Probe tip is 42mm x 3.2mm dia.)
Bendable portion is 559mm x 1.6mm dia.
HiTemp140-PT-5:
Bendable portion is 559mm x 1.6mm dia.
HiTemp140-PT-5:
Probe tip is 121mm x 3.2mm dia. with 25mm x 4.8mm dia. handle)
Bendable portion is 559mm x 1.6mm dia.)
Bendable portion is 559mm x 1.6mm dia.)
• Conveyor Cooking/Cooling Cycles
• Refrigerator and Freezer Monitoring/Mapping
• Oven Monitoring
• Open Air Applications
Flexible probes are fragile, to use with care in production.

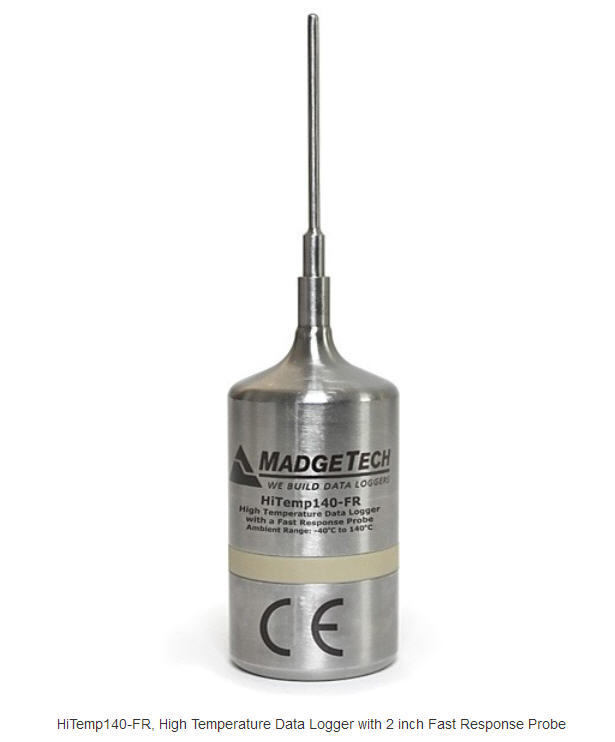

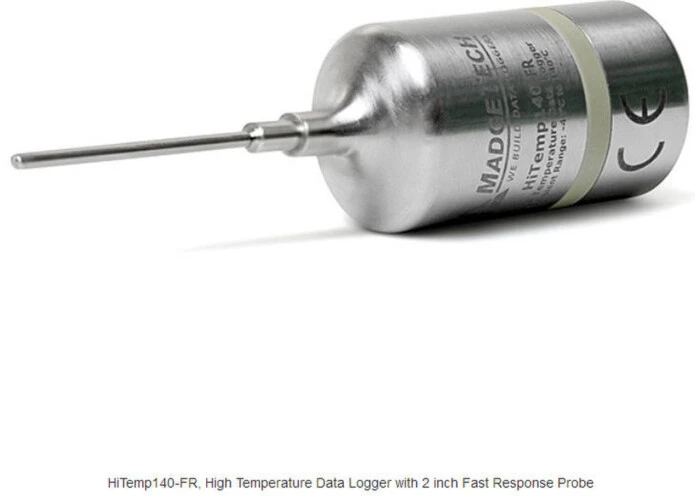

HiTemp140-FR Data Logger
High Temperature Data Logger with 44.5 mm Fast Response Probe. Includes ISO17025 accredited calibration certificate.
The HiTemp140-FR is a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger features a 44.5 mm x 1.59 mm diameter probe and is capable of recording up to 4Hz, which is 4 times faster than other data loggers in this series. This allows the temperature sensor to quickly adapt and accurately record temperature variations in changing environments. Applications include oven profiling, steam sterilization, chamber mapping, seafood processing, flash freezing and more.
MadgeTech’s entire HiTemp140 data logger series is designed with food grade stainless steel. The device can be placed in environments up to 140 °C and the probe is capable of measuring from -200 °C to +260 °C.
The Trigger Settings feature of the HiTemp140-FR allows users to configure high and low temperature thresholds that when met or exceeded, will automatically start or stop recording data to memory. This data logger is capable of storing up to 32,700 date and time stamped readings and features a nonvolatile solid state memory which retains data even if the battery becomes discharged.
Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.
MadgeTech’s entire HiTemp140 data logger series is designed with food grade stainless steel. The device can be placed in environments up to 140 °C and the probe is capable of measuring from -200 °C to +260 °C.
The Trigger Settings feature of the HiTemp140-FR allows users to configure high and low temperature thresholds that when met or exceeded, will automatically start or stop recording data to memory. This data logger is capable of storing up to 32,700 date and time stamped readings and features a nonvolatile solid state memory which retains data even if the battery becomes discharged.
Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.
TEMPERATURE
Temperature Sensor : 100 Ω Platinum RTD
Temperature Resolution : 0.01 °C
Temperature Calibrated Accuracy : ±0.1 °C
Probe Temperature Range : -200 °C to +260 °C
GENERAL
Memory : 32,767 readings
Reading Rate : 4 readings every second
Baud Rate : 125,000
Battery Life : 2 years typical (1 minute reading rate at 25 °C / 77 °F)
User Replaceable Battery
Material : 316 Stainless Steel, PEEK
Dimensions Body: 48.1 mm x 24.6 mm x 24.6 mm
Probe: (44.5 mm x 1.59 mm (4.78 mm Transitional dia.)
IP Rating : IP68
Submersible : Yes
Operating Environment : -40 °C to +140 °C - 0 %RH to 100 %RH
With Thermal Shield: -200 °C to +250 °C
Required Interface Package : IFC400 or IFC406
Approvals : CE
IFC400 Data Logger Interface
Interface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.
HiTemp140-O-Ring
One Set of Replacement O-Rings for the HiTemp140.
MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.
Key Ring End Cap
This is an optional "Key Ring" end cap for use with the PR140, RHTemp1000 or HiTemp140 series data loggers.
IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.
MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.

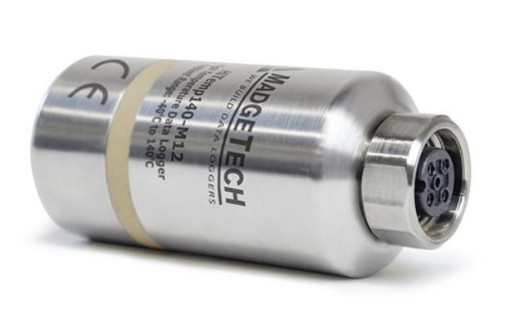

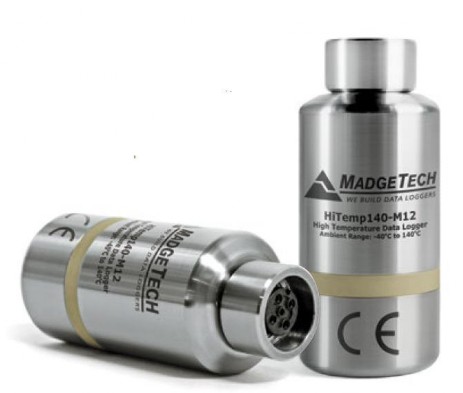

HiTemp140-M12
High Temperature Data Logger with an M12 Probe Connector
The HiTemp140-M12 features the same rugged stainless steel body as the other HiTemp140 data loggers in the series, but offers interchangeable probe options using an M12 type connector.
The M12 connectivity makes this versatile data logger compatible with the large variety of M12 RTD probes available today.
The HiTemp140-M12 is capable of measuring and recording temperatures from -200 °C to +850 °C (probe dependent).
All of MadgeTech’s HiTemp140 data loggers have a water tight body enclosure made of food grade stainless steel and can be placed in environments with temperatures as high as 140 °C. The operating range of the data logger body can be extended to higher temperatures when used with MadgeTech’s thermal barrier options and suitable probe.
The HiTemp140-M12 records and stores up to 43,690 time stamped readings and is equipped with non-volatile solid state memory which retains data even if the battery becomes discharged.
A wide selection of compatible M12 probes are available on the market to choose from, making the HiTemp140-M12 the most dynamic data logger of its kind. With the ability to change probes as needed, this device satisfies a multitude of application needs with one powerful data logger versus the need for multiple loggers.
Note: Calibration Certificate standard calibration is two points at 50 Ω and 150 Ω and is verified at 100 Ω.
TEMPERATURE
Temperature Sensor : Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution : 0.0001 Ω, 0.01 °C (Probe Dependent
Temperature Calibrated Accuracy : ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range* : 18 Ω to 200 Ω, -200 °C to +265 °C
*Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range.
Probe Temperature Range : 18 Ω to 400 Ω, -200 °C to +850 °C (Probe Dependent)
GENERAL
Memory : 43,690 readings
Reading Rate : 4 readings per second up to 1 reading every 24 hours
Baud Rate : 125,000
Battery Life : 2 years typical (1 minute reading rate at +25 °C / +77 °F)
User Replaceable Battery
Material : 316 Stainless Steel
Dimensions : 54.5 mm x 24.6 mm x 24.6 mm
IP Rating : IP40 - logger alone (with no probe connected)
The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K).
Submersible : Yes (with probe attached)
Operating Environment : -40 °C to +140 °C
0 %RH to 100 %RH non-condensing,
0.002 PSIA to 60 PSIA
Required Interface Package : IFC400 or IFC406
Approvals : CE
PROBES
M12 RTD Rigid Probe
100 Ω platinum RTD probe with M12 connector.
RTD-6-1/8-1/2NPT-M12 Probe
100 Ω platinum RTD probe with NPT mounting thread and M12 connector.
M12 CIP Probe
3-A approved 100 Ω platinum RTD probe with clean-in-place (CIP) design and M12 connector.
M12 Depyrogenation Probe
36 " High Temperature, Dry Heat, Flexible Probe with M12 connector.
M12 CIP Thermowell Probe
3-A approved 100 Ω platinum RTD probe with clean-in-place (CIP) design and M12 connector.
M12 Flexible Probe
36" High Temperature, Flexible Probe with M12 connector.
MicroDisc Surface Temperature Probe Attachment
Surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP and M12
Accessories
ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.
HiTemp140-O-Ring
One Set of Replacement O-Rings for the HiTemp140.
MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.
Key Ring End Cap
This is an optional "Key Ring" end cap for use with the PR140, RHTemp1000 or HiTemp140 series data loggers.
MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
IFC400 Data Logger Interface
Interface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.
IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.
M12 PROBES :
M 12 Flexible Probe
High Temperature, Flexible Probe with M12 connector.
Probe Type : Flexible RTD Probe
Temperature Range : -60 °C to 260 °C
Material : Stainless Steel, PFA, Polyamide 6-6 GF
Probe Length : 76.2 mm
Probe Diameter : 2.18 mm
Weight : 26 g
IP Rating : IP67
M12 Depyrogenation Probe
High Temperature, Dry Heat, Flexible Probe with M12 connector.
Probe Type : Flexible RTD Probe with Flat Tip
Temperature Range : -50 °C to 450 °C
Material : Stainless Steel, Fiberglass, PEEK
Probe Length : 76.2 mm
Probe Diameter : 2.54 mm
Weight : 29,77 gr.
IP Rating : Not rated, intended for use in dry applications only
RTD-6-1/8-1/2NPT-M12 Probe
100 Ω platinum RTD probe with NPT mounting thread and M12 connector.
Probe Type : Platinum RTD Probe
Temperature Range :-50 °C to 250 °C
Material : Platinum and Stainless Steel
Probe Length : 152.4 mm
Probe Diameter : 3.2 mm
NPT Length : 12.7 mm
Weight : 5.67 gr.
M12 RTD
100 Ω platinum RTD probe with M12 connector.
Probe Type : Platinum RTD Probe
Temperature Range : -50 °C to 250 °C
Material : Platinum and Stainless Steel
Length : 152.4 mm
Diameter : 3.2 mm
Weight : 45.36 gr.
M12 CIP Thermowell Probe
This RTD probe is designed for clean-in-place (CIP) sanitary applications where sensor corrosion and product contamination are critical factors. This rugged probe is spring loaded and equipped with an M12 connector, compatible with the MadgeTech HiTemp140-M12 data logger (sold separately).
The 100 Ohm platinum sensor offers the fast response time needed for CIP applications. The M12 connectivity provides device flexibility and expanded application use. The M12 CIP Thermowell Probe meets the 3-A Sanitary Standard for design and fabrication. This probe is well suited for sanitary applications in food, dairy and pharmaceutical processes.
Probe Type : Platinum RTD Probe
Temperature Range : -50 °C to 200 °C
Material : Platinum and Stainless Steel
Insertion Length : 63.5 mm
Probe Diameter : 12.7 mm
Weight : 340 gr.
Surface Temperature Measurement
For surface temperature measurement, you can use the HiTemp 140-M12 and the M12 RTD FLEXIBLE PROBE connected to the MicroDisc
Surface
temperature probe attachment.

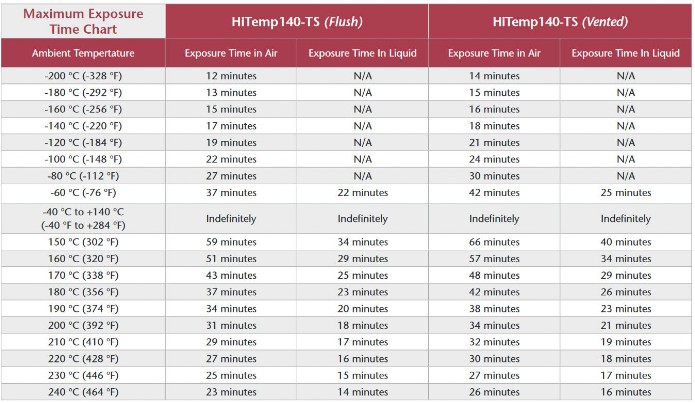

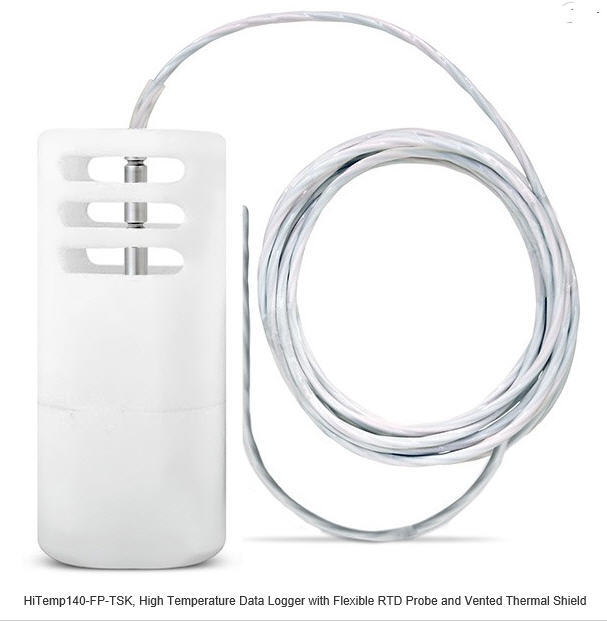

Thermal Shield
For Extended High Temperature Monitoring
For applications above 140 °C, a thermal shield is available for most models of the HiTemp140 and HiTemp140-PT series data loggers. The thermal shield extends the operating temperature of the data logger, allowing it to be exposed to higher temperatures for a longer amount of time.
Flush and vented models are available to help provide probe protection.
HITEMP140-TSK SPECIFICATIONS
Operating Environment: 200 ºC to +250 ºC (Time limited )
0 %RH to 100 %RH
Dimensions: • Flush Top: 69.85 mm x 51 mm dia.
• Vented Top: 109.2 mm x 50.8 mm dia.
Material: Enclosure: PTFE
Weight : • Flush: 190 g (not including data logger)
• Vented: 270 g (not including data logger)

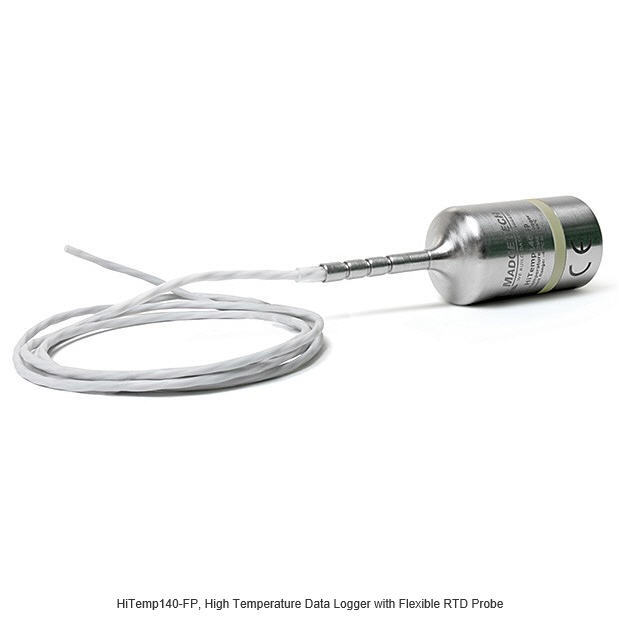

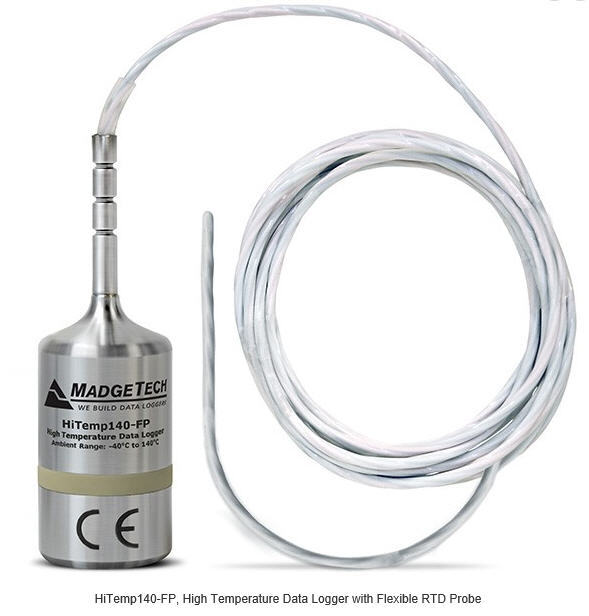

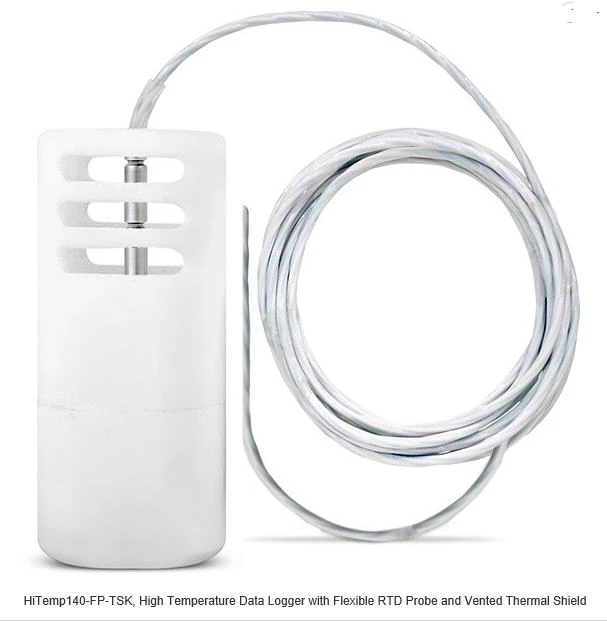

HiTemp140-FP Flexible Probe Temperature Data Logger
High Temperature Data Logger with Flexible RTD Probe
The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.
Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in several flexible probe lengths. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C with an accuracy of ±0.1 °C.
The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications. Because of the flexible probe, the risks of breakage (both vial and probe) generally associated with stainless steel probe loggers are diminished and the location and placement of the probe is easy to manipulate. The device records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory.
The HiTemp140-FP can be configured for delayed start and is capable of reading rates as often as four readings per second, up to once every 24 hours.
Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.
Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in several flexible probe lengths. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C with an accuracy of ±0.1 °C.
The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications. Because of the flexible probe, the risks of breakage (both vial and probe) generally associated with stainless steel probe loggers are diminished and the location and placement of the probe is easy to manipulate. The device records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory.
The HiTemp140-FP can be configured for delayed start and is capable of reading rates as often as four readings per second, up to once every 24 hours.
Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.
TEMPERATURE
Temperature Sensor : Flexible RTD Probe
Temperature Resolution : 0.01 °C
Temperature Calibrated Accuracy : ±0.1 °C
Probe Temperature Range : -60 °C to +260 °C
GENERAL
Memory : 32,767 readings
Reading Rate : 1 reading every 0.25 seconds up to 1 reading every 24 hours
Baud Rate : 125,000
Battery Life : 1 year typical (1 minute reading rate at 25 °C)
User Replaceable Battery
Material : Body: 316 Stainless Steel
Probe: PFA Insulated Cable
Dimensions : Body: 75 mm x 24.6 mm x 24.6 mm
Probes: HiTemp140-FP-6: 152.5 mm x 2.5 mm
HiTemp140-FP-12: 304.8 mm x 2.5 mm)
HiTemp140-FP-36: 914 mm x 2.5 mm
HiTemp140-FP-72: 1829 mm x 2.5 mm
IP Rating : IP68
Submersible : Yes
Operating Environment : -40 °C to +140 °C
0 %RH to 100 %RH,
0 PSIA to 60 PSIA
With Thermal Shield: -200 °C to +250 °C
Required Interface Package : IFC400 or IFC406
Approvals : CE
IFC400 Data Logger InterfaceInterface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.
ThermoVault Max Extreme Temperature Thermal Barrier
Submersible, Stainless Steel, Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.
ThermaLock Pro Secure canning fitting used with the MadgeTech HiTemp140-FP and HiTemp140X2-FP Data Loggers for thermal process monitoring.
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.
HiTemp140-O-Ring
One Set of Replacement O-Rings for the HiTemp140.
MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Logger
Key Ring End Cap
This is an optional "Key Ring" end cap for use with the PR140, RHTemp1000 or HiTemp140 series data loggers.
IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.
MicroDisc Surface Temperature Probe Attachment
Surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP and LyoTemp Data Loggers
MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers

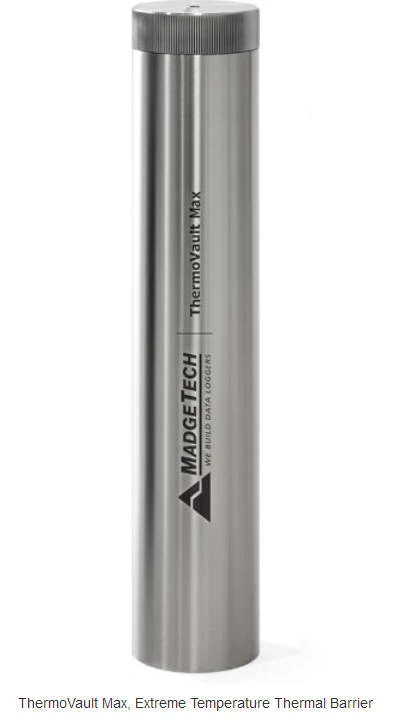

ThermoVault Max Extreme Temperature Thermal Barrier
Submersible, Stainless Steel, Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.

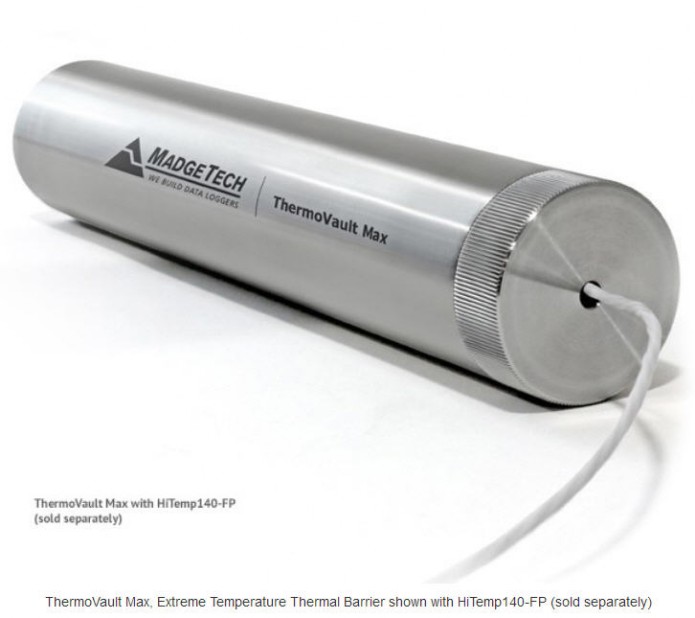

The ThermoVault Max is an extreme, high temperature thermal barrier designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and HiTemp140-PT data logger models. This durable enclosure is made from stainless steel with PTFE insulation. The ThermoVault Max barrier can withstand temperatures up to +400 °C in dry heat applications and +250 °C for wet applications when used with the TMAX Wet Seal Kit (sold separately).
With unparalleled time versus temperature performance, the ThermoVault Max provides a best-in-class solution for the harshest of applications. Designed to endure extreme temperature monitoring environments such as furnace profiling, geothermal down-hole recording, dry heat sterilization and oven data logging.
MadgeTech also offers a turnkey Dry Heat Sterilization System including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.
The ThermoVault Max is built for use in harsh applications that require extreme temperature monitoring, such as depyrogenation, food processing, oven monitoring, geothermal down-hole recording, and furnace profiling.
With unparalleled time versus temperature performance, the ThermoVault Max provides a best-in-class solution for the harshest of applications. Designed to endure extreme temperature monitoring environments such as furnace profiling, geothermal down-hole recording, dry heat sterilization and oven data logging.
MadgeTech also offers a turnkey Dry Heat Sterilization System including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.
The ThermoVault Max is built for use in harsh applications that require extreme temperature monitoring, such as depyrogenation, food processing, oven monitoring, geothermal down-hole recording, and furnace profiling.
Time vs. Temperature Chart part 1
Ambient Temperature Maximum Exposure Time (air) Maximum Exposure Time (Liquid)
-200 °C 128 minutes n/a
-180 °C 137 minutes n/a
-160 °C 148 minutes n/a
-140 °C 163 minutes n/a
-120 °C 183 minutes n/a
-100 °C 213 minutes n/a
-80 °C 263 minutes n/a
-60 °C 368 minutes 319 minutes
-40 °C to +140 °C Indefinitely Indefinitely
150 °C 601 minutes 542 minutes
160 °C 468 minutes 414 minutes
170 °C 396 minutes 345 minutes
180 °C 348 minutes 300 minutes
190 °C 313 minutes 266 minutes
200 °C 286 minutes 241 minutes
Time vs. Temperature Chart part 2
Ambient Temperature Maximum Exposure Time (air) Maximum Exposure Time (Liquid)
210 °C 265 minutes 221 minutes
220 °C 247 minutes 204 minutes
230 °C 233 minutes 190 minutes
240 °C 220 minutes 178 minutes
250 °C 209 minutes 168 minutes
260 °C 200 minutes n/a
270 °C 192 minutes n/a
280 °C 184 minutes n/a
290 °C 178 minutes n/a
300 °C 172 minutes n/a
310 °C 166 minutes n/a
320 °C 161 minutes n/a
330 °C 157 minutes n/a
340 °C 153 minutes n/a
350 °C - 400 °C 60 minutes n/a
SPECIFICATIONS :
PRESSURE
Pressure Range : Max Sustainable Pressure: 60 PSIA
GENERAL
Material : 316 Stainless Steel, PTFE, Silicone
Dimensions : 44.45 mm OD x 243.8 mm L
IP Rating : IP68 rating may be obtained with seal kit installed from -60 ºC to 250 ºC.
Rapid temperature fluctations may cause ingress.
• HiTemp140-PT Data Logger
• HiTemp140-FP Data Logger
• HiTemp140-M12 Data Logger
Accessories

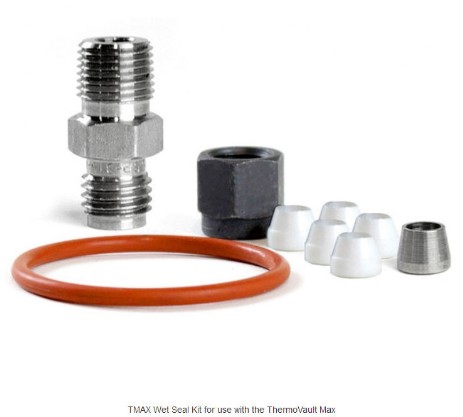

The TMAX Wet Seal Kit is used with the ThermoVault Max, extreme, high temperature thermal barrier for wet application to withstand temperatures up to 250 °C.
The TMAX Wet Seal Kit Includes:
• Fitting Body
• Nut
• Ferrules: Teflon (5), Stainless Steel (1)
• O-Ring
Compatible Data Loggers:
• HiTemp140-FP
• HiTemp140-PT
The TMAX Wet Seal Kit Includes:
• Fitting Body
• Nut
• Ferrules: Teflon (5), Stainless Steel (1)
• O-Ring
Compatible Data Loggers:
• HiTemp140-FP
• HiTemp140-PT

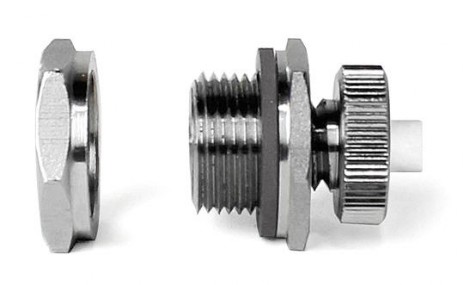

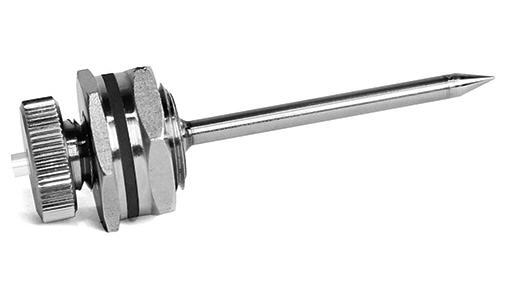

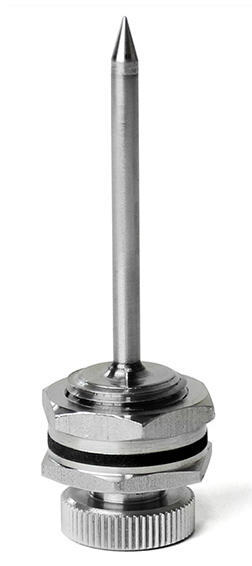

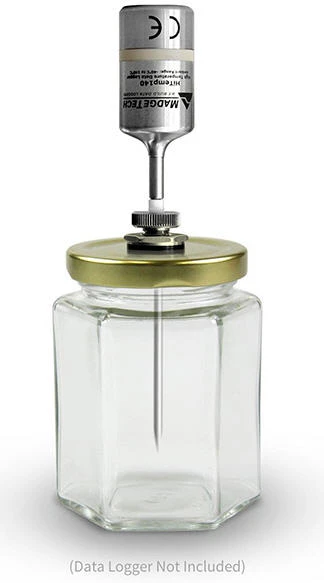

CANNING FITTING FOR THE HITEMP140-FP and HITEMP140X2-FP DATA LOGGER

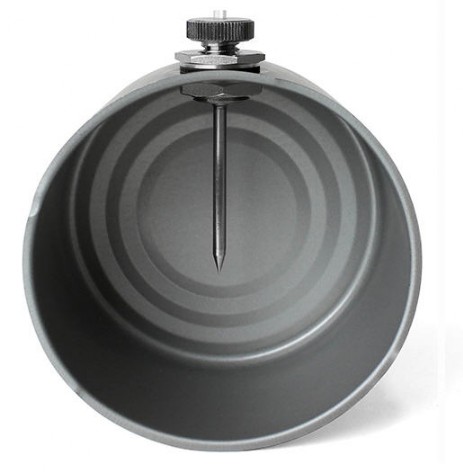

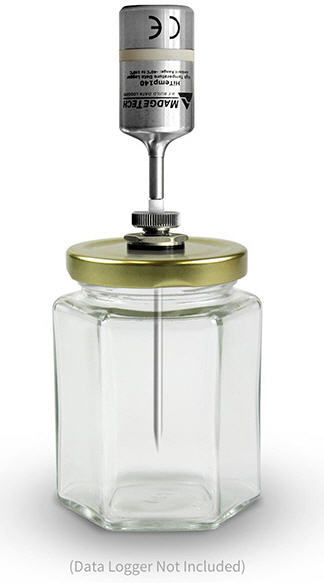

The ThermaLock Pro Canning Fitting securely attaches to cans, jars or other rigid containers used in food processing applications. Compatible with the MadgeTech HiTemp140-FP and HiTemp140X2-FP data loggers, the ThermaLock Pro probe sheath extends into the container to allow users to monitor internal temperatures.
The ThermaLock Pro Canning Fitting is comprised of Silicone, PTFE, and food grade stainless steel. Various sheath lengths are available as part of this series to accommodate different size containers. 9/16 hole punch is required for use.
Features

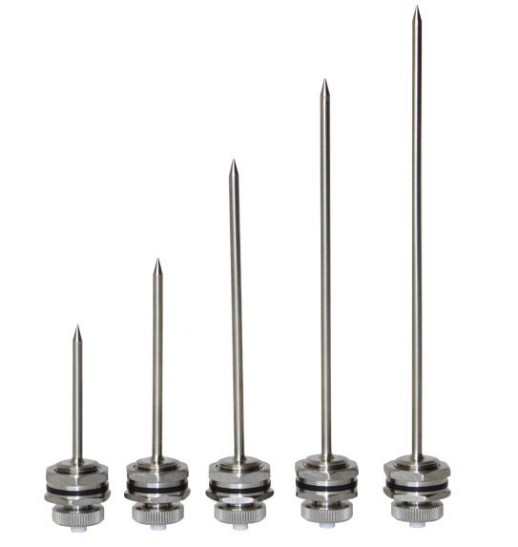

• Compatible with HiTemp140-FP and HiTemp140X2-FP Data Logger• Available Probe Sheath Lengths• 40.64 mm Probe Sheath• 60.69 mm Probe Sheath• 91.44 mm Probe Sheath• 114.30 mm Probe Sheath• 137.16 mm Probe Sheath
• Durable Stainless Steel, PTFE & Silicone Components
Benefits
• Compact and Portable
• Secure Water Tight Seal
Applications
• Monitoring internal temperatures of cans, jars or rigid plastic containers used in food processing and packaging
Specifications :
Weight: 85 g (1.3 oz)Materials: Food Grade Stainless Steel, Silicone and PTFE
ORDERING INFORMATION
MODEL DESCRIPTION
ThermaLock Pro Canning Fitting for the HiTemp140-FP and HiTemp140X2-FP Data Logger
HiTemp140-FP* High Temperature Data Logger with Flexible RTD Probe
HiTemp140X2-FP* High Temperature Dual Probe Data Logger
Data Analysis
Graphs, Statistics & Tabular Data
The MadgeTech Software provides powerful data analysis and reporting tools to aid in sterilization validation and compliance.
Simple, Easy-to-use, Windows-based Software
The MadgeTech 4 Data Logger Software is designed to streamline the process of downloading data and reviewing it in a user-friendly, time efficient manner. The software offers many customizable features and options, including the ability to change engineering units (dependent upon specific data logger models), conforming to the needs of the user.
All MadgeTech data loggers operate in a similar fashion and are simple and easy to use. Each class of logger has a unique device type and is automatically identified within the MadgeTech Software on the host computer.
MadgeTech 4 Data Logger Software comes standard with any MadgeTech Data Logger and free updates are available to download from the MadgeTech website.
Technical Requirements
The MadgeTech Data Logger software requires an IBM or compatible PC with the following:
- PC-compatible Pentium(R)-class system
- Windows XP, Vista, Windows 7 (32 and 64 bit), Windows 8* and Windows 10
- Color SVGA monitor (1024 x 768 resolution)
- 1GB RAM
- At least 30MB free hard disk space (for installation)
- Available 9 pin male serial (COM) port (for serial logger interface cable)
- Available USB port (for USB logger interface cable)
