Erichsen 430 Smart

Coatings & Industry > Mechanical properties > Adhesion & Elongation

Programmable Logic Control (PLC)
Optionally with manually actuated/motor-driven loading force and manually actuated/automatic test panel turn
Operation, documentation and data management via ERICHSEN-App

  • DIN EN ISO 2409
  • ASTM D 3359
  • JIS K 5600-5-6
  • SNV 37 111
  • VDA 621-411
  • ECCA T6
  • GME 60 280

Main Tests
  • Scratch Hardness
  • Cross Hatch Cut
  • Scratch Resistance
  • Writing Effect
Reference Class:
 Both versions of the SCRATCH HARDNESS TESTER   430   P-Smart   are   supplied   with   a Calibration Certificate in accordance with DIN 55 350-18 that includes among others the following information:
  • Actual and setting values of   loading force,
  • scratching speed and cutting distance,
  • test equipments used with calibration status,
  • product indentification,
  • date,
  • name of inspector.

Comparisons of the setting/actual values for the following parameters are made:
- Loading    force    (5    setting    values    evenly distributed over the load range
- Cutting    speed    (both    desired    values    in combination with both cutting paths)
- Cutting distance (exemplary for setting value 0.5 mm).
Purpose and Application
The motor-driven SCRATCH HARDNESS TESTER 430 P-Smart is a universal testing instrument designed for carrying out a wide range of tests on varnished and plastic surfaces to determine their resistance to scratches and cuts. Single cuts, parallel cuts and - by turning the specimen by 90° - cross-cuts can be applied to test panels of various thicknesses.
The SCRATCH HARDNESS TESTER 430 P- Smart is particularly provided for adhesion tests using the cross hatch cut method (in accordance with all mostly required standards) and for specific plastics tests according with Opel (scratch resistance and writing effect). For these as well as for further tests numerous setting possibilites on the basic instrument and a large variety of test tools are available.
Using   the   SCRATCH   HARDNESS   TESTER 430 P-Smart,  series  testing  can  be  conducted with much greater ease.
The results of testing are reproducible and well-defined.

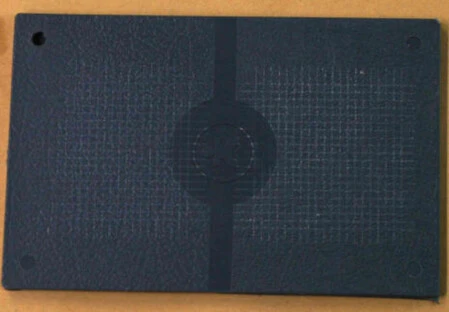

Cross Hatch Testing
The SCRATCH HARDNESS TESTER 430 P- Smart enables cross hatch tests to be conducted in accordance with all the usual standards, summarized in the following table, and carried out immediately without additional programming.
The following cross-cuts can be selected by pressing a key (number of cuts x distance in mm between cuts) 2 x 5, 6 x 1, 6 x 2, 6 x 3, 8 x 1, 8 x 2, 11 x 1.
The cuts are carried out automatically in succession using the test tip for cross hatch at a cutting speed of 40 mm/s.
After turning the test panel manually by 90°, the procedure is repeated to complete the cross-cut pattern.
The load required to ensure that the layer of varnish will be cut through to the substrate must be ascertained in trial runs.
With Model 430 P-II-Smart or Model 430 P-IV-Smart (motor-driven force adjustment) this can be carried out very simply by performing a "trial cut".

For the examination of cross hatch cuts a magnifiying   glass   with   2.5   magnification is included in the scope of supply.

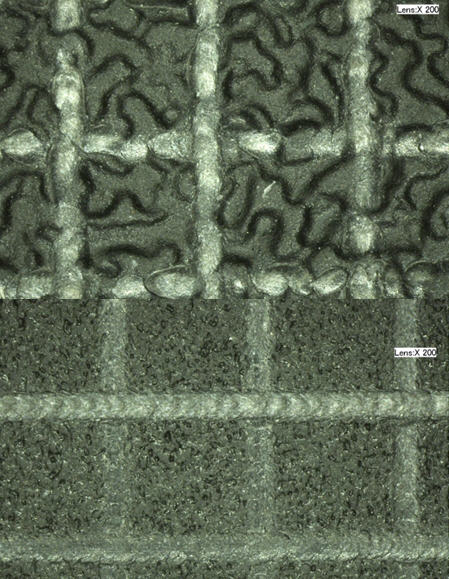

To evaluate the cross hatch pattern achieved, it is visually related to a comparison pattern within a scheme indicated in the relevant standard (cross cut classification).
In ECCA T6 it is mentioned that the cross hatch cut test may be intensified by a subsequent cupping test according to DIN EN ISO 1520.
For this purpose we recommend the ERICHSEN Lacquer and Paint Testing Machines, models 200 and 202 EM.
Although the results of adhesion tests in accordance with the cross hatch method are comparable with each other,  they are  -  due  to their respective procedures - not transferable to results of alternative test methods (e. g. perpendicular  pull-off test according  to  DIN  EN ISO 4624).
The ERICHSEN production programme offers the following model for adhesion testing to the pull-off method:  Adhesion Test Apparatus, Model 525 (manual / inexpensive)

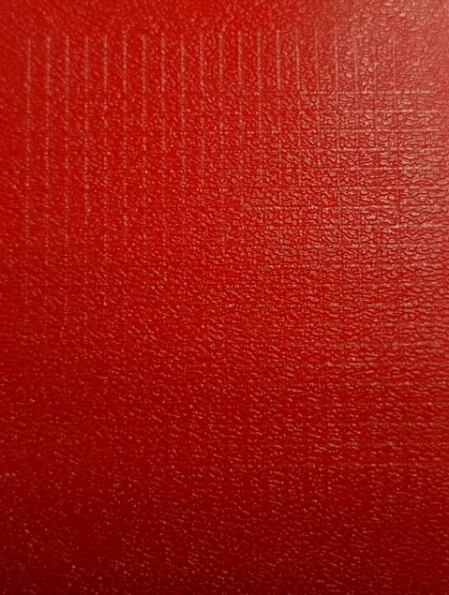

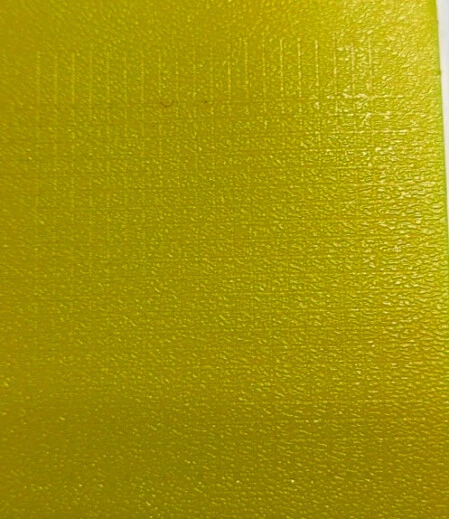

Scratch Resistance Testing
For testing scratch resistance in accordance with Opel (GME 60280 / GMW14688) the test tip with a 1 mm  is selected together with the preset grid "20 cuts at a distance of 2 mm" (20 x 2).
The stress pattern in this case is applied with a test load  of  5  N  (set  of  weights)  by  the  same procedure  as  for  the  cross  hatch  test  (cutting speed 1m/min).
To analyse the scratch resistance test the brightness variance (L) is determined in comparison with the plastic surface which is not subjected to strain.
The colour measuring device to be used for this purpose must fulfil the following requirements:  illuminant  D65,  measuring geometry d/8 with gloss exclusion, measuring aperture  27 mm.

Writing Effect Testing
For testing the writing effect in accordance with Opel the test inset offered as optional accessory, is required.
This inset has to be mounted on the load arm instead of the tool holder.
The stress pattern is applied with the preset grid "80 cuts at a distance of 0.5 mm" (80 x 0.5)  and a  test  load of 7 N (set of weights) analogue to the cross hatch test (cutting speed 1 m/min).
To evaluate the result of the writing effect test the gloss  difference  is  determinded  in  comparison with the plastic surface not subjected to strain. The gloss meter used should be provided with a 60° geometry; the measuring area must be small enough to allow carrying out reproducible gloss measurements on the surface subjected to strain.
 For this test purpose all the ERICHSEN glossmeters of the PICOGLOSS family are highly recommended.
Special Tests
Deviating from the determinations of the above mentioned tests (cross hatch test, scratch resistance, writing effect) further scratch tests can be carried out varying the following parameters:
  Test tip
- ball test tool   0.5 / 0.75 / 1 / 3 mm
 - asymmetric test tools:  cross cut / Clemen
  Test load
- rough range 50 N with 2 N graduation (standard)
- fine range 15 N in 1 N steps (optional)
  Cutting grid
 - preset, selectable by depression of key: 2 x 5, 6 x 1, 6 x 2, 6 x 3, 8 x 1, 8 x 2, 11 x 1, 20 x 2, 80 x 0.5 (number of cuts x distance in mm)
 - freely programmable: all grids max. width 40 mm and a multiple of 0.5 mm as cutting distance.
  Cutting pattern
 - parallel cuts or cross cuts
  Cutting path
 - 25 mm or 40 mm (exchangeable guide plates)
  Cutting speed
 - 16.7 mm/s (1 m/min) or 40 mm/s
 In order to minimize testing time, the smallest possible length of cut is always selected, together with the relevant connecting member.

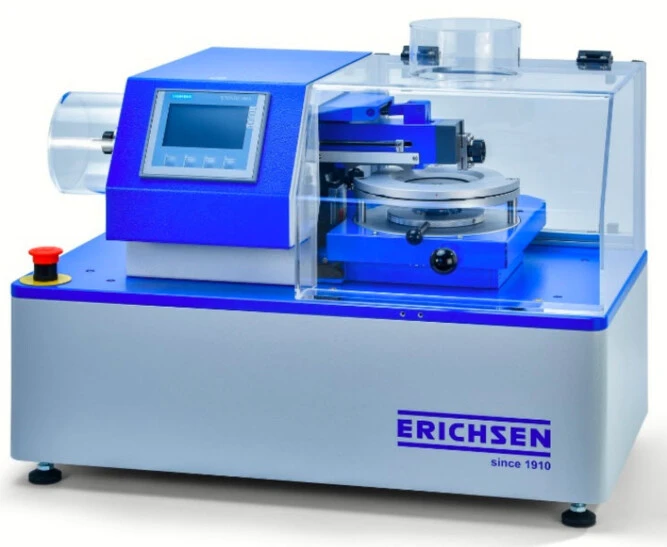

Design and Function
The SCRATCH HARDNESS TESTER 430 P- Smart     is   a   benchtop   instrument   of   sound mechanical construction which provides reliable, well-defined cuts, even under extreme test conditions.
By default, the machine is equipped with a protective cover.
The device is operated via touch panel (automatic menu navigation).
The test procedure is carried out automatically and all parameters (cutting speed, cutting stroke, cross- cut pattern) can be set using the keyboard.
Each motion sequence (transport of test panel, cut positioning and any required pressure adjustment) is driven by a separate step motor.

During the test the specimen is conveyed linearly and at a constant speed under the test tip which has been set at the required pressure load (max. 40 N).
A transmission guide ensures that the test tip is lowered onto the test panel as defined.
The scope of supply includes two  control plates  for different cross-cut patterns which can be easily interchanged.
With Model 430 P-Smart parallel cross hatch cuts with graduated test forces are possible.
After carrying   out   the   first   cross   hatch   cut   the instrument can be stopped and the test force (up to 50 N) can be ad-justed individually before starting the next test track.
Theoretically, 80 test tracks with a distance of 0.5 mm of different test forces are possible within  the  pre-selected  cross  hatch  cut programme.
The SCRATCH HARDNESS TESTER 430 P- Smart is power-driven and obtainable in four versions - with manual or with motor-driven force regulation and with manual or motor-driven test panel turn. On the manual version it is a simple matter to adjust the test force to the exact pressure. The instrument with motor-driven force regulation provides the additional benefit of conducting a trial run with gradually increasing force. In this way, the force required to achieve a through cut can be automatically ascertained in the course of a "trial cut".
A 6-piece weight set is available as an optional accessory for conducting special tests in the lower pressure range and enables cuts with test forces in the range (1-15) N - graduated in 1-N steps.
Special Features
   2 cutting speeds and 2 cutting lengths which can be combined as required
  •   9  preset  cross-cuts  in  compliance  with  the most commonly used standards
  •   1  freely  programmable  cross-cut  pattern  for special applications
  •   Setting   for   cut   distance   with   step   motor precision
  •   "Stop"-option  within  the  cross  hatch  cutting mode, for individually changing the test force for  the  next  scratch  track  of  the  concerning current cross-cut pattern
  •   Visual display upon cutting through insulating layers to metal substrate
  •   Rapid  clamping  device  for  test  panels,  with wide clamping range.

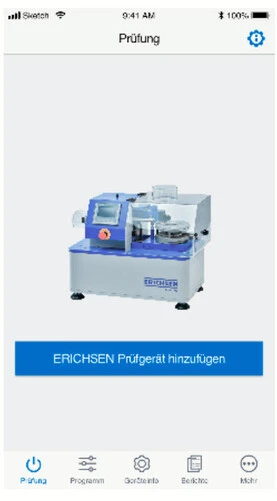

Operation via App
The innovative optimized control concept of the Models 430 P-Smart allows the operation per smartphone or tablet via App
(free download at: Google Play Store / Apple Store), as well as a different form of settings, documentation and data management.
 Technical Data
Dimensions (WxHxD)          approx. 725 x 560 x 425 mm
Net weight                                  approx. 50 kg
Power supply 1)                       230 VAC / 50 Hz
Consumption                             ca. 100 W - 150 W
Test panel format, min.         80 x 50 mm
Test panel format, max.        165 mm wide, any length
 Thickness of specimen         0.5 - 20 mm
Standard load range                 2 - 50 N (2-N grading)
Special load range 2)                1 - 15 N (1-N grading)
Cutting path                                  25 or 40 mm
Cutting speed                               1 m/min or 40 mm/s

1)  alternatively 115 VAC / 60 Hz - surcharge  (please specify mains supply when ordering)
2)    Optional set of weights for bottom load range

Order Information
Order No..                     Product Description

101-03240131    SCRATCH HARDNESS TESTER 430 P-I-Smart
motor-driven turntable and cutting position and with manual adjustment of loading force, manual turning of test panels and control plate for cutting path of 25 mm and 40 mm. Load pressure max. 50 N

101-03240231      SCRATCH HARDNESS TESTER 430 P-II-Smart
as for Order No. 101-03240131, but with motor-driven adjustment of loading force and manual turning of test panels

101-03240331        SCRATCH HARDNESS TESTER 430 P-III-Smart
as for Order No. 11-03240131, but with manual adjustment of loading force and automatic turning of test panels

101-03240431          SCRATCH HARDNESS TESTER 430 P-IV-Smart
as for Order No. 101-03240131, but with motor-driven adjustment of loading force and automatic turning of test panels

Included in scope of supply: Transport case with
- 3 Allen keys (SW  2 / 2.5 / 3)
- Connecting member for cutting path of 25 mm
- Folding magnifier (2.5 fold magnification)
- Recesses for set of weights, test inset (writing effect) and for max. 8 test tips
Mains connection cable
Operating instructions
Caution:   Test tips are not included in the scope of supply
