ASB

Scales > For Retail
ASB FEATURES FUNCTIONS versions

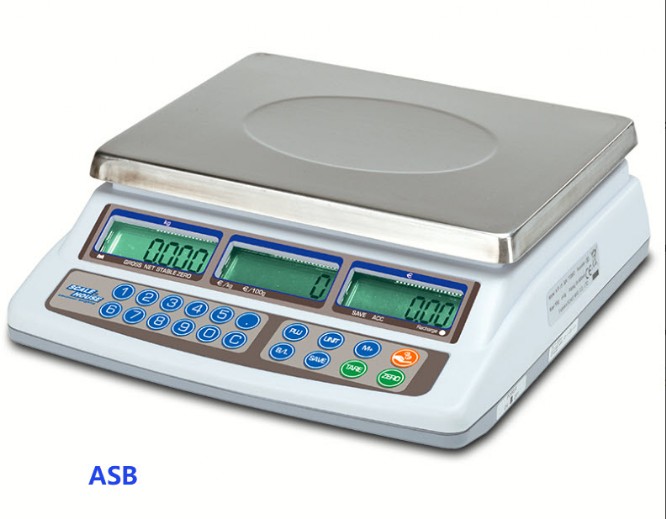

ASB SERIES PRICE COMPUTING "RETAIL" SCALE

ECONOMICAL PRICE COMPUTING SCALE
Compact dual range price computing scales for commercial use.
Connectable to the printer, for amount totalisation function.
10 PLU memory.





TECHNICAL FEATURES

  • 3 backlit LCD displays on operator side and 3 LCD displays on customer side, with 6 digits 20 mm high, for simultaneous indication of weight, price and amount.
  • Membrane waterproof numeric and functional keypad with 20 keys and acoustic feedback.
  • Stainless steel 230 x 300 mm plate.
  • Level and adjustable feet.
  • Built-in rechargeable battery (about 70 h battery life) and 230 Vac power adapter.
  • RS232/C port for connection to printer.
  • Packaging: 410 x 375 x 180 mm size - approximate weight of 5,1 kg.
  • Master Pack: 2x(410 x 375 x 180) mm size - 2 x approximate weight of 5,1 kg.
  • Upon request:
    - ACCREDIA calibration with issuing of relative certificate;
    - 3000e + 3000e dual range CE-M approval.

FUNCTIONS

  • Price computing:
    - change of unit price: €/kg - €/100g;
    - entry of unit price;
    - amount totalisation (with optional printer);
    - calculation of the change;
    - 10 PLU memories;
  • zeroing;
  • Zero tracking;
  • Semi-automatic tare;
  • Digital calibration;
  • Auto switch-off;
  • Backlight command;
  • Low battery warning.
Available versions

Code                    Max           d
                               (kg)            (g)                   2R (g)*

355-ASB6        3/6           1/2             1/2
345-ASB15       6/15         2/5              2/5
345-ASB30      15/30       5/10          5/10

(*) CE-M divisions are obtainable only with the relative options.
NOTE: ACCREDIA calibration certificate available upon request.

Options only available at time of scale's order
Code                         Description
345-ECEM2         CE-M single platform legal for trade multi range approval.
345-BTPRSH      ABS thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width;
                                    50 mm roll diameter; power supply through built-in 110-240 Vac power adapter.
