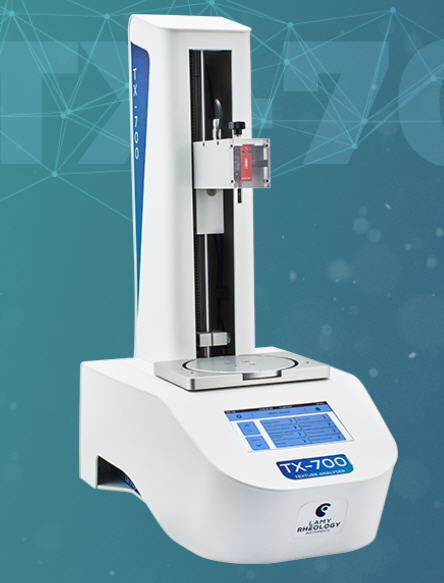

TEXTURE ANALYZER  TX-700

With its wide range of probes and cells, the TX-700 is the ideal tool for your texture analysis.
Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX-700 will integrate in laboratory and production area.
+ Direct visualization of curves.
+ Programming and saving of methods.
+ Memorization and data transfer.
+ Wide choice of probes and cells.
+ Interchangeable force sensors.
+ Height adjustable tray.
+ Integrated PT 100 temperature probe.
Specifications 1 Specifications 2 Specifications 3
Specifications

  • Type of instrument :  Texture Analyzer operating in Compression and Traction with 7'' Touch screen
  • Choice of sensors :
10 N (1 kg), Resolution 0.001 N (0.1 g)
20 N (2 kg), Resolution 0.001 N (0.1 g)
50 N (5 kg), Resolution 0.001 N (0.1 g)
250 N (20 kg), Resolution 0.01 N (1 g)
500 N (50 kg), Resolution 0.01 N (1 g)
  • Speed range :  From 0.1mm/s to 10mm/s
  • Motion :  Height: 240 mm / Resolution: 0.1 mm
  • Temperature :  The TX-700 has a PT 100 sensor to measure your sample’s temperature from -50°C to +300°C
  • Accuracy :  +/- 0.05 % of the full scale
  • Display :
    Force – Speed – Distance – Temperature - Time – Level of sensitivity
    Date/hour - Choice of force units: gram or Newton
  • Compatible accessories : All probes and cell
    • Security and confidentiality :
    An «operator» function allows you to enter a username for your instrument.
    This user must then be identified using a 4-digit code.
    There is also a protected mode that locks your measurement conditions.
    • Language : French/English/Russian/Spanish
    • Compatible measuring system :  All probes and cell
    • Supply voltage :  90-240 VAC 50/60 Hz
    • PC connections : RS232 Port and USB
    • Printer connection :
      USB Host Port - Compatible
      PCL/5
    • Dimensions and weight :
    D610 x W340 x H650 mm
    Weight: 22 kg
    • What benefits are there for you?
      Integrated adjustable turntable: diam. 160 mm.
      Table for attaching inserts: 120 x 220 mm.
      Available Operating Modes: Compression – Relaxation –Traction – TPA Cycle – Penetrometry and relative
      compression mode also.
      Large selection of probes available and custom probes can be made with choice of material, shape
      and size according to your criteria.
      The TX-700 has a large 7’’ colour touch screen which allows comfortable use and optimal viewing of measurements. Storage of your measuring
      methods. Data can be backed up and exported using a USB key.
      External control thanks to the optional software.

    • Options :
      - Calibration kit :
      10-20N (PN 150060)
      50-250N (PN 150070)
      500N (PN 150080)
      - Software (PN 311005)

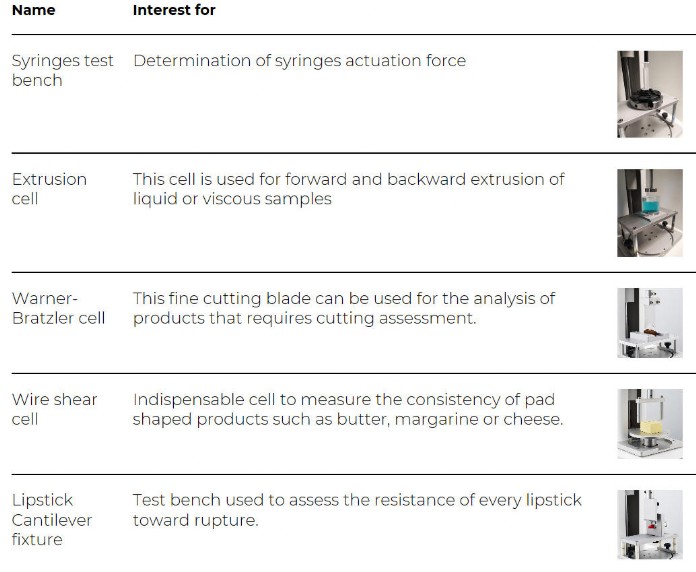

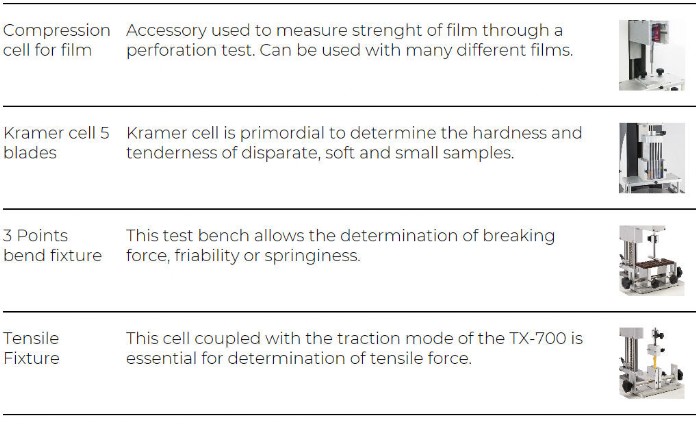

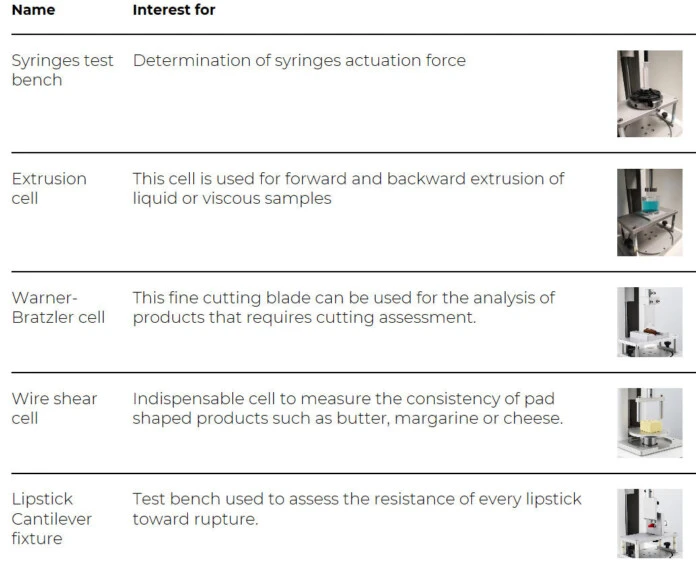

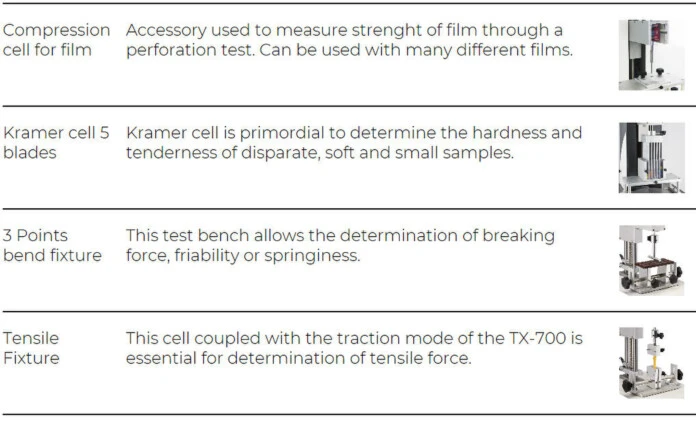

    Choose the most suitable cell for your products and tests

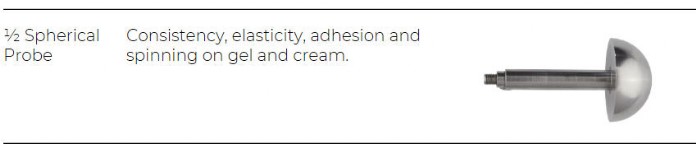

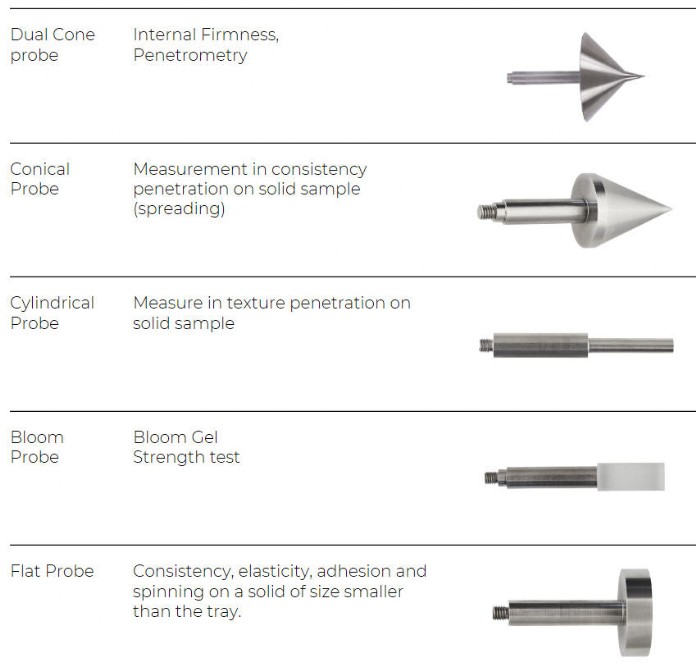

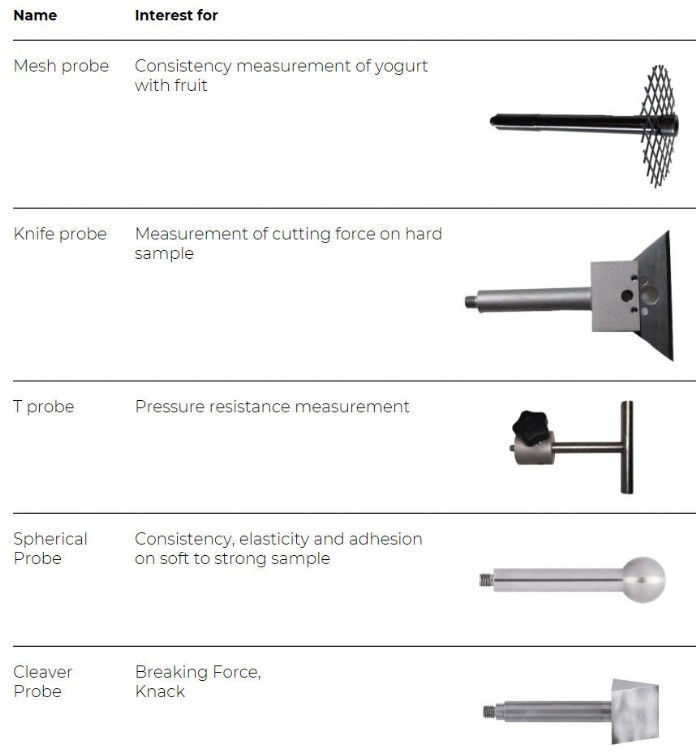

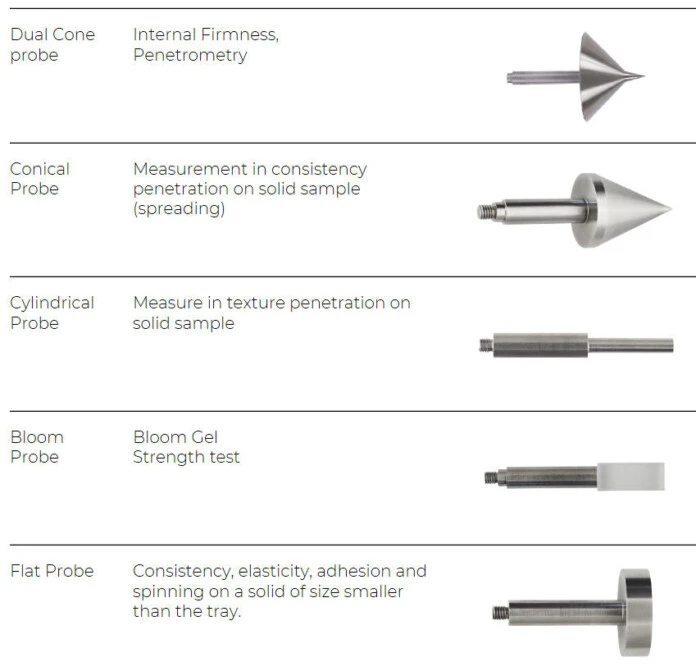

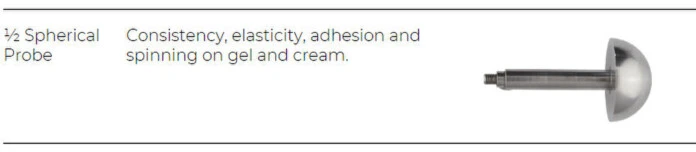

    Choose the most suitable probe for your products and tests
