For 4-20ma sensor

Laboratory Product > Universal data logger

LGS34 Characteristics

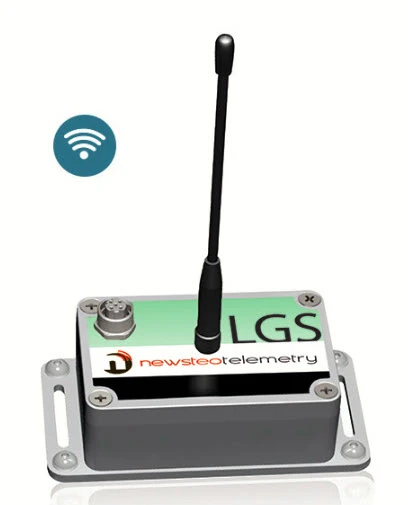

LGS34 : DATA LOGGER FOR 4-20 MA SENSOR

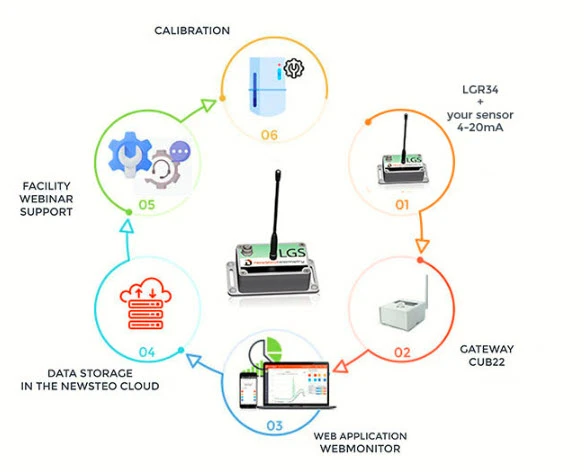

The ideal solution to turn your 4…20mA sensor into a wireless communicating sensor

The advantages of the data logger for 4-20 mA sensor

SIMPLE AND QUICK
Easy and quick to install. You can move your recorder at will.
DATA SECURITY

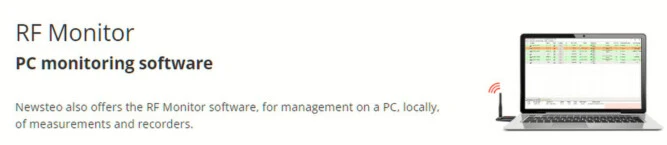

All your measurements are stored in the temperature recorder then transmitted by radio to a PC or to the Cloud Newsteo
4-20mA SENSOR
Covers the entire range of the sensor

Reference : 221-PFPN-LGS34-001

Technical characteristics of the LGS34, data logger for 4-20 mA sensor

Input : 1

Range of measure : 0 … 20 mA Impedance : 62 Ohm

Accuracy (without sensor) : ± 0.001 mA

Resolution : 0.0006 mA

See more features

Sensor supply : N.A

Operating temperature : -40°C to +85°C

Internal temperature : Measured via a temperature sensor integrated on the electronic card.

Measurement frequency : Can be set from one measure every second to one every 4 hours

Memory Capacity : Up to 32 768 measurements with date and time

Measurement securisation :

Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

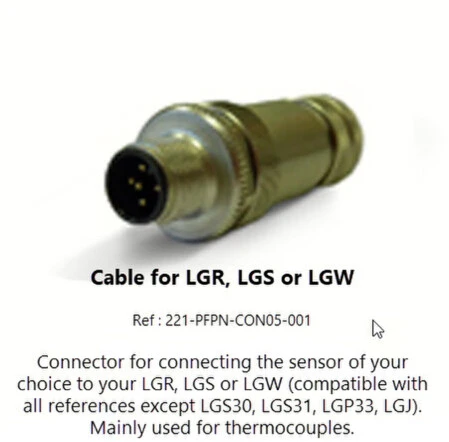

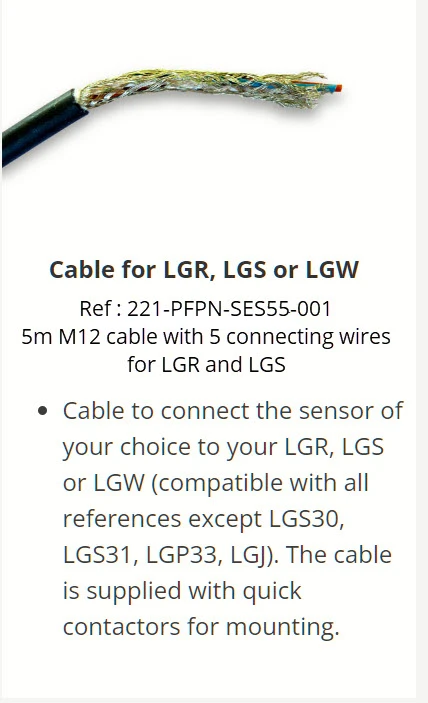

Sensor connection : Through connector available on the top of the logger

Radio range : Up to 900 meters (with supplied antenna)

Autonomy : 3 years*
*Assessed at a measurement frequency of every 10 minutes, at 25°C.

Average value which may vary according to use.

Value given without switching to product alert mode.

Power supply for the sensor : NA
