RT162, RT163 & PC TEMP RT2 REFERENCE THERMOMETERS
These cost effective thermometers use a platinum film sensor and sophisticated linearising techniques for high accuracy applications, with 0.01°C resolution.
MODEL RT162
This bench mounted thermometer can be used in high accuracy applications and as a reference to check the accuracy of other thermometers.
MODEL RT163
Mains operated bench mounted thermometer with bright red LED display, switchable °C/F function and
RS232 output with options for alarm and USB. Can be used in high accuracy applications and as a
reference to check the accuracy of other thermometers.
MODEL PC TEMP RT2
This bench mounted thermometer can be used in high accuracy applications and as a reference to check the accuracy of other thermometers.
MODEL RT163
Mains operated bench mounted thermometer with bright red LED display, switchable °C/F function and
RS232 output with options for alarm and USB. Can be used in high accuracy applications and as a
reference to check the accuracy of other thermometers.
MODEL PC TEMP RT2
As Model RT162, but in a hand held portable lightweight case.
Note: System accuracy is the thermometer accuracy plus the probe accuracy.
OPTIONAL ACCESSORIES for RT162: • Mains Adapter
All 3 thermometers above use Temperature probe - TP162G (120 x 3.3mm shaft; rounded tip; 1M cable)
These instruments can be supplied in a kit complete with:
TP162G probe; System Calibration Certificate - traceable to National Standards; Executive carrying case.
Other options for RT163 :
- VDC (11-26 Vdc option)
- ARO (alarm/relay output)
- USB (USB output)
- ROSW (software & Usb cable)
OPTIONAL ACCESSORIES for RT162: • Mains Adapter
All 3 thermometers above use Temperature probe - TP162G (120 x 3.3mm shaft; rounded tip; 1M cable)
These instruments can be supplied in a kit complete with:
TP162G probe; System Calibration Certificate - traceable to National Standards; Executive carrying case.
Other options for RT163 :
- VDC (11-26 Vdc option)
- ARO (alarm/relay output)
- USB (USB output)
- ROSW (software & Usb cable)

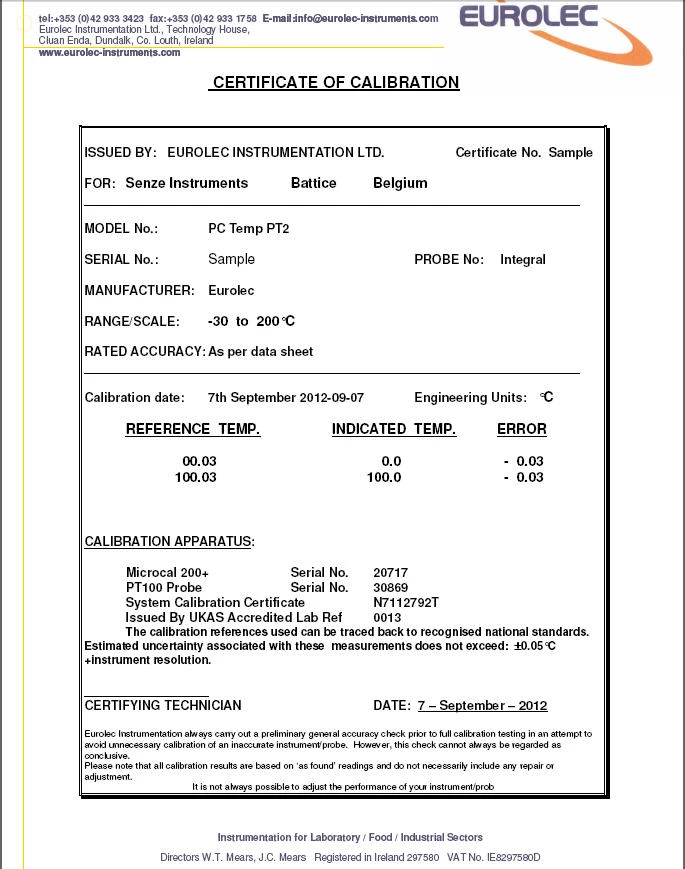

A calibration certicate is available. (see sample here under)

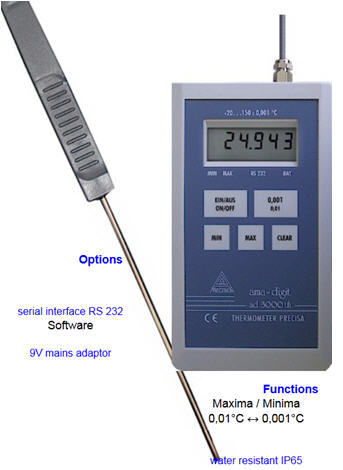

ad 3000 th – Thermometer Precisa
The accuracy you need for the recalibration of your testing equipment.
The first electronic hand-held thermometer with finest resolution 0,001°C for high specialised measuring tasks.
The first electronic hand-held thermometer with finest resolution 0,001°C for high specialised measuring tasks.
High long-term stability
Resolution: 0,001°C
High accuracy
Recommended as a standard instrument used for the monitoring of other measuring and test equipment.
Measuring range : | -20 + 150°C |
Resolution : | 0.001°C |
Consistency* : | ±0,01 °C —> +20... +50°C |
Battery : | 9V 6F22 single-block battery |
Battery life : | c. 180 h |
Casing | 150 x 80 x 32 mm |
High precise sensor fixed connected | Pt 1000 4-conductor probe of stainless steel |
Type : | immersion probe |
Depth of immersion : | 100 mm |
Dimensions : | 150 x 3,0 mm |
Cable length : | PVC, c. 1200 mm |
Response time : | T 90= 20 sec. |
* The consistency of the measuring values refers to the factory-made adjusted test points 20°C and 50°C. | |
