ANY SENSOR RECORDER
Universal standalone data logger for any type of external sensor
Newsteo offers its range of dataloggers to connect different types of sensors. After connecting the sensor, measurements can be wirelessly transmitted and sensors are then connected to a wireless sensor network.
  • Data logger for  extensometer or crackmeter: Connect 1 to 3 extensometers or other sensor with a potentiometric interface.
  • Data logger for 4-20 mA sensor: Connect any 4-20 mA sensor
  • Data logger for dry contact sensor or relay: Connect any dry contact sensor
  • Data logger for pulse counter: connect any pulse meter, flowmeter, gas meter
  • Data logger with voltage level interface: for  0…10 V, 0…2.5 V, -50 mV…+50 mV sensors
  • Data Logger with 5 inputs -5 Volt … +5 Volt
  • Data logger with gauge bridge interface: for strain gauge

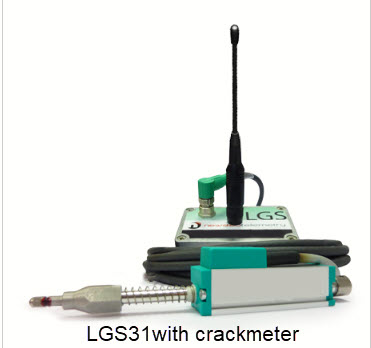

LGS31/LGP33 – Data logger with potentiometric interface
Interface: Potentiometric for extensometer, crackmeter or other sensor
Measurement range: 0 … 100%
Impedance: 1 kOhm … 65 kOhm
IP Level: IP65
Data transfer: Radio
  • Wide range of extensometer and crackmeter proposed by Newsteo
  • Ideal for geotechnical instrumentation, Structural Health Monitoring (SHM)

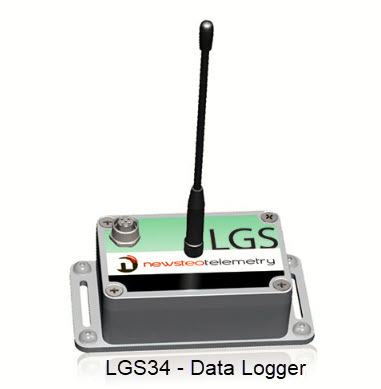

LGS34 – Data Logger for 4-20 mA sensor connection
Interface: 4-20 mA
Measurement range: 0 … 20 mA
Impedance: 62 Ohm
Sensor supply : Not applicable
IP Level: IP65
Data transfer: Radio
  • To connect your 4 … 20 mA sensor

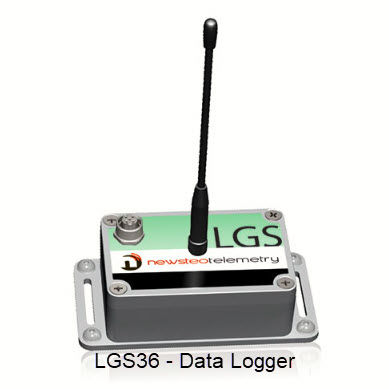

LGS36 – Data Logger for switch-off sensor
Interface: Relay
Measurement range: 0 / 1 (10 Hz)
Sensor supply: 2.7 V / 62 mA max
IP Level: IP65
Data transfer: Radio
  • 2 channels

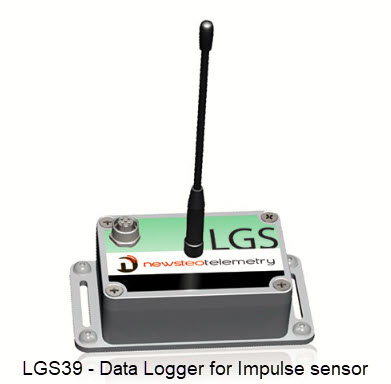

LGS39 – Data Logger for Impulse sensor
Interface: Impulse
Impulse frequency: 0 to 10 Hz
IP Level: IP65
Data transfer: Radio
  • Wireless meter recorder

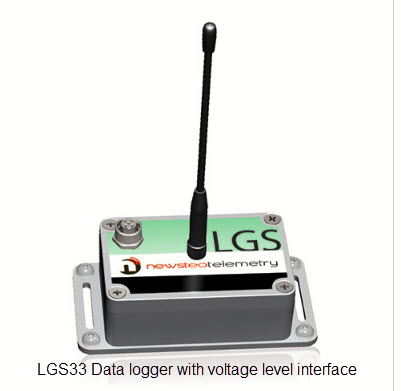

LGS33 – Data logger with voltage level interface
Interface: Level of voltage
Measurement range: 0… 2.5 V
IP Level: IP65
Data transfer: Radio
  • Long signal range
  • Industrial product

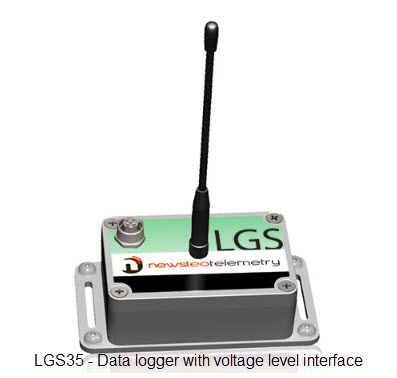

LGS35 – Data logger with voltage level interface
Interface: Level of voltage
Measurement range: 0…10 V
IP Level: IP65
Data transfer: Radio
  • Long signal range
  • Industrial product

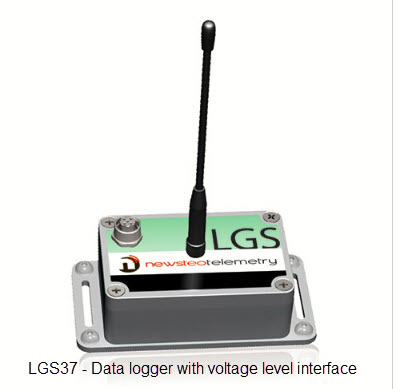

LGS37 – Data logger with voltage level interface
Interface: Level of voltage
Measurement range: -0.05 V to +0.05 V
IP Level: IP65
Data transfer: Radio
  • Long signal range
  • Industrial product

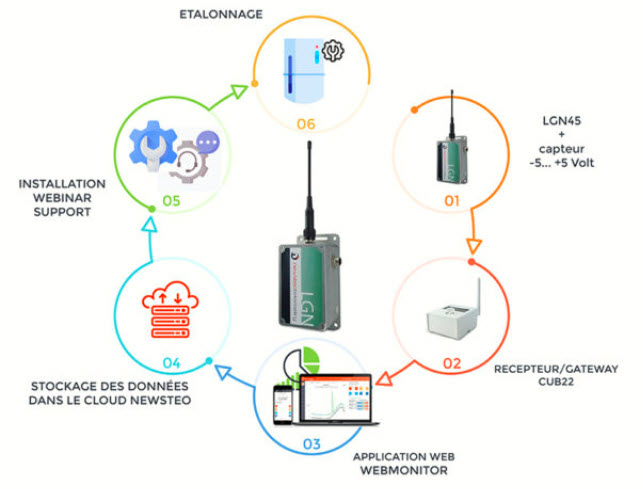

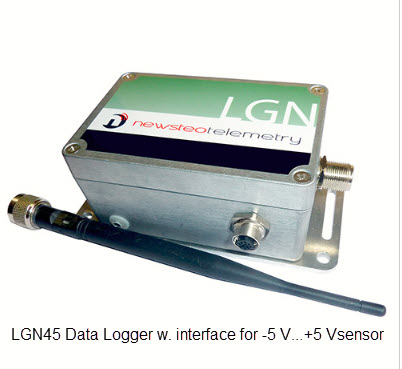

LGN45 – Data Logger with interface for -5 V…+5 V sensor
Interface: Level of voltage
Measurement range: -5 V…+5 V
Number of channels: 5
IP Level: IP65
Data transfer: Radio
  • 5 channels -5 V …+5 V
  • Long signal range
  • Ideal to interface inclinometers

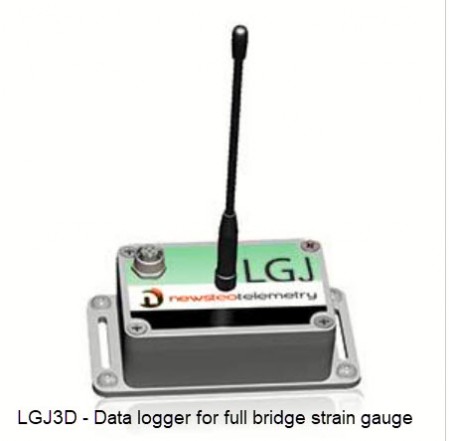

LGJ3D – Data logger for full bridge strain gauge
Interface: Gauge bridge
IP Level : IP65
Measurement range : +/- 50 mV (for a 2.7 V excitation)
Data transfer: Radio
  • Long-term monitoring of changes and movements of a structure.
