Process & Quality Control

Reference Thermometer

Temperature > Calibration Sources
Back to the TEMPERATURE MENU

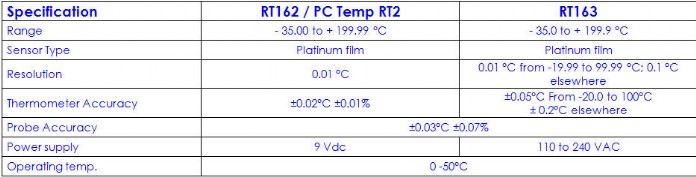

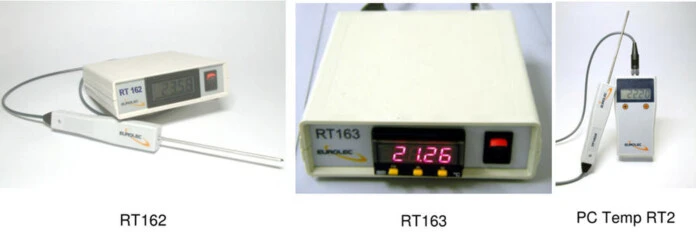

RT162, RT163 & PC TEMP RT2 REFERENCE THERMOMETERS


These cost effective thermometers use a platinum film sensor and sophisticated linearising techniques for
high accuracy applications, with 0.01°C resolution.

MODEL RT162

This bench mounted thermometer can be used in high accuracy applications and as a reference to check the accuracy of other thermometers.

MODEL RT163

Mains operated bench mounted thermometer with bright red LED display, switchable °C/F function and
RS232 output with options for alarm and USB. Can be used in high accuracy applications and as a
reference to check the accuracy of other thermometers.

MODEL PC TEMP RT2

As Model RT162, but in a hand held portable lightweight case.

Note: System accuracy is the thermometer accuracy plus the probe accuracy.

OPTIONAL ACCESSORIES for RT162: • Mains Adapter

All 3 thermometers above use Temperature probe - TP162G (120 x 3.3mm shaft; rounded tip; 1M cable)

These instruments can be supplied in a kit complete with:
TP162G probe; System Calibration Certificate - traceable to National Standards; Executive carrying case.

Other options for RT163 :
    -  VDC  (11-26 Vdc option)
    -  ARO  (alarm/relay output)
    -  USB  (USB output)
    -  ROSW (software & Usb cable)

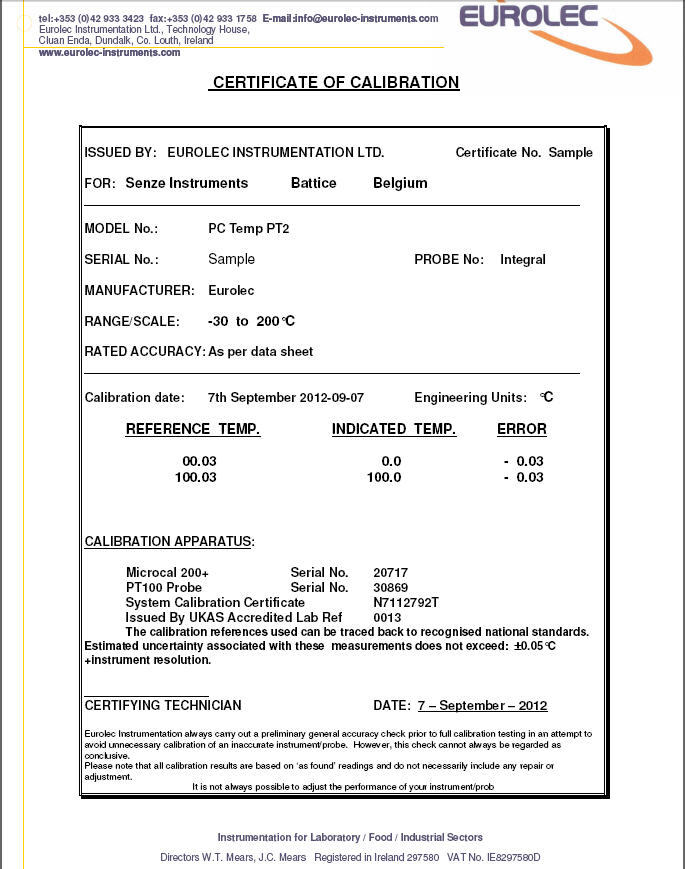

A calibration certicate is available.  (see sample here under)

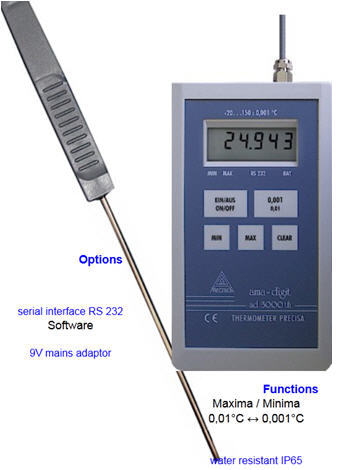

ad 3000 th – Thermometer Precisa


The accuracy you need for the recalibration of your testing equipment.

The first electronic hand-held thermometer with finest resolution 0,001°C for high specialised measuring tasks.





High long-term stability                 Resolution: 0,001°C                                 High accuracy

Recommended as a standard instrument used for the monitoring of other measuring and test equipment.



Measuring  range :

-20 + 150°C

Resolution :

0.001°C

Consistency* :

±0,01 °C —> +20... +50°C

Battery :

9V 6F22 single-block battery

Battery life  :

c. 180 h

Casing

150 x 80 x 32 mm

High precise sensor  fixed connected

Pt 1000 4-conductor probe of stainless steel

Type :

immersion probe

Depth of immersion :

100 mm

Dimensions :

150 x 3,0 mm

Cable length :

PVC, c. 1200 mm

Response time :

T 90= 20 sec.



* The consistency of the measuring values refers to the factory-made adjusted test points 20°C and 50°C.
