TEMP1000IS
INTRINSICALLY SAFE TEMPERATURE DATA LOGGER

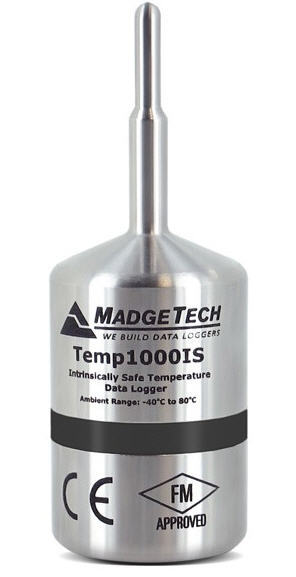

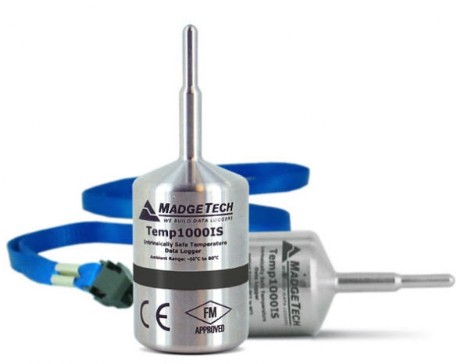

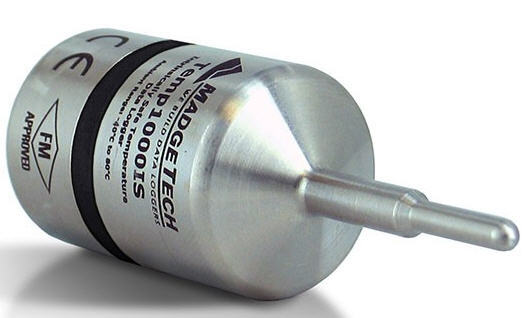

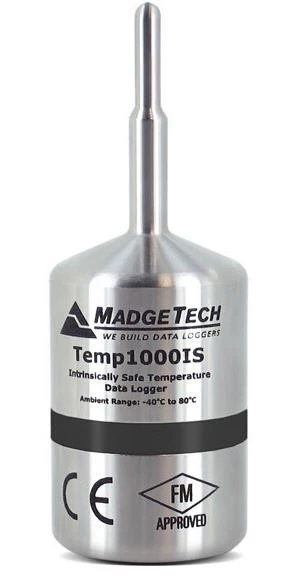

Temp1000IS Data Logger
Rugged, temperature data logger.
Enclosed in an intrinsically safe stainless steel enclosure.
Includes ISO17025 accredited calibration certificate.
The Temp1000IS temperature data logger is a rugged, battery powered, stand alone device which can be used to automatically record temperatures between -40 °C and 80 °C.
This all in one compact, portable, easy to use device is able to measure and record data for up to 32,767 temperature readings.
The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D
The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D
and non-incendive for Class I, Division 2 groups A, B, C and D hazardous environments.
This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications.
Its Real time clock ensures that all the data is time and date stamped.
Its Real time clock ensures that all the data is time and date stamped.
The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere.
The Temp1000IS makes data retrieval quick and easy. Simply plug the device into an empty COM and USB port and our user-friendly software does the rest.
TEMPERATURE
Temperature Sensor : Semiconductor
Temperature Range : -40 °C to +80 °C
Temperature Resolution : 0.01 °C
Temperature Calibrated Accuracy : ±0.5 °C
GENERAL
Memory : 32,767
Reading Rate : 1 reading every 2 seconds to 1 reading every 12 hours
Battery Life : 2 year typical at 15 minute reading rate
Battery Type: 3.6V lithium battery included, user replaceable
Material : 316 Stainless Steel
Dimensions : 67.3 mm x 24.6 mm dia.
Weight : 85 gr.
IP Rating (Not Rated) Caution : Do not submerge this product to retain IS rating.
Operating Environment : -40 °C to +80 °C, 0 %RH to 100 %RH (case properly sealed)
Required Interface Package : IFC400 or IFC406
Approvals : CE, IS rated
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Lethality Equations: Sterilization Units and Pasteurization
Units are available in software with the click of a button.
MODELS
2 models are available :
Temp1000IS-KR Rugged, Submersible, Temperature Recorder Intrinsically Safe, aluminum enclosure and key ring end cap
Temp1000IS-SS Rugged, Submersible, Temperature Recorder Intrinsically Safe, stainless steel enclosure
- MadgeTech 4 Secure Validation Software PackageIQ/OQ/PQ Secure Software Validation Workbook and Software Package.
- IFC400 Data Logger InterfaceInterface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.
- TL-2150/S Lithium Battery3.6V Lithium Battery, 1/2 AA, Pressure Contact, -40 °C to +80 °C.
Please note: Shipments containing lithium batteries are subject to a minimum 45 € UPS Hazardous Handling Fee if shipped via any method other than UPS ground.
- IFC406 Multiplexer Data Logger InterfaceIFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.
Applications
• EtO Sterilization
• Implement HACCP Programs
• Food Preparation and Processing
• Environmental Studies
• Well Monitoring
• Dishwasher Testing
• Hazardous and Hostile Environment Monitoring
• Medical and Pharmaceutical
