EL-IOT-CO2 Specifications Easy to set up CO2 CALIBRATION

Need to Monitor Air Quality?

Now available, the cloud-connected EL-IOT-CO2 continuously monitors air quality and comfort levels, including temperature, humidity and CO2, a key indicator of adequate ventilation.

Giving you the real-time data you need to take informed action to improve air quality, EL-IOT-CO2 is perfect for a wide range of applications in public, educational, healthcare, commercial and industrial facilities.

Measures:
- Temperature
- Humidity
- Carbon Dioxide (CO2)
Wi-Fi connected
Automatically uploads data to the EasyLog Cloud
Displays current, maximum and minimum readings
Status indicator and sounder
Set up real-time alarms and remote notifications by email or SMS
CO2 sensor automatically self-calibrates
Monitors temperature, humidity, and CO2
Automatically uploads data to the EasyLog Cloud
LCD display shows current, maximum and minimum readings
Customisable alarm limits
Typical battery life of six months or can be mains powered

CO2 Measurement

Range 0 to 40,000ppm

Accuracy 400 to 2,000 ppm ±(50 ppm +5% of reading)

Resolution 1ppm

Auto-calibration Yes

Units ppm

Temperature Measurement

Range -20 to +60°C (-4 to +140°F)

Accuracy ±0.3°C (±0.54°F) typical

Resolution 0.1°

Units °C or °F

Relative Humidity Measurement

Range 0 to 100%RH

Accuracy ±2% typical

Resolution 0.1%

Dew Point Accuracy* 1.5°C typical (40 to 100%RH)

Data Logging Rate 10 seconds to 12 hours (user selectable)

Transmission Interval 1 minute to 24 hours (user selectable)

Internal Memory 300,000 readings

Dimensions 97 x 87 x 33mm

Operating Temperature

Battery Power -18 to +55°C (0 to +131°F)

USB Power -20 to +60°C (-4 to +140°F)

Environmental Rating IP4X

The EL-IOT-CO2 continuously monitors air quality and comfort levels, including CO2 , a key indicator of adequate ventilation.

It automatically uploads data to the EasyLog Cloud, allowing your complete set of data measurements to be viewed, analysed and downloaded from any internet-enabled device.

It takes only a few minutes to set up your EL-IOT-CO2, and you can configure your own high and low alarms for each measured parameter.

If one of your set levels is breached an instant alarm is activated on the device, and notification options include email and SMS messages to your chosen contacts.

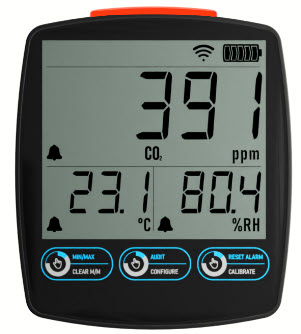

The display shows current, maximum and minimum readings for carbon dioxide, temperature and humidity, as well as alarm and device status.

The EL-IOT-CO2 runs from a USB power supply (supplied with the product) and can use AA batteries to provide a short-term backup if the power supply is interrupted.

It is also provided with a wall mountable bracket for easy installation.

CO2 CALIBRATION

To maintain the accuracy of your EL-IOT-CO2, there are two calibration features on the device.

Automatic self-calibration ensures the long-term stability without the need for any manual action from the user.

This method of calibration assumes that the sensor is exposed to atmospheric CO2 concentrations of ~400ppm at least once per week.

Manual recalibration can be carried out to restore the accuracy of the CO2 reading immediately; expose the device to fresh air by placing it outside or next to an open window. Press the CALIBRATE button to start the process and the display will change to show you it is under way.

After a few minutes the process will finish and the display will resume showing the current readings.

If there are any issues during the process, a warning screen will inform you.

Ensure the supply of fresh air is adequate and try again.

If your EL-IOT-CO2 ever needs you to carry out a manual calibration, it will prompt you to do so.

Do you want reliable tools to predict motor quality and performance in development and production?

Do you want to reduce scrap and increase process yield?

SMS - RC Applications

This Omni functional vibration analyzer is capable of 80% of machine fault detection, including bearing damage, imbalance, shock pulse, and root cause analysis. Featuring full touch panel operation frees the hassle of complex function keys. Built-in the most comprehensive criteria for different machine types, from small to large, including motor, compressor, pump, turbine and gearbox, simplifies the settings in less than 3 steps. High-resolution display and powerful algorithm enable no dead angle in equipment status.

Product Features:

Detect 80% rotating mechanical faults on site, with no need for additional post-analysis SW.
Auto bearing damage detection is compliant with ISO 20816, 10816, and 2372 norms.
Auto imbalance detection is compliant with ISO 1940 norm.
Innovative shock pulse identification outperforms conventional C.F. (Crest Factor)
TWF display
FFT with 10k lines resolution
Machines and measurement points library designed for novice users
Library of spectrum characteristic patterns for root cause analysis
Full touch panel smooths user experience
Analytics result in graphics and sharp color indications.
Integrated with the most comprehensive ISO provisions to free complex machine settings.
Up to 128 GB storage

Applications:

All-sector Rotating Machinery inspection
Acceptance review for returning motors
Precision maintenance
Machine availability improvement
Condition-based maintenance
Predictive maintenance
Nondestructive testing

Erichsen GMBH innovates

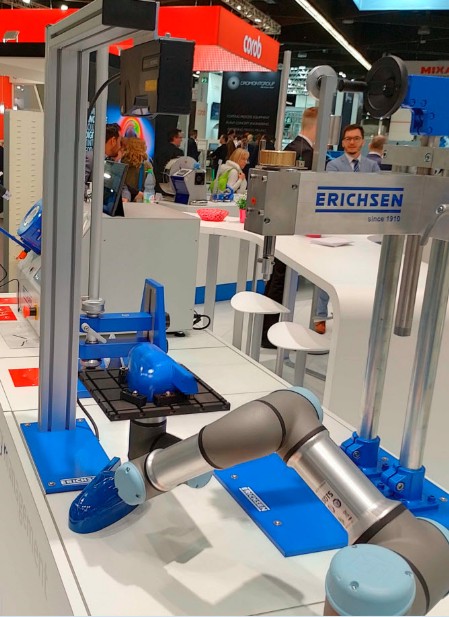

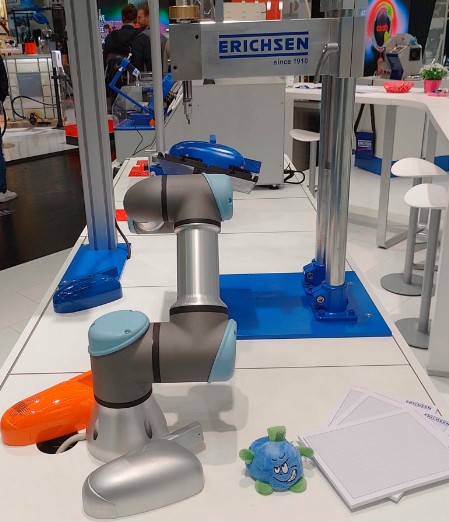

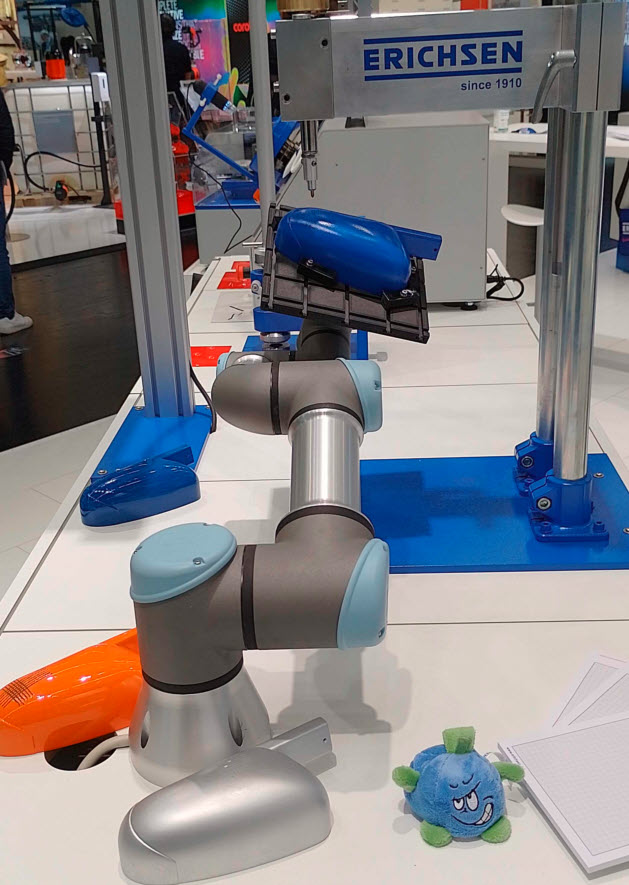

Cross hatch cutting 4.0 - A robot never gets tired

Fully automatic version of the SCRATCH HARDNESS TESTER with a robotic arm!

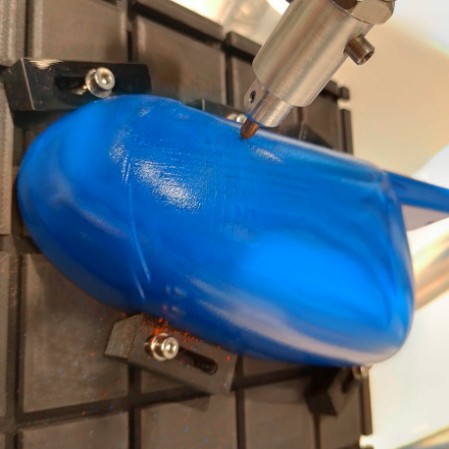

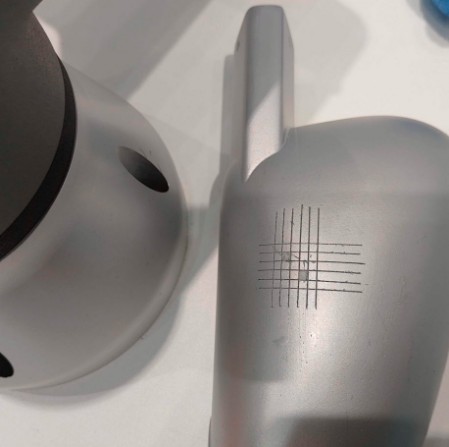

Automatic Scratch & Cross cut on curved surface!

24 hours a day of automatic production control !

Height Measuring Specifications Product Description Features

Height Measuring Instrument AHM-450C & AHM-600C

Carmar Auto Height Measuring Instrument is a standing digital con-coordinate measuring machine based on precision machinery, modern sensor technique and

electronic technology. lt is widely used in precision

machinery, hardware, plastic, etc.

lt can be used to measure the distance between two planes, depth of hale, groove wrdtb, and diameter, center distance, maximum and minimum value of hale and

groove.

ln addition, when conhgured with electronic probe, it is possible to measure verticality

Model AHM-450C AHM-600C

Effective measuring range 450 mm 600 mm

Max. measuring height (mm 770 (change probe's direction) 920 (change probe's direction)

Resolution (μm) 0.5

Accuracy (μm) 2+L/500

Verticality of front (um) 6 8

(after e-probe is amended)

Repeatability : plane: 1.0μm. curve: 2.0μm

Speed recommended(mm/s) 15

Max. electrical speed(mm/s) 25

Max. Manual speed (mm/s) 400

Power supply 12V rechargeable battery pack

Air supplyair pressure ≧0.4Mpa, flow≧30/min

Temperature 10-40°C

Weight(kgs) 36 40

Total height (mm) 900 1050

Carmar Auto Height Measuring Instrument

can be used to measure :

the distance between two planes,
depth of hole,
groove width, and diameter,
center distance,
maximum and minimum value of hole and groove.

In addition, when configured with electronic probe, it is possible to measure verticality.

Features:

1. Outstanding accuracy performance, 2+L/500μm, Repeatability in plane: 1.0μm

2. One-touch functions allow multiple metrology measurements.

3. Pneumatic floatation in pedestal makes it easy to measure.

4. Granite Pneumatic floatation mechanical structure, high accuracy and small deformation at temperature difference.

5. Auto measuring- high efficiency, and high stability and reliability.

6. Verticality measuring is available for option.

7. Output data to RS232 allowed.

SPEKTROMASTER 565 2 different methods Two versions

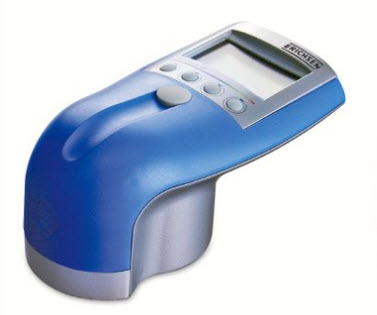

Color and Gloss Unit SPEKTROMASTER 565

Spectrophotometer, precise colour representation using numerical values, 45° geometry

SPEKTROMASTER 565-D

Colour and glossiness are what characterize the appearance of an object.

Two samples of the same colour but with different glosses do not visually look the same: the glossy surface is perceived as darker and more saturated.

Both of these effects must be well controlled in order to achieve a consistent appearance.

In comparison with the colour meters from other suppliers, the SPEKTROMASTER measures colour and gloss at the same time!

The reason for any deviation can be clearly determined in any situation.

For color measurement, there have been two different methods established, each specifically preferred by the users due to the concerning desired application:

45°/0°

For measurements due to the allusion to a visually valued impression.

Also for a lot of Automotive relevant applications as well as oftentimes for measurements within the final inspection.

8°/d

(Sphere acc. to Ullbricht) For color matching/ recipe matters, pigment testing, measure- ments of color alternation after weathering exposure.

Generally also for reception control.

The SPEKTROMASTER 565

is available in two versions, each attached with one of the two measuring geometries.

Color : 45/0 or sphere and 60° gloss are displayed at the same time
In compliance with international specifications

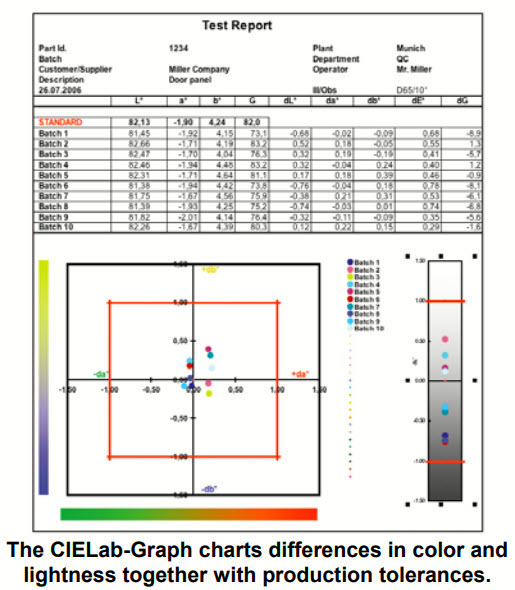

Tolerances for color and gloss allow quick pass/fail decisions in production

Wireless Alert TP User friendly OTHER MODELS

Wireless Alert TP Temperature Alert System

Wireless Alert TP is a battery-powered temperature sensor that sends a warning email if a user-set level is reached.

Simply select your temperature limits, add an email address and connect to any Wi-Fi network using the Wireless Alert mobile app.

-40°C to 125°C temperature probe with 1.5m cable
User-configurable high and low temperature limits
Sends email alerts and scheduled status reports
Flashing alert indicator
Wi-Fi connected
Simple to set up using the free mobile app
Two years' battery life (dependent upon usage scenario)
Batteries included
No ongoing subscription fees
Includes sticky pad for wall mounting
The sensor overall cable width Is 3.65mm, height is 1.65mm

To control in a very economical way your fridges, freezers, warehouses, stores, offices, labs, buildings ...

The Wireless Alert TP can be set up to monitor temperature limits in a variety of applications.

High and low temperature limits are user-configurable between -40 and 125 °C.

The device will trigger a notification email, sent to a user-selected address, if the temperature limits are breached and when the temperature returns to normal. I

In addition to this, the device can send a scheduled summary email detailing minimum, maximum and average temperature, as well as battery level, number of alerts, and total time spent in alert.

OTHER MODELS AVAILABLE :

Temperature & Humidity
Door Contact
Leak Detection (monitors a surface for liquid)
Pipe Temperature Sensor
Contact Monitor

DT-1 Specifications

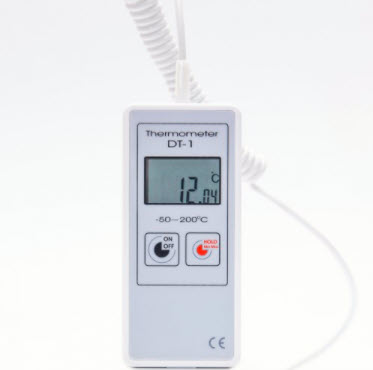

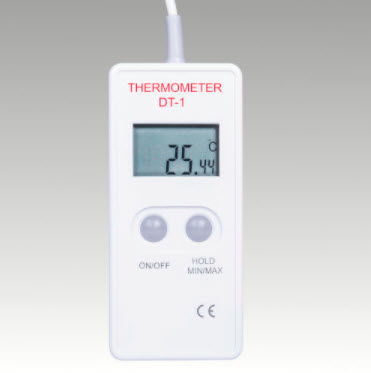

Laboratory Precision Hand Held RTD Digital Thermometer DT-1 (-100°C to 270°C)

Multifunction 0.01°C resolution temperature meter.

High accuracy food laboratory digital thermometer DT-1 can be used in food industry, research institutions and laboratories to control and measure temperature over the range of -100°C to 270°C with 0.07 °C accuracy.

Response time less than 5 sec.

The device was made of ABS material.

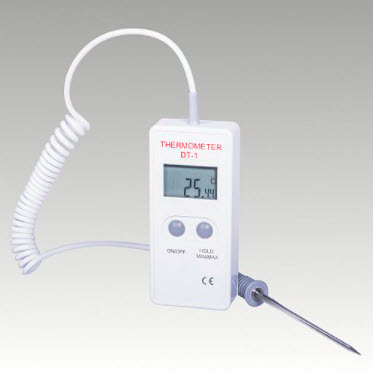

Water liquid catering digital thermometer DT-1 is as standard supplied with permanently attached ST01-1100 food penetration sharp-tipped probe 3.3x100mm with PT-1000 sensor and a one meter length curly cable.

Probe easily lances semi-solid products such as fruits, vegetables and cheeses. The probe can also handle liquid and air measurements. Other probe size, length available on request.

We manufactures customized probes for thermometer DT-1 on request.

Pharmacy unversal resistance digital thermometer DT-1 features a easy to read display with max/min function, hold function and low battery indication.

Battery included.

General purpose thermometer DT-1 can be manufactured with any of temperature platinum probe from our offer.

Features:

measuring in °C
resolution 0.01°C
display minimal and maximal temperature
low battery indication
high accuracy
PT 1000 sensor
hold function
simple and fast control

Specifications

Sensor platinum PT-1000

Temperature range -100 ° C to 270 ° C

Operating temperature 0 ° C to 40 ° C

Resolution 0.01 ° C

Accuracy from -10 ° C to 100 ° C: - / + 0.07;

from 101 ° C to 150 ° C :- / + 0.15

Measuring probe standard diameter 3.3 mm, length 100 mm, other size on request

Maximum and minimum temperature YES

Dimensions 45 mm × 100 mm × 19 mm

Protection IP65-electronics,

IP67-probe

Power 1x lithium battery 3.6V (1 / 2AA) included

Cable length standard 1 m, other size on request

Weight 85 g

Operating temperature for cable and handle 100 ° C

Hold function YES

Available probes Other resistance probes suitable for DT-1

Probe coversensor's cover material: acid-resistant steel SS 321

Response time less than 5 seconds

Low battery indication YES
