Laboratory dissolvers
Graphic & Printing Industry > Ink properties > Dissolvers - Mixers
Laboratory Dissolvers and Pilot Dissolvers, Mixers and Mills.
Dispermill® Laboratory Dissolvers
- Compact Full color LCD screen integrated on front.
- Multi Jog LED Interface knob, to give much faster control on the menu:
- Adjustable Timer with automatic stop
- Speed control starting from zero.
- Readout of Ampere.
- Readout of product temperature.
- New attractive design.
- Ergonomic lifting handle.

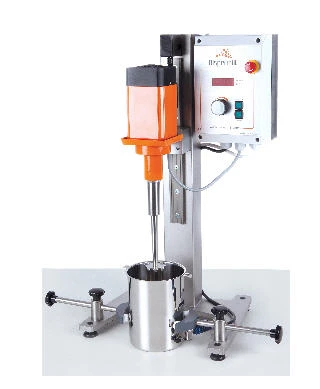

Smallest high speed laboratory dissolver
Orange
- from 100 ml - 3 liter
- 0,30 kW / 0,4 HP
- 0 -10.000 RPM
- 0,5 Nm
- 230 Volt/50 Hz +/-10%
- weight 26 KG
- 500x360x710mm. H

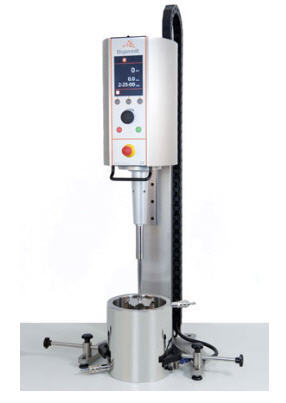

The Nr. 1 allround dissolver Vango 100
- from 250 ml 8 liter
- 0,75 kW / 1,0 HP0
- 12.000 RPM
- 1,3 Nm
- 230 Volt/50 Hz +/-10%
- weight 58 KG
- 500x325x1080mm. H
High Viscosity Dissolver/Mixer
Vango 150
- from 250 ml - 25 liter
- 1,10 kW / 1,5 HP
- 0-4.500 RPM
- 3,6 Nm
- 230 Volt/50 Hz +/-10%
- weight 65 KG
- 510x370x1350mm. H
Universal Dissolver till 25 Liter
Vango 200
- from 250 ml - 25 liter
- 1,50 kW / 2,0 HP
- 0-10.000 RPM
- 2,7 Nm
- 400 Volt/50 Hz +/-10%
- weight 82 KG
- 510x370x1350mm. H
Pilot Dissolver where extra power is needed
Vango 300
- from 250 ml - 25 liter
- 2,20 kW / 3,0 HP
- 0 - 4.500 RPM
- 7,6 Nm
- 400 Volt/50 Hz +/-10%
- weight 82 KG
- 510x370x1350mm. H
Pilot Dissolvers / Floormodels
The Dispermill® Floormodel can produce outstanding results on most applications. Low noise drive system with continuous adjustable speed.
PID electronics ensures constant speed even when viscosity changes.

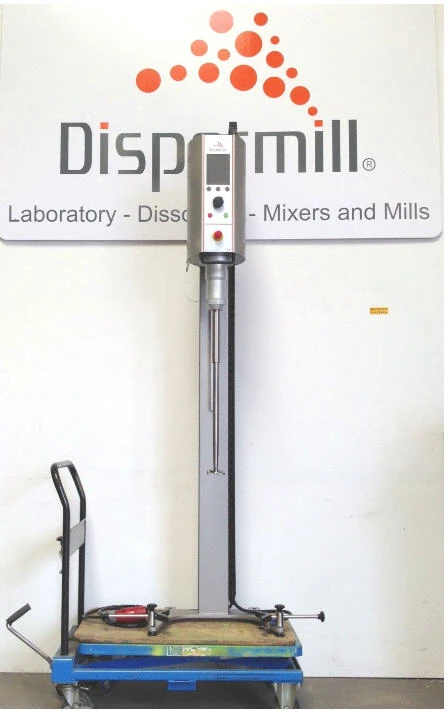

Dispermill® Floorstand Dissolver in IP54
Vango 300 Floor model
- from 20 liter till 60 liter
- 2,20 kW / 3,0 HP
- 0-4.500 RPM
- 7,6 Nm
- 400 Volt/50 Hz +/-10%
- weight 100 KG
- 750x610x1759mm. H

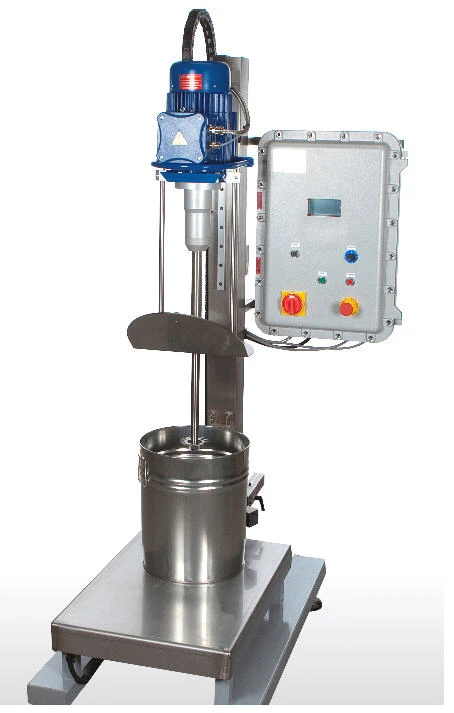

Dispermill® Floorstand Dissolver in ATEX
X-PROOF 300 FR Floor
- from 20 liter - 60 liter
- 2,20 kW / 3,0 HP
- 250 -4.000 RPM
- 7,3 Nm
- 400 Volt/50 Hz +/-10%
- weight 200 KG
- 750x610x1759mm. H

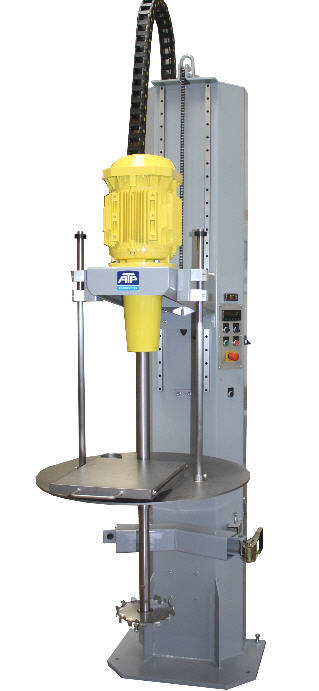

Dispermill® Dissolver
from 60 liter - 500 liter
M-Series
- from 60 liter till 500 liter
- from 4 kW till 11 kW
- 250-2.500 RPM
- 400 Volt +/-10%
- weight 500 KG - 1000 KG
- 800 x1000 x 3350mm. H

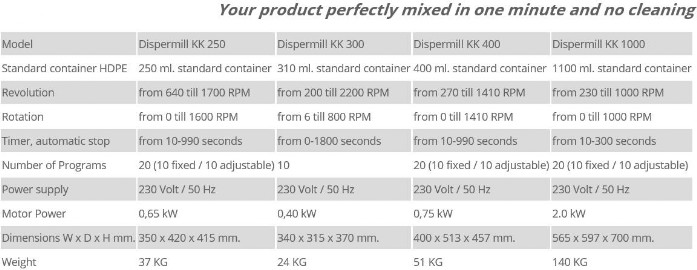

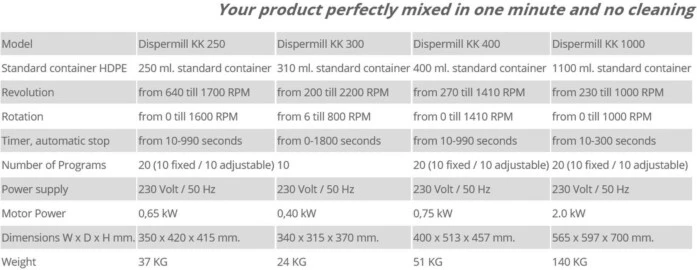

High Speed Planetary Mixer
This new line of high shear centrifugal mixers has both dual speeds and vacuum versions.
The Dispermill® High speed Mixer performs the best homogenous mass of the best quality in a short time

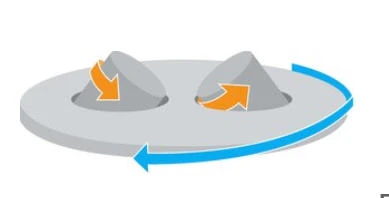

- Removing Airbubbles from your product by centrifugal force and container rotation adjustment.
- Make it possible to perform uniform mixture between different raw materials and liquids with different specific gravity.
- Even materials with extreme high viscosities of thousands of mPa.s can be done very easily with one of the Dispermill® machines.
Examples of applied materials:
Epoxy resin, Silicone resin, Acrylic resin, Urethane resin, Polyimide, Wax, Grease, Lubricant, Oil, Various solvents, Silver powder, Gold powder, Copper powder, Carbon, Aluminum Pigment, Phosphor, Calcium carbonate, Tungsten, Titanium, Glass powder, Colorants.
New Features
Optimized Control System with New improved user friendly Software and clear data display integrated on top of the mixer. Easy control menu:
•Adjustable Timer with automatic stop.
•Speed control both for Rotation and Revolution Independent!
•Setting programs
•Setting steps
•Setting vacuum
Use disposable containers !
◦Conductive, resistance and insulating paste
◦Condenser resistor rechargeable battery fuel battery solar cell
◦Resist and plugging inks for PCB
◦Green sheet
◦Thermally conductive sheet
◦Thermal insulation material
◦Optical fiber cable
◦Slurry
◦Carbon nanotube
◦Abrasive material
◦Abrasion of small precision part
◦Colourant Paste
◦Encapsulating and sealing material for touch panel
◦Various paste
◦Materials for various films and membranes medical
◦Pharmaceutical and dental products
◦Ointments
◦Coating materials for lens
◦Lipstick
◦Mascara
◦Cream
◦Foundation
◦Color matching for printing ink and paint
◦Various sealing materials
