TEMPOD

Transportation > IATA 100% Compliant

Tempod 30 Technical Features Specifications 1 Specifications 2

Tempod 30 - Temperature USB PDF Data Logger


AUTO PDF REPORT WITH EMBEDDED RAW DATA
Automatically generated encrypted PDF format report, no software required to access data file.
PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data.
Embedded raw data allows further data processing via TempSen Cloud and 3rd party system.

SOFTWARE-FREE ONLINE CONFIGURATION
Powered by TempSen patented SFP (Software Free Programming) technology, it's super simple to configure a data logger anywhere, anytime and on any platform, no need to install any software, just connect logger to computer and apply the configuration file downloaded, configuration will be done in one second.

POWERFUL LCD INDICATION
LCD presents following key information of recording task.
Alarm Status
Running Status
Monitoring Statistics
Time Mark History
Remaining Battery Levels

HEIGHTENED MEASUREMENT ACCURACY
Measurement accuracy heightened to ±0.3°C to present customer more precise reflection of temperature fluctuation.

MOQ : 10 units

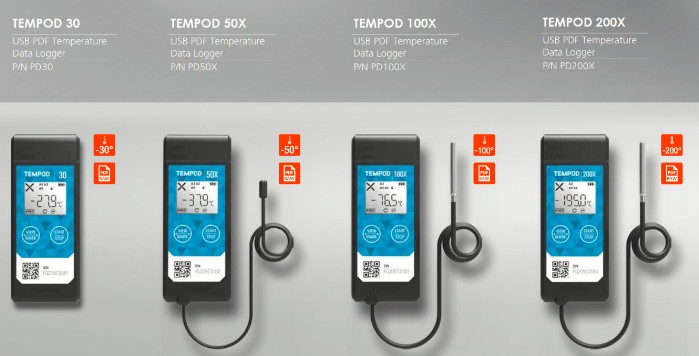

OTHER MODELS AVAILABLE

Technical Features

Firmware user upgradable
IATA PI970 II compliant, your goods with Tempod inside will not be handled as dangerous goods
RTCA DO-160G compliant allows monitoring in air freight
GxP regulations compliant

USB CONNECTOR
Enables quick connection with PC anytime anywhere, no cable and reader required to download data.

PASSWORD PROTECTION
Enable password protection to prevent unauthorized manipulation to device.

TIME MARK
Click on Mark button to record a time stamp for events requiring special attention during shipment.

REPEAT START
Allows re-start recording with latest configurations by pressing button on device.

MULTIPLE ALARM RANGES
Up to 5 alarm ranges offer detailed and precise temperature excursion statistics.

Technical Specifications

Usage Type Multi-use

Sensors Temperature: Internal NTC sensor

Memory Capacity 28800 readings

Measurement Range -30°C...70°C

Accuracy ±0.3°C (-20°C…20°C)

±0.5°C (other range)

Resolution 0.1°C / °F

Start ModeManual / Auto / Temperature start

Logging Interval 1 minute...2 hours

Alarm Ranges High and low alarm / 5 alarm ranges

Battery 3.0V lithium battery, user replaceable

Battery Life 18 months

Protection Class IP65

Dimensions 100mm L x 40mm W x 12mm H

Weight Approx. 48g

Technical Specifications 2

DisplayLCD

•OK(√), Alarm(x), alarm zone
•Running status
•Temperature statistics (max, min, avg)
•Remaining battery level
•Mark history

Automatic Data File Encrypted PDF report with embedded raw data

Software TempCentre Data Management Software

Compatible OS Windows 7 / 8 / 10

Calibration Factory NIST traceable 3-point calibration

Certifications CE,

FCC,

EN12830,

RTCA-DO160G,

IATA PI970 II,

RoHS, WEEE

Button Start / Stop / View / Mark

Connection USB

Tempod 20B bluetooth Technical features Spectifications 1 Spectifications 2

Tempod 20B bluetooth

TEMPOD® BLUETOOTH® DATA LOGGERS

Bluetooth® Access
Access, control and download data logger outside of package or vehicle through Bluetooth® Low Energy (BLE) connection.

Auto PDF Report With Embedded Raw Data
Automatically generated encrypted PDF format report, no software required to access data file.
PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data.
Embedded raw data allows further data processing via TempSen Cloud and 3rd party system.

Built-in USB Connector
Enables quick connection with PC anytime anywhere, no cable and reader required to download data.

Flight Mode
Logger keeps recording with Bluetooth® wireless turned off under Flight Mode, and user could
awake logger up from xflight mode remotely using TempSen Go App on smart device.

Password Protection
Enable password protection to prevent unauthorized manipulation to device.

MOQ : 10 units

OTHER MODELS AVAILABLE

Technical features

Firmware user upgradable
IATA PI970 II compliant, your goods with Tempod inside will not be handled as dangerous goods
RTCA DO-160G compliant allows monitoring in air freight
GxP regulations compliant

Technical Spectifications 1

Usage Type Multi-use

SensorsTemperature: Internal NTC

Memory Capacity 28800 readings

Measurement Range -20°C...70°C

Accuracy ±0.3°C (-20°C…20°C),

±0.5°C (other range)

Resolution 0.1°C / °F

Start Mode Manual / Auto / Temperature start

Logging Interval 1 minute...2 hours

Alarm Ranges High and low alarm / 5 alarm ranges

Battery 3.0V CR2450 lithium battery (Replaceable)

Battery Life 12 months

Protection Class IP65

Dimensions 100mm L x 40mm W x 12mm H

Weight Approx. 50g

Technical Spectifications 2

DisplayLCD

•OK(√), Alarm(x), alarm zones
•Running status
•Bluetooth signal and status
•Temperature statistics (max, min, avg)
•Remaining battery level
•Mark historyButtonStart / Stop / View / Mark

Connection USB
Bluetooth 4.0
