Gyroscopic Mixer
Laboratory Product > Mixer Disperser

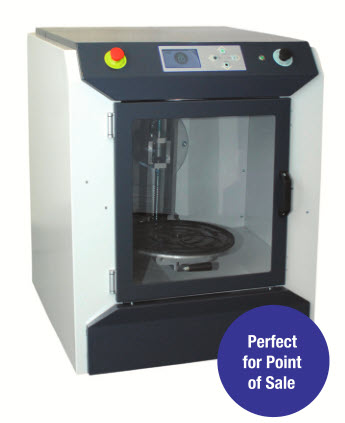

iMix: The Gyroscopic Mixer
The mixer designed for the machine user
- Select the optimal mixing speed (rpm), mixing time and clamping pressure
- Self corrects when vibration is detected
- Faster clamping, bigger door, easier loading
The mixer designed for the machine manager
- Predict Maintenance - mixer auto sends turnover data and maintenance needs
- Reduce service calls - Repair your mixer remontely
Specifications
- Mixing action : Gyroscopic / Biaxial with automatic speed control
- Typical applications : Paints, Plasters, and inks in metal & plactic containers up to 40 kg (49 cm x diam 36 cm)
- Motor power : 1,1 kW with frequency inverter
- Dimensions : 102 cm H, 80 cm W, 86 cm D
iMix: The Competitive Gyroscopic Mixer
Intelligent
- Just Press Start
- Reduced Mixing Times
Compact - Perfect for Point of Sale
- Modern Styling and Small Footprint
- Reduced Service Costs
Versatile
- Mix round, oval, metal and plastic cans
- Mix 4 cans at the same time
Just Press Start!
iMix - The Intelligent Gyroscopic Mixer
iMix will recognise your paint can and automatically adjust and select the :
- Fastest Mixing Speed (rpm)
- Optimal Mixing Time (minutes)
- Best Clamping Pressure
- Automatic - pressure changes based on can size.
Simple Controls
The Compact Gyroscopic Mixer
- Compact but Robust Mixer
- Easy to Service and Repair
- Large Door and Pull Out Tray with Automatic Clamping and Unclamping
- Clear Controls and large LCD display
Easy to Service
iMix - The Versatile Gyroscopic Mixer
- Large range of multi can size clamp plate / adaptors.
- Mixes cans from 8.6-42 cms - Metal, Plastic including oval.
- Available in customised colours.
iMix - Technical Data
Product Name : iMix gyroscopic mixer
Special features : Mixer selects mixing speed and pressure automatically
Market Applications : All Paint Shops mixing large volumes of heavy paint cans including 20 litre cans and including high viscosity paints. New modern styling.
Unique features : • Change parameters via frequency inverter
• Very low power consumption
Mixing action : Gyroscopic - with speed selection
Mixing capacity : 35 kg
Mixing Speeds : 3 Automatically selected speeds based on can size
Motor Power : 1,1 kw with frequency inverter
Mixing range - container dimensions height : 8.6 - 42 cms
Mixing range - container dimensions diameter : 38 cms
Mixing range - container types : Metal, Plastic including oval
Clamping system : Automatic - pressure changes based on can size
Display / Controls : LCD with panel
Timer - Minute timer : electronic 1-9, 15, 20, 25, 30 minute
Programmable : Yes
– Mixing speed and mixing times : 3 zones
– Clamping pressure : 3 zones
– Mixing Direction - bi directional : No
– Softstart and speed (gear) change : Yes
Languages : Yes
Pull out tray : Yes
Door : Large Perspex hanging door
Dimensions H x W x D (cm) : 101 x 73 x 84
