Paper Thermometer
Coatings & Industry > Oven C° Monitoring
Paper Thermometer
The Paper Thermometer™ are a wide range of temperature test strips featuring single and multiple temperature ratings.
Our products include Thermolabels® and Thermopaper® indicators with temperatures ranging from 32.2°C to 260°C.
We offer both adhesive and non adhesive temperature indicator strips to meet the needs of customers in a wide range of industries
including food service (dish sanitation labels), textile, screen printing (conveyor curing and heat press platen test strips),
research (cage washer temperature labels), food and beverage manufacturing (Clean in Place or CIP temperature labels),
metal coating (Peak Metal Temperature or PMT strips), and cabinet/furniture manufacturing (overlay and veneer lamination temperature labels).
Why Choose our Products
Cost, accuracy and reliability are important considerations in making the right product choice.
Our commitment to these factors drives customer decisions to choose Paper Thermometer™ temperature labels.
Our customers consistently find that Thermolabel® indicators are more cost effective than other temperature labels on the market.
Our temperature labels are backed by over 65 years of experience in the manufacture of irreversible temp indicators.
You can be certain of our materials’ accuracy and reliability.
All of our temperature labels are manufactured right here in the USA by the Paper Thermometer™ company.
As a result, we have a better depth of knowledge about the indicators we are selling, and the insight to answer questions knowledgeably to help in selecting the appropriate Paper Thermometer™ Thermolabel®, Thermopaper® or Thermotab® temperature indicator strip to meet your needs.
For these reasons, companies of every size select Paper Thermometer™ temperature labels to fulfill their temperature indicating needs.
Health departments across the country use Thermolabel® temperature strips for dishwashers to keep costs down and achieve the accuracy that they require.
Manufacturers in numerous industries rely on Paper Thermometer’s™ thermo labels for their accuracy and ease of use.
Research facilities trust the Paper Thermometer™ name when choosing a temperature label.
Choose Paper Thermometer™ to take advantage of low cost, accurate and reliable USA Made products backed by over 65 years of experience.
8-Temp THERMOLABEL®
Our water resistant 8-Temp Thermolabel temperature label features temperature sensitive elements that produce a non-reversible white to black color change at the rated temperature.
This provides a clear indication that the temperature has been reached.
The temperature elements are enclosed and protected with a clear plastic overlay, providing both moisture protection and durability, making these labels ideal for a wide range of applications.
The self-adhering indicators are available in packages of 16 labels each.
Store in a cool, dry place.

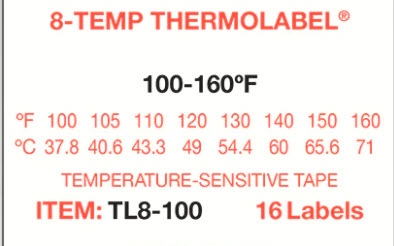

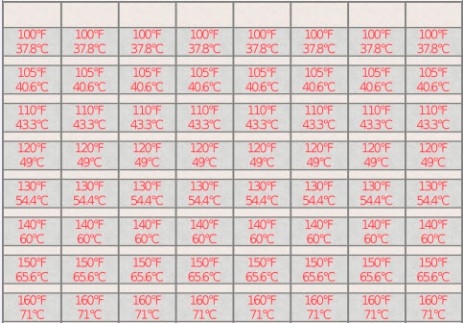

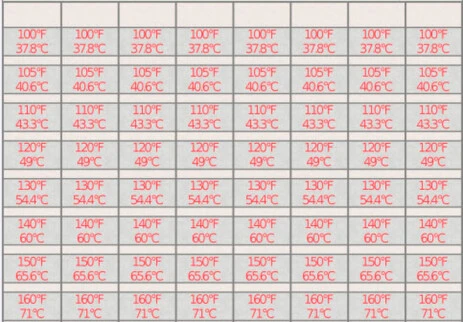

Our waterproof 8-Temp Thermolabel® 37,8-71°C is a popular choice for many applications including cabinet/furniture manufacturing (veneer glue curing), beverage bottling (Clean In Place systems – CIP) and in food service (dishwasher sanitation).

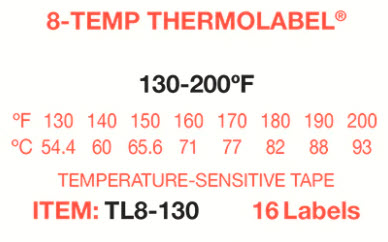

Our waterproof 8-Temp Thermolabel® 54,4-93°C is a versatile temperature indicator that is widely used in many industries.
Paper Thermometer's waterproof 8-Temp Thermolabel® 77-116°C features temperature sensitive squares that produce a gray/white to black non-reversible color change at their rated temperatures.

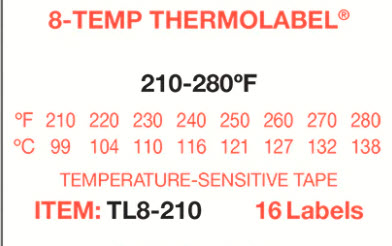

Our fully waterproof 8-Temp Thermolabel® 99-138°C features eight incremental temperature sensitive elements that produce a non-reversible white to black color change at their rated temperatures.

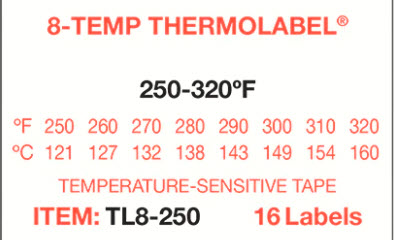

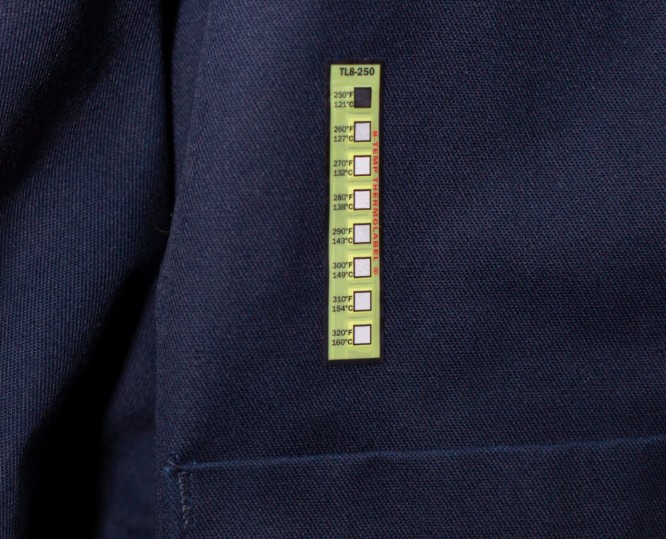

An 8 level indicator widely used in uniform service/laundering and textile industries (also used in a wide variety of application that require a 121-160°C temperature range)

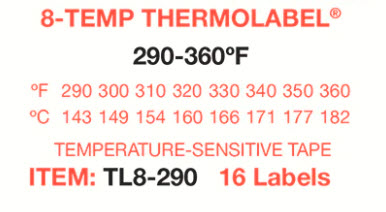

In use with manufacturers in a wide variety of industries, 8-Temp Thermolabel® 143-182°C is a waterproof temperature test strip featuring eight temperature sensitive squares.

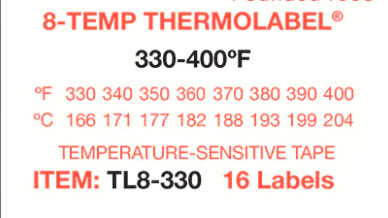

Available for a wide variety of applications in many industries, 8-Temp Thermolabel® 166-204°C is most commonly used in screen printing (heat transfers).

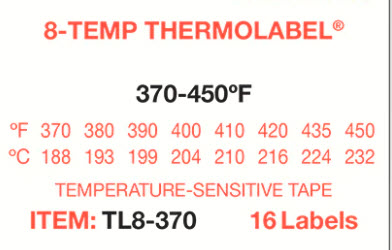

Often used in metal coating and screen printing processes, our 8 level Thermolabel® 188-232°C features eight incremental temperature sensitive elements that produce a non-reversible color change to black

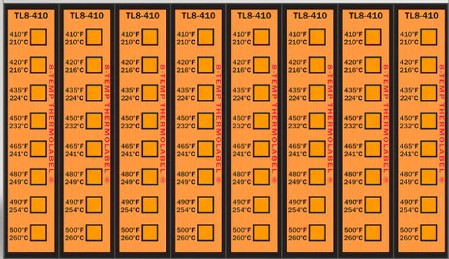

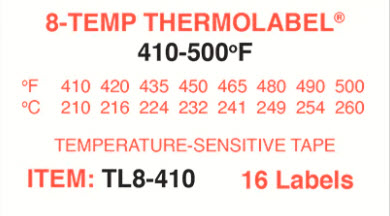

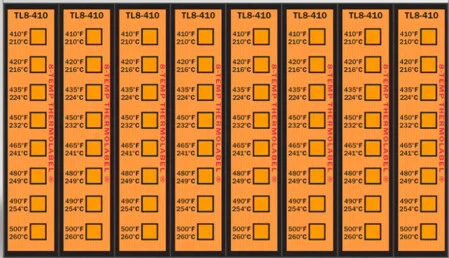

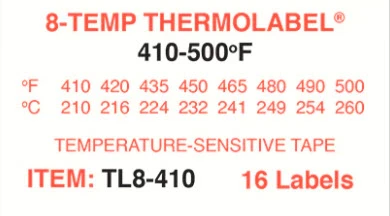

The 8-Temp Thermolabel® 210-260°C is commonly used in metal coating applications to verify the maximum temperature coated surfaces reach in curing ovens.

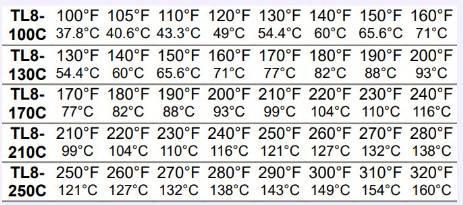

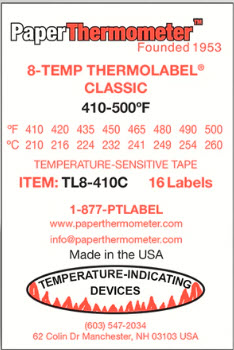

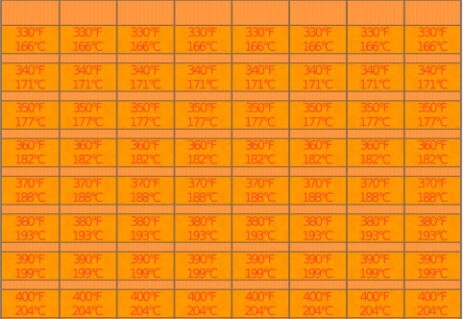

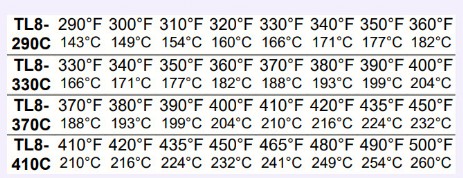

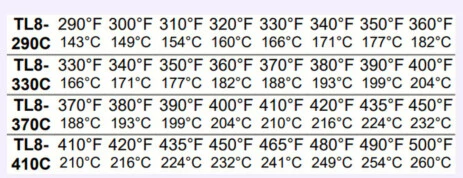

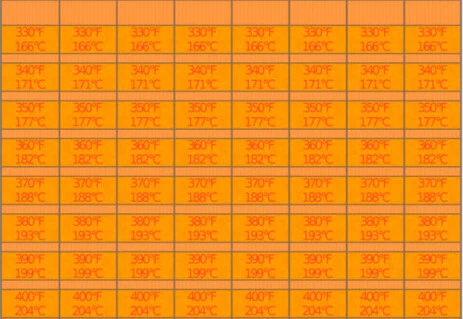

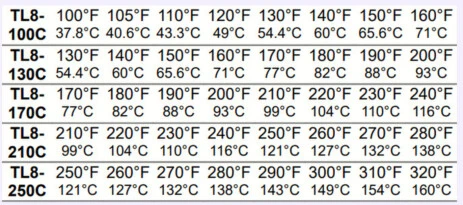

8-TEMP THERMOLABEL® CLASSIC Temperature Indicators
Our 8-Temp Thermolabel Classic products feature eight incremental temperature sensitive elements that produce a nonreversible white to black color change at their rated temperatures.
This provides a clear indication of which temperature has been reached.
These products are not waterproof and therefore cannot be used with liquids or excessively high ambient humidity.
They do have a faster response time than our standard 8-Temp Thermolabel line.
Store in a cool, dry place; preferably under refrigeration.
Unit of Measurement : Package
Labels Per Package : 16
Dimensions : 3/8'' x 2 1/4'' / 9,525 mm x 7,6 mm
Waterproof : No
Response Time Approximately : 5 seconds
Product Expiration
- 1 year for products containing 90-110°F
- 2 years for products containing 115-500°F
Indication Method : Non-toxic white to black color change
Product Instructions:
- Remove label from sheet.
- Adhere to a clean surface.
- Press firmly and ensure that there is full contact with the test surface.
- Heat/run through procedure that is being tested.
- The gray/white temperature sensitive elements will turn black as the rated temperature is reached.
- The highest temperature reached will be between the last black temperature element and the first gray/white temperature element.
- Allow to cool to the touch before slowly peeling the label off the test surface to avoid leaving adhesive residue
Other models are available on request :
Waterproof
1-TEMP THERMOLABEL® Temperature Indicators
3-TEMP THERMOLABEL® Temperature Indicators

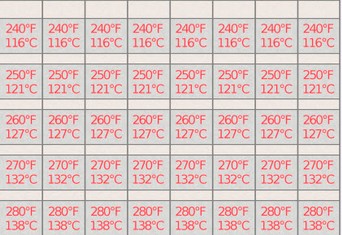

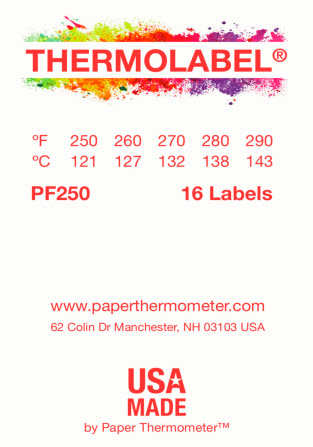

Performance Fabric THERMOLABEL® 121°c-127°C-132°C-138°C-143°C : specifically designed for testing curing temperature in the range of temperatures used with low cure ink on today's performance fabrics, polyester and blends (Labels Per Package 16)
Labels are not waterproof and therefore cannot be used with liquids or excessively high ambient humidity.

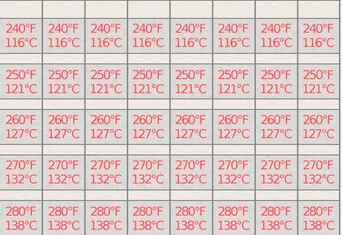

5-TEMP THERMOLABEL® CLASSIC Temperature Indicators
5-TEMP THERMOLABEL® Temperature Indicators
Product Instructions:
- Remove label from sheet.
- Adhere to a clean surface.
- Press firmly and ensure that there is full contact with the test surface.
- Heat/run through procedure that is being tested.
- The gray/white temperature sensitive elements will turn black as the rated temperature is reached.
- The highest temperature reached will be between the last black temperature element and the first gray/white temperature element.
- Allow to cool to the touch before slowly peeling the label off the test surface to avoid leaving adhesive residue.

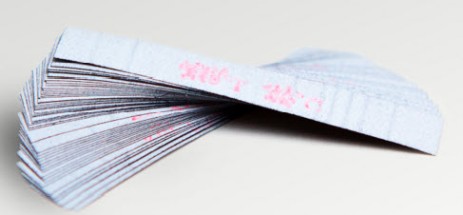

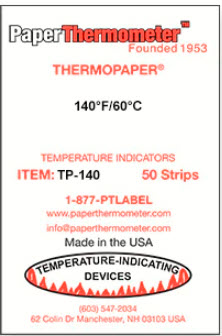

THERMOPAPER® Temperature Indicators
THERMOPAPER® Temperature Indicators Single temperature Thermopaper non-adhesive indicators provide a faster response time and are for use when a clean and dry test surface is available.
Strips consist of a temperature sensitive element that produces a non-reversible white to black color change at the rated temperature.
This provides a clear indication that the temperature has been reached. Store in a cool, dry place.

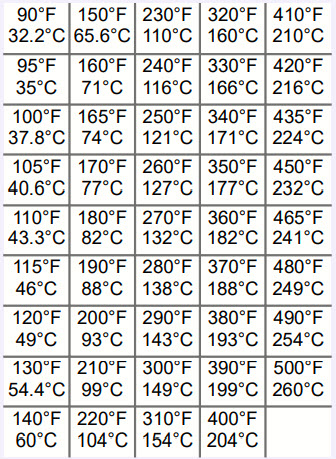

Temperature range : from 37,8 to 260°C
Waterproof: No
Response Time: Approximately 1 second
Product Expiration: None
Indication Method: Non-toxic white to black color change
Unit of Measurement: Package
Strips Per Package: 50
Dimensions (Approximate): 6,350 mm x 50,8 mm
Product Instructions:
- Affix Thermopaper on a clean surface.
- Heat/run through procedure that is being tested.
- The gray/white temperature sensitive element will turn to black if the surface has reached the rated temperature.

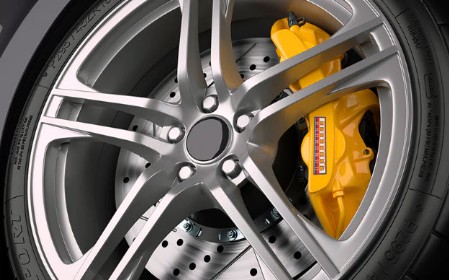

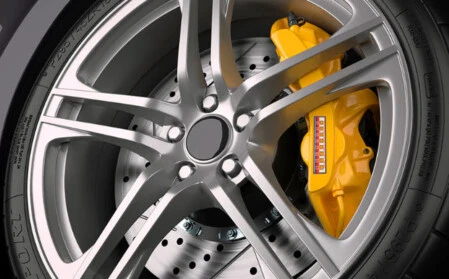

New Thermolabel for Motorsport Brake Temperature Monitoring
We previously highlighted how our temperature labels are used in motor sports applications to monitor brake caliper temperatures.

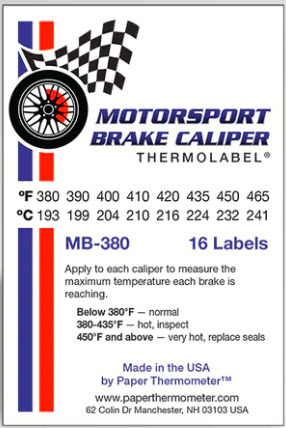

Now Paper Thermometer has a temperature label specifically for the motor sports applications to monitor brake caliper temperatures – the New Motorsport Brake Caliper THERMOLABEL® 380-465°F (Item #: MB-380).

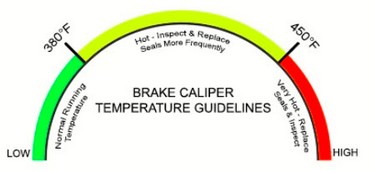

Temperature Guidelines
Below 193°C - Safe and normal running temperature, not registering on label
193-224 - Running hot but still OK, inspect and change seals more frequently
232°C and above – Running very hot, replace seals and inspect immediately
This high temperature indicator will tell you the maximum temperature your brakes have reached. You can use this information to time brake seal replacement and get ahead of future problems before they occur. Is it time for that big brake kit? Do you need to think about increasing air flow to your brakes? The new Motorsport Brake Caliper Thermolabel themp strips can help answer these questions.
Another use is selecting brake fluid and pads. Temperatures that exceed the operating range of your brake fluid can cause fluid vaporization leading to fade or loss of brake pedal. Overheating can also cause premature failure of brake pads.
By monitoring your brake temperature on the track you can prolong brake life and get peak performance out of your equipment. Try out the New Motorsport Brake Caliper THERMOLABEL® today. For wholesale opportunities please contact sales@paperthermometer.com.
New Dishwasher Rinse Water Temperature Label
Accurately verify that the dish machine's final rinse water temperature is reaching the 82°C required by the NSF/ANSI 3 Standard.
Finally an accurate way to test rinse water temperature in commercial dishwashers using an irreversible indicator.

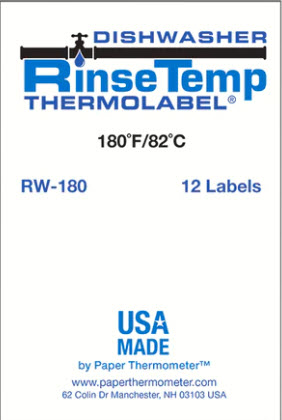

Our new RW-180 Dishwasher Rinse Temp Thermolabel verifies 82°C has been reached on the external rinse water pipe of hot water sanitation dishwashers.
Waterproof:Water-Resistant
Easy to use - simply adhere to the external rinse water pipe. Dishwashers that use heat to sanitize the dishware...
