The zLogg z1Lcd is an extremely accurate single-use data logger for temperature, with a detailed, multi-screen display. In addition to things like current date and time, serial number, firmware version, battery power, etc... the display also shows you information on logging interval, how it starts (manual, time, temperature) and stops (period, time or manual), start delay, running or stopped state, various alarm levels and alarm states, minimum, maximum, average and Mean Kinetic Temperature, etc — all by a simple click of the button.
Low Cost USB Multi-Use
Transportation > T° Truck Monitoring
zLogg usb temperature datalogger,
Designed, Produced and Calibrated
in the USA.
All zLogg Data Loggers are:
- Plug & Play (PDF, CSV, TXT) and can be read directly without installing any software
- USB Mass Storage Device. Seen by any computer as external flash drive
- Individually calibrated for temperature and humidity and come with a certificate of calibration that is directly accessible online with a direct link in the PDF
- Temperature measuring range of -40°C ~ +80°C (-40°F ~ +176°F)
- Accuracy of from ±0.1°C to ±0.3°C over the complete measuring range
- Accuracy of from ±1%RH to ±1.8%RH from 0% to 100%
- Resolution 0.01°C & 0.01%RH
- Automatic Firmware & software upgrade

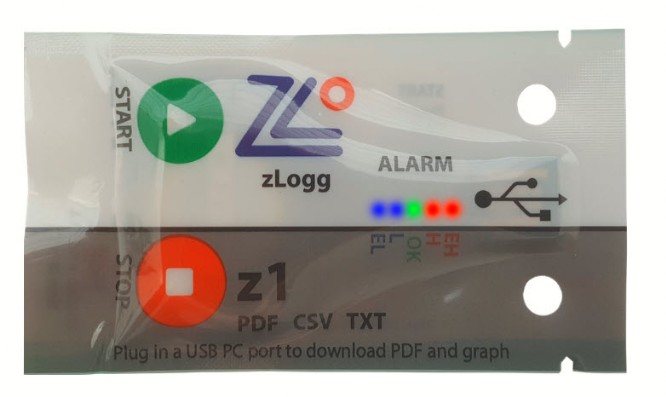

z1
Low cost single-use USB PDF Temperature Data Logger.
Order code: 350-z1
Sold by 25 or 100 units
Product Info
The zLogg z1 is an extremely accurate and low cost single-use data logger for temperature, with 5X LED — blue for low alarms, green for no alarm and red for high alarms, visual indication of the current status (recording, stopped, battery level).
The battery (non-replaceable) has a shelf life of up to 1 year for regular usage. When not in use, the logger is automatically placed in sleep mode to save the battery.
Once plugged into the USB port, the logger works like a USB stick that holds the automatically generated ZLG, TXT, CSV and PDF files. No zLogg software needed.
Where other suppliers choose to accompany their loggers with a basic manufacturers certificate, mentioning specifications based on theoretical calculations and prefabrication tests, every zLogg z1 can be individually calibrated before it leaves our lab.

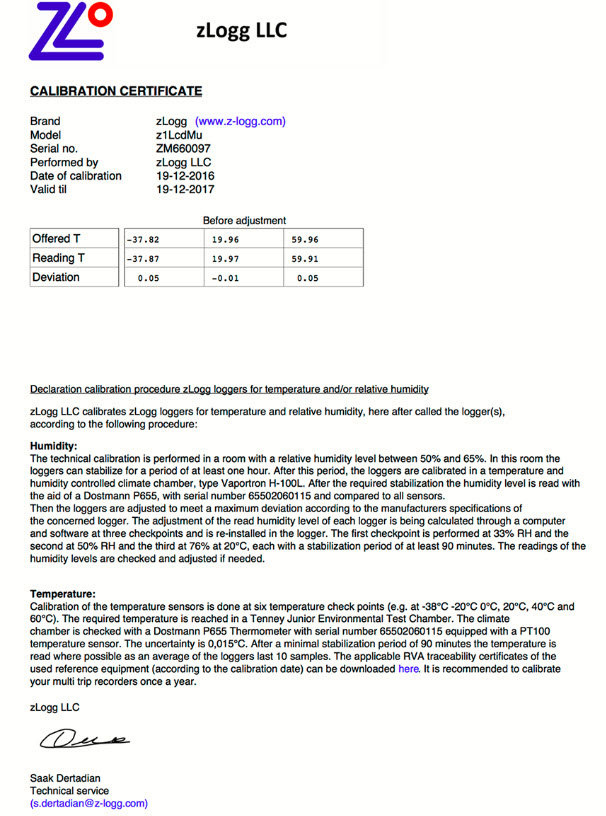

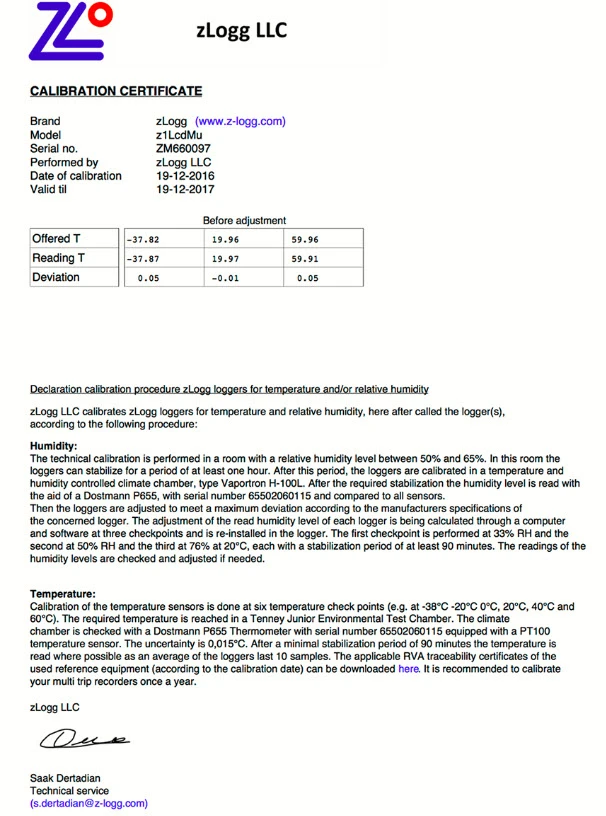

Its unique, traceable calibration certificate can be found 'in the cloud' by clicking a link on the PDF generated by the logger.
Highlights
- Extremely accurate over its whole measuring range
- Ultra fine resolution of 0.01°C
- Online calibration certicate direct from link in PDF
- Auto-generated PDF build in
- Customizable PDF reports
- Auto-generated CSV and TXT reports
- 5 x Leds for alarms, status and battery indication
- Large memory (45,568 records)
- Mark Readings
- Multi configurable, visual alarms
- Supports Windows/MacOSX/Linux
- Upgrade firmware with USB connection
- Free zLoggManager Software
Specifications 1
Logger type: Single-use Temperature Data Logger
Sensor: Thermistor (internal)
Memory: 45,568 records
Operating temperature: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature measuring range: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature Accuracy: ±0.3°C over the complete measuring range
Temperature resolution: 0.01°C
Time accuracy: ±15 minutes per year
Buttons: 2, Start & Stop
Start Options:
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Stop Options:
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Specifications 2
Mark Readings: 8x
Log Interval: 1 minute to 24 hours
Alarms: 4, total and/or consecutive
Sensor Response Time: better than 7 minutes (T90) in moving air.
Battery: Not replaceable
Battery life: 1 to 2 years for a normal usage
Display: 5X LED — blue, green, red
Connection/Interface: Direct to computer/USB Mass Storage Device
Auto Generated Files: ZLG, TXT, CSV, PDF (in all supported languages)
Export File Types: ZLG, TXT, CSV PDF
Software Support: zLoggManager
Compatibility: Windows, MacOSX, Linux
Calibration: individual calibration certificate per logger
Certificates: CE, RoHS
Dimensions: 90 x 51 x 4.5 mm
Weight: 10 gr.
Housing: Plastic sleeve (FDA approved PE)
Protection Class: IP67
Warranty: 1 year

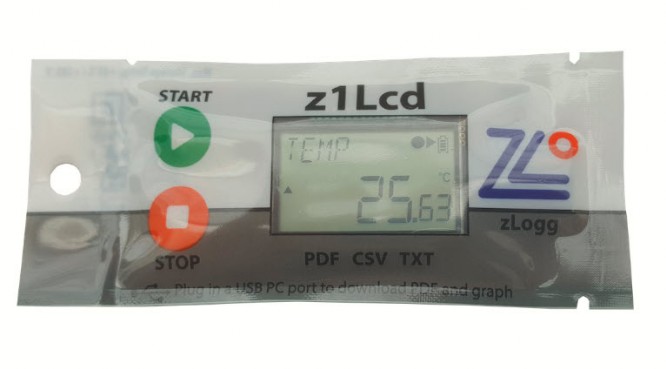

z1Lcd
Single-use USB PDF Temperature Data Logger
LCD display with advanced information.
Order code: 350-z1Lcd
Sold by 25 or 100 units
Product Info
Once plugged into the USB port, the logger works like a USB stick that holds the automatically generated ZLG, TXT, CSV and PDF files. No zLogg software needed.
Where other suppliers choose to accompany their loggers with a basic manufacturers certificate, mentioning specifications based on theoretical calculations and prefabrication tests, every zLogg z1 can be individually calibrated before it leaves our lab.
Its unique, traceable calibration certificate can be found 'in the cloud' by clicking a link on the PDF generated by the logger.
Highlights
- Extremely accurate over its whole measuring range
- Ultra fine resolution of 0.01°C
- Online calibration certicate direct from link in PDF
- Auto-generated PDF build in
- Customizable PDF reports
- Auto-generated CSV and TXT reports
- Multi-screen display
- One-click information of most trip parameters
- Extra large memory (>20.000 records)
- Mark Readings
- Multi configurable, visual alarms
- Supports Windows/MacOSX/Linux
- Upgrade firmware with USB connection
- Free zLoggManager Software
Specifications 1
Logger type: Single-use Temperature Data Logger
Sensor: Thermistor (internal)
Memory: >20.000 records
Operating temperature: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature measuring range: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature Accuracy: ±0.3°C over the complete measuring range
Temperature resolution: 0.01°C
Time accuracy: ±15 minutes per year
Buttons: 2, Start & Stop
Start Options:
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Stop Options:
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Specifications 2
Mark Readings: 8x
Log Interval: 1 minute to 24 hours
Alarms: 4, total and/or consecutive
Sensor Response Time: better than 7 minutes (T90) in moving air.
Battery: CR2032, 3V Lithium button cell (not replaceable)
Display: LCD reflective, 30 x 17mm
Connection/Interface: Direct to computer/USB Mass Storage Device
Auto Generated Files: ZLG, TXT, CSV, PDF (in all supported languages)
Export File Types: ZLG, TXT, CSV PDF
Software Support: zLoggManager
Compatibility: Windows, MacOSX, Linux
Calibration: individual calibration certificate per logger
Certificates: CE, RoHS
Dimensions: 106 x 47 x 7 mm
Weight: 17 gr.
Housing: Plastic sleeve (FDA approved PE)
Protection Class: IP67
Warranty: 1 year

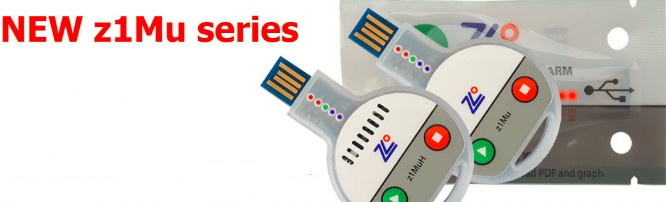

z1Mu
Low cost multi-use USB PDF Temperature Data Logger.
Order code: 350-z1Mu
Sold by 25 or 100 units
Product Info
The zLogg z1Mu is an extremely accurate and low cost multi-use data logger for temperature, with 5X LED — blue for low alarms, green for no alarm and red for high alarms, visual indication of the current status (recording, stopped, battery level).
The battery (non-replaceable) has a shelf life of up to 1 year for regular usage. When not in use, the logger is automatically placed in sleep mode to save the battery.
Once plugged into the USB port, the logger works like a USB stick that holds the automatically generated ZLG, TXT, CSV and PDF files. No zLogg software needed.
Where other suppliers choose to accompany their loggers with a basic manufacturers certificate, mentioning specifications based on theoretical calculations and prefabrication tests, every zLogg z1 can be individually calibrated before it leaves our lab.
Its unique, traceable calibration certificate can be found 'in the cloud' by clicking a link on the PDF generated by the logger.
Highlights
- Extremely accurate over its whole measuring range
- Ultra fine resolution of 0.01°C
- Online calibration certicate direct from link in PDF
- Auto-generated PDF build in
- Customizable PDF reports
- Auto-generated CSV and TXT reports
- 5 x Leds for alarms, status and battery indication
- Large memory (45,568 records)
- Mark Readings
- Multi configurable, visual alarms
- Supports Windows/MacOSX/Linux
- Upgrade firmware with USB connection
- Free zLoggManager Software
Specifications 1
Logger type: Multi-use Temperature Data Logger
Sensor: Thermistor (internal)
Memory: >13.000 records
Operating temperature: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature measuring range: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature Accuracy: ±0.3°C over the complete measuring range
Temperature resolution: 0.01°C
Time accuracy: ±15 minutes per year
Buttons: 2, Start & Stop
Start Options:
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Stop Options:
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Specifications 2
Mark Readings: 8x
Log Interval: 1 second to 24 hours
Alarms: 4, total and/or consecutive
Sensor Response Time: better than 7 minutes (T90) in moving air.
Battery: Not replaceable
Battery life: up to 1 year for a normal usage
Display: 5X LED — blue, green, red
Connection/Interface: Direct to computer/USB Mass Storage Device
Auto Generated Files: ZLG, TXT, CSV, PDF (in all supported languages)
Export File Types: ZLG, TXT, CSV PDF
Software Support: zLoggManager
Compatibility: Windows, MacOSX, Linux
Calibration: individual calibration certificate per logger
Certificates: CE, RoHS
Dimensions: 78 x 48 x 9 mm
Weight: 16 gr.
Housing: ABS
Protection Class: IP30
Security: Password Protection
Warranty: 1 year

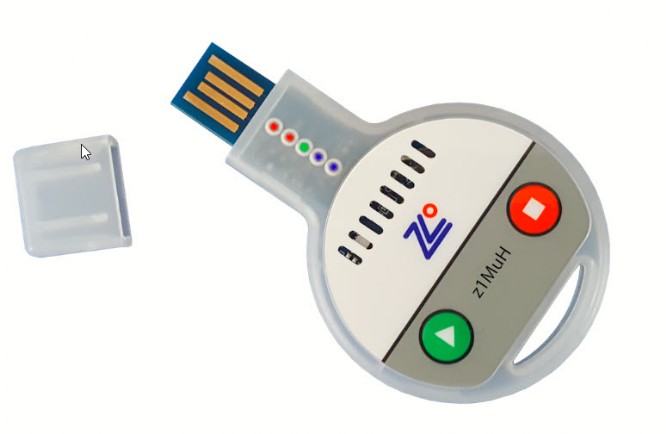

z1MuH
Low cost multi-use USB PDF Temperature & Humidity Data Logger.
Order code: 350-z1MuH
Sold by 25 or 100 units
Product Info
The zLogg z1MuH is an extremely accurate and low cost multi-use data logger for temperature and humidity, with 5X LED — blue for low alarms, green for no alarm and red for high alarms, visual indication of the current status (recording, stopped, battery level).
The battery (non-replaceable) has a shelf life of up to 1 year for regular usage. When not in use, the logger is automatically placed in sleep mode to save the battery.
Once plugged into the USB port, the logger works like a USB stick that holds the automatically generated ZLG, TXT, CSV and PDF files. No zLogg software needed.
Where other suppliers choose to accompany their loggers with a basic manufacturers certificate, mentioning specifications based on theoretical calculations and prefabrication tests, every zLogg z1 can be individually calibrated before it leaves our lab.
Its unique, traceable calibration certificate can be found 'in the cloud' by clicking a link on the PDF generated by the logger.
Highlights
- Extremely accurate over its whole measuring range
- Ultra fine resolution of 0.015°C and 0.01%RH
- Online calibration certicate direct from link in PDF
- Auto-generated PDF build in
- Customizable PDF reports
- Auto-generated CSV and TXT reports
- 5 x Leds for alarms, status and battery indication
- Large memory (45,568 records)
- Mark Readings
- Multi configurable, visual alarms
- Supports Windows/MacOSX/Linux
- Upgrade firmware with USB connection
- Free zLoggManager Software
Specifications 1
Logger type: Multi-use Temperature & Humidity Data Logger
Sensor: Digital Sensirion SHT31
Memory: 45,568 records
Operating temperature: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature measuring range: -40 °C ~ +80 °C (-40°F ~ +176°F)
Temperature Accuracy: ±0.3°C over the complete measuring range
Temperature resolution: 0.01°C
Time accuracy: ±15 minutes per year
Buttons: 2, Start & Stop
Start Options:
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Manual start with or without delay
Auto Start on date and time
Auto Start on set temperature with or without delay
Stop Options:
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Auto Stop after a set period
Auto Stop on date and time
Manual Stop
Specifications 2
Mark Readings: 8x
Log Interval: 1 second to 24 hours
Alarms: 4, total and/or consecutive
Sensor Response Time: better than 7 minutes (T90) in moving air.
Battery: Not replaceable
Battery life: up to 1 year for a normal usage
Display: 5X LED — blue, green, red
Connection/Interface: Direct to computer/USB Mass Storage Device
Auto Generated Files: ZLG, TXT, CSV, PDF (in all supported languages)
Export File Types: ZLG, TXT, CSV PDF
Software Support: zLoggManager
Compatibility: Windows, MacOSX, Linux
Calibration: individual calibration certificate per logger
Certificates: CE, RoHS
Dimensions: 78 x 48 x 9 mm
Weight: 16 gr.
Housing: ABS
Protection Class: IP30
Security: Password Protection
Warranty: 1 year
zLoggManager
zLoggManager is a free multi-platform desktop application designed to be fast, reactive and evolutive. Windows and Mac OS X releases are available.
Linux is coming soon. Once installed, it detects new releases and updates automatically.
All zLogg data loggers are seen as Mass Storage Devices.
There is no need to install drivers.
zLoggManager allows you to configure, view graphics and data from connected zLogg data loggers, as well as many other export and automation functions.
Configuration
The whole configuration is visible from one form including:
- Description
- 4 x alarms thresholds with consecutive and or total delay
- Record sampling rate
- Start conditions:
- Manual start with or without delay
- Auto start on date & time
- Auto start on set temperature with or without delay - Stop conditions:
- Auto stop after a set period - Auto stop on date & time
- Manual stop
Graph
This graph viewer has powerful advanced funtions such as:
- Realtime scrolling with the mouse
- Zoom in & out onX or Y or both axis
- Cursor on trace to indicate the time & value
- Legend & Statistics
- Fully customizeable colors, background, thickness, alarms thresholds type...
- Right click popup menu for quick access
- Fit to screen
- Capture graph to clipboard
Settings
- Support for multi-languages and time zones.
- Temperature unit: °C & °F + MKT constant
- The application can generate and automatically save files when a logger is detected:
- ZLG
- TXT
- CSV
- PDF
- JPG
Summary, Files Open & Export:
- Generates a full summary table report with configuration, alarms, statistics... and data.
- Open multiple documents can be opened at the same time.
- Export documents to the following formats:
- Create template for batch programing.
- ZLG (zLogg format)
- PDF with customizeable colors and thickness
- TXT
- CSV
- JPG
Download for Windows After the download:
- Extract the zip file.
- Execute the zLoggManagerSetup.exe file to start the installation.
- Follow the installation wizard instructions.
https://dataloggermanager.com/app/Windows/zLoggManagerSetup.zip
Download for MAC OS X After the download:
- Execute the zLoggManager.dmg file to start the installation.
- In the installation window, move the zLoggManager icon into the App icon
- Installation is done, zLoogManager is in the Application folder.
https://dataloggermanager.com/app/Mac/zLoggManager.dmg
Download for Linux After the download:
- Right click on the downloaded file, Properties, Permissions, Allow executing...
- You can now start zLoggManager
Download the complete user guide
https://dataloggermanager.com/doc/zLoggManagerUserGuideEn.pdf
