Process & Quality Control

Viscosity

Process
PORTABLE B-ONE SPECIFICATIONS AVAILABLE INSTRUMENT :

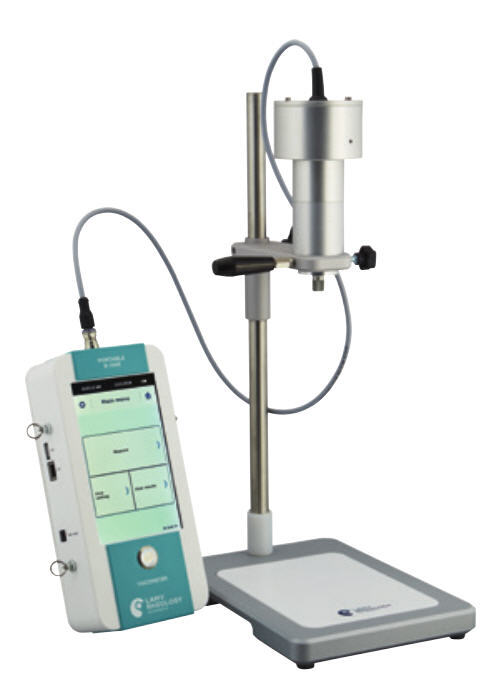

PORTABLE  B-ONE

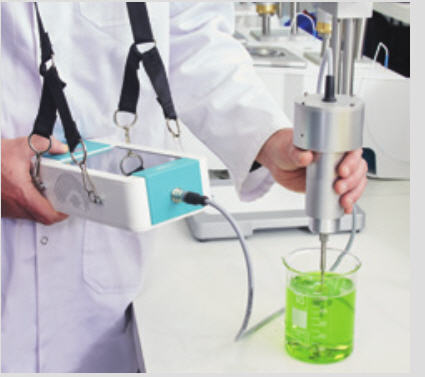

This viscometer follows you everywhere With carry case

The PORTABLE B-ONE is the ideal tool for your viscosity measurements in the workshop, production area, delivery area or outside. With one hour of battery life, it will optimize your control times and flexibility.

FEATURES AND BENEFITS
Autonomy more than one hour.

  • Charge indicator.
  • Direct measure with time to stop.
  • User and locked mode.
  • Data recording and USB transfer.
  • Torque gage on display.

ACTIVITY DOMAINS
  • Food Industry
  • Cosmetics pharmaceuticals
  • Paint / ink / coatings
  • Car industry
  • Building materials
  • Chemical / petroleum products
  • Teaching
SPECIFICATIONS

Type of instrument :  Rotating springless viscometer with 7’’ Touch screen
Rotation speeds : Unlimited number of speeds between 0.3 and 250 rpm
Torque range :  From 0.05 to 13 mNm
Accuracy :  +/- 1 % of the full scale
Repeatability :  +/- 0,2 %
Display : Viscosity – Speed – Torque – Shear stress – Time – Charge level - indication Choice of viscosity units: cP/Poises or mPa.s / Pa.s
Norms :
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417;
D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ;
D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ;
D4889 ; D5324 ; D5400 ; D6279 ; D6577 ; D7394 ; D8020 ;
E2975 ; F1607 ; BS 5350 ; DIN 2555; 52007-1 ; EN 302-7 ;
2555; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ; ISO
1652; 2555; 2884-2 ; 10364-12.
Language :  French/English/Russian/Spanish
Compatible measuring system :  MS ASTM, MS BV, MS VANE
Compatible temperature control : EVA LR-BV
Supply voltage : 90-240 VAC 50/60 Hz
Carry case : Included
Dimensions and weight :
  • Head: Ø 85 mm
  • Height: 310 mm
  • Box: L265 x W125 x H65 mm
  • Weight: 2 kg
AVAILABLE INSTRUMENT :
Part Number                  Designation Instrument                                                                Viscosity range
Instrument                                                                                                                                             (mPa.s)

T600700                           PORTABLE B-ONE VISCOMETER in carrying case     200 to 240M*

M for millions, K for thousand
* With MS ASTM (R2 to R7). Not included


PORTABLE RM 100 SPECIFICATIONS AVAILABLE

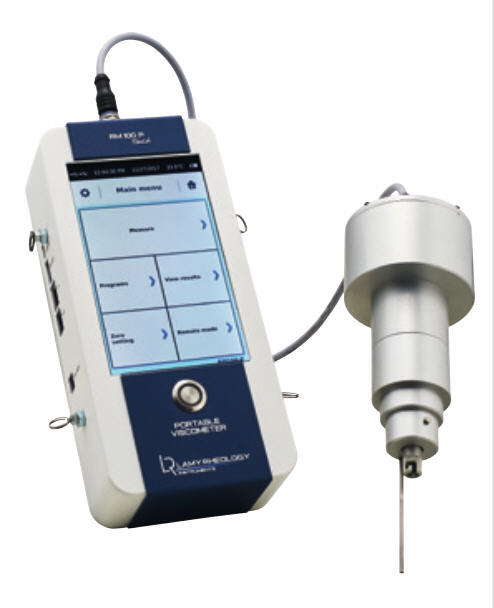

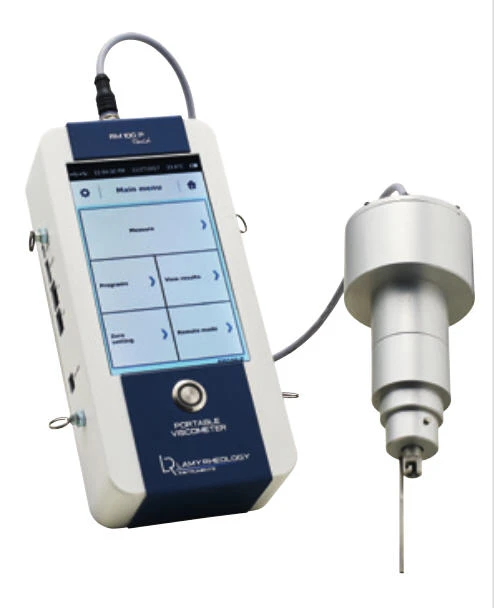

PORTABLE RM 100
With carry case

Your expertise closer to the product
No matter where, the PORTABLE RM 100 allows you to bring your viscosity measurement methods where your lab can not operate.
With programming, memorization, temperature measurement and all measurement systems, all your expertise is moving!

FEATURES AND BENEFITS
  • Autonomy more than one hour.
  • Charge indicator.
  • Direct measure with time to stop.
  • Data recording and USB transfer.
  • Torque gage on display.
  • Usable with standard stand.
  • Huge viscosity range.
  • Programming and recording method.
  • User and locked mode.
  • Integrated temperature probe.
  • Printer connection.
  • Compatible with RheoTex software.

ACTIVITY DOMAINS
  • Food Industry
  • Cosmetics pharmaceuticals
  • Paint / ink / coatings
  • Chemical / petroleum products
  • Car industry
  • Building materials
  • Teaching
SPECIFICATIONS

Type of instrument : Rotating springless viscometer with 7’’ Touch screen
Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm
Torque range : From 0.05 to 30 mNm
Temperature : The Portable RM 100 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
Accuracy :  +/- 1 % of the full scale
Repeatability : +/- 0,2 %
Display :  Viscosity – Speed – Torque – Shear stress – Temperature – Shear rate  -  Choice of viscosity units: cP/Poises or mPa.s / Pa.s - Charge level indication
Norms :
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417 ; D1439;D1824 ; D2196 ; D2243 ; D2364 ;
D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;
D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555; 3219 ; 52007-1 ; 53019-1 ; 54453 ;
EN 302-7 ; 2555 ; 3219 ; 10301; 12092 ; 12802 ; 15425 ; 15564 ; ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12.
Language  :  French/English/Russian/Spanish
Compatible measuring system  :  MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS ULV, MS SV
Compatible temperature control  :  EVA DIN, EVA MS-R, EVA LR-BV, RT1
Supply voltage :  90-240 VAC 50/60 Hz
Analog output :  4 – 20 mA
PC connections :  RS232 Port and USB
Printer connection :   USB Host Port - Compatible PCL/5
Carry case :  Included
Options :

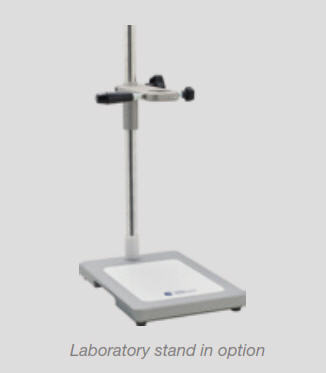

  • Laboratory stand (PN 112950)
  • Software RheoTex (PN N311000 + license PN N311100)
Dimensions and weight :
  • Head: Ø 85 mm
  • Height: 310 mm
  • Box: L265 x W125 x H65 mm
  • Weight: 2 kg
AVAILABLE INSTRUMENT :
Part Number                     Designation Instrument                                                                   Viscosity range
Instrument                                                                                                                                                    (mPa.s)

111-T100100                   PORTABLE RM100 VISCOMETER in carrying case        200 to 240M*

M for million, K for Thousand
* With MS ASTM R2 to R7. Not included


RM100 i SPECIFICATIONS AVAILABLE

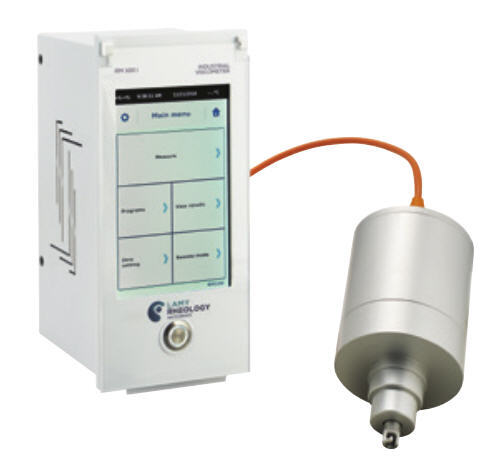

RM 100 i

For viscosity measurement on large volume

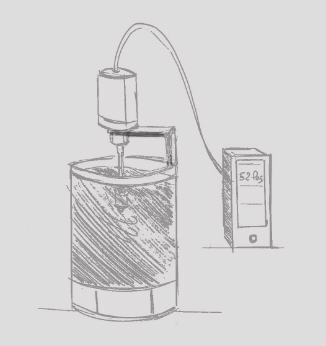

The RM100 i is perfectly suited for so-called immersion use, installing it over a tank or on a support for a measurement in a pot. Only the measuring head is above the product, the electronic box can be installed more than 17 meters in a control cabinet with its 4-20mA output.

FEATURES AND  BENEFITS
  • Industrial measure on large tanker.
  • Continuous measurement or with time to stop.
  • 4-20 mA output for external control.
  • 17m maximum distance between head and box.
  • Usable with standard stand.
  • Huge viscosity range.
  • Programming and recording methods.
  • External temperature probe (option).
  • Printer connection.
  • Compatible with RheoTex software.

ACTIVITY DOMAINS
  • Food Industry
  • Cosmetics pharmaceuticals
  • Paint / ink / coatings
  • Chemical / petroleum products
  • Car industry
  • Building materials
  • Teaching
SPECIFICATIONS

Type of instrument : Rotating springless  viscometer in immersion tank with 7’’ Touch screen
Rotation speeds :  Unlimited number of speeds between 0.3 and 1500 rpm
Torque range : From 0.05 to 30 mNm
Accuracy :   +/- 1 % of the full scale
Repeatability :  +/- 0,2 %
Display  :  Viscosity – Speed – Torque – Shear stress – Time –Temperature -  Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Application :  The RM100 i is dedicated to tank measurements for continuous monitoring of viscosity in production. Its 4-20mA analogue
output is used to send the measured value to a central computer.
Numerous tailor-made solutions according to the customer configuration for integration into the process (length and height of the plungers, fixing on the cover of the measuring head with sealing,...).
Language :  French/English/Russian/Spanish
Compatible measuring system :  MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS ULV, MS SV
Compatible temperature control  :  EVA DIN, EVA MS-R, EVA LR-BV, RT1
Supply voltage : 90-240 VAC 50/60 Hz
Analog output :  4 – 20 mA
PC connections  :  RS232 Port and USB
Printer connection  :  USB Host Port -  Compatible PCL/5
Options :
  • Laboratory stand (PN 112950)
  • Software RheoTex (PN N311000 + license PN N311100)
  • PT 100 sensor (- 50°C to + 300 °C) (PN 310126)
  • 5 meters extension cable available (maximum 3) (PN 113202)
Dimensions and weight  :
  • Head: Diameter 85 mm Height 180 mm
  • Box: L120 x W145 x H261mm
  • Weight: 3 kg
AVAILABLE INSTRUMENTS :

Part Number Instrument                           Designation Instrument
111-T220200                                                   RM 100 i IMMERSION INDUSTRIAL VISCOMETER
111- T220230                                                   RM 100 i AC115 IMMERSION INDUSTRIAL VISCOMETER
111-T220250                                                    RM 100 i IMMERSION INDUSTRIAL VISCOMETER WITH PT100 SENSOR


RM 100 L SPECIFICATIONS AVAILABLE

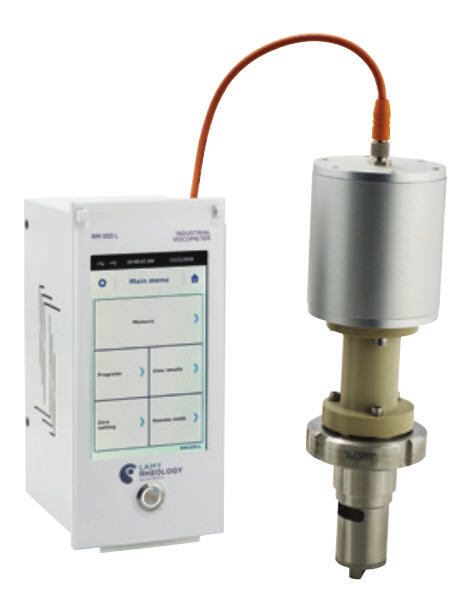

RM 100 L

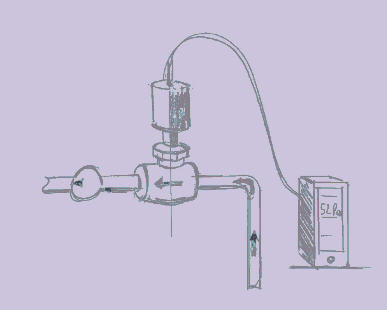

The viscometer in line with your process

The online viscosity measurement of the RM100 L guarantees continuous control for immediate action in production.
Whatever the flow rate, the  iscosity or the diameter of your pipe, this viscometer will be able to adapt by guaranteeing you a measurement according
to laboratory’s norms.

FEATURES AND BENEFITS
  • Industrial on-line measurement.
  • Continuous measurement or with time to stop.
  • 4-20 mA output for external control.
  • Magnetic bearing for sealing.
  • 15m maximum distance between head and box.
  • Huge viscosity range.
  • Programming and recording methods.
  • External temperature probe (option).
  • Printer connection.
  • Compatible with RheoTex software.


SPECIFICATIONS
Type of instrument : Rotating springless viscometer on the production line with 7’’ Touch screen
Rotation speeds : Unlimited number of speeds between 5 and 600 rpm
Torque range : From 0.5 to 13 mNm
Accuracy :  +/- 1 % of the full scale
Repeatability :   +/- 0,2 %
Display : Viscosity – Speed – Torque – Shear stress – Time –TemperaturChoice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Norms :
DIN : 3219 ; 52007-1 ; 53019-1 ; 54453 ; EN 3219 ; ISO 1652 ; 3219.
Application :  The RM100 L is dedicated to on-line measurements for continuous monitoring of viscosity in production. Its 4-20mA analogue output is used to send the measured value to a central computer
Numerous tailor-made solutions according to customer configuration for process integration.
Language  :  French/English/Russian/Spanish
Supply voltage :  90-240 VAC 50/60 Hz
Analog output :
4 – 20 mA
PC connections  :  RS232 Port and USB
Printer connection  :  USB Host Port - Compatible PCL/5
Options  :
  • Software RheoTex (PN N311000 + licence PN N311100)
  • Waterproof Fibox case (PN 400081)
Dimensions and weight  :
  • Head: Diameter 85 mm Height 312 mm
  • Box: L120 x W145 x H261mm
  • Weight: 4 kg

ACTIVITY DOMAINS
  • Food Industry
  • Cosmetics pharmaceuticals
  • Paint / ink / coatings
  • Chemical / petroleum products
AVAILABLE INSTRUMENTS :

Viscometer delivered with electronic box, measuring head and measuring cup. Need to be ordered with cylinder and cell.

Designation      Part Number         Compatible        Part  Number   Compatible    Part                 SMS         Flow    Viscosity range
viscometer         Viscometer            cylinder                 Cylinder               cell a)        Number (Cell)   flange      rate           (mPa.s)
                                                                                                                                                                                                        (mm)        (m3/h)

RM 100 L                                                         MS DIN             121065           CD25              121038               25           0.03 to 0.12
Short                         T220330                    2015                                                 CD38              121057              38          0.05 to 0.5
                                                                                                                                          CD50              121035               51          0.1 to 1
                                                                                                                                          CD75              121034               76          0.5 to 2           1k to 0.67M
                                                                                                                                          LD75               121033               76          6 to 8
                                                                                                                                          LD100            121032               104       10 to 14
                                                                                                                                          CD25              121038                25          0.03 to 0.12
                                                                                                                                          CD38              121057                38           0.05 to 0.5
                                                                                                                                          CD50              121035                51           0.1 to 1
                                                                               MS DIN 24       121036         CD75              121034               76            0.5 to 2          230 to 0.3M
                                    T220300                                                                                 LD75              121033               76           6 to 8
RM 100 L                         or                                                                                      LD100          121032               104        10 to 14
Standard                 T220350                                                                               CD25            121038                25            0.03 to 0.12
                                       th Fibox  case                                                                    CD38            121057                38            0.05 to 0.5
                                                                                                                                         CD50            121035                51             0.1 to 1
                                                                            MS DIN 30         121026         CD75            121034                76             0.5 to 2
                                                                                                                                          LD75            121033                76              6 to 8                 56 to 81K
                                                                                                                                          LD100         121032                104           10 to 14
RM 100 L           T220320                         MS DIN                 1210 60      LD100        121032                104             10 to 14             5 to 29K
Long                                                                      31.5                                               CD75           121034                76               0.5 to 2

M for millions, K for thousand

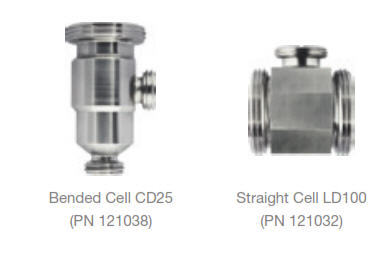

a) CD for Bended Cell and LD for Straight Cell
