Rheometers
Coatings & Industry > Physical properties > Viscosity & Consistency

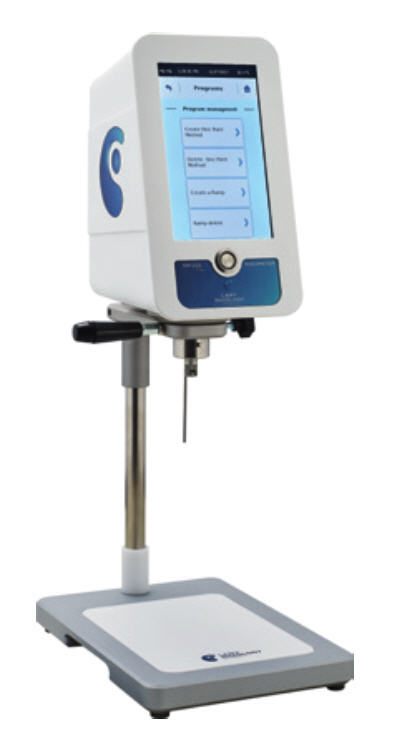

RM 200 PLUS
Universal Rheometer with carrying case
Rheology : a Breeze !
Carry out your flow curves directly on your RM200 PLUS rheometer, without needing to be connected to a computer, for precise quality control that is both simple and effective
The rheology at your fingertips
Thanks to its large storage capacity and its easy programming, the rheometer RM200 PLUS allows you to realize all your measurements of flow curves, yield point, thixotropic, curve fitting without software.
FEATURES AND BENEFITS
- Ramp programming.
- Direct analysis with regressions.
- Direct control of temperature unit.
- Huge viscosity range.
- Programming and recording method.
- Direct measure with time to stop.
- User and locked mode.
- Data recording and USB transfer.
- Torque gage on display.
- Integrated temperature probe.
- Printer connection.
- Compatible with RheoTex software.
SPECIFICATIONS 1
Type of instrument Rotating springless rheometer with imposed speeds and 7’’ Touch screen
Rotation speeds Unlimited number of speeds between 0.3 and 1500 rpm
Torque range From 0.05 to 30 mNm
Temperature
The RM 200 PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
Accuracy +/- 1 % of the full scale
Repeatability +/- 0,2 %
Display Viscosity – Speed – Torque – Shear stress – Time –Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Security and confidentiality
An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions
What benefits are there for you?
Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy,
Regression model according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.
SPECIFICATIONS 2
Language French/English/Russian/Spanish
Compatible measuring system MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS HT, MS ULV,
MS SV, MS CP
Compatible temperature control
EVA DIN, EVA MS-R, EVA LR-BV, RT1, RT3, CP1
Dimensions and weight
Head: L180 x W135 x H250 mm
Hardened steel stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg
Supply voltage 90-240 VAC 50/60 Hz
Analog output 4 – 20 mA
PC connections RS232 Port and USB
Printer connection USB Host Port Compatible PCL/5
Carry case Included
Options - Software RheoTex (PN N311000 + license PN N311200)
ACTIVITY DOMAINS
Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
Chocolate
AVAILABLE INSTRUMENTS :
Part Number Designation Instrument Viscosity range
Instrument (mPa.s)
N200000 RM 200 PLUS RHEOMETER (standard stand) 1 to 780M*
N200002 RM 200 PLUS RHEOMETER (without stand) 1 to 780M*
N200110 RM 200 PLUS RHEOMETER with MS-R 2-3-4 12 to 120M
measuring system in case (standard stand)
N200115 RM 200 PLUS AC115 RHEOMETER (without stand) 2 to 90M**
N201000 RM 200 PLUS RHEOMETER with MS-R1 to 5 12 to 475M
measuring system in case (standard stand)
N203000 RM 200 PLUS AC265 RHEOMETER (without stand) 1 to 28M***
M for millions, K for thousand
* According to measuring system
** With MS HT. Not included.
*** With MS CP. Not included.

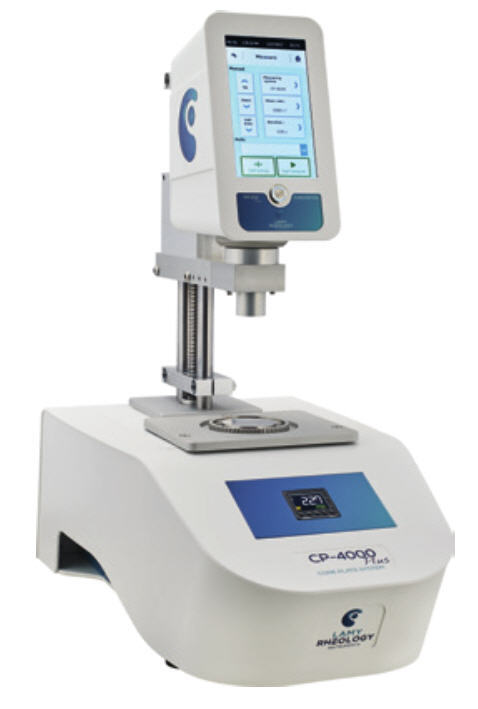

RM 200 CP4000 PLUS
Optimize your rheologicalmeasurements
The motorized lift of the RM200 CP4000 PLUS allows a fast and repeatable installation of cone and plate measuring systems guaranteeing reliable rheological measurements whatever your application.
FEATURES AND BENEFITS
- Automatic lift for gap.

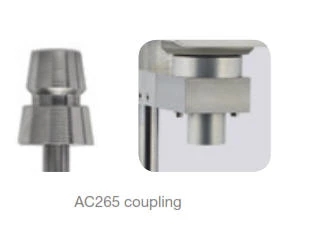

- Quick attachment with AC265 coupling.
- Ramp programming.
- Direct analysis with regressions.
- Direct control of temperature unit.
- Huge viscosity range.
- Programming and recording method.
- Direct measure with time to stop.
- User and locked mode.
- Data recording and USB transfer.
- Torque gage on display.
- Integrated temperature probe.
- Printer connection.
- Compatible with RheoTex software.
SPECIFICATIONS 1
Type of instrument Rotating springless rheometer with imposed speeds and 7’’ Touch screen
Rotation speeds Unlimited number of speeds between 0.3 and 1500 rpm
Torque range From 0.05 to 30 mNm
Temperature
Temperature range from – 20°C to + 300 °C (according to models)
Accuracy +/- 1 % of the full scale
Repeatability +/- 0,2 %
Display Viscosity – Speed – Torque – Shear stress – Time –Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Norms
ASTM : D4287 ; BS 3900 ; DIN 3219 ; 52007-1 ; 53019-1 ; 54453 ; ISO 2884; 3219 ; 10364-12.
What benefits are there for you?
Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy,
Regression model according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.
SPECIFICATIONS 2
Language French/English/Russian/Spanish
Compatible measuring system MS CP
Dimensions and weight
Head: L180 x W135 x H250 mm
CP 4000 : D610 x W340 x H650 mm
Weight: 22 kg
Supply voltage 90-240 VAC 50/60 Hz
Analog output 4 – 20 mA
PC connections RS232 Port and USB
Printer connection USB Host Port Compatible PCL/5
Carry case Included
Options - Software RheoTex (PN N311000 + license PN N311200)
ACTIVITY DOMAINS
Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
Chocolate
AVAILABLE INSTRUMENTS :
Part Number Designation Instrument
Instrument
N240250 RM 200 CP4000 PLUS RHEOMETER Peltier air-air (+10 to + 70 °C)
N240251 RM 200 CP4000 PLUS RHEOMETER Peltier air-air (+10 to + 70°C) with programmer*
N240600 RM 200 CP4000 PLUS RHEOMETER Peltier air-air (0 to +150°C)
N240601 RM 200 CP4000 PLUS RHEOMETER Peltier air-air (0 to +150°C) with programmer*
N240800 RM 200 CP4000 PLUS RHEOMETER liquid Peltier** (-20 to + 120 °C)
N240801 RM 200 CP4000 PLUS RHEOMETER liquid Peltier** (-20 to + 120 °C) with programmer*
N240900 RM 200 CP4000 PLUS H RHEOMETER (Room to +300°C)
N240901 RM 200 CP4000 PLUS H RHEOMETER (Room to +300°C) with programmer*
Viscosity range (mPa.s) 1 to 28M for all models (according to cone plate)
M for millions, K for thousand
* Allow temperature setting by RheoTex software or measuring head
** Need a chiller. Not included

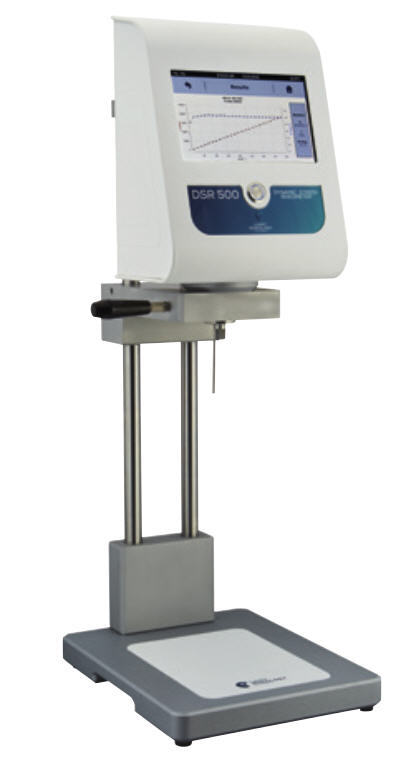

DSR 500
A new vision on your measurements
The new DSR 500 rheometer is the latest instrument developed by LAMY RHEOLOGY.
Incorporating all the existing features of the PLUS range, it offers programming flexibility and ability to directly display diagrams on its 7’’ touch screen. Compatible with all temperature controls and measuring system of the PLUS range, it allows control in shear rate/speed but also in shear stress/torque.
This will allow you to easily view the flow and viscosity curves on the screen as well as a direct measurement of flow point values of your products. Simply connected to a printer, it is easy to print a measurement report containing the information, curve, measured values and results of the rheological analysis.
Driven or not by the RheoTex software, it will be the ideal tool for your measurements in control or development.
The rheometer with imposed shear rate or shear stress, equipped with a 7 ‘’ touch screen to display the curves directly. And with direct report editing on a desktop printer, measuring viscosity or yield point has never been so easy!
DSR 500. This device is able to set shear rate and shear stress ramp (yield stress measure).
It’s able to show curve directly on display and can be very helpful if you doesn’t want to have computer to print report or curve.
FEATURES AND BENEFITS
- Shear rate and shear stress control.
- Direct curve on display.
- Ramp programming.
- Direct analysis with regressions.
- Direct control of temperature unit.
- Huge viscosity range.
- Programming and recording method.
- Direct measure with time to stop.
- User and locked mode.
- Data recording and USB transfer.
- Torque gage on display.
- Integrated temperature probe.
- Printer connection.
- Compatible with RheoTex software.
SPECIFICATIONS 1
Type of instrument Rotating springless rheometer with imposed speeds and 7’’ Touch screen
Rotation speeds Unlimited number of speeds between 0.3 and 1500 rpm
Torque range From 0.05 to 30 mNm
Temperature
The DSR 500 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
Accuracy +/- 1 % of the full scale
Repeatability +/- 0,2 %
Display Viscosity – Speed – Torque – Shear stress – Time –Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ;
D4889 ; D5324 ; D5400 ; D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ;
15425 ; 15564 ; IOCCC 2000 ; ISO 1652 ; 2555 ; 2884-2 ; 3219; 10364-12.
What benefits are there for you?
Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy,
Regression model according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.
SPECIFICATIONS 2
Language French/English/Russian/Spanish
Compatible measuring system
MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS HT, MS ULV, MS SV, MS CP
Compatible temperature control
EVA DIN, EVA MS-R, EVA LR-BV, RT1, RT3, CP1
Dimensions and weight
Head: L180 x W135 x H250 mm
Hardened steel stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg
Supply voltage 90-240 VAC 50/60 Hz
Analog output 4 – 20 mA
PC connections RS232 Port and USB
Printer connection USB Host Port Compatible PCL/5
Carry case Included
Options - Software RheoTex (PN N311000 + license PN N311200)
ACTIVITY DOMAINS
Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
Chocolate
AVAILABLE INSTRUMENTS :
Part Number Designation Instrument Viscosity range
Instrument (mPa.s)
N500100 DSR 500 RHEOMETER (standard stand) 1 to 780M*
N500115 DSR 500 RHEOMETER AC115 (without stand) 2 to 90M**
N500200 DSR 500 RHEOMETER AC265 (without stand) 1 to 28M***
M for millions, K for thousand
* According to measuring system
** With MS HT. Not included.
*** With MS CP. Not included.

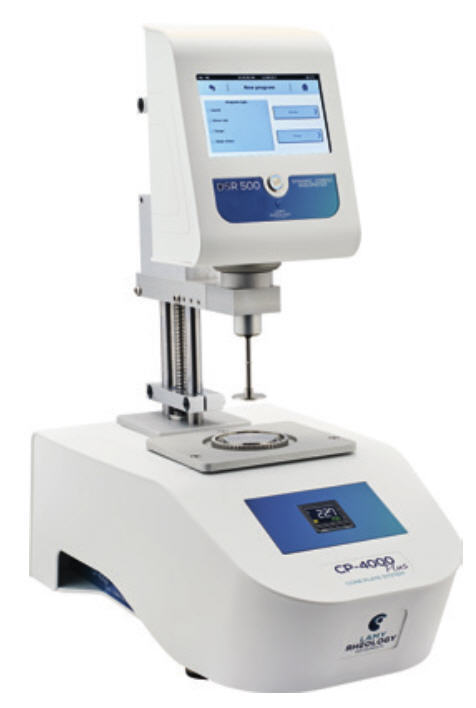

DSR 500 CP4000 PLUS
A rheometer to meet your requirements
With its motorized lift, built-in temperature control unit and all the features of the DSR500, this new cone-plate rheometer optimizes your measurements and guarantees high performance even without a computer!
DSR 500 CP4000. This device is able to set shear rate and shear stress ramp (yield stress measure).
It’s able to show curve directly on display and can be very helpful if you doesn’t want to have computer to print report or curve.
FEATURES AND BENEFITS
- Automatic lift for gap.
- Quick attachment with AC265 coupling.
- Shear rate and shear stress control.
- Direct curve on display.
- Ramp programming.
- Direct analysis with regressions.
- Direct control of temperature unit.
- Huge viscosity range.
- Programming and recording method.
- Direct measure with time to stop.
- User and locked mode.
- Data recording and USB transfer.
- Torque gage on display.
- Integrated temperature probe.
- Printer connection.
- Compatible with RheoTex software.
SPECIFICATIONS 1
Type of instrument Rotating springless rheometer with imposed speeds and 7’’ Touch screen
Rotation speeds Unlimited number of speeds between 0.3 and 1500 rpm
Torque range From 0.05 to 30 mNm
Temperature
Temperature range from – 20°C to + 300 °C (according to models)
Accuracy +/- 1 % of the full scale
Repeatability +/- 0,2 %
Display Viscosity – Speed – Torque – Shear stress – Time –Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
Norms
ASTM : D4287 ; BS 3900 ; DIN 3219 ; 52007-1 ; 53019-1 ; 54453 ; ISO 2884; 3219 ; 10364-12
What benefits are there for you?
Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy,
Regression model according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.
SPECIFICATIONS 2
Language French/English/Russian/Spanish
Compatible measuring system
MS CP
Dimensions and weight
Head: L180 x W135 x H250 mm
CP 4000 : D610 x W340 x H650 mm
Weight: 22 kg
Supply voltage 90-240 VAC 50/60 Hz
Analog output 4 – 20 mA
PC connections RS232 Port and USB
Printer connection USB Host Port Compatible PCL/5
Carry case Included
Options - Software RheoTex (PN N311000 + license PN N311200)
ACTIVITY DOMAINS
Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
Chocolate
AVAILABLE INSTRUMENTS :
Part Number Designation Instrument
Instrument
N500400 DSR 500 CP4000 PLUS RHEOMETER air-air Peltier (+10 à + 70 °C)
N500401 DSR 500 CP4000 PLUS RHEOMETER air-air Peltier (+10 à + 70°C) with programmer*
N500410 DSR 500 CP4000 PLUS RHEOMETER air-air Peltier (0°C à +150°C)
N500411 DSR 500 CP4000 PLUS RHEOMETER air-air Peltier (0°C à +150°C) with programmer*
N500420 DSR 500 CP4000 PLUS RHEOMETER liquid Peltier** (-20 à + 120 °C)
N500421 DSR 500 CP4000 PLUS RHEOMETER liquid Peltier** (-20 à + 120 °C) with programmer*
N500430 DSR 500 CP4000 PLUS RHEOMETER H (Amb à +300°C)
N500431 DSR 500 CP4000 PLUS RHEOMETER H (Amb à +300°C) with programmer*
Viscosity range (mPa.s) 1 to 28M for all models (according to cone plate)
M for millions, K for thousand
* Allow temperature setting by RheoTex software or measuring head
** Need a chiller. Not included
