WiFi Temperature &  RH  datalogger

Ambient Temperature and Humidity Sensing

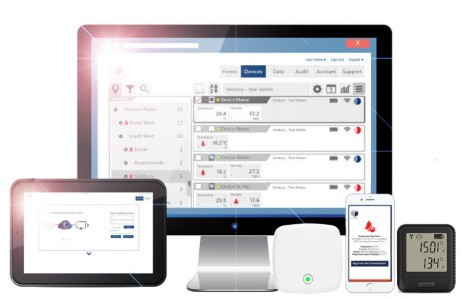

This WiFi-enabled temperature, humidity and dew point data  logger can remotely monitor an environment over a -20 to +60°C (-4 to  +140°­­F) and 0 to 100% RH measurement range. Data is uploaded  periodically using a standard WiFi network to the EasyLog Cloud or a single host PC.

EasyLog Cloud harnesses  the power of IoT to automate data logging and alert notifications -  perfect for both compact systems with just a few sensor requirements to  corporate solutions with thousands of devices around the globe. Access  data collected from any compatible data logger. Change settings  remotely, receive email alerts of alarm conditions, link sensors from  multiple sites into a single account and assign multiple users with  varying access privileges. Use the EasyLog Cloud Apps for Android™ and Apple for true on-the-go monitoring.
Data Loggers in this range measure ambient temperature and humidity levels with the sensor built into the device. Monitoring humidity plays an important role when ensuring the efficiency of equipment and as part of responsible facilities management, monitoring temperature and humidity can help to keep customers and employees safe and comfortable.

  • Ideal for Ambient Temperature & Humidity Monitoring
  • Measurement Range: -20 to +60°C (-4 to +140°F) and 0 to 100%RH
  • Accuracy: ±0.3°C / ±0.6°F
  • User Selectable Logging Rate Between 10 seconds and 12 hours
  • Battery: Rechargeable Battery/6 Months Battery Life/Mains Powered Option
  • Wirelessly Stream and View Data on the EasyLog Cloud, App or PC
  • Easy Device Set-Up Using Free PC Software
  • View and Analyse Multiple Devices
  • Configurable High and Low Alarms
Squirrel SQ2020 Wi-Fi  and Squirrel SQ2040 Wi-Fi Data Loggers
Powerful data loggers for all applications

The Squirrel 2020 series comprises two models:
Squirrel 2020-1F8
  • Up to 20 readings per second on 1 channel Squirrel 2020-2F8 (high speed model)
  • Up to 100 readings per second on 2 channels
  • In-built Ethernet connectivity
  • Up to four 3 or 4 wire Pt 100/1000 sensor inputs

The Squirrel 2040 series comprises two models:
Squirrel 2040-2F16
  • Up to 100 readings per second on 2 channels
  • Two 24-bit A to D converters
  • In built Ethernet connectivity  Squirrel 2040-4F16 (high speed model)
  • Up to 100 readings per second on 4 channels
  • Four 24-bit A to D converters
  • 4 pulse rate / counter inputs (2 at up to 64kHz, 2 at up to 100Hz)
  • In built Ethernet connectivity


Squirrel SQ2020 Wi-Fi
8 differential or 16 single ended channels

Key Features
  • 8 true differential or 16 single ended universal analogue inputs  for voltage, current or resistance measurements plus 2 high voltage, 4  pulse and 8 digital event/state inputs
  • Analogue inputs can be used with thermistors, thermocouples, 2, 3 or 4 wire RTD temperature sensors and 4-20mA signals
  • Logging rates of up to 100Hz on up to two channels
  • Large non-volatile internal memory storage for up to 14 million readings
  • Download of internal data to removable MMC/SD (Multi Media Card / Secure Digital) memory
  • Sensor power and FET outputs for use with external devices
  • Easy to read LCD and simple 4 button user interface
  • Up to 16 calculated / derived channels may be created using mathematical functions

Analogue inputs supported
  • Thermistors
  • Thermocouples
  • Pt100/Pt1000 (maximum of four 3 or 4-wire Pt100/1000 sensors)
  • Voltage
  • Current
  • Resistance
Squirrel SQ2040 Wi-Fi
16 differential or 32 single ended channels

Key features
  • 16 true differential or 32 single ended universal analogue  inputs for voltage, current or resistance measurements plus 2 high  voltages, 4 pulse and 8 digital event/state inputs
  • Analogue inputs can be used with thermistors, thermocouples, 2,3 or 4 wire RTD temperature sensors and 4 - 20mA signals
  • User selectable logging rates of up to 100Hz on up to four channels
  • Standard (802.11b) wireless (Wi-Fi) Ethernet networking, USB and RS232 communication ports
  • Large non-volatile internal memory storage for up to 14 million readings
  • Download of internal data to removable MMC/SD (Multi Media Card / Secure Digital) memory card
  • Sensor power and FET outputs for use with external devices
  • Easy to read LCD and simple 4 button user interface
  • Calculated channels derived from real channels using advanced mathematical functions e.g. log(x); ln(x); sqrt(x)

Analogue inputs supported
  • Thermistors
  • Thermocouples
  • Pt100/Pt1000 (maximum of eight 3- or 4-wire Pt100/1000 sensors - model 4F16 only)
  • Voltage
  • Current
  • Resistance



SQ2020-1F8
SQ2020-2F8
SQ2040-2F16
SQ2040-4F16
Analogue input channels8 to 168 to 16
16 to 32
16 to 32
High voltage channels
2222
Digital channels
8888
Counter channels
4444
Input types:




- current
P
P
P
P
- voltage
P
P
P
P
- resistance
2-wire2-, 3-, or 4-wire2-wire
2-, 3-, or 4-wire
- 3 or 4 wire Pt100/Pt1000
X
P
P
P
- temperature
P
P
P
P
Max no. readings per second
20 (on 1 channel)
100 (on 2 channels)
100 (on 2 channels)
100 (on 4 channels)
Accuracy
0.05%
0.05%
0.05%
0.05%
Display
128 x 64 dot matrix LCD
Memory capacity
14 million readings
14 million readings
14 million readings
14 million readings
External memory (MMC/SD card)
P
P
P
P
RS232 communications
P
P
P
P
USB communications
P
P
P
P
Ethernet**
x*
P
P
P
Wi-Fi option**
x*
P
P
P
Alarm outputs
4
4 44
Sensor power output
regulated 5VDC@50 mA and external supply voltage up to 28V on 2010 and 18V on all others @100mA
Set-up/analysis software
SquirelView/SquirrelView Plus
Environment
- 30 to 65°C RH up to 95% (non-condensing)
SquirrelView & SquirrelView Plus  SOFTWARE

SquirrelView is a universal software package that works with any Grant Squirrel data logger and is included FREE with every new logger. It enables easy setup of the logger, speedy download of data, and direct export to Excel spreadsheets. SquirrelView Plus gives you the additional benefits of graphically analysing your historical and on-line data, along with advanced reporting.
A FREE 30 day trial of SquirrelView Plus is included with SquirrelView.

SquirrelView
Configuration download and export application suitable for Windows (download from website).
Windows 7, 8 and 10 (including a free 30-day trial of SquirrelView Plus).

SquirrelView Plus
Provides full data analysis, on-line graphing, metering to Excel and export to Excel.

Key Features
  • Intuitive, user friendly spreadsheet style setup allows quick logger configuration in any application
  • Flexible data presentation allows you to quickly display and analyse real time or historical data as a line graph, bar chart or analog gauge
  • Graphical alarm and event identification lets you easily identify occurrences around specific analog or digital events e.g. pump coming on
  • Quick Graph function lets you quickly and easily view large data files
  • Export data into Excel or as a CSV file for customisable data analysis
  • Send data straight from your logger into Excel in real time
  • Easily view and control the logger status from one single screen
  • Downloading data by date, time or events, saves you time when working via modem or looking for specific data (Squirrel 20xx only)
  • All settings can be saved for efficient reuse
  • Security function protects your data and setup configurations
  • Communication wizard makes working with modems, Ethernet, GSM and wireless systems straight forward
  • Downloader for automating tasks using MS scheduler (Squirrel 20xx only)

SquirrelView Plus Analysis
SquirrelView Plus lets you quickly and easily analyse the data from your Squirrel data logger in a familiar Explorer style interface. Data can be displayed with 2 different auto scaling Y-axes. This is particularly useful when displaying widely varying data from different sensors on one graph. You can also zoom in on areas of interest, use a cursor to pick out exact values, times and dates, get a
statistical summary of your data, set high and low alarm thresholds and, using the calculation function, you can create new virtual channels from existing channels.
SquirrelView Plus also incorporates a report generation facility, which allows you to create custom report templates consisting of a  yitle page with descriptive text, headers and footers, graphs, tabular list of data, statistics and data logger setup information. Templates can be setup with any of these combinations and saves time when preparing similar presentations of data.

SOFTWARE SPECIFICATIONS

SETUP
• Setup can be verified before it is sent to the logger
• Converts setup files from previous Setwise software to SquirrelView
• Hide facility allows you to tailor setup interface to your own requirements
• Print setup information

METER MODE
• Displays up to 16 channels in real time
• 3 Plot types: line graphs, gauges & dials
• Autoscaling of Y axis
• Value readout at cursor position
• Saves metered data for re-use in other
software packages
• Graph printout facility
• Graph can be presented in various styles

DOWNLOAD
• Download directly as a CSV file
• Download straight to a graph
• Download by date & time (SQ20xx only)

EXPORT
• Easy to use export wizard
• Customisable data export for Excel, Lotus or other applications
• Export viewer allows quickview facility of data

ADDITIONAL FEATURES
• Tips of the day-provides informative shortcuts
• Logger diagnostics
• Security feature enables password setup
• Communication wizard enables easy setup of USB (20xx only), RS232, Ethernet and Modem
• Interactive Help
• Spanish and German versions available ANALYSIS

SquirrelView Plus version only
SquirrelView & SquirrelView Plus
ANALYSIS
• Easy analysis for: SQ20xx, SQ400/800, SQ1000, SQ1600, SQ1200/1250 and 600 series loggers
• Easy to use Explorer style interface
• Fully configurable data views
• Creation of templates
• Flexibility for customisable reports
• Facility to include text comments with graphs
• Flexible zoom feature including X and Y axis
• Statistics calculator
• Autoscaling of Y axis
• Value readout at cursor position
• Set and view high and low level thresholds
• Customisable report facility: prints out graphs, readings,etc
• Tolerance curve
• Calculated channels
• User notes
• Archives
• File convertor from Setwise and Squirrelwise
• Product cure calculation
• Display oven profiles and oven zones
• Append/add datafiles
• Import CSV file

Minimum computer requirements:
• Windows 98SE, 2000, XP
• Pentium II 266 MHz
• RAM as specified by PC operating system
• 60 Mb hard disk space and 1 CD drive
• Colour SVGA monitor running at 800 x 600 (1024 x 768 recommended)
• 1 RS232 or USB port (where applicable)
• Mouse

SquirrelView Plus version only
SquirrelView & SquirrelView Plus
