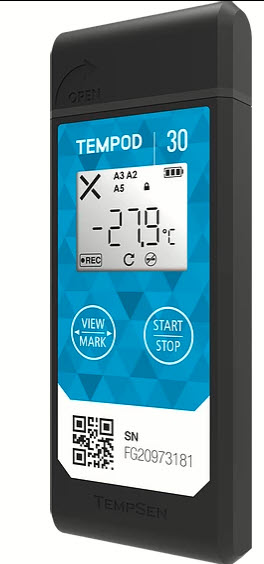

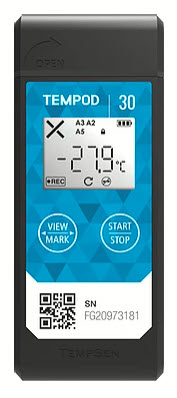

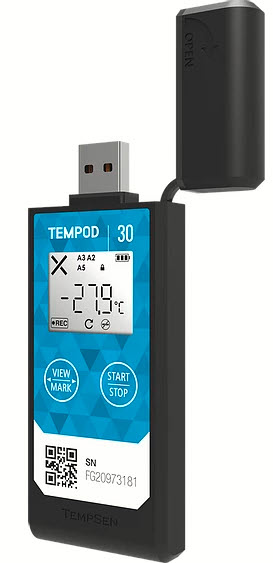

Tempod 30 - Temperature USB PDF Data Logger

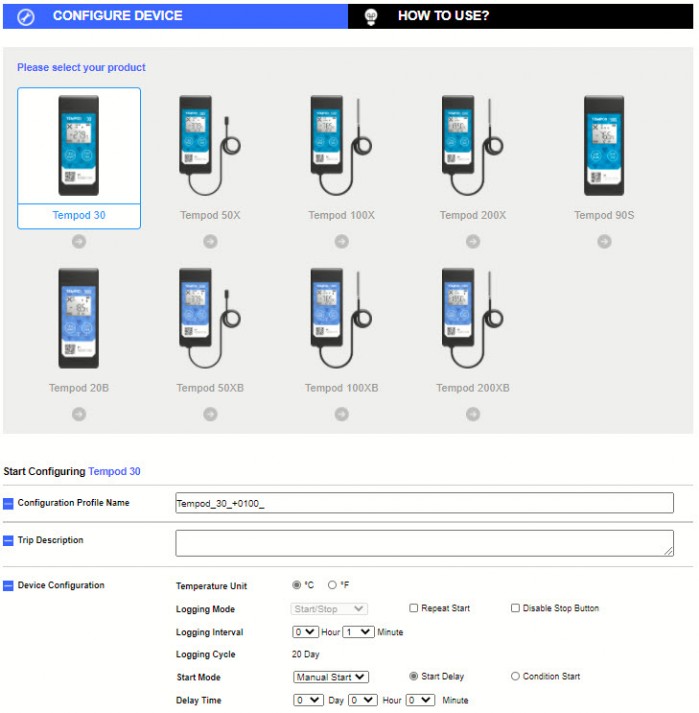

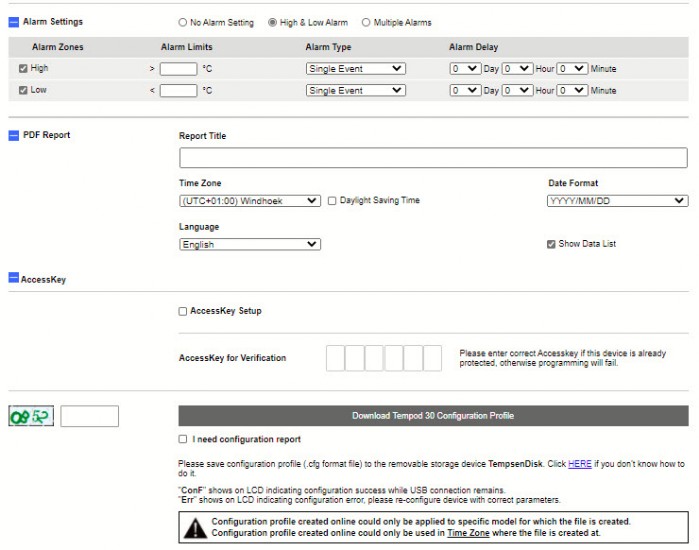

AUTO PDF REPORT WITH EMBEDDED RAW DATAAutomatically generated encrypted PDF format report, no software required to access data file.PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data.Embedded raw data allows further data processing via TempSen Cloud and 3rd party system.SOFTWARE-FREE ONLINE CONFIGURATIONPowered by TempSen patented SFP (Software Free Programming) technology, it's super simple to configure a data logger anywhere, anytime and on any platform, no need to install any software, just connect logger to computer and apply the configuration file downloaded, configuration will be done in one second.POWERFUL LCD INDICATIONLCD presents following key information of recording task.
- Alarm Status
- Running Status
- Monitoring Statistics
- Time Mark History
- Remaining Battery Levels
HEIGHTENED MEASUREMENT ACCURACY
Measurement accuracy heightened to ±0.3°C to present customer more precise reflection of temperature fluctuation.
MOQ : 10 units

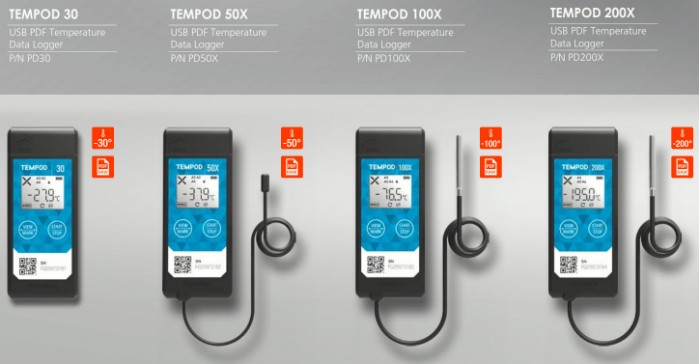

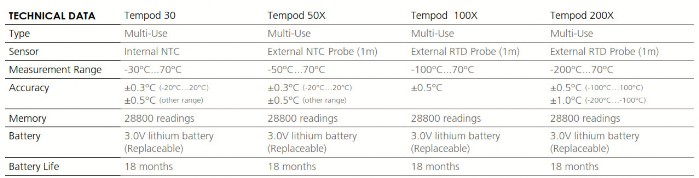

OTHER MODELS AVAILABLE
- Firmware user upgradable
- IATA PI970 II compliant, your goods with Tempod inside will not be handled as dangerous goods
- RTCA DO-160G compliant allows monitoring in air freight
- GxP regulations compliant
USB CONNECTOREnables quick connection with PC anytime anywhere, no cable and reader required to download data.PASSWORD PROTECTIONEnable password protection to prevent unauthorized manipulation to device.TIME MARKClick on Mark button to record a time stamp for events requiring special attention during shipment.REPEAT STARTAllows re-start recording with latest configurations by pressing button on device.MULTIPLE ALARM RANGESUp to 5 alarm ranges offer detailed and precise temperature excursion statistics.
Technical Specifications
Sensors Temperature: Internal NTC sensor
Memory Capacity 28800 readings
Measurement Range -30°C...70°C
Accuracy ±0.3°C (-20°C…20°C)
±0.5°C (other range)
Resolution 0.1°C / °F
Start ModeManual / Auto / Temperature start
Logging Interval 1 minute...2 hours
Alarm Ranges High and low alarm / 5 alarm ranges
Battery 3.0V lithium battery, user replaceable
Battery Life 18 months
Protection Class IP65
Dimensions 100mm L x 40mm W x 12mm H
Weight Approx. 48g
Technical Specifications 2
DisplayLCD
•OK(√), Alarm(x), alarm zone•Running status•Temperature statistics (max, min, avg)•Remaining battery level•Mark history
Automatic Data File Encrypted PDF report with embedded raw data
Software TempCentre Data Management Software
Compatible OS Windows 7 / 8 / 10
Calibration Factory NIST traceable 3-point calibration
Certifications CE,
FCC,
EN12830,
RTCA-DO160G,
IATA PI970 II,
RoHS, WEEE
Button Start / Stop / View / Mark
Connection USB

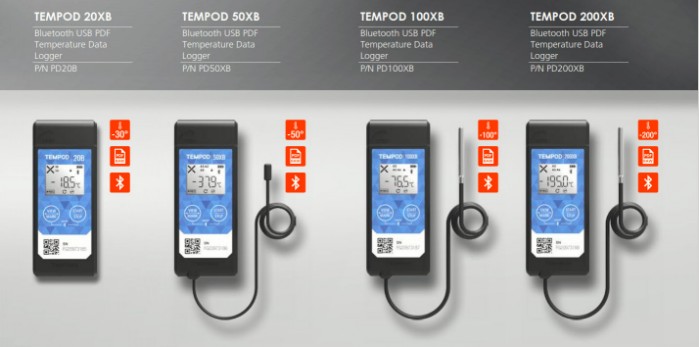

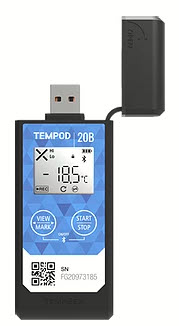

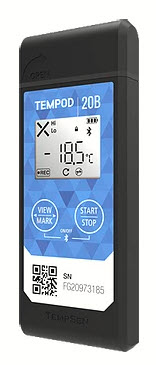

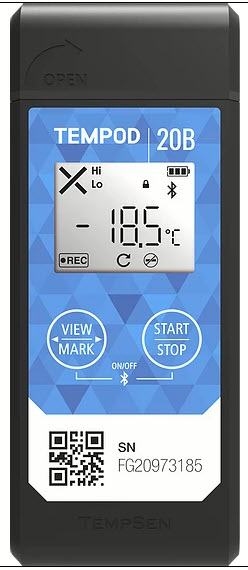

Tempod 20B bluetoothTEMPOD® BLUETOOTH® DATA LOGGERSBluetooth® AccessAccess, control and download data logger outside of package or vehicle through Bluetooth® Low Energy (BLE) connection.Auto PDF Report With Embedded Raw DataAutomatically generated encrypted PDF format report, no software required to access data file. PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data. Embedded raw data allows further data processing via TempSen Cloud and 3rd party system.Built-in USB ConnectorEnables quick connection with PC anytime anywhere, no cable and reader required to download data.Flight ModeLogger keeps recording with Bluetooth® wireless turned off under Flight Mode, and user could awake logger up from xflight mode remotely using TempSen Go App on smart device.Password ProtectionEnable password protection to prevent unauthorized manipulation to device.MOQ : 10 unitsOTHER MODELS AVAILABLE
Technical features
- Firmware user upgradable
- IATA PI970 II compliant, your goods with Tempod inside will not be handled as dangerous goods
- RTCA DO-160G compliant allows monitoring in air freight
- GxP regulations compliant

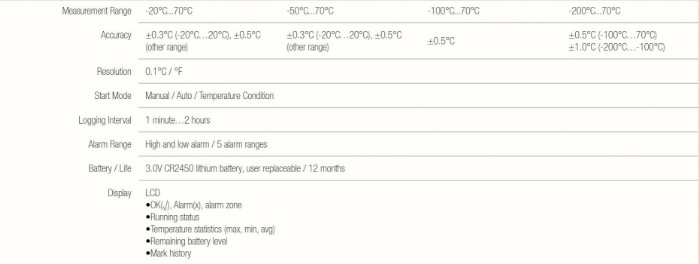

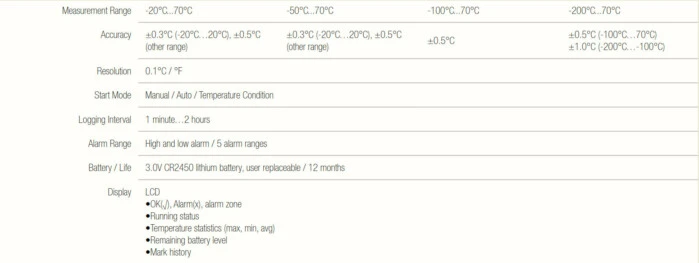

Technical Spectifications 1
Usage Type Multi-use
SensorsTemperature: Internal NTC
Memory Capacity 28800 readings
Measurement Range -20°C...70°C
Accuracy ±0.3°C (-20°C…20°C),
±0.5°C (other range)
Resolution 0.1°C / °F
Start Mode Manual / Auto / Temperature start
Logging Interval 1 minute...2 hours
Alarm Ranges High and low alarm / 5 alarm ranges
Battery 3.0V CR2450 lithium battery (Replaceable)
Battery Life 12 months
Protection Class IP65
Dimensions 100mm L x 40mm W x 12mm H
Weight Approx. 50g

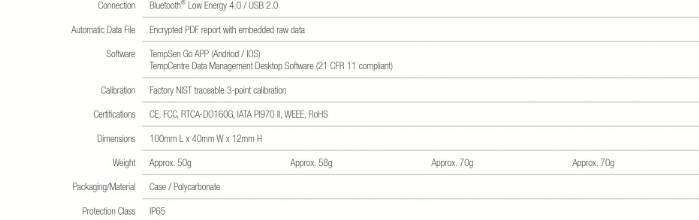

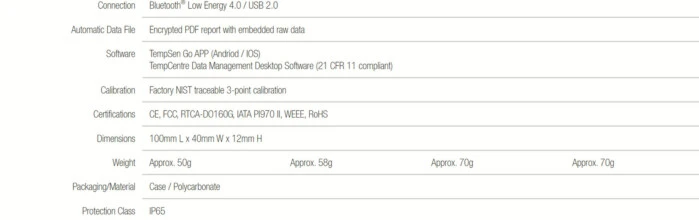

Technical Spectifications 2
DisplayLCD
•OK(√), Alarm(x), alarm zones•Running status•Bluetooth signal and status•Temperature statistics (max, min, avg)•Remaining battery level•Mark historyButtonStart / Stop / View / Mark
Connection USB
Bluetooth 4.0
Bluetooth 4.0
Automatic Data File Encrypted PDF report with embedded raw data
Software TempCentre Data Management Software
TempSen Go App (IOS & Andriod)
TempSen Go App (IOS & Andriod)
Compatible OS Windows 7 / 8 / 10
Calibration Factory NIST traceable 3-point calibration
Certifications CE,
FCC,
RTCA-DO160G,
IATA PI970 II,
RoHS, WEEE

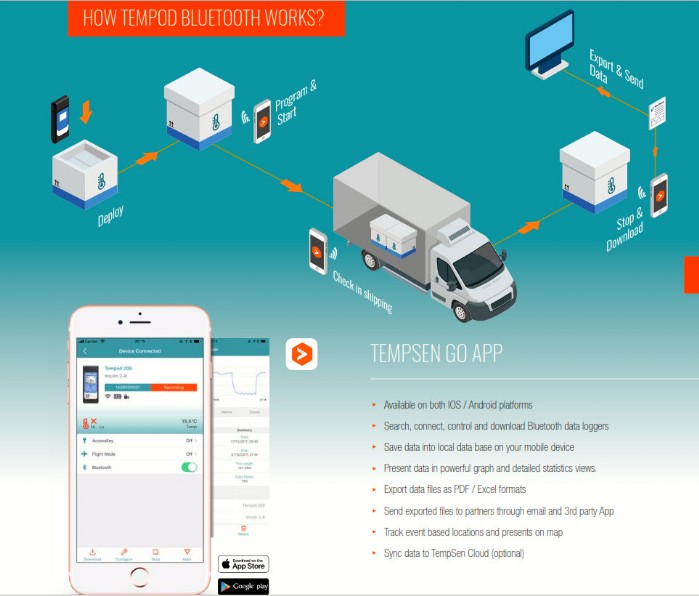

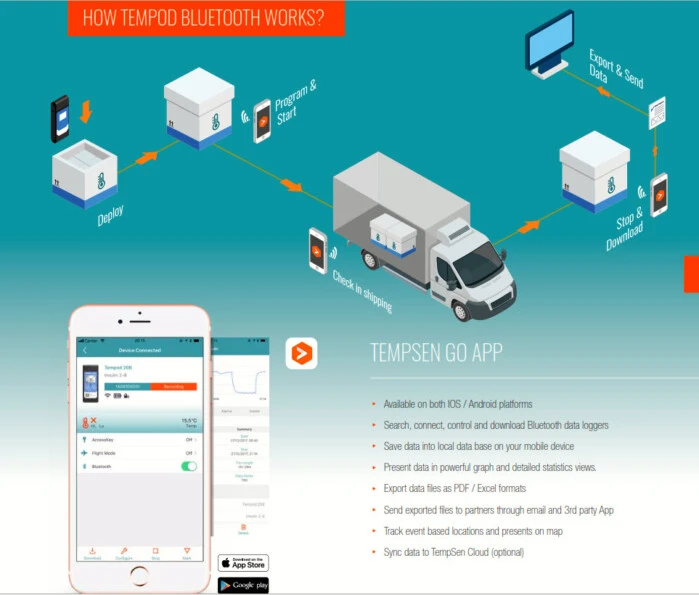

TEMPSEN GO APP (IOS / ANDROID)
The Bluetooth Tempod data loggers has a Bluetooth interface in addition to USB.
With the TempSen Go app, your Tempod B datalogger can be configured and read-out.
Your advantages :
- Contactless (re-)configuration before shipping
- Contactless read-out at the destination
- Very easy to use, to program whether for your usual operator, whether for occasional operators, and the various stakeholders in the Cold Chain.
- With a memory capacity of 28,800 measurements and recording intervals available from 1 minute to 2 hours you can program work sessions from 20 days to theoretically 2,400 days.
- Your Tempod datalogger can be reconfigured as many times as you like.
Download TempSen Go APP
You could download and install TempSen Go APP by visiting following links.
With the TempSen GO App you wil control the temperature monitoring, read the alarm, download the report, and make a pdf to deal the report with supplier, customer or colleague.
Report automatically available when Tempod is connected to a usb port.
