Process & Quality Control

Wet Film Combs

Coatings & Industry > Physical properties > Thickness Wet Film

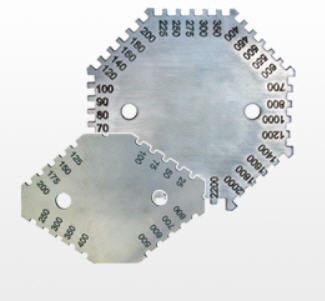

Wet Combs Film Thickness Gauge

Purpose
For quick and easy thickness measurement of freshly applied wet paint.

Test procedure
Select scale range.
Place gauge on wet film at 90° angle and press it into film.
Withdraw and note the deepest tooth or notch having paint on it and next higher tooth that is not coated.
The wet film thickness lies between these two readings.
Coating Thickness Measurement (Manuel)  333/I

Wet Film Thickness Gauge acc. to Rossmann, Modell 333/I

Measuring range: 0 - 120 µm (graduation 5 µm)
Order number: 101-00910131


Coating Thickness Measurement (Manuel)  333/II

Wet Film Thickness Gauge acc. to Rossmann, Modell 333/II

Measuring range: 0 - 600 µm (graduation 25 µm)
Order number: 101-00910231
Coating Thickness Measurement (Manuel)  333/III

Wet Film Thickness Gauge acc. to Rossmann, Modell 333/III

Measuring range: 0 - 1200 µm (graduation 50 µm)
Order number: 101-00910331
Coating Thickness Measurement (Manuel)  333/III

Wet Film Thickness Gauge acc. to Rossmann, Modell 433I
ISO 2808 and BS 3900:C5
4 measuring scales:    5 -   100 µm (graduation   5 µm)
                                              100 -   300 µm (graduation 10 µm)
                                              300 -   700 µm (graduation 20 µm)
                                             700 - 1500 µm (graduation 40 µm)

Order number: 101-01690131
Ref.Range µm

Step of measurement, µm

In the range, µm
NH1

   10-220


10
20



10- 60
  60-220




NH2






   25-800




25
50
100

25-200
    200-400
     400-800



NH3





50-2200



50
100
200

50-200
       200-600
      600-2200


NHU

       10-4000
10
20
         25
     50
     100
     200
     300
      500
      1000

10-100
120-200
225-300
300-600
700-800
1000-2000
2200-2500
2500-3000
 3000-4000

Minimum order quantities : 5 units
