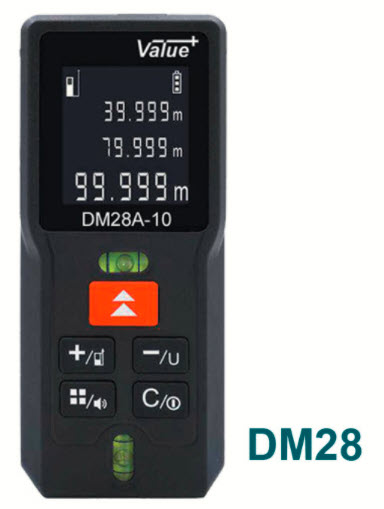

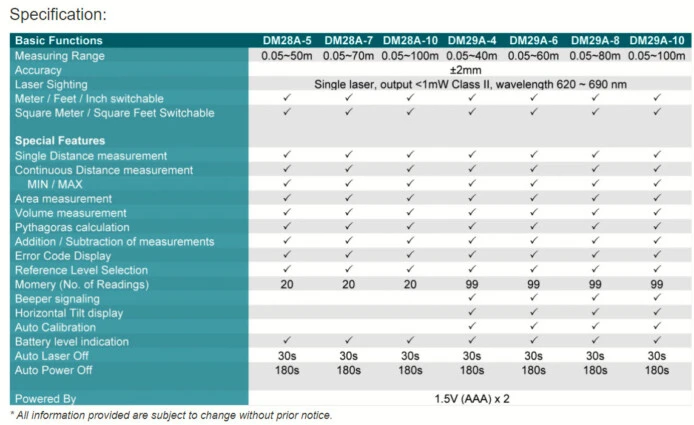

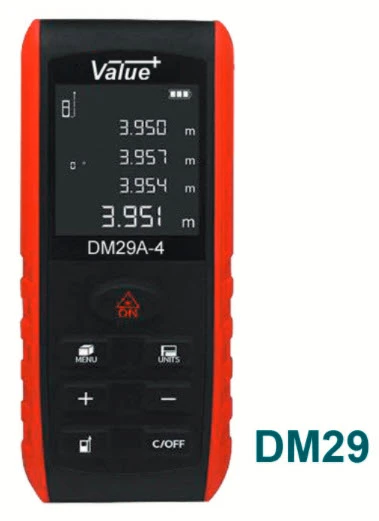

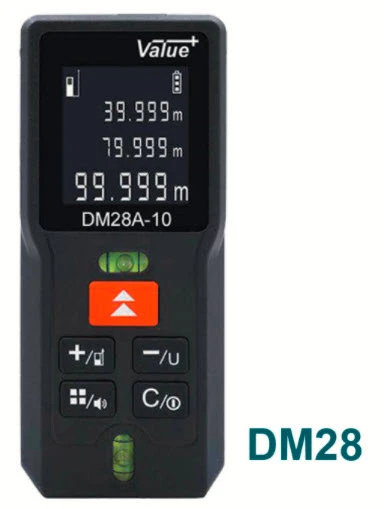

DM28-DM29 Series - Distance Meters

Features:

Versatile laser distance meter that instantly measures up to 100 meters with one-button point-and-click operation
Quickly calculates area and volume
Offers enhanced Pythagoras calculation for determining distance indirectly
Provides easy to-use addition and subtraction function
Display with white characters on black background which provide a sharp image and easy for reading
Offers minimum/maximum tracking to measure the room’s diagonal and horizontal distance from a stable measurement point
Able to store the twenty (DM28A) / ninety nine (DM29A) measurements for quick recall

Laser measuring devices for interior spaces

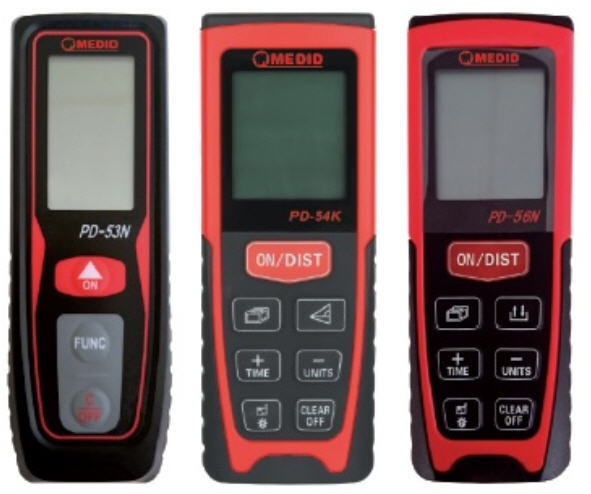

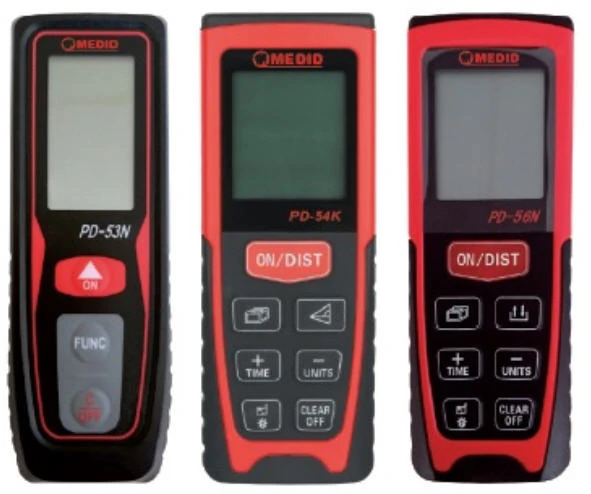

PD 53N PD-54K PD-56

PD 53N

Range from 0,05 to 30 m.

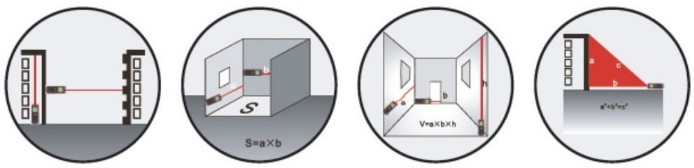

Calculate distances, areas and volumes. Pythagoras function.

Includes hanger

Accuracy ±1,5 mm

Dimension : 110x36x24 mm

Ref : 242-8421411022962

PD-54K

Range from 0,05 to 40 m.

Calculate distances, areas and volumes. Pythagoras function.

Includes hanger and bag.

Accuracy ±1,5 mm

Dimension : 122x45x26 mm

Ref : 242-8421411022375

PD-56

Range from 0,05 to 60 m.

Calculate distances, areas and volumes. Pythagoras function x2.

20 memories.

Includes hanger and bag.

Accuracy ±1,5 mm

Dimension : 122x45x26 mm

Ref : 242-8421411022979

Laser measuring devices for interior and exterior spaces

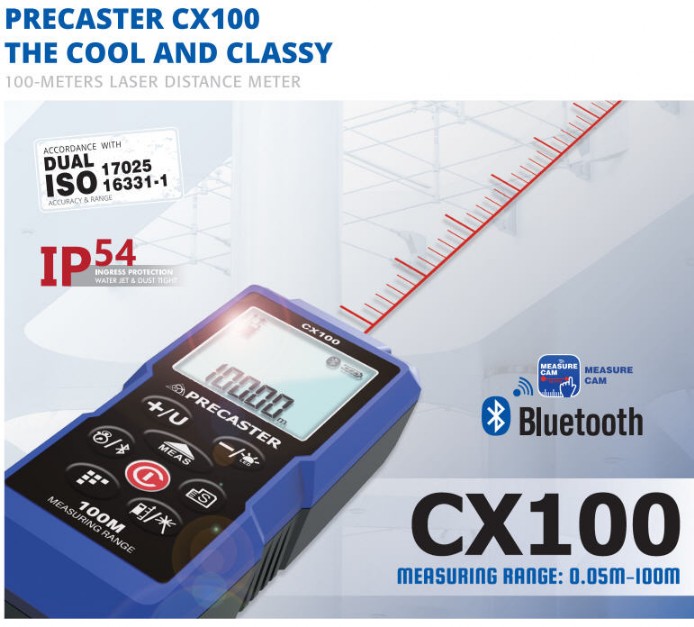

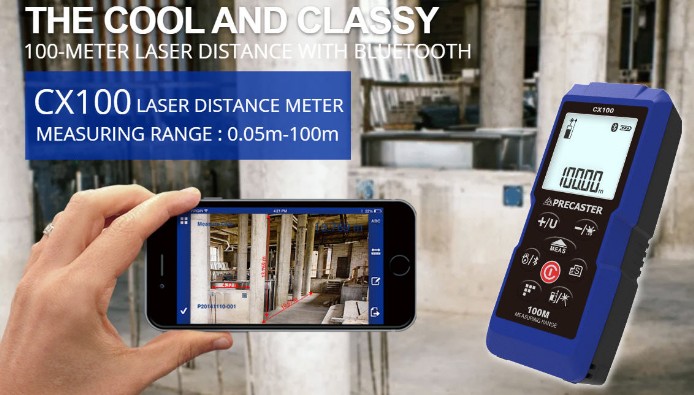

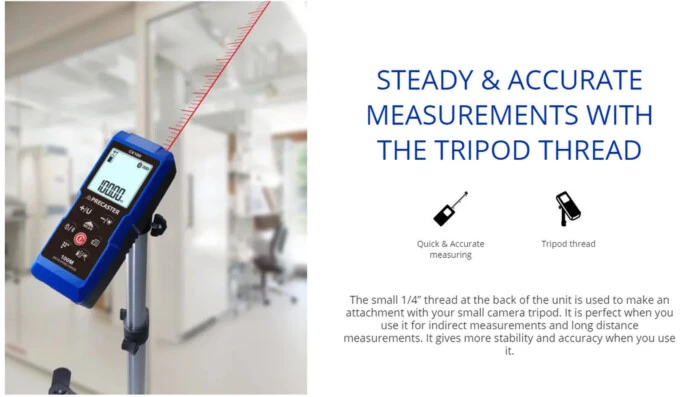

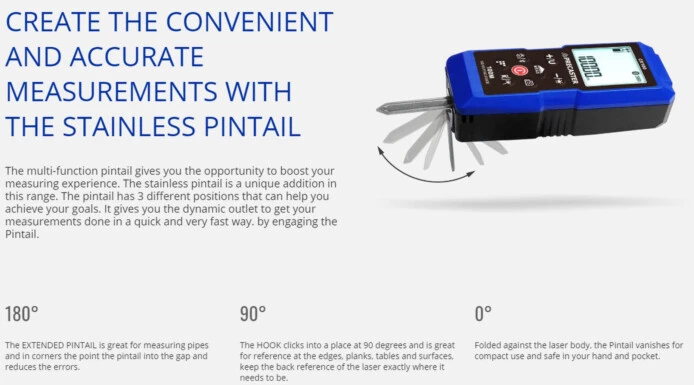

CX100 : the expert 's choice

Onglet 1 SPECIFICATION

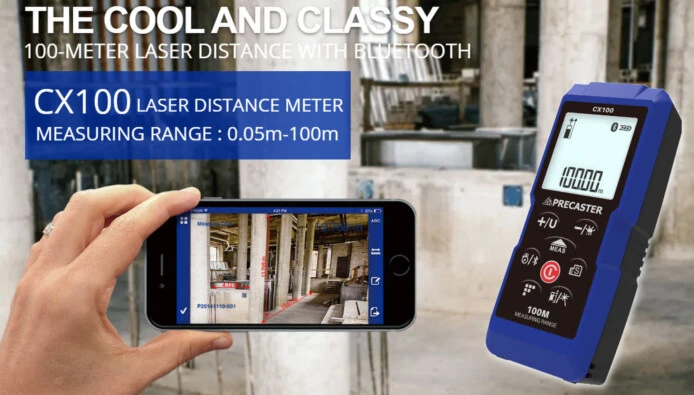

CX100 Laser Distance Meter : it measures distance and angles with smart Bluetooth technology

Measuring range : 0,05 m - 100 m

iM² app free of charge : Measurement Kit on iTune and Play Store.

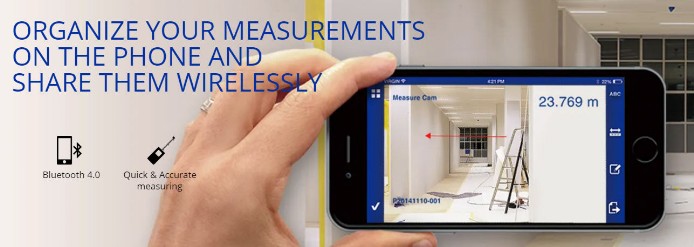

Save the measurements you really need and keep it simple : with MEASURE CAM, you do not need to write your measure in paper anymore, take a picture, mark out all the distance you are going to measure with lines and save all measurements on the marks. Save it and sent to your colleagues, friends, family members by email or by IM, it is easy and save times.

EVERYAPPLICATIONS VOU NEED ARE ALL AROUND :

1. Area Measurement ( Area mode to measure width and length)
2. Volume Measurement
3. Indirectly Height I, II & III Measurement (base on Pythagorean)
4. Indirectly Height IV, V & VI Measurement (base on Angle Sensor)
5. Stake-Out Measurement
6. Continuous mode (you can quickly find the diagonal of a room (maximum value) and the horizontal distance (minimum value) by continuously moving the distance meter until you get what you need.)

7. Countdown measure (When you measuring at narrow or hard reach places, you can use build-in timer to delay your measurement time to setup the laser distance meter. Click on the timer button and set the timer from 3~15 seconds.)

SPECIFICATION

MODEL NO.CX100 LASER DISTANCE METER

Measuring Range 0.05 m ~ 100 m

Resolution 0.001 m

Accuracy ±1.5 mm

Measuring Speed 0.5 seconds

Laser Type 650 nm, Class II, < 1 mw

Beam Size 25 mm @ 30 m

Battery 2 * AAA Batteries

Battery Life Up to 10,000 measures

Dimensions 116 * 48 * 31 mm

Tap to Record 20 memories
