QUADTHERMOVAULT
4 CHANNEL OVEN TEMPERATURE DATA LOGGER
Applications
• Extreme temperature monitoring
• Oven profiling
• Powder coating cure ovens
• Wet coating cure ovens
• Batch ovens
• Conveyor ovens
• Implement HACCP programs
Features
• Programmable start time
• Reusable
• Convenient size
• User-friendly
• Automatic cold junction compensation
• Automatic thermocouple linearization
• Type K thermocouples and power supply included

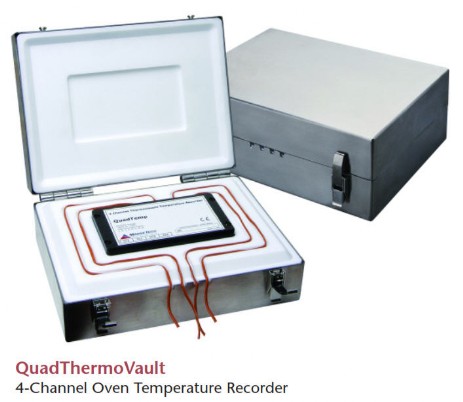

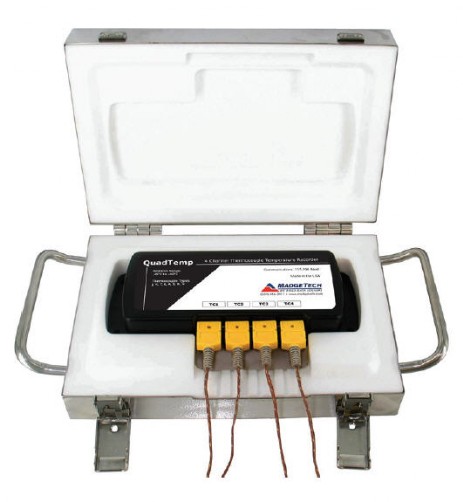

The QuadThermoVault is a four channel thermally insulated, battery powered, oven temperature data logger able to withstand extreme temperatures. It can withstand oven temperatures of up to 350 °C (662 °F) for up to 25 minutes when properly sealed. Its stainless steel enclosure and thermal properties lend itself to be the ideal temperature data recorder for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens. The external thermocouple probes provide accurate temperature measurements with fast response times.

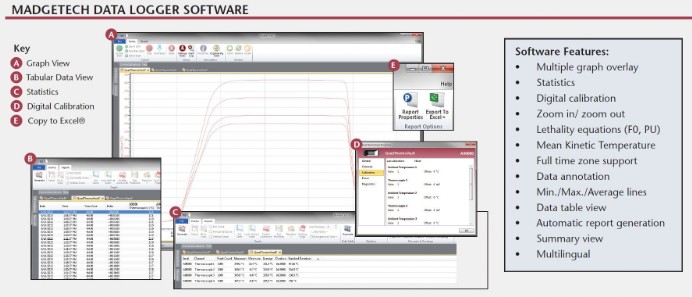

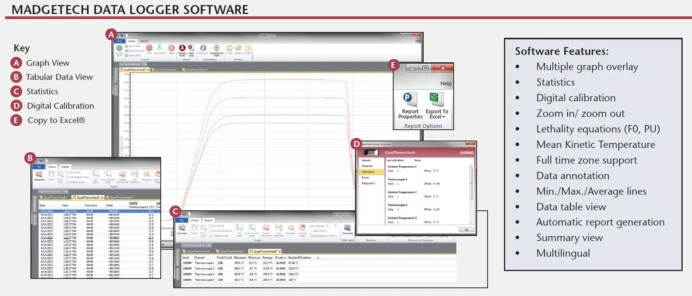

Our user-friendly software easily downloads the data to a computer, where the readings may be displayed in degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. The software allows the user to view all data points or a range of data points and a summary of the data being viewed for calculations such as Mean Kinetic Temperature (MKT). If additional analysis of the data needs to be performed, the data can be easily exported to Excel® by simply clicking a button. (72-inch type K thermocouples and AC power supply included)
Temperature Channels Specifications
Internal Channel Temperature Sensor : Semiconductor
Internal Channel Temperature Resolution : 0.5 °C (0.9 °F)
Internal Channel Temperature Calibrated Accuracy: ±0.5 °C
Remote Channel Temperature Sensor : Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range : Thermocouple Dependent
Remote Channel Temperature Resolution : Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy : Thermocouple Dependent
GENERAL
Memory : 500,000 readings per channel
Reading Rate : 4 readings every second up to 1 reading every 24 hours
Baud Rate : 115,200
Cold Junction Compensation : Automatic
Channels : 4 Internal & 4 Remote
Battery Life : 18 Months
Material : 304 stainless steel w/ PTFE insulation
Dimensions : 231 mm x 149 mm x 62 mm
Operating Environment : T° see thermocouple range, 0 % to 95 %RH, non-condensing
Required Interface Package : IFC200
Approvals : CE
Thermocouple Range (°C) Resolution Accuracy
J -210 to +760 0.1 °C ±5 °C
K -260 to +1370 0.1 °C ±5 °C
T -260 to +400 0.1 °C ±5 °C
E -260 to +980 0.1 °C ±5 °C
R -50 to +1760 0.5 °C ±2 °C
S -50 to +1760 0.5 °C ±2 °C
B +60 to +1820 0.5 °C ±2 °C
N -260 to +1300 0.1 °C ±5 °C
IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.
U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

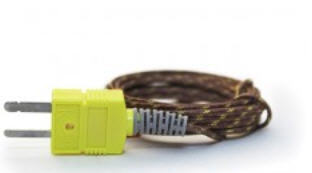

24 AWG Glass Braided Thermocouple 5 pack
24 AWG Glass Braided Thermocouple, available type K Thermocouple, 72 in. Sold only in quantities of 5.
24 AWG Glass Braided Thermocouple,
available type K Thermocouple, 72 in.
Sold only in quantities of 5.
Probe Type : Type K, Thermocouple
Temperature Range: -73 °C to +480 °C
Accuracy: ±1.1 °C
Resolution : 0.1 °C
Lead Wire Material Glass : Braided Insulation
Lead Wire Temperature Range : +480 °C
Thermocouple :

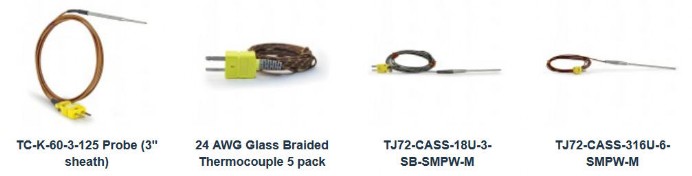

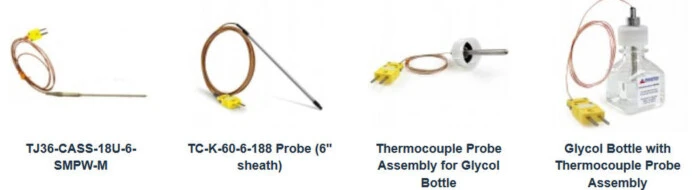

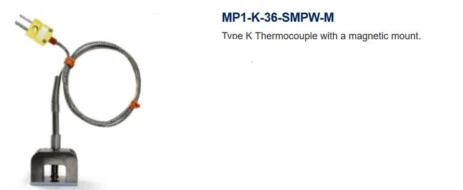

other model available on request
