Process & Quality Control

Real Time Monitoring Single Use

Transportation > Cold Chain Monitoring
V5B (4G-60) Key Features Advantages

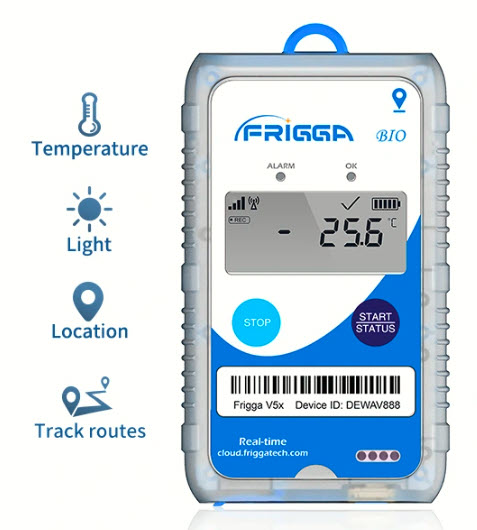

V5B (4G-60) REAL-TIME TEMPERATURE POSITIONING MONITOR (SINGLE-USE)

Effectively conduct real-time temperature monitoring throughout the entire process （-30°C ~ +70°C）

  • Frigga V5B(4G-60) is a Single-use real-time temperature and positioning data logger.
  • It can monitor temperature in real time throughout the whole process, and provide real-time location and trajectory.
  • It is a key equipment for logistics and quality departments.
  • The Frigga family of products is helping life sciences customers achieve end-to-end digital management of their supply chains.
  • By visualizing operations during transportation and warehousing, adding alerting mechanisms to prevent loss of goods, automating data analysis to improve compliance, and helping customers efficiently develop and sell their products.
  • This model is suitable for -30~70°C temperature environment, with built-in digital temperature sensor.
  • If a lower temperature range is required, other types of products can be consulted.

Ref. 346-V5B(4G-60)
Key Features

  • Real-time monitoring of temperature, location information, temperature range -30°C ~ +70°C；
  • Built-in heartbeat mode, support remote start, ensure that the device records data throughout the process；
  • Real-time reporting and alarming of temperature, light, and location information to prevent and deal with risks caused by temperature fluctuations；
  • Send real-time alert via Email, SMS, APPs (Android and IOS)；
  • Dual system design: PDF report can be downloaded via USB port or remotely through the Frigga cloud platform
  • Large-capacity local storage, keep recording and store during offline mode .Data retransmission once the signal is restored . No data loss.
  • Support remote parameter setting, modify alarm threshold, adjust battery life
  • Weak-light detection, effectively prevent the button from being triggered by accident.
  • Digital display, easy to use.
  • Multi temperature point calibration certificates issued by the original factory for each device
  • Arrival notification

Advantages

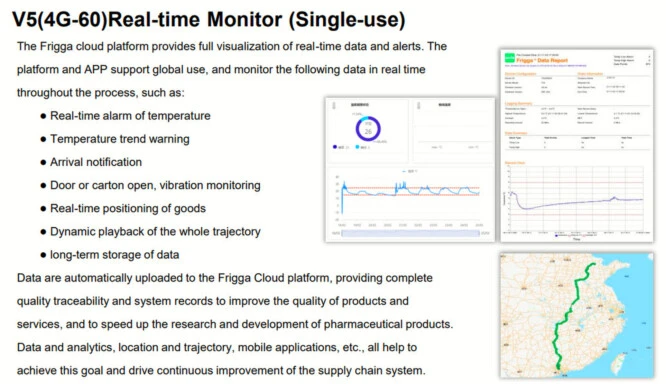

The Frigga cloud platform provides full visualization of real-time data and alerts.
The platform and APP support global use, and monitor the following data in real time throughout the process, such as:
● Real-time alarm of temperature
● Temperature trend warning
● Arrival notification
● Door or carton open, vibration monitoring
● Real-time positioning of goods
● Dynamic playback of the whole trajectory
● long-term storage of data
Data are automatically uploaded to the Frigga Cloud platform, providing complete quality traceability and system records to improve the quality of products and services, and to speed up the research and development of pharmaceutical products.
Data and analytics, location and trajectory, mobile applications, etc., all help to achieve this goal and drive continuous improvement of the supply chain system.
SPECIFICATIONS
Configure                           Parameters
Usage Type                        Single-use(Max 60days)
Monitor Information   Temperature, Light , Location, Track routes
Temperature Sensor     Internal Texas Instruments (TI) Brand Digital Sensor (NIST Traceable)
Measurement Range    -30°C ~ 70°C
Temperature Accuracy Range            Temperature：±0.5°C (-20°C ~ +40°C); ±1°C for other range
Resolution                            0.1°C
Temperature calibration Certificate           Multi temperature point calibration certificate issued by the original factory
Light Sensor Range          0~52,000 Lux, detect whether doors or cartons open
Memory Capacity             Max 28800 readings (Cyclic recording)
Location Type                      Base station positioning (even in indoor, freezer and incubator)
Cellular                                   Global LTE 4G/5G, fallback 2G network.
SIM card                                 Internal Embedded (Global Data Roaming)
Shelf Time                             12 Months
Use Time                                 Up to 60 days (Reporting interval can be set via platform)
• 60 days(60 Min reporting interval)
• 30 days(30 Min reporting interval)
• 20 days(20 Min reporting interval)
• 10 days(10 Min reporting interval)
Data Logging Interval        10 Min. (settable via platform)
Data Reporting Interval    10 Min. (10/20/30/60 Min settable via platform)
Information indication        LCD: Max/Min/Avg temperature, Temperature Alarm, Working Status
                                                          LED indicator: Over temperature alarm, Charging, Low battery
Environmental Rating          IP64
Cold Chain PDF Report       Get PDF report via USB2.0/ Frigga cloud platform/Frigga Track(Mobile App)
Dimensions/Weight               103 x 61.3 x 23 mm / 140 grams
Certifications                               FCC,CE,RTCA/DO-160G,UN38.3,ROHS,WEEE,
Storage temperature range        -10°C ~ +55         °C
V5A (2G-60) Key Features Advantages

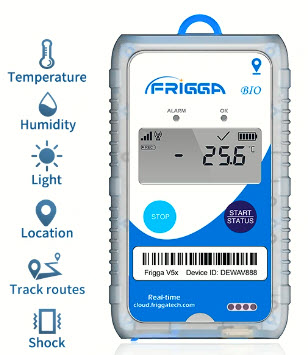

V5A (2G-60) Real-time Temperature and Humidity Positioning Monitor (Single-use)

  • Effectively conduct real-time temperature monitoring throughout the entire process （-30°C ~ +70°C）
  • Frigga V5A(2G-60) is a Single-use real-time temperature ,humidity and positioning data logger.
  • It can monitor temperature in real time throughout the whole process, and provide real-time location and trajectory.
  • It is a key equipment for logistics and quality departments. The Frigga family of products is helping life sciences customers achieve end-to-end digital management of their supply chains.
  • By visualizing operations during transportation and warehousing, adding alerting mechanisms to prevent loss of goods, automating data analysis to improve compliance, and helping customers efficiently develop and sell their products.
  • This model is suitable for -30~70°C temperature environment, with built-in digital temperature and humidity sensor.
  • If a lower temperature range is required, other types of products can be consulted.

Ref : 346-V5A (2G-60)

Key Features

  • Real-time monitoring of temperature, humidity, location information, temperature range -30°C ~ +70°C；
  • Built-in heartbeat mode, support remote start, ensure that the device records data throughout the process；
  • Real-time reporting and alarming of temperature, humidity, vibration, light, and location information to prevent and deal with risks caused by temperature fluctuations；
  • Send real-time alert via Email, SMS, APPs (Android and IOS)；
  • Dual system design: PDF report can be downloaded via USB port or remotely through the Frigga cloud platform
  • Large-capacity local storage, keep recording and store during offline mode .Data retransmission once the signal is restored . No data loss.
  • Support remote parameter setting, modify alarm threshold, adjust battery life
  • Weak-light detection, effectively prevent the button from being triggered by accident.
  • Digital  display, easy to use.
  • Multi temperature point calibration certificates issued by  the original factory for each device
  • Arrival notification

Advantages

The Frigga cloud platform provides full visualization of real-time data and alerts. The platform and APP support global use, and monitor the following data in real time throughout the process, such as:
● Real-time alarm of temperature
● Temperature trend warning
● Arrival notification
● Door or carton open, vibration monitoring
● Real-time positioning of goods
● Dynamic playback of the whole trajectory
● long-term storage of data
Data are automatically uploaded to the Frigga Cloud platform, providing complete quality traceability and system records to improve the quality of products and services, and to speed up the research and development of pharmaceutical products.
Data and analytics, location and trajectory, mobile applications, etc., all help to achieve this goal and drive continuous improvement of the supply chain system.
SPECIFICATIONS

Configure                                              Parameters
Usage Type                                           Single-use(Max 60days)
Monitor Information                      Temperature, Humidity, Light , Shock, Location, Track routes
Temperature Sensor                        Internal Texas Instruments (TI) Brand Digital Sensor (NIST Traceable)
Measurement Range                       Temperature：-30°C ~ 70°C ;Humidity：5%~95%RH
T° and RH Accuracy Range          Temperature：±0.5°C (-20°C ~ +40°C); ±1°C for other range
                                                                      Humidity：±3%(20%~80%RH); ±5% for other range
Resolution(T° and RH)                     0.1°C / 1%RH
Temperature calibration Certificate     Multi temperature point calibration certificate issued by the original factory
Light Sensor Range                             0~52,000 Lux, detect whether doors or cartons open
Memory Capacity                                 Max 28800 readings (Cyclic recording)
Location Type                                           Base station positioning (even in indoor, freezer and incubator)
Cellular                                                         2G network.
SIM card                                                       Internal Embedded (Global Data Roaming)
Shelf Time                                                    12 Months
Use Time                                                        Up to 60 days (Reporting interval can be set via platform)
• 60 days(60 Min reporting interval)
• 30 days(30 Min reporting interval)
• 20 days(20 Min reporting interval)
• 10 days(10 Min reporting interval)
Data Logging Interval                               10 Min. (settable via platform)
Data Reporting Interval                           10 Min. (10/20/30/60 Min settable via platform)
Information indication                               LCD: Max/Min/Avg temperature, Temperature Alarm, Working Status
LED indicator:                                                 Over temperature alarm, Charging, Low battery
Environmental Rating                                 IP64
Cold Chain PDF Report                              Get PDF report via USB2.0/ Frigga cloud platform/Frigga Track(Mobile App)
Dimensions/Weight                                     103 x 61.3 x 23 mm / 140 grams
Certifications                                                    FCC,CE,RTCA/DO-160G,UN38.3,ROHS,WEEE,
Storage temperature range                      -10°C ~ +55°C
V5C (4G-120) Key Features Advantages

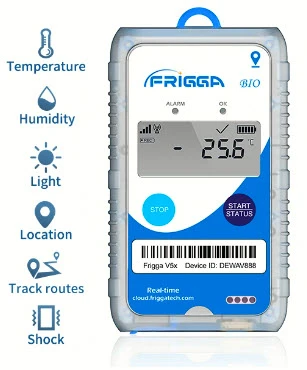

V5C (4G-120) Real-time Temperature and Humidity Positioning Monitor (Single-use)

Effectively conduct real-time temperature monitoring throughout the entire process （-30°C ~ +70°C）
  • Frigga V5C(4G-120) is a Single-use real-time temperature and positioning data logger.
  • It can monitor temperature in real time throughout the whole process, and provide real-time location and trajectory.
  • It is a key equipment for logistics and quality departments.
  • The Frigga family of products is helping life sciences customers achieve end-to-end digital management of their supply chains.
  • By visualizing operations during transportation and warehousing, adding alerting mechanisms to prevent loss of goods, automating data analysis to improve compliance, and helping customers efficiently develop and sell their products.
  • This model is suitable for -30~70°C temperature environment, with built-in digital temperature and humidity sensor.
  • If a lower temperature range is required, other types of products can be consulted.

Ref 346-V5C (4G-120)
Key Features

  • Real-time monitoring of temperature, humidity, location information, temperature range -30°C ~ +70°C；
  • Built-in heartbeat mode, support remote start, ensure that the device records data throughout the process；
  • Real-time reporting and alarming of temperature, light, and location information to prevent and deal with risks caused by temperature fluctuations；
  • Send real-time alert via Email, SMS, APPs (Android and IOS)；
  • Dual system design: PDF report can be downloaded via USB port or remotely through the Frigga cloud platform
  • Large-capacity local storage, keep recording and store during offline mode .
  • Data retransmission once the signal is restored . No data loss.
  • Support remote parameter setting, modify alarm threshold, adjust battery life
  • Weak-light detection, effectively prevent the button from being triggered by accident.
  • Digital  display, easy to use.
  • Multi temperature point calibration certificates issued by  the original factory for each device
  • Arrival notification
Advantages

The Frigga cloud platform provides full visualization of real-time data and alerts.
The platform and APP support global use, and monitor the following data in real time throughout the process, such as:
● Real-time alarm of temperature
● Temperature trend warning
● Arrival notification
● Door or carton open, vibration monitoring
● Real-time positioning of goods
● Dynamic playback of the whole trajectory
● long-term storage of data Data are automatically uploaded to the Frigga Cloud platform, providing complete quality traceability and system records to improve the quality of products and services, and to speed up the research and development of pharmaceutical products. Data and analytics, location and trajectory, mobile applications, etc., all help to achieve this goal and drive continuous improvement of the supply chain system.


SPECIFICATIONS

Configure                                        Parameters
Usage Type                                     Single-use(Max 120days)
Monitor Information                Temperature, Humidity, Light , Shock, Location, Track routes
Temperature Sensor                  Internal Texas Instruments (TI) Brand Digital Sensor (NIST Traceable)
Measurement Range                 Temperature：-30°C ~ 70°C  ;
                                                               Humidity：5%~95%RH
T° and Rh Accuracy Range     Temperature：±0.5°C (-20°C ~ +40°C); ±1°C for other range
                                                                Humidity：±3%(20%~80%RH); ±5% for other range
Resolution(T° and Rh)                0.1°C / 1%RH
Temperature calibration Certificate           Multi temperature point calibration certificate issued by the original factory
Light Sensor Range                       0~52,000 Lux, detect whether doors or cartons open
Memory Capacity                          Max 28800 readings (Cyclic recording)
Location Type                                   Base station positioning (even in indoor, freezer and incubator)
Cellular                                                 Global LTE 4G/5G, fallback 2G network.
SIM card                                               Internal Embedded (Global Data Roaming)
Shelf Time                                           12 Months
Use Time                                               Up to 120 days (Reporting interval can be set via platform)
• 120 days(120 Min reporting interval)
• 60 days(60 Min reporting interval)
• 30 days(30 Min reporting interval)
• 20 days(20 Min reporting interval)
• 10 days(10 Min reporting interval)
Data Logging Interval                         10 Min. (settable via platform)
Data Reporting Interval                    10 Min. (10/20/30/60/120 Min settable via platform)
Information indication                        LCD: Max/Min/Avg temperature, Temperature Alarm, Working Status
                                                                          LED indicator: Over temperature alarm, Charging, Low battery
Environmental Rating                          IP64Cold
Chain PDF Report                                  Get PDF report via USB2.0/ Frigga cloud platform/Frigga Track(Mobile App)
Dimensions/Weight                              103 x 61.3 x 23 mm / 160 grams
Certifications                                              FCC,CE,RTCA/DO-160G,UN38.3,ROHS,WEEE,
Storage temperature range                -10°C ~ +55°C
