Dry Ice Monitoring
Transportation > Cold Chain Monitoring
Dry ice is the solid form of carbon dioxide.
It is commonly used for temporary refrigeration.
Dry ice surface temperature is -78.5 degrees Celsius.
It is used primarily as a cooling agent, used as a refrigerant, especially during shipping of perishable products such as meats or ice cream.
Dry ice will play a crucial role in maintaining the correct temperature as the vaccine travels for distribution.
- USB connector allows downloading data without reader or cable
- Time mark records events requiring special attention
- IATA PI970 II compliant, your goods with Tempod inside will not be handled as dangerous goods
- RTCA DO-160G compliant allows monitoring in air freight •
- GxP regulations compliant

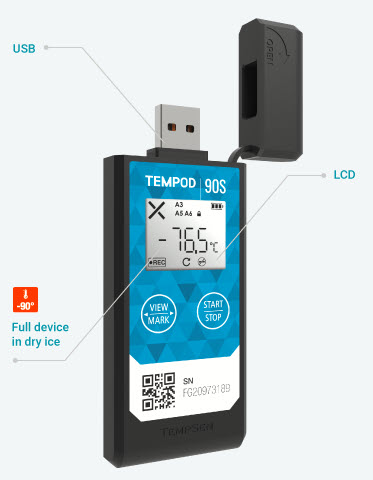

Tempod 90 S Specifications
Sensor : Temperature: Internal RTD sensor
Memory Capacity : 28.800 readings
Measurement Range : -90°C...70°C
Accuracy :
- ±0.7°C (-90°C...-30°C)
- ±0.5°C (-30°C...30°C)
- ±0.7°C (30°C...70°C)
Resolution : 0.1°C / °F
Start Mode : Manual / Auto
Logging Interval : 1 minute…2 hours
Alarm Range : High and low alarms / 5 alarm ranges
Battery : 3.6V lithium battery
Battery Life : 30 days (logging interval >= 5 mins)
Shelf Life : 24 months
Display :
- LCD
- OK(√), Alarm(x), alarm zone
- Running status
- Temperature statistics (max, min, avg)
- Remaining battery level
- Mark history
Connection : USB 2.0 Connector
Automatic Data File : Encrypted PDF report with embedded raw data
Software : TempCentre2 (21 CFR 11 compliant)
Calibration : Factory NIST traceable 3-point calibration
Certifications : CE, RTCA-DO160G, IATA PI970 II
Protection Class : IP65
Dimensions : 100mm L x 40mm W x 12mm H
Weight Approx. : 68g
Packaging/ Material : Case / Polycarbonate
APPLICATIONS
- Sea / Air Freight monitoring
- Distribution / Last-mile delivery monitoring

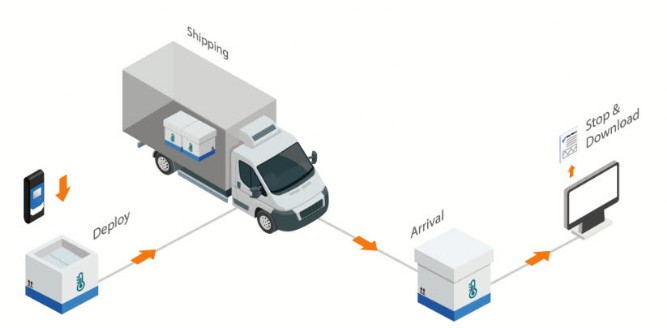

- Dry-ice shipper delivery monitoring
- Storage / Freezer monitoring

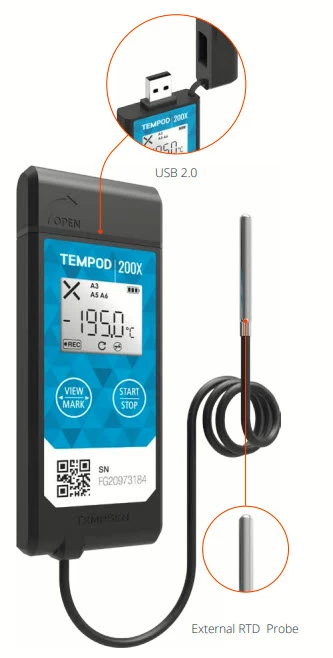

USB PDF Ultra Low Temperature Data Logger with External RTD Probe
2 Models : type multi use

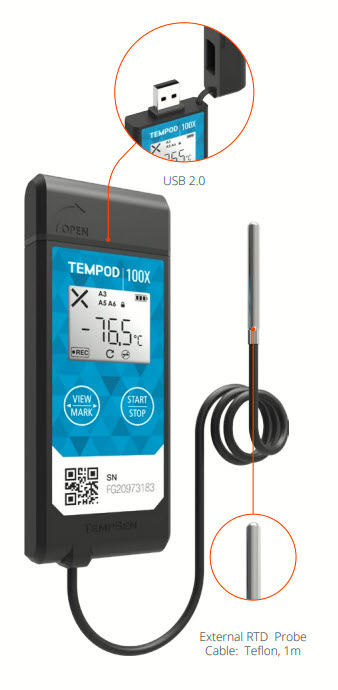

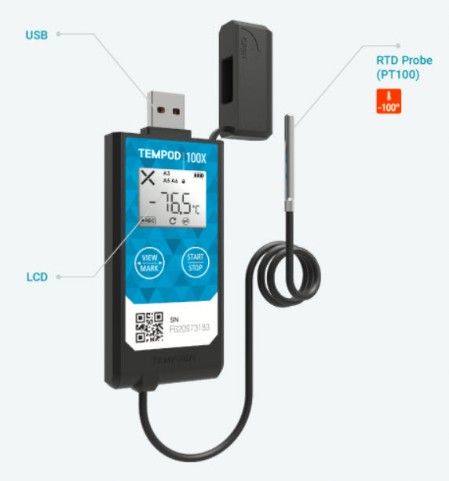

- TEMPOD 100X -100°C...70°C
Accuracy ±0.5°C

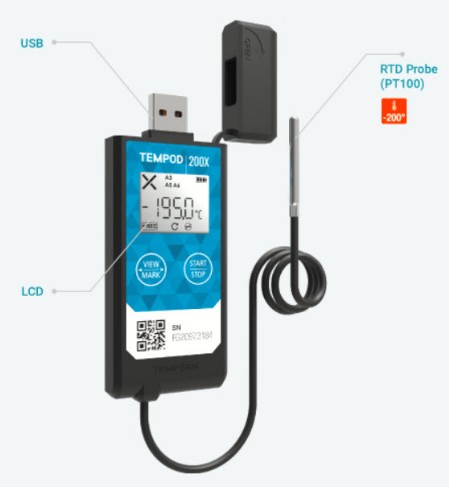

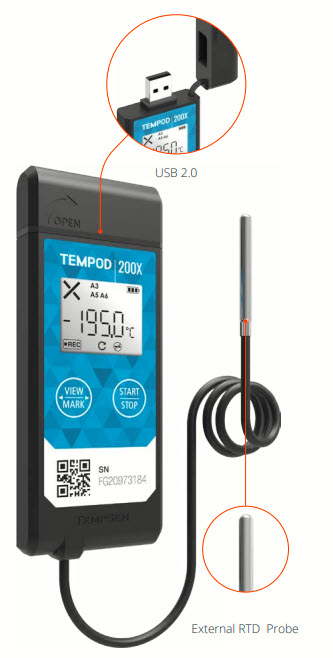

- TEMPOD 200X -200°C...70°C
±1.5°C (other range)

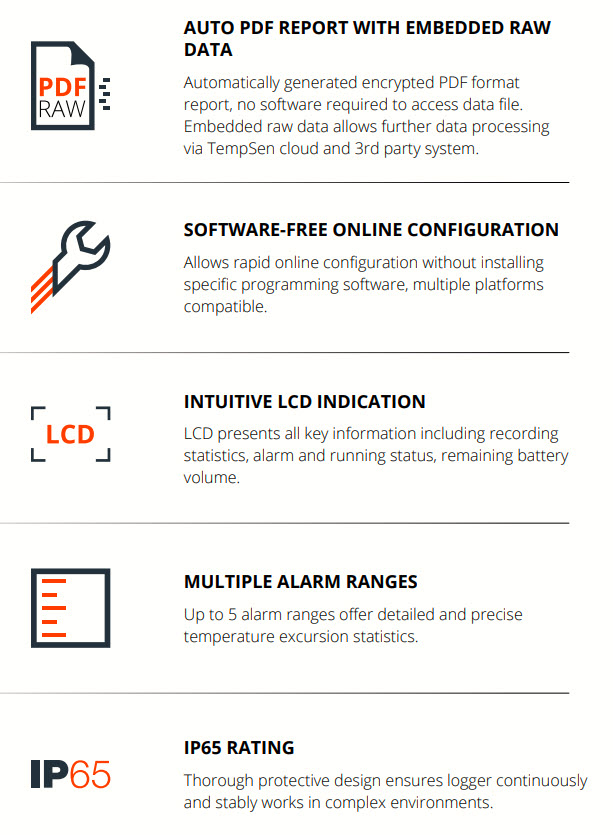

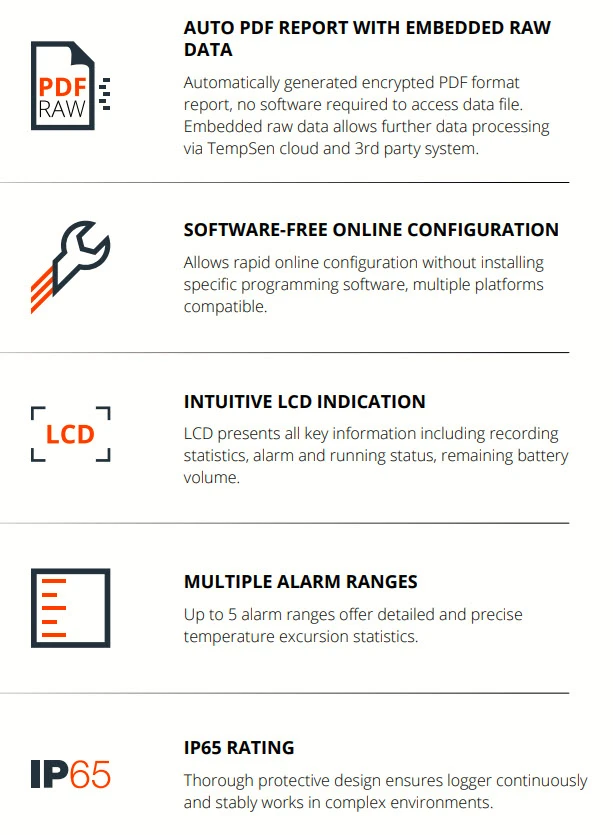

FEATURES :
Software-free Configuration
Rapid programming data logger using configuration file created online, no need to install software or driver for device configuration, multiple platforms compatible
Multiple Alarm Zones
Up to 5 alarm ranges offer detailed and precise temperature excursion statistics
Password Protection
Device password protection prevents unauthorized manipulation to data logger
Air Freight Compliance
Complies with IATA PI970 II and RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air shipment in active status.
