TC - 8 channels

Temperature > T° Monitoring
Back to the TEMPERATURE MENU

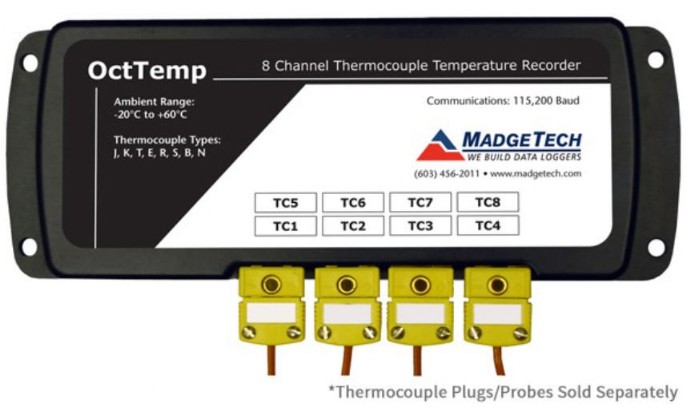

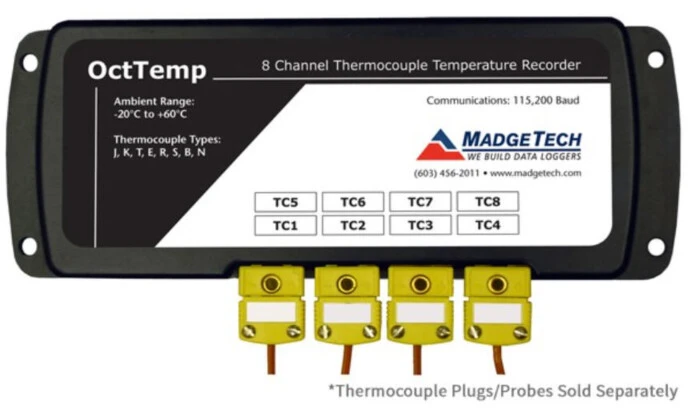

OctTemp Data Logger
8-channel, thermocouple based temperature data logger with mini plug connectors and wall mounted power adapter.
Includes NIST traceable calibration certificate.

The OctTemp is an eight channel thermocouple data logger with a reading rate of up to 4 Hz. It can measure and record data for up to 500,000 readings per channel. To maximize memory capacity, users can disable unused channels to add additional memory onto enabled channels. For easy identification, each channel can be named with up to a ten digit title. In addition, the OctTemp features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.

The OctTemp is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. The OctTemp comes with a wall mounted 120 VAC/9 VDC power adapter.


Note: the OctTemp-EU model includes a wall mounted 230 VAC@50 Hz/9 VDC power adapter.

TEMPERATURE

Internal Channel Temperature Sensor : Semiconductor
Internal Channel Temperature Resolution : 0.05 °C
Internal Channel Temperature Calibrated Accuracy : ±0.5 °C

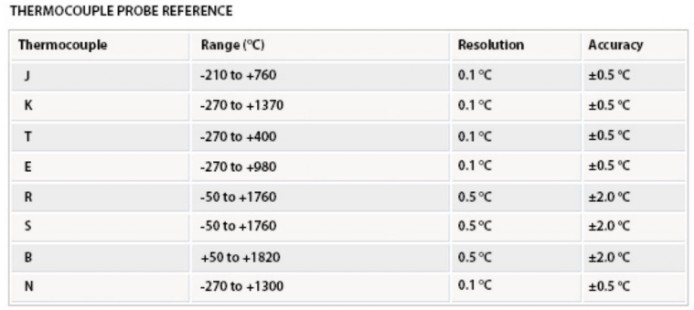

Remote Channel Temperature Sensor : Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range : Thermocouple Dependent
Remote Channel Temperature Resolution : Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy
Thermocouple Dependent



GENERAL
Memory  : 500,000 readings per channel
Reading Rate : 4 readings every second up to 1 reading every 24 hours
Baud Rate : 115,200
Cold Junction Compensation : Automatic
Channels : 8 Internal & 8 Remote
Battery Life : 18 months typical
Material : Anodized aluminum
Dimensions : 183 mm x 68 mm x 32 mm
Operating Environment  :  -20 °C to +60 °C, 0 %RH to 95 %RH, non-condensing
Required Interface Package : IFC200
Approvals : CE
IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.

U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH

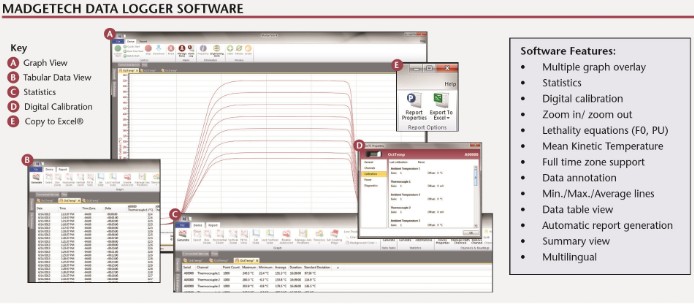

MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

WaterboxOB3K
Customized weatherproof enclosure for use with the QuadTemp, OctTemp, QuadTemp2000 and OctTemp2000 Data Loggers.

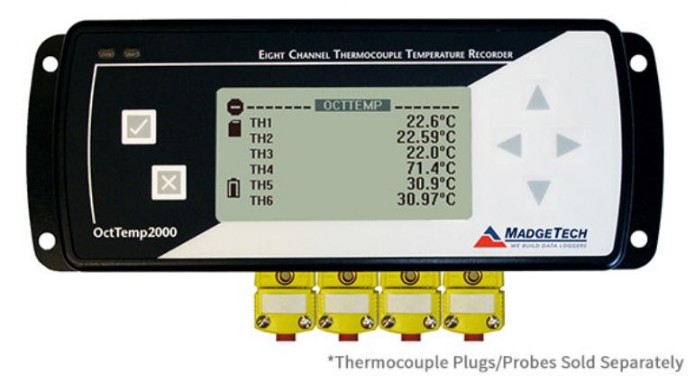

OctTemp2000
The OctTemp2000 is an eight channel thermocouple temperature data logger with an LCD. The device features onscreen minimum, maximum and average statistics, as well as a user configurable graphics screen that allows for any combination of channels to be displayed. The device accepts J, K, T, E, R, S, B and N type thermocouples.

The OctTemp2000 is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged and displayed onscreen for real time monitoring. It can then be downloaded to a PC for further analysis. An advanced memory capacity allows this device to measure and record data up to 500,000 readings per channel. The OctTemp2000 comes with a wall mounted universal power adapter.


Thermocouple Plugs/Probes Sold Separately.

TEMPERATURE

Internal Channel Temperature Sensor : Semiconductor
Internal Channel Temperature Resolution : 0.05 °C
Internal Channel Temperature Calibrated Accuracy : ±0.5 °C
Remote Channel Temperature Sensor : Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range : Thermocouple Dependent
Remote Channel Temperature Resolution : Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy : Thermocouple Dependent

GENERAL

Memory : 500,000 readings per channel
Reading Rate :4 readings every second up to 1 reading every 24 hours
Baud Rate : 115,200
Cold Junction Compensation : Automatic
Channels  : 8 Internal & 8 Remote
Battery Life : 18 month battery life with display off. 3 months typical with continuous display use.
Material : Anodized aluminum
Dimensions : 183 mm x 68 mm x 36 mm
Operating Environment :-20 °C to +60 °C, 0 %RH to 95 %RH, non-condensing
Required Interface Package : IFC200
Approvals : CE

IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.

U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH

MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

WaterboxOB3K
Customized weatherproof enclosure for use with the QuadTemp, OctTemp, QuadTemp2000 and OctTemp2000 Data Loggers.

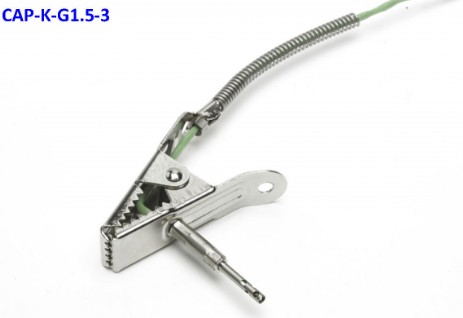

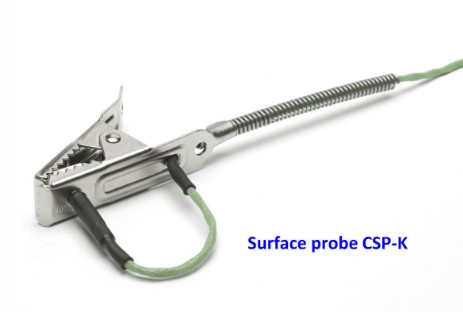

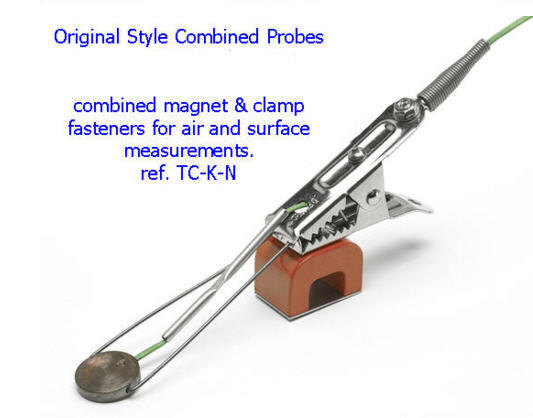

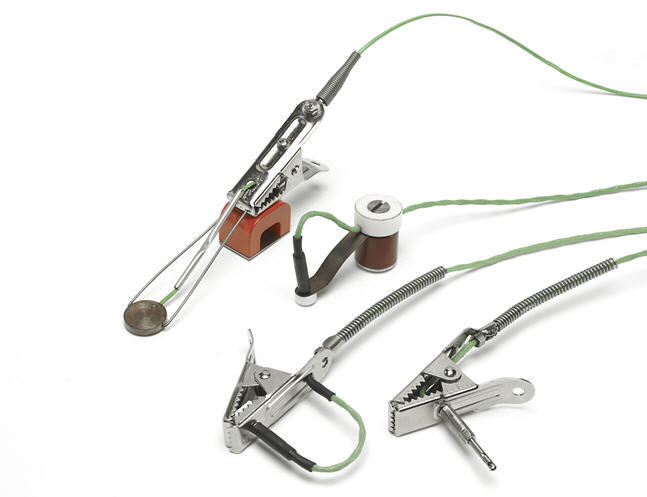

Probes for use with the OctTemp Oven Logger

A wide range of K-Type temperature probes is available with a choice of 1.5m, 3m or 6m cable lengths.
The
OctTemp can be used with a combination of up to 8 probes simultaneously.

  •   Perfect contact between probe and surface
  •   Low mass and optimised shape to avoid influence on temperature of the sample
  •   Extremely strong, highly flexible and easy to clean Teflon® coated cables

All probes have a continuous maximum temperature of 250ºC.
