ADP 3 Models Capacity

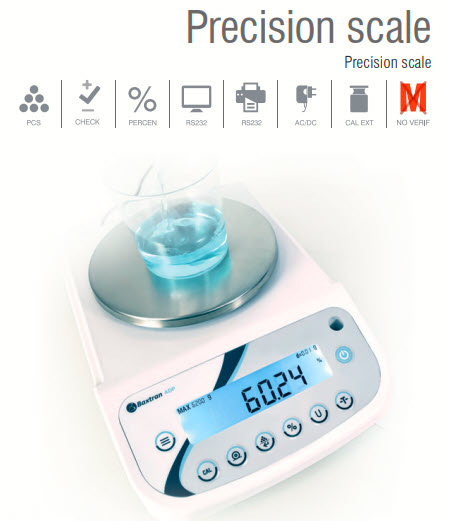

ADP Precision Balance

FEATURES:

• LCD backlight display, digits of 15 mm.
• External calibration.
• Stainless steel pan.
• Weighing pan dimensions: Ø160 mm
• Scale with acoustic notification (buzzer).
• Operating temperature: +10ºC +30ºC.
• Power supply: AC/DC 100-240VAC 50/60Hz.
• Multiple units of measure: gram, ounce, carat, pennyweight.
• RS232 output.
• Weighing system with load cell.

FUNCTIONS:

• Zero
• Tare
• Piece counting
• Determination of percentage
• Checkweigher

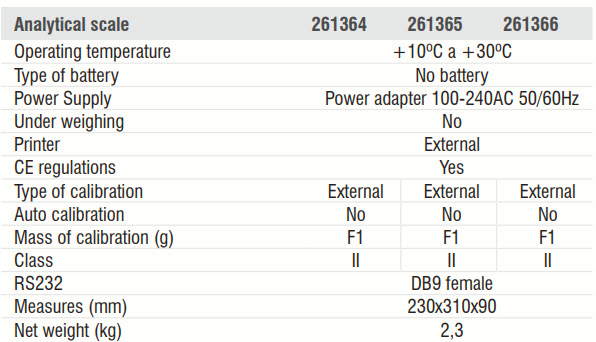

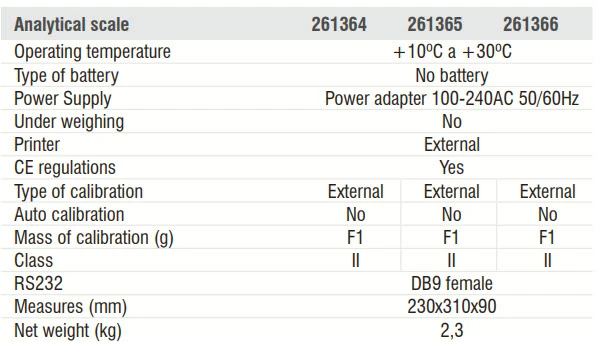

Code # Capacity Readout Pan dimensions Packing dimensions Packing weight

(g) (g) (mm) (mm) (kg)

261364 2200 0,01 Ø160 430x320x180 4

261365 4200 0,01 Ø160 430x320x180 4

261366 6200 0,01 Ø160 430x320x180 4

KERN PBS · PBJ Technical data

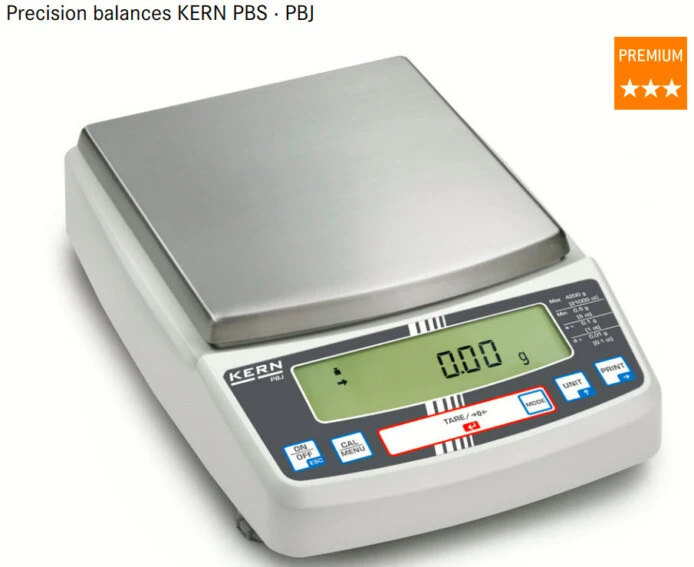

Precision balances KERN PBS · PBJ

Multifunctional laboratory balance with single-cell weighing system and EC type approval [M]

Features

· KERN PBJ: Internal adjustment in the case of a change in temperature and time-controlled at defined intervals, guarantees high degree of accuracy and makes the balance independent of its location of use

· KERN PBS: Adjusting program CAL for quick setting of the balance accuracy using an external test weight

· Metal housing: robust and sturdy

· Dosage aid

· Weighing with tolerance range (checkweighing): a visual signal helps with portioning, dispensing or grading

· Totalising of weights · Identification number: 4 digits, printed on calibration protocol freely programmable

· Automatic data output to the PC/printer each time the balance is steady

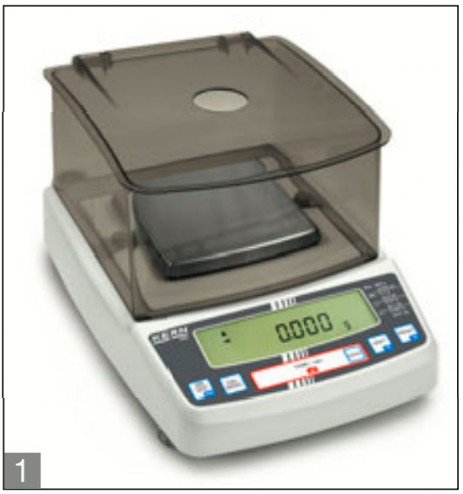

· 1 Draught shield standard for models with [d] = 0,001 g, weighing space W×D×H 180×193×87 mm

· Protective working cover included with delivery

Technical data

· Large backlit LCD display, digit height 14 mm

· Dimensions weighing surface, Stainless Steel

A W×D 108×105 mm

B W×D 170×180 mm

· Overall dimensions W×D×H 209×322×78 mm (without draught shield)

· Net weight approx. 3,2 kg

· Permissible ambient temperature 10 °C/30 °C

Technical data

Large backlit LCD display, digit height 14 mm
Dimensions weighing surface, Stainless Steel A W×D 108×105 mm B W×D 170×180 mm, see larger picture
Overall dimensions W×D×H 209×322×78 mm (without draught shield)
Net weight approx. 3,2 kg · Permissible ambient temperature 10 °C/30 °C

Accessories

Protective working cover, scope of delivery: 5 items, for models with weighing plate size

A KERN PBS-A01S05
B KERN PBS-A02S05

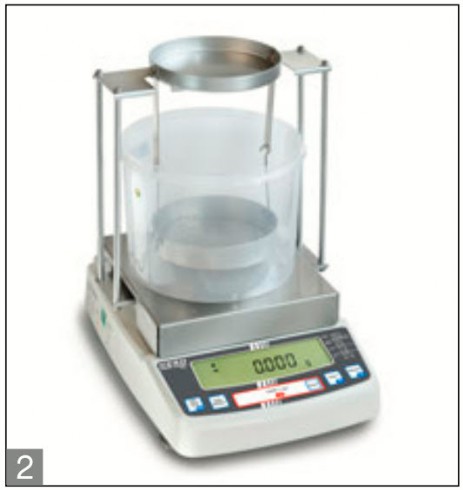

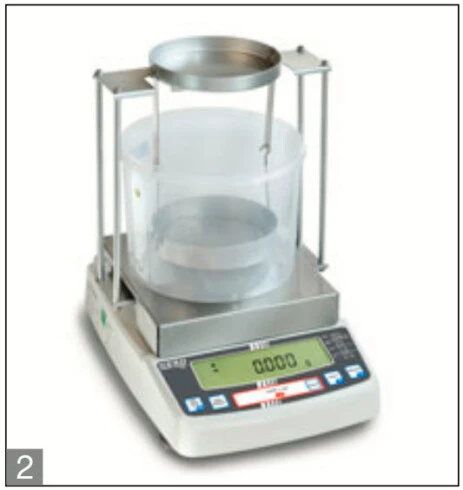

2 Set for density determination of liquids and solids with density ≥ 1, for models with weighing plate size

A KERN PBS-A04
B KERN PBS-A03

RS-232/Ethernet adapter for connection to an IP-based Ethernet network, KERN YKI-01
Further details, plenty of further accessories and suitable printers

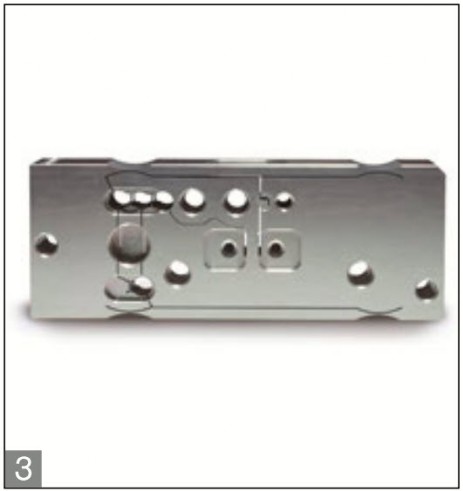

3 Single-cell advanced technology:

Fully automatic manufactured weighing cell from one piece of material
Stable temperature behaviour
Short stabilisation time: steady weight values within approx. 3 s under laboratory conditions
Shock proof construction
High corner load performance
