VISUAL COLOR ASSESSMENT WITH MULTIPLE ILLUMINANTS
Color Viewing Light
To predict and avoid potential color matching issues in visual assessment of colored surfaces and materials, including paints, fabrics, ceramics, metals, plastics and paper, the use of color matching devices equipped with multiple illuminants is indispensable. Such devices are often employed in application areas such as:
- Research and development
- Product management
- Procurement & Supplier specifications
- Incoming goods inspection
- Manufacturing process control
- Quality assurance
- Technical, Sales and Customer support
Applications
The range of industries requiring precise color assessments for such applications is quite broad and often subject to international standards. Exemplary industries include:- Automotive & Aerospace
- Biological & Pharmaceuticals
- Ceramics
- Chemicals
- Food and Agriculture
- Furniture
- Paints, coatings, finishes
- Paper and packaging
- Plastics
- Textiles & Fabrics
Multiple illuminants for metamerism assessment
To visualize the effects of metamerism, two products or color samples should be viewed and matched under different illuminants (at least three), ideally with identical viewing geometries and variables. The CIE illuminants D65 (average daylight from the northern sky), A (incandescent lamp), TL84/F11 (store lighting) and D50 (noon daylight) are very often used for this purpose.
Metamerism is efficiently simulated with a viewing booth or luminaire equipped with multiple, switchable light sources. Within a standardized viewing area, samples should be positioned closely alongside each other to support detection of slight color differences. Color changes due to optical brightening agents, security films and fluorescent products are more readily detected when the light source incorporates a switchable, additional UV-A source with a 365 nm peak wavelength.
LED solutions for simulating multiple illuminants
Increasingly, LED light sources are being used in general lighting, either as retrofits or in place of conventional light sources such as fluorescent, halogen or incandescent lamps. The challenge this presents is the spectral distribution of LEDs differs substantially from all other light sources and, as a result, the visual perception of colors viewed by them changes.
The accurate simulation of LED viewing conditions requires LEDs, and JUST offers multiple products incorporating LED technologies that simulates both other LEDs and the standard illuminants (e.g. A, D50, D65, etc.).
Standard illuminants
Illum. Color T° Definition Application Area of application
(CCT)
A 2856 kelvin Incandescent lighting Home Europe, USA
D50 5000 kelvin CIE defined daylight Color matching graphic arts Europe, USA
D65 6500 kelvin CIE defined Color matching Europe, USA
northern daylight manufacturing industry
D75 7500 kelvin Daylight Color matching manufacturing USA
industry in the US (not used anymore)
F10 5000 kelvin Fluorescent lamp Offices, Showrooms, Exhibitions USA
similar to daylight
F11 4100 kelvin Fluorescent lamp Offices, Showrooms, Exhibitions Europe
(formerly TL84 and U41)
F12 3000 kelvin Fluorescent lamp Home USA
(formerly TL83 and U30)
F2 4150 kelvin Fluorescent lamp Offices, Showrooms, Exhibitions USA
(formerly CWF)
Horizon 2300 kelvin Fluorescent lamp Simulation of dawn USA
(formerly WWF)
UV-A radiator Fluorescent lamp Detection of optical brighteners Europe, USA
(peak wavelength 365 nm)

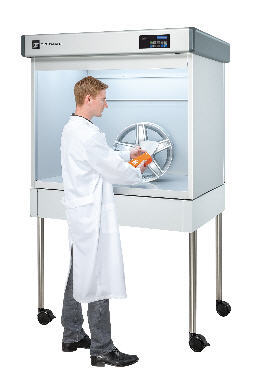

The viewing booths “BASIC” provide a reliable color assessment between three, four or five illuminants. The illuminants are switched on/off by a switch and the lamp‘s operating life is monitored by a digital hour meter. The compact design of the BASIC Color Viewing Light makes it suitable for small to medium-sized samples, irrespective of the material or intended purpose.
- Cost-effective entry-level class
- A choice of 3, 4 or 5 illuminants
- Digital hour meter for D65
- Compact design

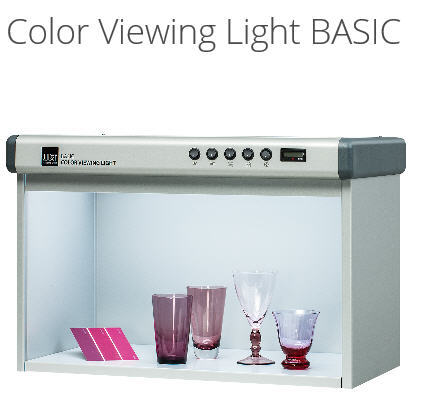

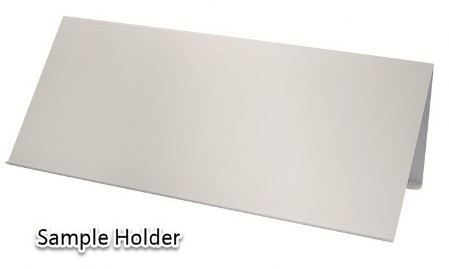

Color Viewing Light 3 BASIC
Illumination area*: 64 x 33 x 36 cm
Outside dimensions* : 70 x 47 x 43
Illuminants : D65 - A - TL84
* (W x H x D
Color Viewing Light 4 BASIC
Illumination area* : 64 x 33 x 36 cm
Outside dimensions*: 70 x 47 x 43
Illuminants : D65 - A - TL84 +UV-A
*(W x H x D)
Color Viewing Light 5 BASIC
Illumination area* : 64 x 33 x 36 cm
Outside dimensions*: 70 x 47 x 43
Illuminants : D65 - A - TL84 +UV-A + D50
*(W x H x D)

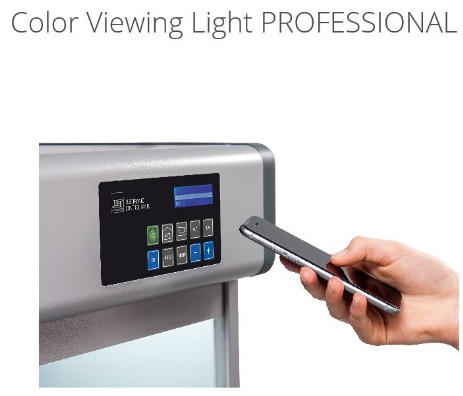

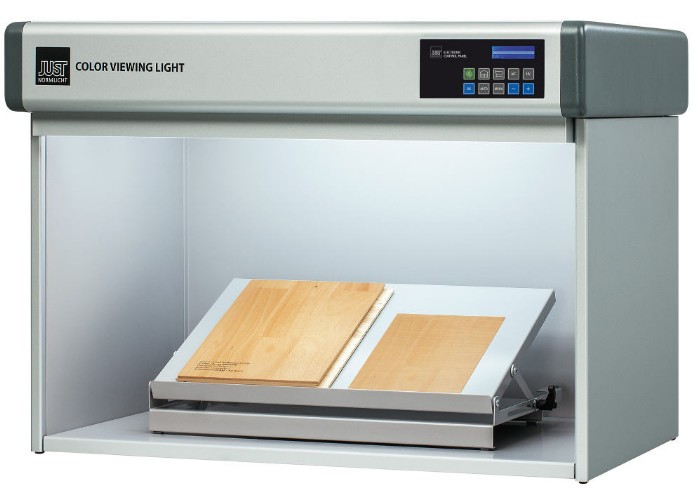

Color Viewing Light PROFESSIONAL
The professional version offers many additional features. Illuminants can be dimmed and detailed reports on the matching process can be compiled. This means that all viewing booth parameters such as operating hours, selected illuminant and dimming level can
be recorded in a log report, ensuring a possible repeat of the matching process at a later time. The viewing booth can also be operated remotely via a web-based remote control application and LAN connection by smartphones and Tablet-PCs.
- Dimmable light of all illuminants (except A)

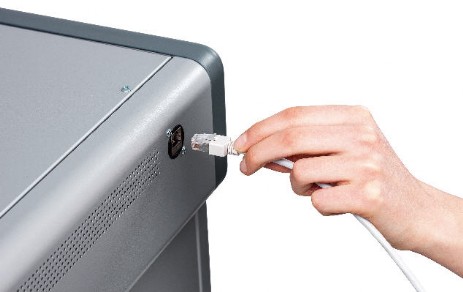

- LAN connection
- Web-based remote control application for
- smartphones and Tablet-PCs
- Reporting function
- Storable brightness value
- 5 illuminants*: D65, D50, TL84, A, UV

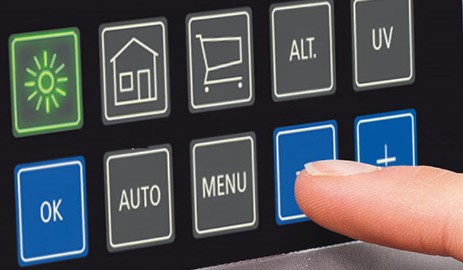

- User-friendly Electronic Control Panel
- Digital hour meter for all illuminants
- Mixed light function
- Storage for several light sequences
The remote-app can be used to easily select the illuminant via a laptop or smartphone and specify the automatic matching processes. In addition, the viewing booth can be turned on remotely with the browser so that it is immediately available after the warm-up period.

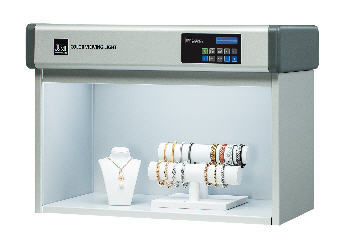

Color Viewing Light S PROFESSIONAL
Illumination area* : 64 x 33 x 36 cm
Illuminants : D50 - D65 - A - TL84 - UV-A
*(W x H x D)
Illumination area*: 75 x 41 x 51 cm
Illuminants : D50 - D65 - A - TL84 - UV-A
*(W x H x D)

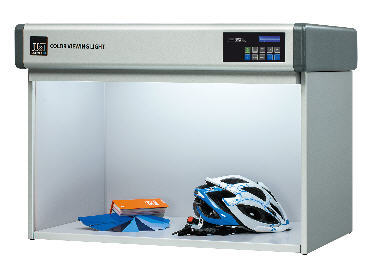

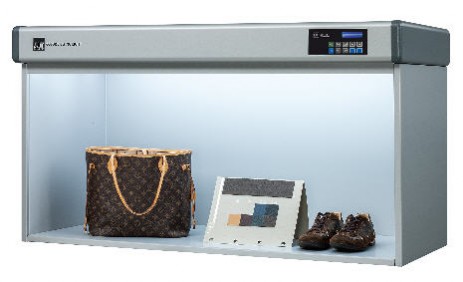

Color Viewing Light L PROFESSIONAL
Illumination area*: 125 x 53 x 54 cm
Illuminants : D50 - D65 - A - TL84 - UV-A
*(W x H x D)

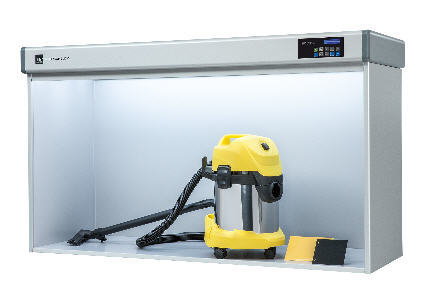

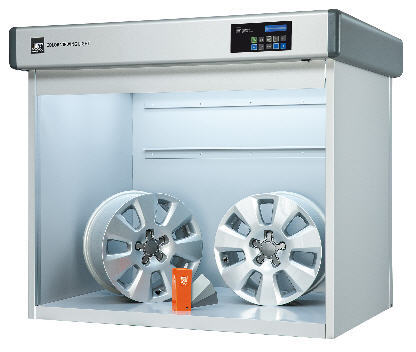

Color Viewing Light XL PROFESSIONAL
Illumination area*: 155 x 76 x 54 cm
Illuminants : D50 - D65 - A - TL84 - UV-A
*(W x H x D)
Illumination area*: 114 x 80 x 83 cm
Illuminants : D50 - D65 - A - TL84 - UV-A
*(W x H x D)

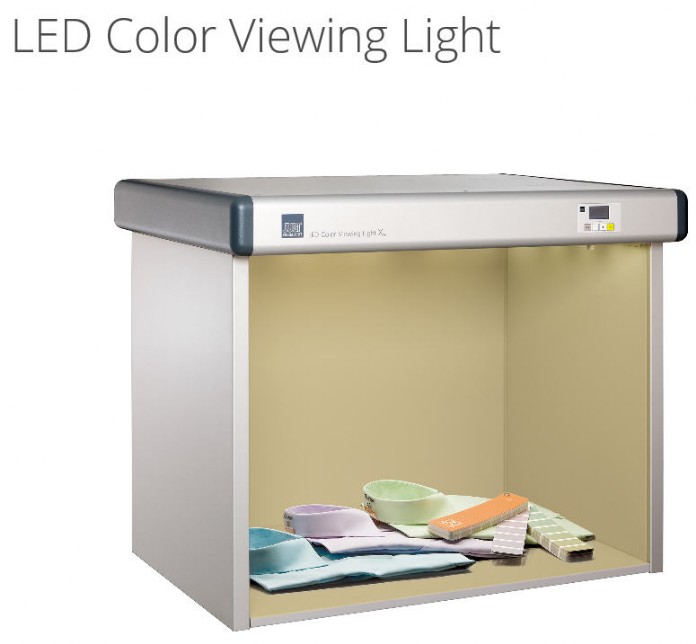

LED Color Viewing Light
Precise evaluation of colors, surfaces and materials.
LED Technology – Innovation forVisual Color Evaluation
Reproducing an exact color match between a proof or original samples of textiles, plastic parts, lacquered parts, automotive interiors or a print is essential to fulfilling the stricter quality control requirements demanded by today’s clientele. Additional requirements include reducing costs while maintaining consistent color quality throughout the reproduction processes.
While controlling quality with measuring devices is an important step to the reproduction process, it cannot be the only step toward achieving a visual color match!
The biggest influence on matching colors visually is illumination. Incorrect illumination leads to inferior or incorrect results and costly customer complaints throughout the production process.
The Solution: JUST LED Technology JUST Normlicht has now successfully developed a multispectral LED illuminant (Pat. No. US 8,592,748 B2) that is able to reproduce many different light spectrums with great accuracy.
This multispectral LED illuminant can simulate many standard illuminants including D50, D65, D75, or A, C with adJUST LEDcontrol professional and virtually any other light source with an unmatched spectral accuracy.
- Perfect for reliable colour decisions in the textile, plastics, automobile and furniture industries
- Multispectral LED light source for simulation of an almost endless number of illuminants, Pat. No. US 8,592,748 B2
- Optimum realization of almost any desired standard illuminant, such as D50, D65, D75 or A with adJUST LEDcontrol professional
- 5 pre-programmed light sources with manual switching: D65, D50, TL84(LED), A, UV
- UV components can be added to detect fluorescence
- Stable light conditions thanks to a unique calibration method
- Substantially longer service life, compared to conventional fluorescent lamps
- Unequivocal detection of metamerism through simulation of widely differing light conditions
- The HYBRID version has additional TL84 fluorescent lamps for improved detection of metamerism
- Interior designed in neutral, matt gray (Munsell N7)
- NOTE: Preset illuminants can be specified on request. Our adJUST LEDcontrol professional software is necessary for free selection from the spectrum.
Continuous Quality
JUST Normlicht guarantees consistent spectral properties of each multispectral LED illuminant for 25,000 hours.
The unique JUST LED calibration method (Pat. Pend.) enables the ability to replace individual LED illuminants throughout the lifespan of the unit creating the reliability and consistency required for sophisticated industrial applications.
Long term economic benefits
The lifetime of the JUST LED Illuminants is 10 x longer than the traditional fluorescent tube technology currently used in the visual appraisal of color. Furthermore, the spectral consistency of the JUST LED Illuminant over this lifespan reduces costs associated with the degradation of the fluorescent tubes. Cost savings are realized by eliminating the purchase of replacement tubes, the labor required to replace these tubes and the time spent continually adjusting your color based on the slow, steady color shift of all fluorescent tubes.
Color space bigger than sRGB
With the development of this unique multispectral JUST LED Illuminant the available color space of replicable colors of light is larger that the sRGB color space of many high-end LCD monitors. Furthermore, the multispectral JUST LED Illuminant provides the ability for the light spectra to be created in a high quality fashion that is suitable for any application including color critical manufacturing processes such as paints, plastics, coatings and etcetera.
JUST LED colorControl are offered in 3 configurations :
1 st Basic : 3 pre-programmed light sources with manual switching and dimming with the built-in control panel.
2 nd Advanced : Includes »adJUST LEDcontrol advanced« software for creating and selecting additional light sources in the available
color space (newly created light sources cannot be stored).
3rd Professional : Includes »adJUST LEDcontrol professional« software for unlimited creation of new light sources. New light sources can be saved to computer and up to 10 illuminants can be programmed into the viewing booth for manual selection with the built in control panel.

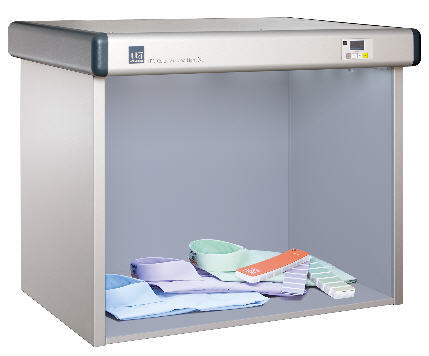

DLS Color Proof Light v2 XL HYBRID
Illumination area (W x D): 100 x 70 cm
(W x D)
The HYBRID version has additional TL84 fluorescent lamps for improved detection of metamerism

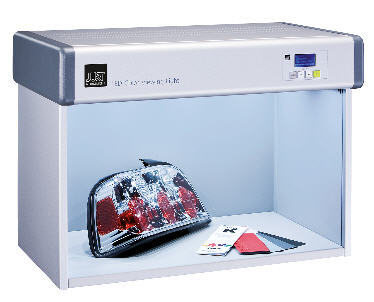

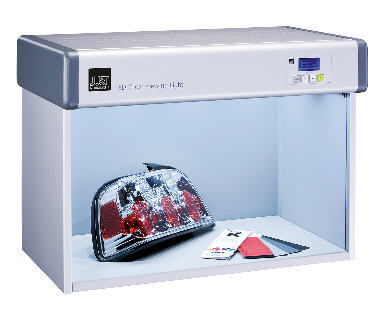

DLS Color Viewing Light M v2 M
Illumination area*: 64 x 38 x 36 cm
* (W x H x D)
DLS Color Viewing Light v2 M HYBRID
Illumination area (W x D): 64 x 36 cm
The HYBRID version has additional TL84 fluorescent lamps for improved detection of metamerism
DLS Color Viewing Light v2 XL HYBRID
Illumination area (W x D): 95 x 73 cm
The HYBRID version has additional TL84 fluorescent lamps for improved detection of metamerism
DLS Color Viewing Light v8
Discover the latest kind of color proofing with our DLS Color Viewing Light v8.

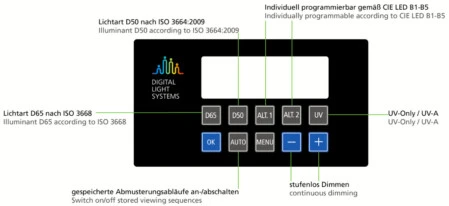

The optimized control system enables much easier LED-based assessment.
In addition to the illuminants D50, D65 and UV-A, two specific illuminants can be added to the DLS Color Viewing Light v8, according to customer's needs.
Furthermore, the UV content can be turned ON/OFF and stored proofing settings can be easely switched on or off at the touch of a button.

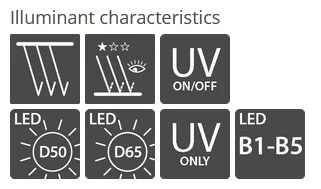

High performance LED-based viewing light with:
- unmatched light distribution
- high uniformity and optimal spectral characteristics
- shadow- and glare-free CAD-based prismatic diffuser
- expected life of 50,000 hours
- maintenance free; No tube replacement
- 5 illuminants according to :

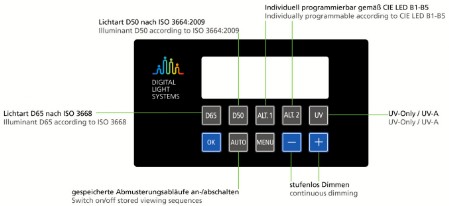

D50 ISO 23603, CIE S 012, ISO 3664
D65 ISO 23603, CIE S 012, ISO 3668
ALT1 optional LED source, select CIE 15:2018 B1 (2750K), B2 (3000K) or B3 (4000K)
ALT2 optional LED source, select CIE 15:2018 B1 (2750K), B2 (3000K) or B3 (4000K)
UV-A
U.S. Pat. No. US 8,592,748,B2
- Exact color coordinates D50/D65
- Low metamerism index in the visible range: ≤ 0.8 (MIvis)
- Low metamerism index in the UV range: ≤ 0.6 (MIuv)
- Mixed-light function
- D50/D65 Continuous dimming
- D50/D65 switch off/on UV-content
- USB interface
- Memory function for presets
- Programmable light sequences

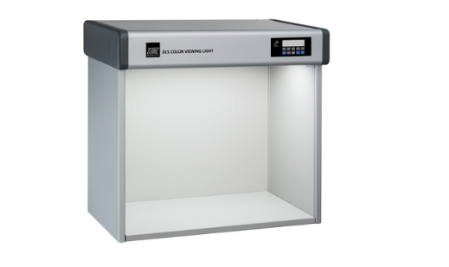

DLS Color Viewing Light v8 S
Illumination area (W x D): 64 x 36 cm

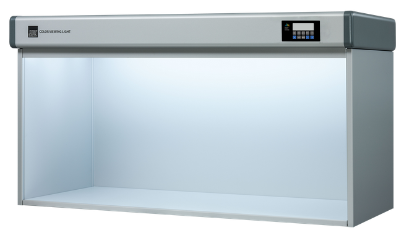

DLS Color Viewing Light v8 L
Illumination area (W x D): 125 x 54 cm

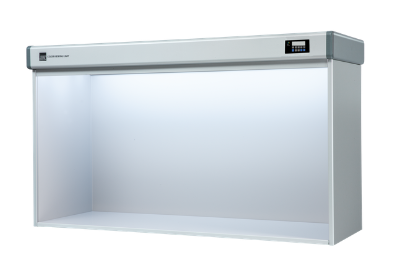

DLS Color Viewing Light v8 XL
Illumination area (W x D): 155 x 54 cm

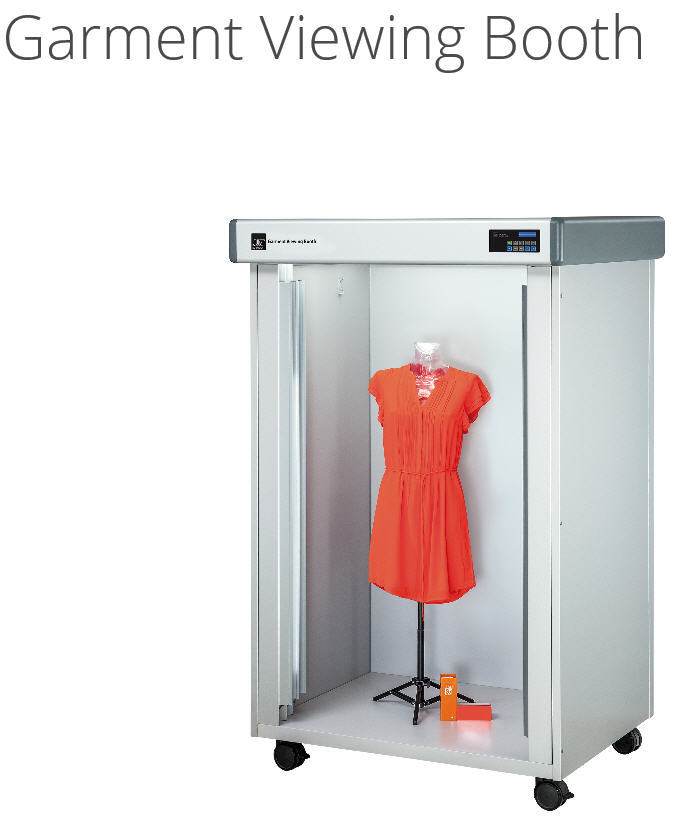

Garment Viewing Booth
Illumination area (W x H x D): 115 x 165 x 60 cm
Illuminants : D50 - D65 - A - TL84 - UV-A

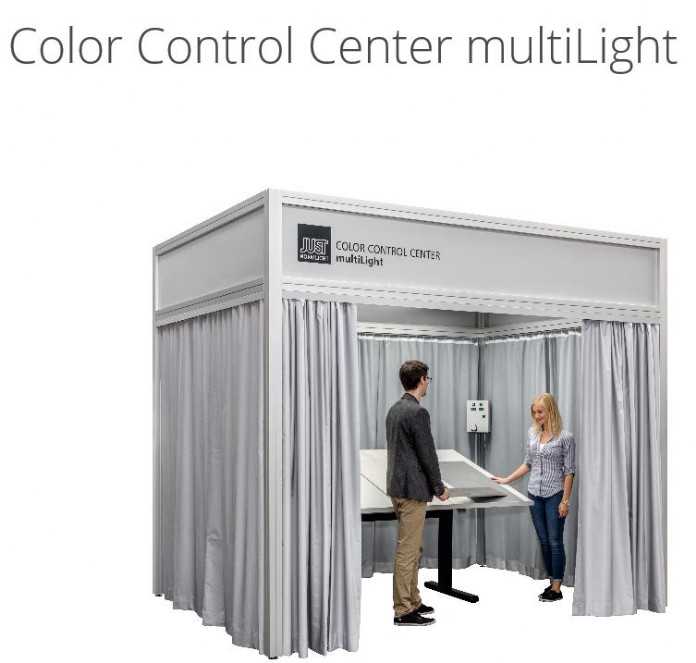

Color Control Center multiLight
The new Color Control Center multiLight with four light modules for visual color assessment and detection of metameric effects.
The versatile multiLight color viewing light is specifically designed for color matching of large items and surface areas. It is a complete system that creates a stanenvironment without the need to construct a room.dards-conformant viewing
Up to three illuminants can be configured from a choice of five (D65, D50, TL84, A, UV). With support for a virtually unlimited number of lights in series, the system can be scale to illuminate entire rooms under defined lighting conditions.
Dimension :
- Color Control Center multiLight
Illumination area (W x H x D): 325 x 280 x 235 cm
Application Areas
JUST Normlicht multiLight color viewing lights are used for the visual assessment of colors and surfaces in numerous industrial sectors:
- Automotive, Aerospace
- Furniture
- Textiles, Clothing
- Paints, Coatings, and Plastics
- Ceramics
- Cosmetics, Fashion, Retail
- Printing and Reprographics
- All industries where the critical assessment of colors and surfaces is essential
multiLight PROFESSIONAL connect
Any number of color viewing lights are operated either directly via the external Electronic Control Panel or remotely via
WiFi through the supplied remote app using a PC, tablet, or smartphone.

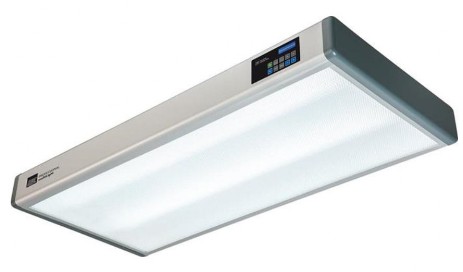

MULTILIGHT:
- Lamp housing made of aluminum profile, silver-anodized, 124 x 80 x 16 cm
- Symmetrical light distribution for reflection-free color matching
- Maximum output for high illuminance
- Fitted with 2–3 illuminants for detection of metamerism:
– D65 daylight 6500 kelvin, illuminance 2000/3500 lux– D50 daylight 5000 kelvin, illuminance 2000/3500 lux– TL84 / F11 store light 4000 kelvin, illuminance 2000/3500 lux– A incandescent/halogen light 2856 kelvin, illuminance 2800 lux (with cooling fan)– Illuminance at a height of 1m above ground level
- Compliant with ISO 3668; DIN6173-2, and VDA 280 parts 8B, 8C
- JUST daylight 5000 proGraphic and JUST daylight 6500 proIndustry lamps ensure a precise simulation of daylight illuminants of the quality grade BC (min.) according to CIE 51.2
– measurement log and certificate are included mittant
- No reflection of lamps on matching samples
- Homogeneous illumination by means of prismatic lenses, UV-transmittant
- Digital hour meter for all illuminants, with notification if a lamp needs to be replaced
Power consumption:
4 kW from multiLight Center when fitted with all 4 color viewing lights
Power supply:
16 A, 3~, either via red CEE plug or direct installation
CONTROL OPTIONS:
- Modern SPS control system in external housing
- Control an unlimited number of lights
- Operation via Electronic Control Panel
- Via WiFi with the system’s remote control using a PC, tablet, or smartphone (Remote application)
- 10 freely programmable matching sequences
- Illuminants D65, D50, and TL84 are dimmable
- Options for the automatic creation of matching logs
- Mixed light conditions can be unlocked if required
Alternatively:
Manual control unit with socket available
STANDARDIZED VIEWING BOOTH:
- Viewing booth dimensions 325 x 235 x 280 cm (W x D x H) with top panel for complete ambient light exclusion
- Framework of easy-to-assemble, solid aluminum profiles (80 mm square profiles)
- Available surrounds include lightweight removable sliding doors, solid walls, or opaque curtains with a neutral gray finish.
- Can be fitted with up to 4 multiLight lamps
Accessories:
- Light table 200 x 90 cm, doublepedestal table with neutral gray worktop
– Optional equipment: Motorized height adjustment from 68 to 118 cm (triple memory)– Continuous gas-spring height adjustment from 83 to 114 cm– Continuous gas-spring height and slant adjustment (up to 85°) from 83 to 114 cm
- Further table sizes available upon request

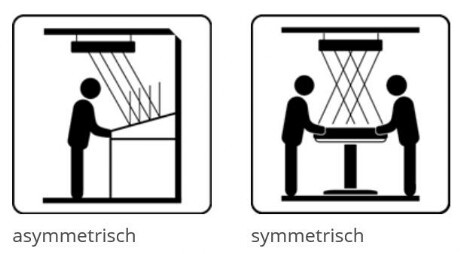

Symmetrical or asymmetrical light design?

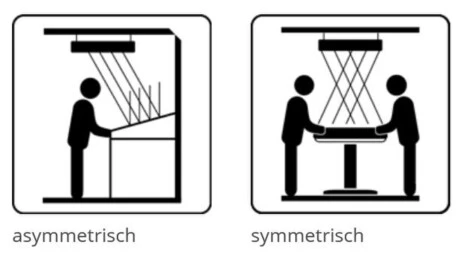

JUST color proof lights fundamentally offer a choice between a symmetrical or an asymmetrical light design. In a modern, symmetrical light, the rays of light are directed onto the viewing surface in diagonal, cross-over fashion ("cross-symmetrical").
As a result, the observer's position is of no importance. He sees the same thing from all sides. In contrast to conventional, symmetrical systems, which guide the light directly onto the viewing surface in all directions, glare and reflections are almost entirely avoided. This solution is generally used in conference rooms.
The latest generation of asymmetrical systems offers even better characteristics as regards glare and reflections. So, if possible, preference should be given to a color proof light with asymmetrical light design, since the rays of light are then not deflected towards the observer. In this case, viewing is performed from one side. Consequently, all viewing stations from JUST Normlicht are equipped with an asymmetrical light, since viewing is only performed from one side on these devices.
How do you identify the light design of a color proof light?
Products with the letters "AS" are asymmetrical lights (for viewing from one side), while those with the letters "CS" are symmetrical lights (for viewing from several sides).
