Process & Quality Control

For Industry

Scales
SS FEATURES

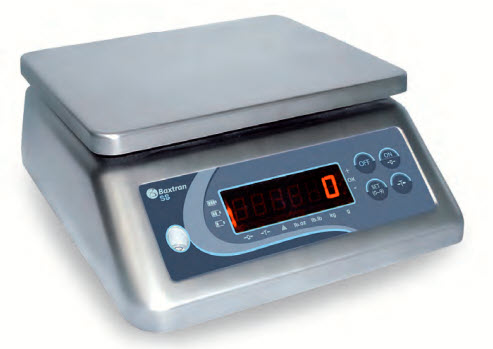

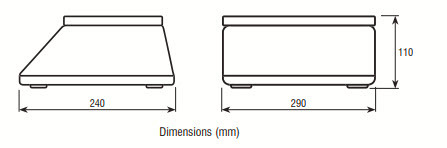

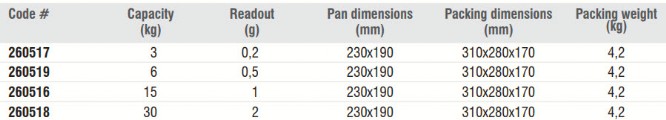

SS
Checkweighing scale in stainless steel housing


FUNCTIONS:

• Zero
• Tare
• Gross/Net
• Counting
• Checkweighing function



FEATURES:
• Red LED display with 6 digits of 18 mm.
• 12 function indication LEDs.
• 4 keys.
• Stainless steel housing.
• Stainless steel pan.
• Pan size: 230x190 mm.
• Protection IP67.
• Double display, salesman/purchaser.
• Units: kg, g, lb, oz and pcs.
• Energy saving function.
• Overload protection.
• Bubble level.
• 4 Adjustable feet in height.
• Temperature operating range: -5ºC +35ºC.
• Power supply with adaptor AC/DC 230-24Vac 50Hz.
• Internal rechargeable battery.
• Battery indication in display.
• Auto switch off programmable.
Overview Accessories Application examples:

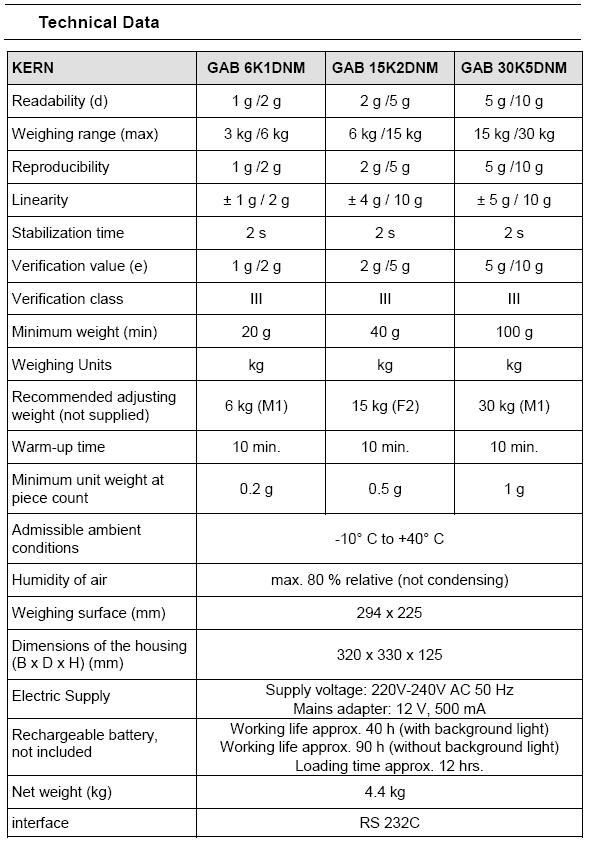

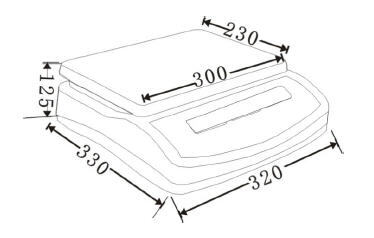

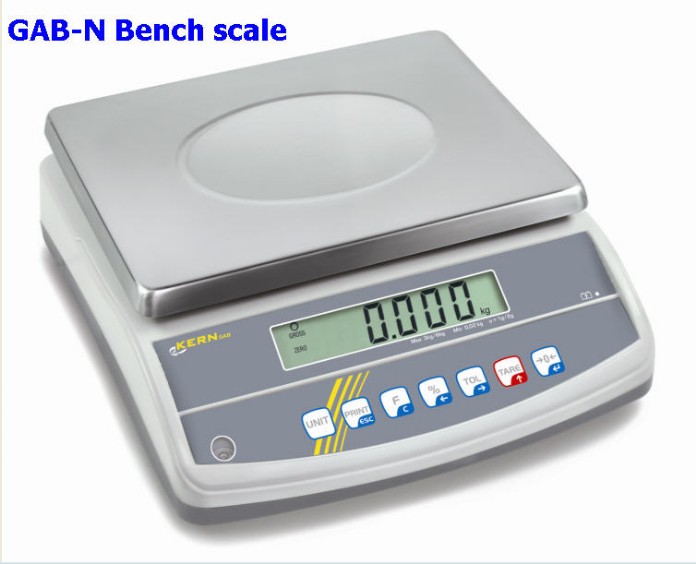

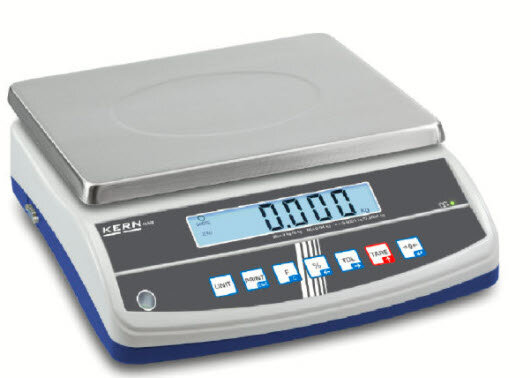

GAB-N Bench scale
Price-performance-winner with EC-Type Approval [M]
Description:
"   Verification available on request, contact us. For applications that require verification, please order verification at the same time, initial verification at a later date is not possible.
Verification at the factory, we need to know the full address of the location of use.
"   Totalizing of counting operations
"   Weighing with tolerance range: upper and lower limiting can be programmed individually, e.g. dosing / sorting.
"   Compact size, practical for small spaces
"   Large LCD display, digit height 24 mm
"   Option: Rechargeable battery pack internal, operating time up to 70 h, charging time approx. 12 h, charge condition indicator using three-colour LED KERN GAB-A04, see accessory
"   Casing material plastic
"   High mobility thanks to battery operation (optional) and low weight

Accessories :
• Protective working cover, scope of delivery: 5 items : ref  CFS-A02S05
• Rechargeable battery pack internal, operating time up to 90 h, charging time approx. 12 h. Charge condition indicator using three-colour LED : ref GAB-A04
• Matrix needle printer for KERN-Balances with Data interface RS-232 : ref 911-013
• Paper rolls for Printer KERN 911-013 (10 pieces) : ref 911-013-010
• Thermal printer for KERN-Balances with Data interface RS-232 : ref YKB-01N
• Thermal receipt rolls for Printer KERN YKB-01N (10 pieces) : ref YKB-A10
• Statistics printer for KERN-Balances with Data interface RS-232 : ref YKS-01
• Interface cable RS-232 to connect an external device : ref CFS-A01
• Signal lamp for visual support of weighing with tolerance range : ref CFS-A03
• RS-232/Bluetooth adapter: Adapter for the wireless connection of balances, force measuring devices etc. to an RS-232 interface to Bluetooth devices, such as Bluetooth printers (e. g. KERN YKC-01), tablets, laptops, Smartphones etc. : ref YKI-02
• RS-232/WiFi adapte: High-quality adapter for the wireless connection of balances, force measuring devices etc. to an RS-232 interface to WLAN-enabled devices, such as tablets, laptops, Smartphones etc. : ref YKI-03
• Bluetooth thermal printer : ref YKC-01
• Paper rolls (10 pieces) forKERN YKC-01 : ref YKC-A01
Application examples:

  • Small industrial scale for pharmacies
  • Hand mixtures of tea, coffee, chocolates
  • Portioning of dough, meat, fish, poultry, mixed salads in cafeterias etc.
  • Mobile weighing of freshly picked fruit on site
  • High-precision industrial applications

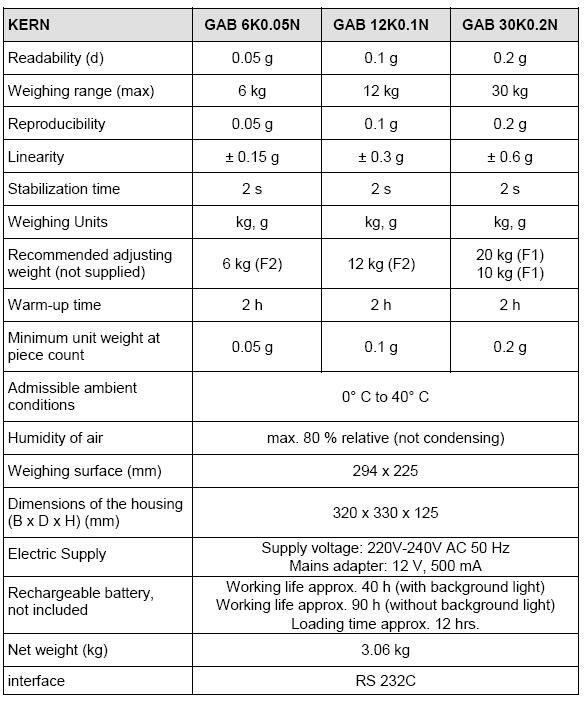

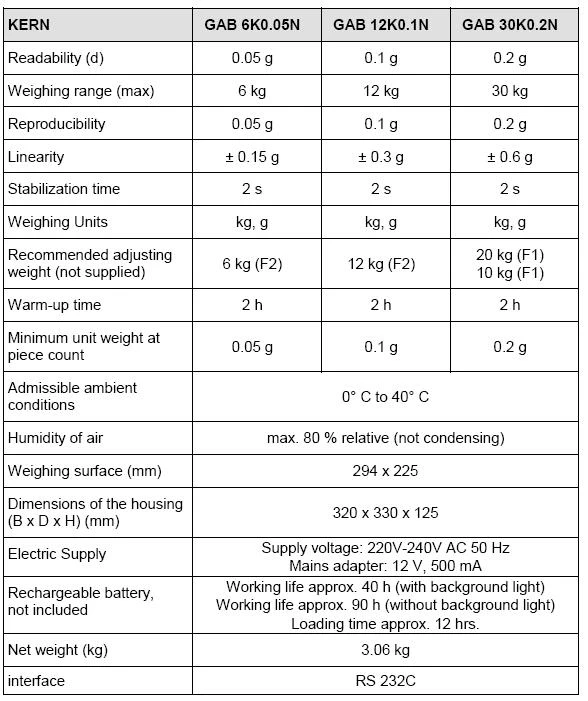

GAB 12K0.1N
GAB 12K0.1N
Balance
Readout d 0,1 g
Measuring range Max 12000 g
Min. piece weight at counting 100 mg
Weighing plate (Ø/WxD) 294x225 mm
Stabilisation time s 2 s
(TVA excl.) 0.00 €
Add
GAB 30K0.2N
GAB 30K0.2N
Balance
Readout d 0,0002 kg
Measuring range Max 30 kg
Min. piece weight at counting 200 mg
Weighing plate (Ø/WxD) 294x225 mm
Stabilisation time s 2 s
(TVA excl.) 0.00 €
Add
GAB 6K0.05N
GAB 6K0.05N
Balance
Readout d 0,00005 kg
Measuring range Max 6 kg
Min. piece weight at counting 50 mg
Weighing plate (Ø/WxD) 294x225 mm
Stabilisation time s 2 s
(TVA excl.) 0.00 €
Add

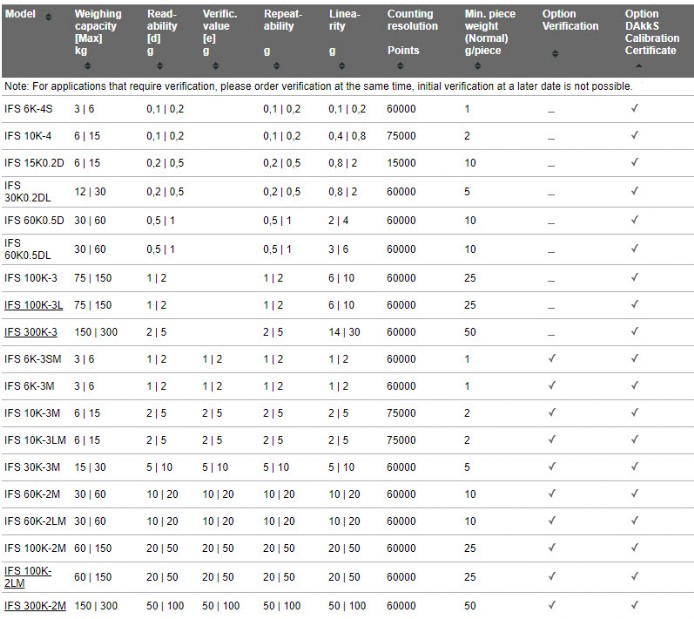

IFS Specifications

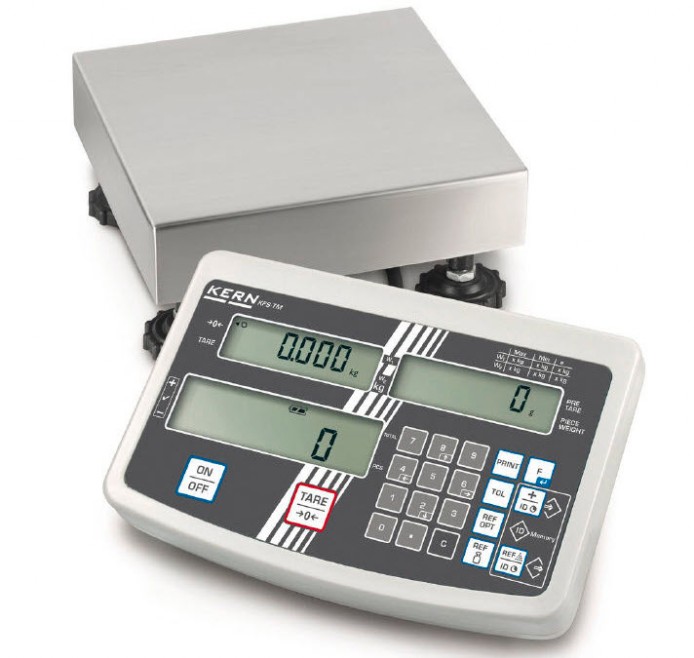

Counting scale IFS

Industrial counting scale with convenient decimal keypad for easy data entry, counting resolution up to 75000 points - also with EC type approval [M]

  • Tough industry standard suitable for use in harsh industrial applications
  • Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
  • Precise counting: The manual reference weight optimisation gradually improves the average value of the piece weight
  • Totalising of pieces when counting
  • Three displays for total weight (verifiable), piece weight, total quantity
  • 100 item memories for master data, such as item number, PRE-TARE (container weight), reference quantity, refere. weight etc.
  • Printout with date and time for GLP and GMP compliant data logging
  • Protective working cover included with delivery
Technical data :
· Large backlit LCD displays, digit height 16,5 mm
· Dimensions weighing surface, stainless steel
  • A 230×230×110 mm
  • B 300×240×110 mm
  • C 400×300×120 mm
  • D 500×400×140 mm
  • E 650×500×140 mm
· Dimensions of display device W×D×H 260×150×65 mm
· Cable length of display device approx. 3 m
· Permissible ambient temperature -10 °C/40 °C

Accessories
· Protective working cover, scope of delivery: 5 items, KERN KFB-A02S05
· 1 Stand to elevate display device, Height of stand approx. 330 mm, KERN IFB-A01 Column height approx. 600 mm, for models with weighing plate size D, E, KERN IFB-A02
· Rechargeable battery pack internal, operating time up to 40 h, without backlight, charging time approx. 12 h, must be ordered at purchase, KERN KFB-A01
· ESD drain to protect against electrostatic discharge e.g. for electrostatically-charged weighing objects or people who work with the scale, KERN YGR-01
· Further details, plenty of further accessories and suitable printers see Accessories


Bench Scales  Ranger® 7000

Simplifying Even the Most Complex Industrial Applications
Overview Characteristics Design Accessories Approvals

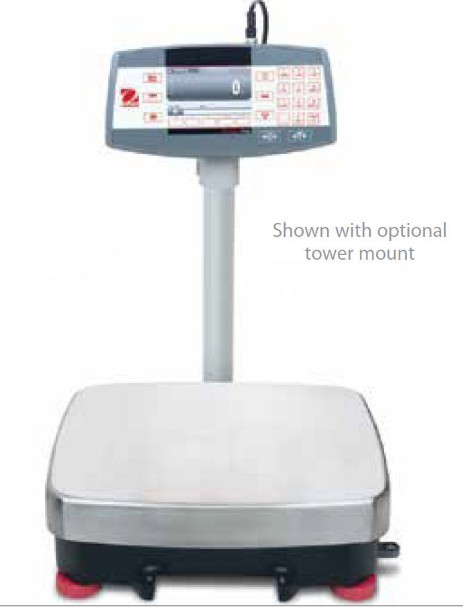

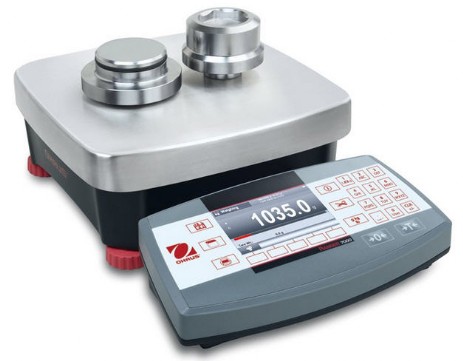

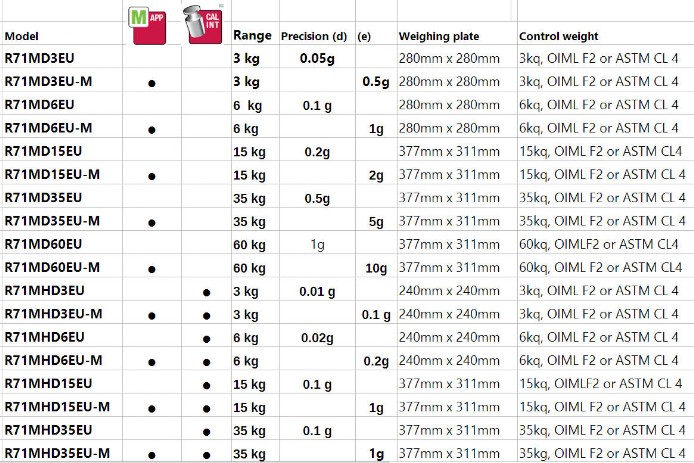

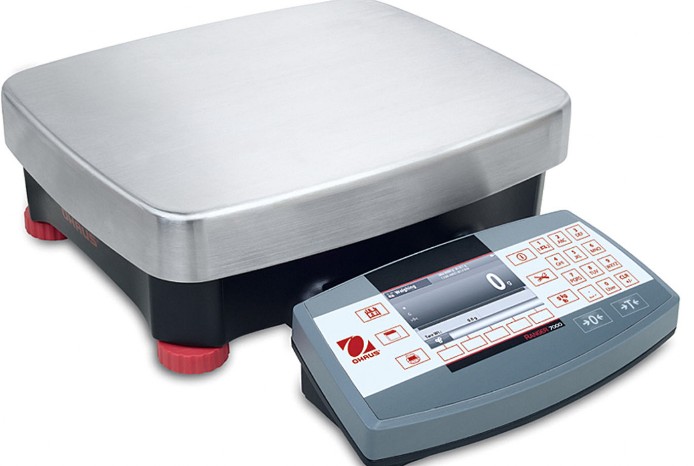

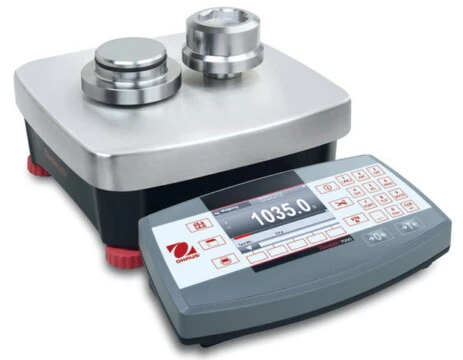

Ranger® 7000

For Ranger 7000, there is one resounding theme: it offers the best of  every ingenious feature that make OHAUS industrial products the right  tools for your toughest weighing jobs. Ranger 7000 boasts the highest  resolution, largest display, most application modes and connectivity  options, as well as the largest memory library of any industrial bench  scale in the OHAUS portfolio.

Applications
Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination
Display
109 mm Full-color WQVGA graphic display with user-controlled brightness
Operation
AC power (included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
Construction
Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
Design
Checkweighing lights with selectable operation and audible signal settings,
several selectable operating languages,
selectable environmental and auto-print settings,
stability indicator,
overload/underload indicators,
selectable brightness settings, auto-;
auto-dim,
auto-sleep,
auto tare,
chain tare.
Accessories
Alibi Memory Kit. . . . . . . . . . . . . . . . . . . . .  . 80500503
RS232 Kit. . . . . . . . . . . . . . . . . . . . . . . . . .  . 30037448
Painted Column Kit. . . . . . . . . . . . . . . . . . . . . 30095408
Discrete I/O Kit . . . . . . . . . . . . . . . . . . . . . . . 30097591
Ethernet Kit. . . . . . . . . . . . . . . . . . . . . . . . .. . 30037447
Cable Extension Kit, 9m. . . . . . . . . . . . . . . . . . 30101495
Second Scale Kit. . . . . . . . . . . . . . . . . . . . . . . 30097590
Rechargeable Battery Kit. . . . . . . . . . . . . . . . . 30041295
SF40A Impact Printer. . . . . . . . . . . . . . . . . .. . 30064202
T4 Label Printer. . . . . . . . . . . . . . . . . . . . . . . 30057588
Approvals
• Metrology: EN 45501 (T8420), OIML R76-1 (R76/2006-NL1-14.19), (Class II, nmax 35000; Class III, nmax 7500)
• Product Safety: EN 60950-1, IEC 60950-1
• Electromagnetic Compatibility: EN 61326-1, IEC 61326-1 (emissions Class B, immunity Industrial requirements)
• Other: WEEE/ROHS
SmarText™ 2.0 Traceability Print Templates
Cutting-Edge SmarText™ 2.0 Software Powers
the Technologically Advanced Ranger 7000
The SmarText 2.0 interface will have you easily using the Ranger 7000 for all of its unique and advanced features quickly.
SmarText 2.0 makes an advanced scale very simple to use, and will greatly reduce training time for operators.
It is also simple to set up and can be configured with just a few button presses.

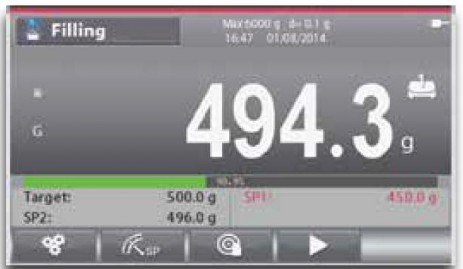

Ranger 7000 has a bright backlit display and navigation panel that is comprised of a keypad with 5 quick, 8 function, and 12
alphanumeric keys and a 109 mm graphic display, which can be operated in multiple languages.
Free software for data transfer.
The software allows to send the measurement result to the PC according to the time interval choosen by the user (seconds, minutes, hour, day).

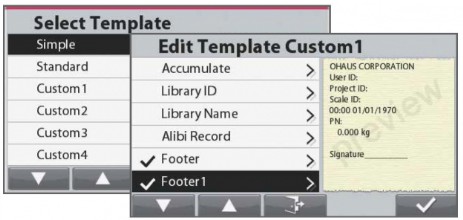

Print Templates
A total of seven print templates are available to ensure you can print out all of the data you need.
Simple and standard pre-defined templates are available for quick printing as well as five templates you can customize so you can print
the exact information necessary for your application, eliminating confusion and time to sift through excess unnecessary data.
User friendly High Speed Strong

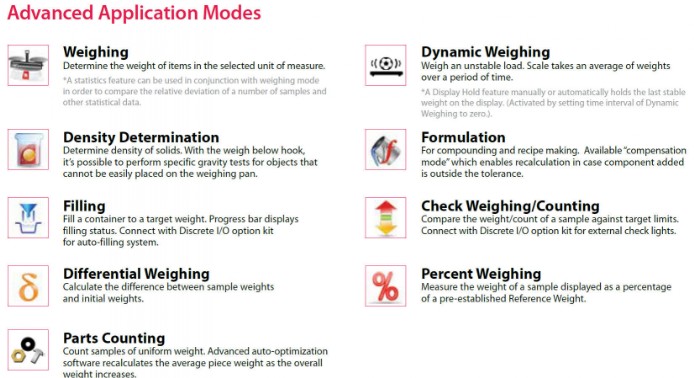

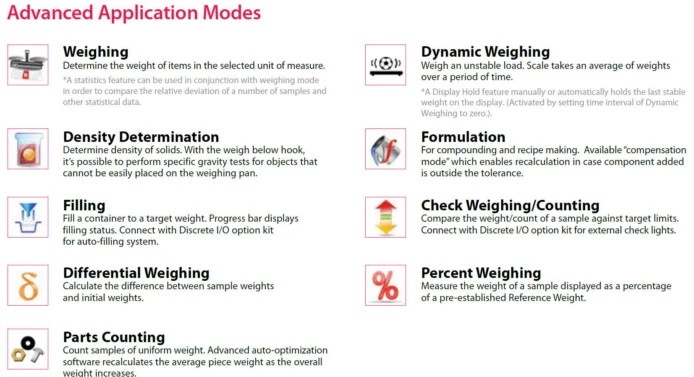

Ten advanced modes simplify complex applications and minimize the need for manual calculations and it can also control peripheral devices and/or a scale platform with option kit.
With one second stabilization time, up to 350,000d display resolution and legal for trade certifications, Ranger 7000's precision cannot be matched by any scale in its class.
Ranger 7000 was developed to thrive in rugged and harsh industrial environments.
This modular scale was built with IP54 metal housing and sealed metal indicator to ensure durability.

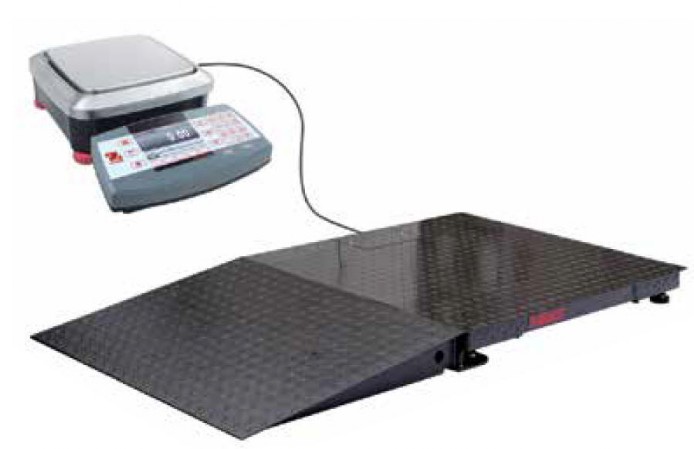

If your application requires a larger range, simply connect a steel platform base to increase the range up to 3,000 kg and equiped your Ranger 7000 with the Kit PCBA, 2nd Platform, R71.

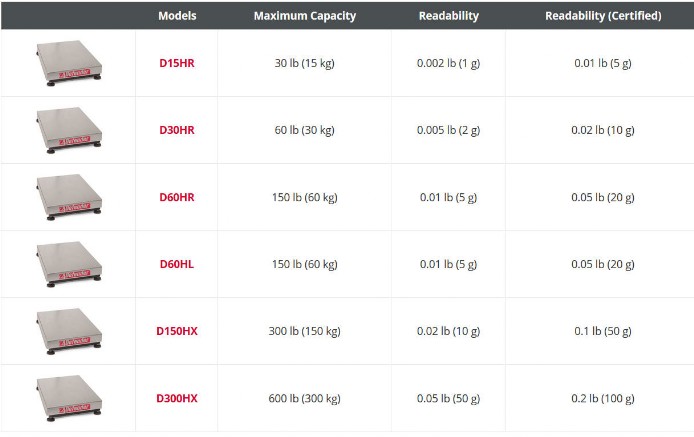

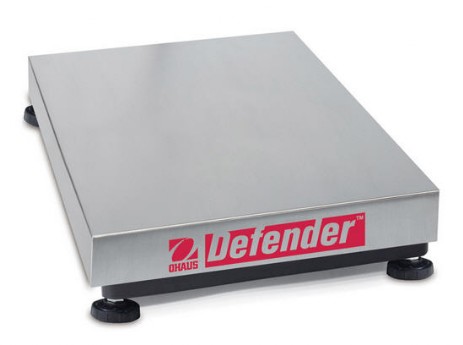

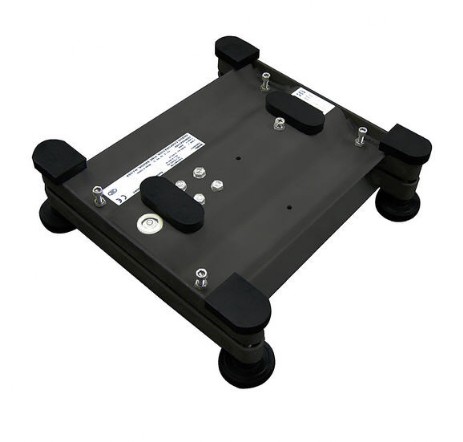

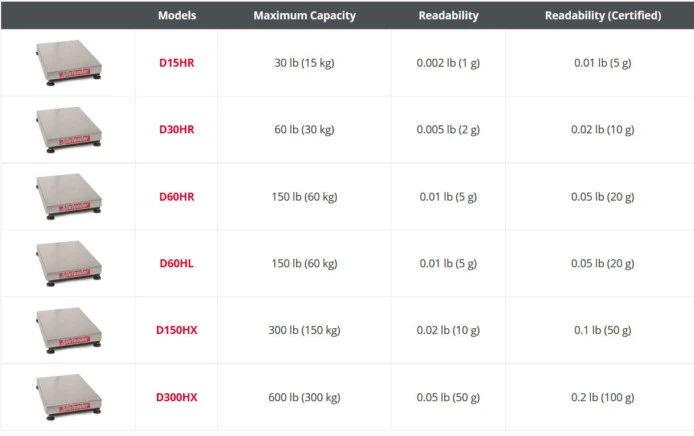

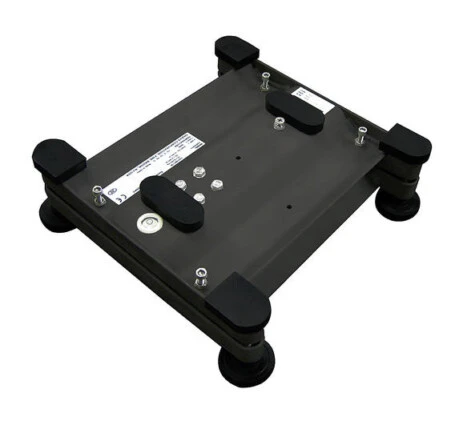

OHAUS Defender™ H
Series bases offer durability for the most demanding industrial applications
The black polyurethane painted steel form-and-weld frame and stainless steel platform provides ample support for industrial weighing applications.
Marked by durability, rigidity and structural integrity, Defender H Series bases are constructed to perform highly in industrial environments.
Defender H Series bases are high resolution and can meet the needs of industrial weighing applications that require extreme accuracy.

Overview Applications Design
Floor Scales

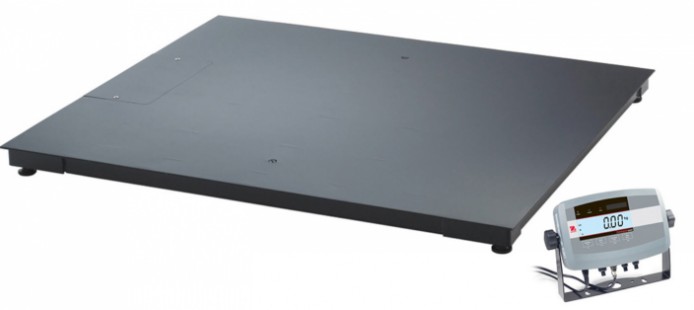

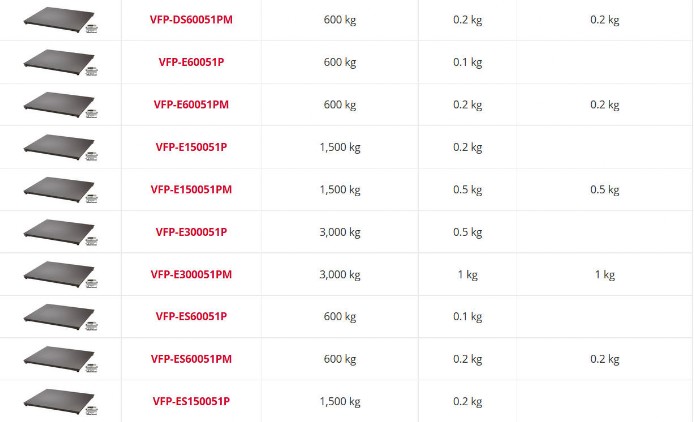

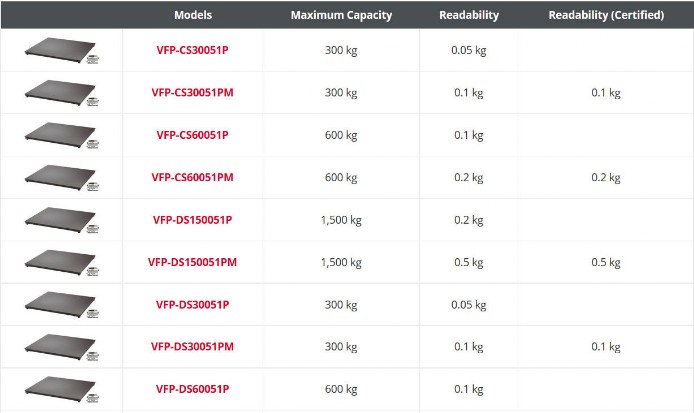

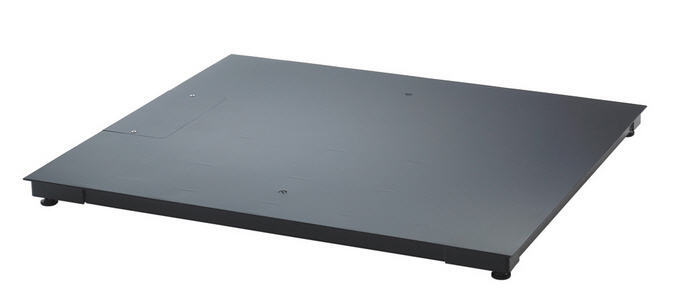

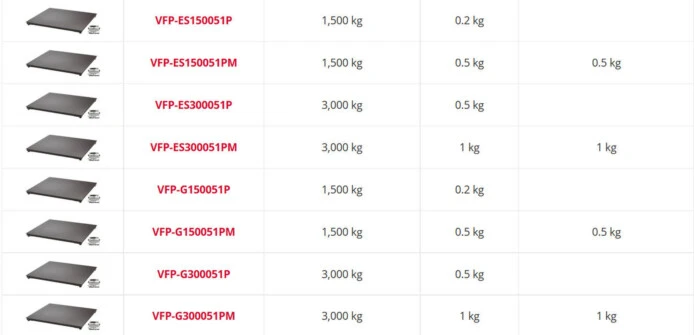

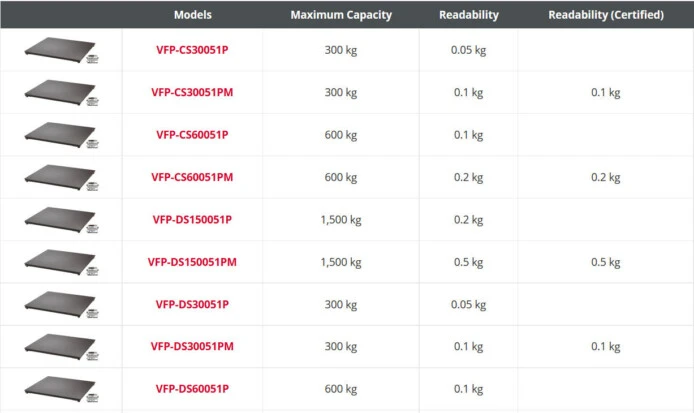

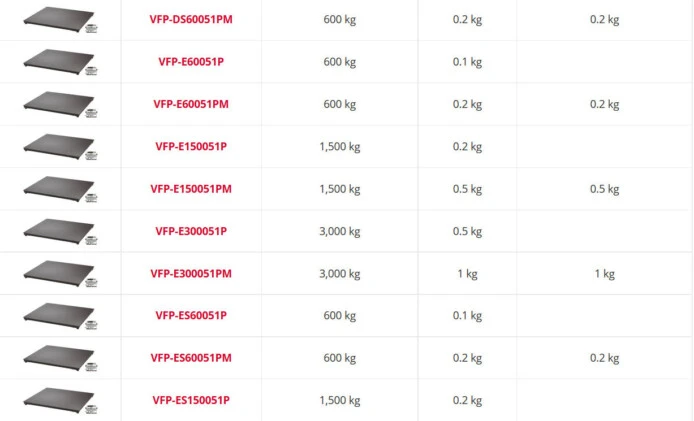

VFP Series
Multifunctional Floor Scale for Standard Dry Industrial Applications

The OHAUS VF Floor and Pit Mount Series is a  cost-competitive lineup of floor and pit mount scales that do not  compromise on quality for dry industrial applications. Powered by four  stainless steel IP68 hermetically sealed load cells that will withstand  years of daily usage in industrial environments, these scales offer a  unique combination of affordability, versatility and quality.

The floor-pit mount design and painted steel fixed decks with structural bracing provides versatility for portable or stationary placement in an above or below ground installation.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Display Hold
Display
Backlit liquid crystal display (LCD), 3 color checkweighing LEDs
Operation
Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.


Construction
ABS plastic indicator with reversible rear cover and painted steel mounting bracket, black painted steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, available pit frames, mounting plates, and ramps (accessories sold separately)
Design
150% overload protection
Four IP68 electro-polished stainless steel load cells that are laser-weld hermetically sealed and OIML approved are standard on all models.
