Model 606 Basic

Coatings & Industry > CORROSION > Salt Spray Cabinet
Corrosion testing

Corrosion creeps under coatings and attacks the products. To reduce these costly failure effects ERICHSEN offer a wide range of testing instruments. Some time or other almost every material will be attacked by corrosion. There are only a few materials, e. g. noble metals, that resist corrosion for a long time. Acid rain, exhaust emission and other influences of civilisation contribute to the caducity of values.

The aggressive influences of humidity, acids, alkaline solutions and gases act particularly corrosion inciting on metals. Weld and solder seams, rivets and screw fittings made from different metals occasion electrolytic reactions which stimulate the chemical corrosion. Corrosion in plastics occurs among other things by dissolving out the softeners. UV light, heat and the capture of foreign matters accelerate this development. Plastics don't get rusty, but corrosion becomes noticeable by cracking, softening, brittleness and change of colour. Efforts are made to retard or to stop the corrosion by coatings and electroplating. Using the ERICHSEN Corrosion Testing Equipment it is possible to make corrosion "measurable". Tests like the condensation water test and the salt spray fog test are the base for the determination of surface corrosion.

606 300L Purpose Test principle Norms Scope of delivery Specifications

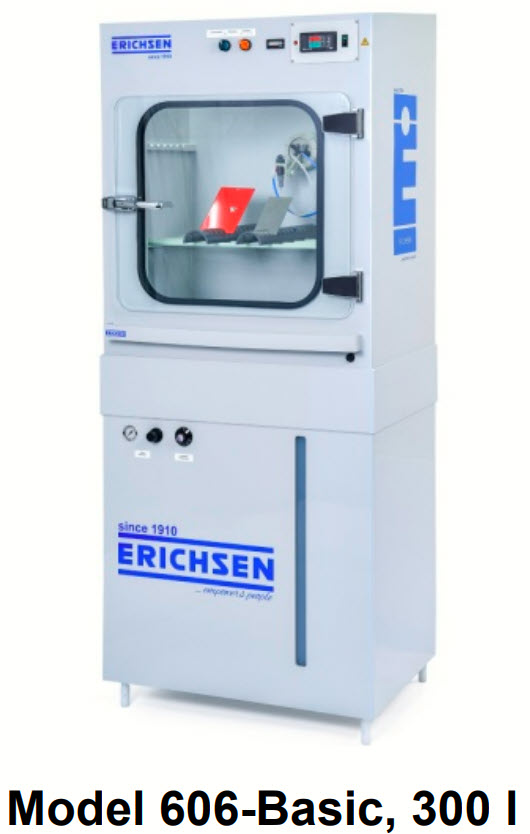

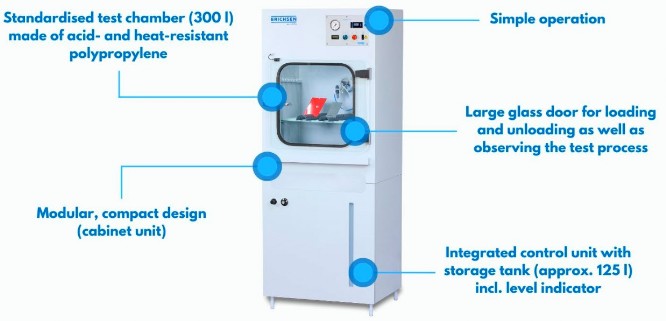

Corrosion Testing Equipment  606 / 300-Basic
The compact Corrosion Testing Instrument in modular design, Model 606-Basic / 300l, to perform salt spray and condensation tests, is made of impact resistant, eco-friendly polypropylene material.
It consists of a test chamber of 300 l capacity, and a built-in control unit as well as an integrated storage tank for approx. 125 l salt solution.

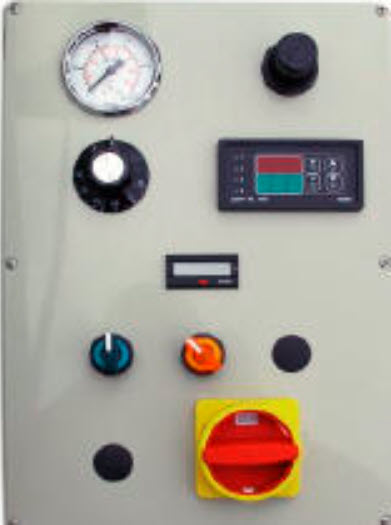

The control unit is equipped with the necessary control instruments.
The large, transparent access door allows easy mounting of specimens, which may e.g. be hung from the delivered sample rods, to be exposed to aggressive salt spray for a certain period of time.
A dosing pump serves for an infinitely variable adjustment to achieve optimum consumption of spray solution.
Test chamber in rectangular design, front opening with safety door, specially for small specimen.
The test apparatus ready for operation.

Test 1: Condensation test
Test 2 : Salt spray (fog) tests
Effective Volume : 300l
Purpose and application:
Ferrous and non-ferrous metals are attacked continuously by humidity, acids, solutions, gases etc.
It is therefore vitally important to choose the correct surface protection.
There are many materials and qualities on the market and their properties must be properly assessed.
Materials intended to prevent corrosion must be tested if failures are to be avoided.
Furthermore the comparative quality control during production is of increasing importance.
The best known processes employ spray vapour tests using various salt solutions as well as condensation water climates.

Test principle:
Aggressive solutions are turned into a vapour mist in accordance with the tests that are listed below.
These vapours surround the specimens in the test chamber either continuously or in a cyclic manner.

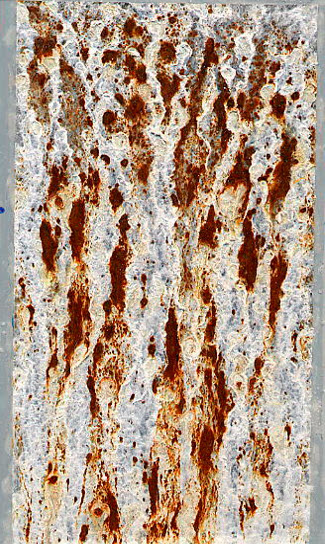

The corrosion resistance of the individual specimens is established on the basis of the difference in time before the first corrosive effects become apparent.
Norms
  1. DIN EN ISO 6270-2 CH
  2. DIN 50958
  3. DIN 55991
  4. ISO 11503
  5. ASTM D2247
  6. BS 3900 Part F2
  7. ASTM B117
  8. D171058
  9. ISO 9227
  10. DIN EN ISO 9227 SS
  11. DIN EN ISO 9227 ESS

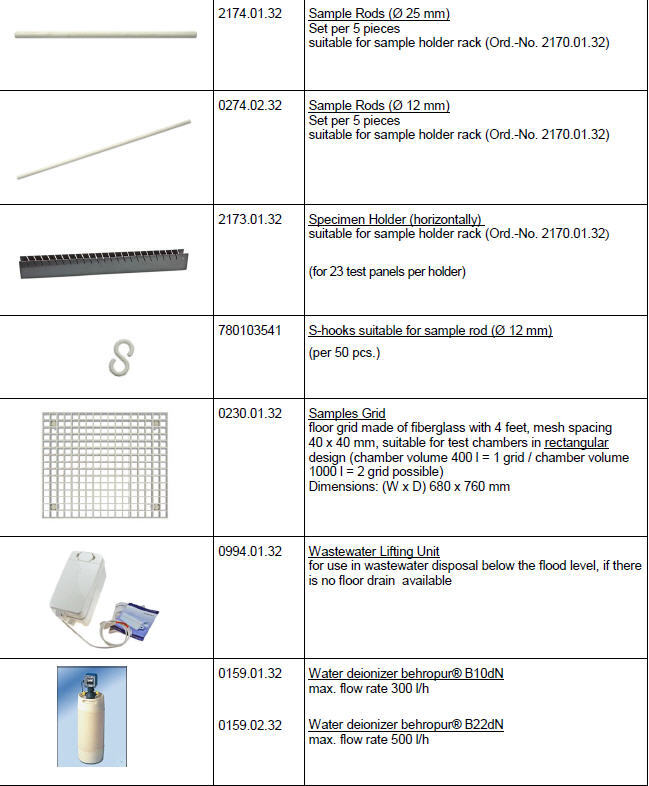

Scope of delivery:
  • Corrosion Testing Instrument Model 606-Basic / 300l
  • 7 specimen carrier rods
  • 100 S-hooks

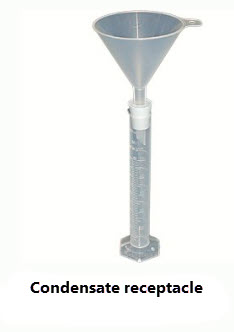

  • 2 condensate receptacles
  • Manufacturer's Test Certificate
  • Instruction manual
Corrosion Testing Apparatus, Model 606/300-Basic,
  • 300 l test chamber volume,
  • with integrated control unit and storage tank,
  • 7 sample rods, 100 S-hooks,
  • 2 condensate receptacles and operating manual
  • Capacity of the test chamber/ test panels: 300 l - - approx.12-100 pcs.
  • Consumption: 300 l - approx. 1500 VA

Dimensions Test Chamber:
  • approx.. 760 x 540 x 1060 mm (W x D x H)
  • Test chamber inside: approx. 700 x 500 x 770 mm (W x D x H)
  • Control unit approx. 760 x 540 x 800 mm (W x D x H)
  • Net weight: approx. 200 kg
Corrosion Testing Apparatus, Model 606-Basic

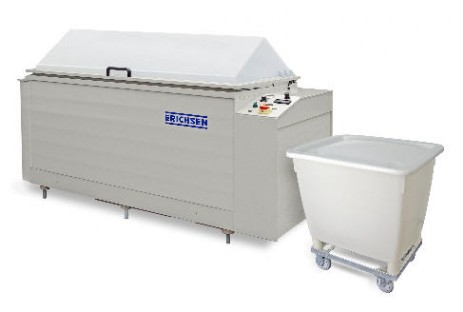

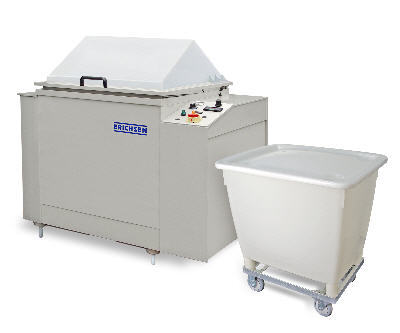

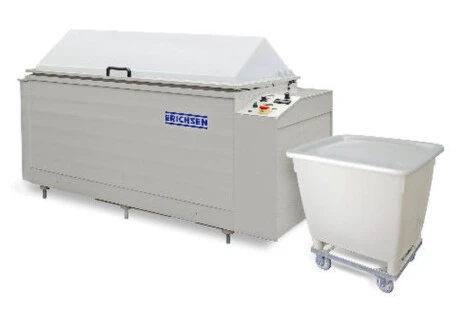

Corrosion Testing Apparatus, Model 606/400-Basic and Model 606/1000-Basic

Corrosion Testing Apparatus, compact design, to carry out different salt spray and condensate water tests, consisting of:
  • test chamber with 400 l or 1.000 l test chamber volume in rectangular design, made of impact resistant eco-friendly polypropylene material,
  • integrated control unit,
  • manual dome opening,
  • dosing pump for optimum setting for the salt solution to be sprayed,
  • storage tank for approx. 90 l salt solution,
  • the necessary regulating and control instruments for temperature monitoring in the test chamber, the temperature of the humidifier, the spray pressure and the duration of the test,

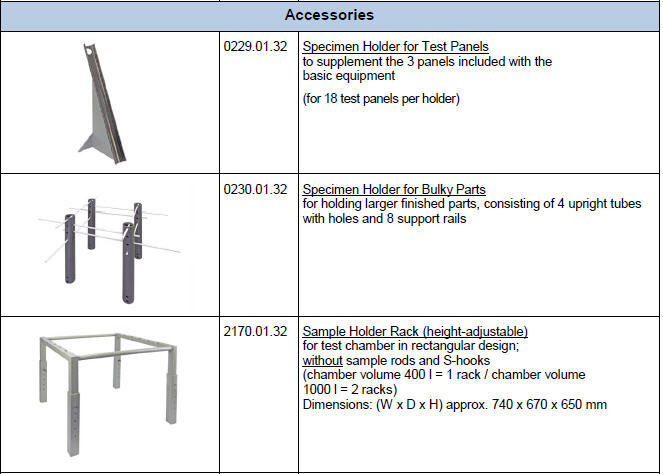

  • 3 specimen holder for weathering panels
  • 2 condensate receptacle.
The test apparatus ready for operation.

Test principle
Aggressive solutions are turned into a vapour mist in accordance with the tests that are listed below. These vapours surround the specimens in the test chamber either continuously or in a cyclic manner. The corrosion resistance of the individual specimens is established on the basis of the difference in time before the first corrosive effects become apparent.


Condensation Water Tests
DIN EN ISO 6270-2    BS 3900/ F4
DIN 50 958
DIN 55 991
MIL STD 202 D           MIL STD 810 C
Continuous Salt Spray Tests
DIN EN ISO 9227      ISO 1456      BS 3900/ F4
DIN 50 907               ISO 3768      NF X 41-002
DIN 53 167               ISO 3769      JIS Z 2371
                               ISO 3770
                               ISO 7253      SIS 184 190
ASTM B 117
ASTM B 368              DEF 1053 Meth. 24
ASTM D 1735            DEF 1053 Meth. 36
Technical Data
Capacity of the test chamber/ test panels:   400 l - approx.100 pcs.
                                                              1000 l - approx.180 pcs.
Specimen holders for weathering panels:    3  pcs. (18 panels/holder)
Floor load of the test chamber:                  up to approx. 300 kg
Test temperature range:                           up to +50 °C ambient temperature
Power supply:                                          230 V / 50 Hz / 1~
Consumption:                                           400 l - approx. 2000 VA
                                                              1000 l - approx. 3000 VA
Compressed air connection:                       4 - 10 bar
Air consumption:                                       6 Nm3/h
Water connection (pressure):                     2 - 8 bar
