142-20-Basic   Universal-Sheet Metal Testing Machine

Universal sheet metal testing machine, Erichsen cupping and deep-draw testing and FLC, up to 200 kN tensile force

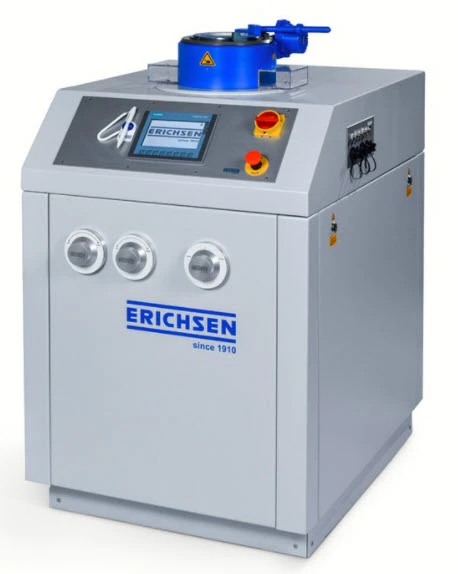

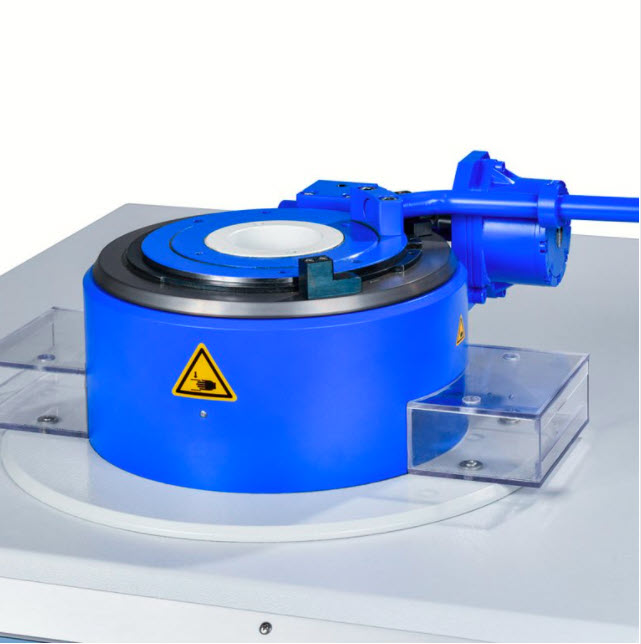

The Universal Sheet Metal Testing Machine Model 142-20-Basic with electro-hydraulic drive, fully automatic test sequence and switch off at specimen failure, max. drawing force of 200 kN.


Application:

This Testing Machine can be used not only to perform effortlessly, quickly and accurately all important and known deep drawing tests for ferrous and non-ferrous metals, but it is also designed for a large number of additional technological investigations like the ERICHSEN Cupping Test and the ERICHSEN Deep Drawing Cup Test on sheet and strips.



Relevant attributes are:

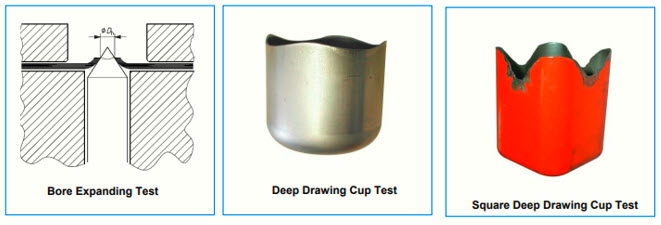

  • Square Cup Test (40 x 40 mm),

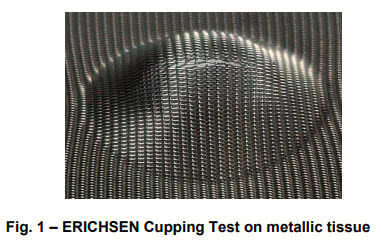

  • ERICHSEN Cupping Test
  • Bore Expanding Test (KWI Test),
  • Bore Expanding Test (ISO 16630),
  • Deep Drawing Test with Blankholder
  • Quick Release (for Earing Test),
  • Deep Drawing Test with Preselected Punch Stroke,

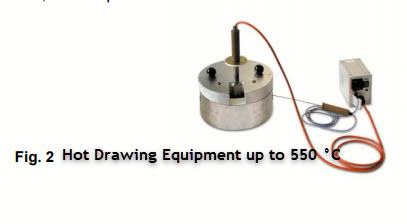

  • Deep Drawing Test at High Temperatures up to 550 °C,
  • ERICHSEN Cupping Test for Lacquer and Paint in accordance with DIN ISO 1520,
  • Stamping Lacquer Test and Deep Drawing Cup Test on Coil Coatings.
  • Special Requirements on request.
The Testing Machine is driven electro-hydraulically.
The test sequence can be controlled automatically or manually, as desired.
A programmable logic controller is used to control the functions of the machine.

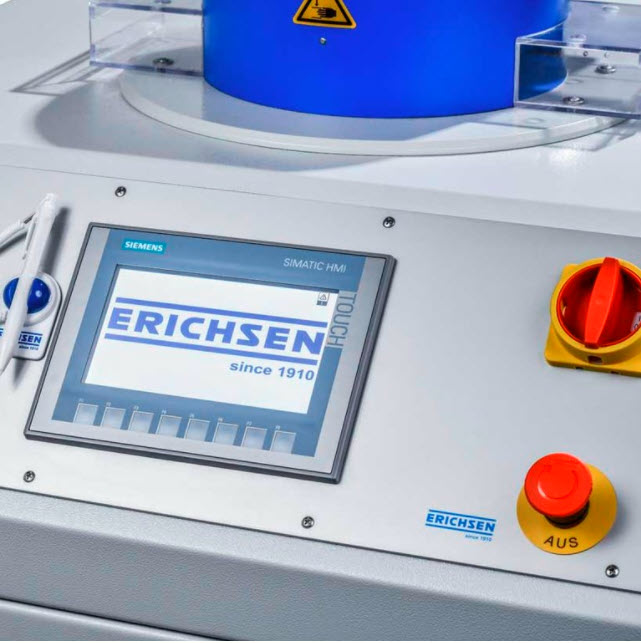

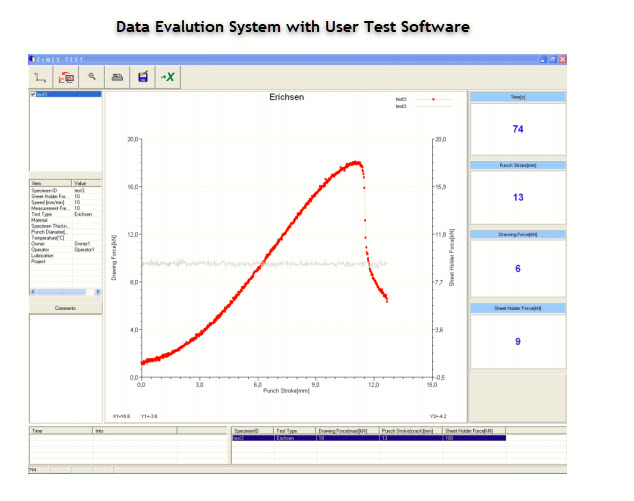

The testing machine is equipped with digital displays for indicating the sheet holder force, the drawing force. as well as the drawing punch stroke.
The triple-acting hydraulic system in conjunction with the general design results in the following cost saving simplifications:
  • Blanking press in the test head
  • Hydraulic cup ejector
  • Fully-automatic test sequence with stop at specimen failure (as of 0.3 mm sheet thickness)
The Sheet Metal Testing Machine, Model 142-Basic, was developed for testing as a means for continuous production control using standardised and other established methods.

Technical Data
Drawing force        142-20 200 kN
Blanking force        142-20 265 kN
Blankholder force  142-20               0.5 - 30 kN
                                                                          10 - 100 kN
Drawing punch stroke  142-20        approx. 80 mm
Blankholder stroke          approx. 38 mm
Drawing punch dia.         142-20         up to 50 mm
FLC test (drawing punch-ø)      up to 100 mm

Technical Data

Bulge test (bulge-ø)                       up to 100 mm
Blank diameter                    142-20          up to 120 mm
Drawing speed                      approx. 500 mm/min
Digital displays                     Resolution:
Drawing punch stroke                                0.1 mm
Drawing force                                                 0.1 kN
Blankholder force                                         0.1 kN
Mains supply                           400 V / 3 -, 50 Hz (other voltages on request)
Power required                     142-20      approx. 3.4 kW
Dimensions                              approx. 810 x 1100 x 1320 mm (W x D x H)
Weight, net                             142-20 approx.        550 kg
Working material                 approx. 95 l hydraulic oil (HLP 32 ISO)
