Metallurgical microscopes
Laboratory Product > Magnifiers & Microscopes

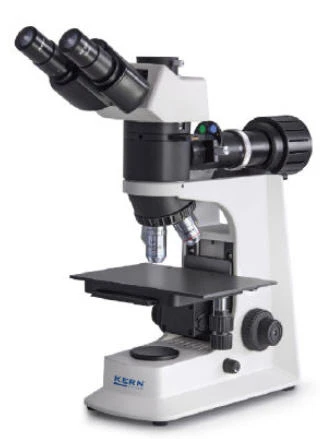

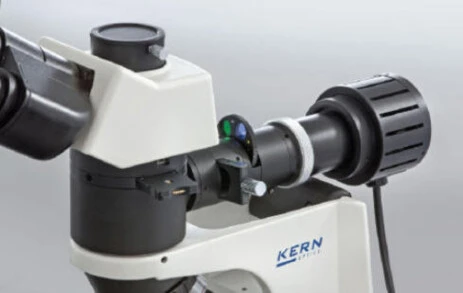

OKM-1 The metallurgical product for the experienced user
- The KERN OKM-1 is a superb, stable metallurgical microscope which uses reflected light
- It is suitable for all common routine applications and produces excellent images with its powerful 30 W halogen lighting
- As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
- A trinocular head is available as an option, so that you can connect a camera
- A revolving unit for up to lenses and a large specimen stage are included with delivery as standard
- The following optional accessory items are available: Various eyepieces, LWD lenses for a large working distance as well as a complete polarisation kit etc.
- A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely
· Eyepieces: WF 10x18 mm
· Objectives: 5x / 10x and LWD 20x / 40x
· Overall dimensions WxDxH 240x170x400 mm
· Net weight basic configuration approx. 8 kg

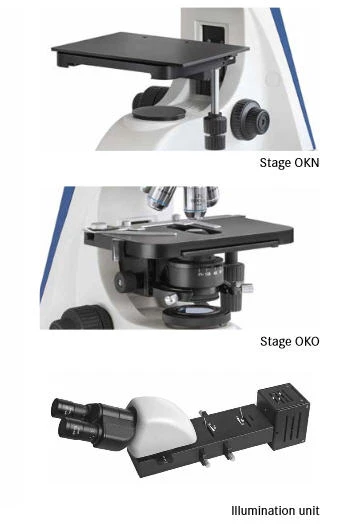

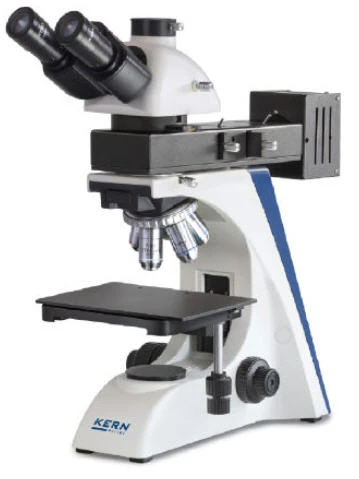

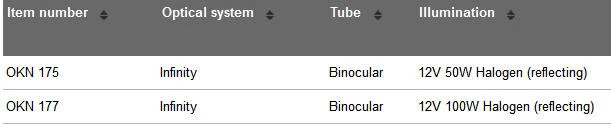

OKN-1 The metallurgical product for the professional user
- The KERN OKN-1 microscope range is a range of metallurgical microscopes for professional applications
- You can choose between two lighting systems: Standard halogen lighting (50 Watt) and premium lighting (100 Watt). Both are ideal for all common routine applications and produces excellent images
- For some models there is an additional transmitted light halogen lighting unit available
- As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
- A revolving unit for up to 5 lenses, a large specimen stage and a complete polarisation kit are included with delivery as standard
- The transmitted light variants fitted with Köhler lighting also have an Abbe condenser which can be centred and adjusted heightwise and an adjustable aperture diaphragm
- These binocular microscopes are fitted with a dioptre compensation and various optional eyepieces
- A trinocular head is available as an option, so that you can connect a camera
- The following optional accessory items are available: Various eyepieces, LWD lenses for a large working distance,etc.
- A central feature of this highly-adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
· Eyepieces: 3x WF 10x18 mm
· Objectives: 5x / 10x /(100x) and LWD 20x / 40x
· Overall dimensions WxDxH 306x200x448 mm
· Net weight basic configuration approx. 12 kg

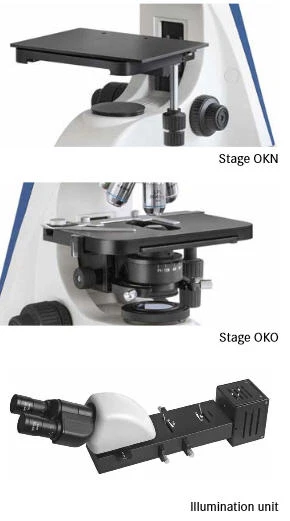

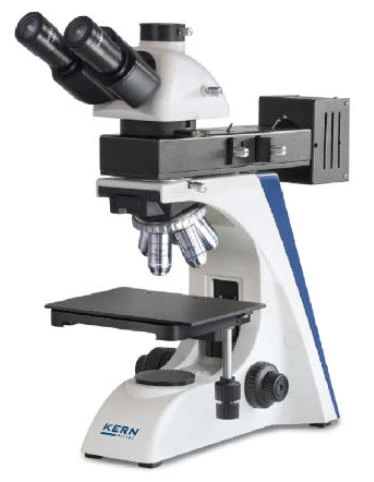

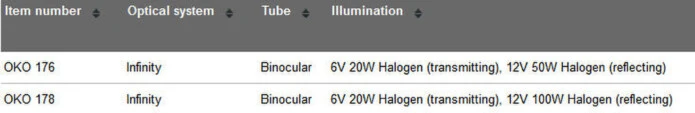

OKO-1 The metallurgical product for the professional user
The KERN OKO-1 microscope range is a range of metallurgical microscopes for professional applications
You can choose between two lighting systems: Standard halogen lighting (50 Watt) and premium lighting (100 Watt). Both are ideal for all common routine applications and produces excellent images
For some models there is an additional transmitted light halogen lighting unit available
As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
A revolving unit for up to 5 lenses, a large specimen stage and a complete polarisation kit are included with delivery as standard
You can choose between two lighting systems: Standard halogen lighting (50 Watt) and premium lighting (100 Watt). Both are ideal for all common routine applications and produces excellent images
For some models there is an additional transmitted light halogen lighting unit available
As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
A revolving unit for up to 5 lenses, a large specimen stage and a complete polarisation kit are included with delivery as standard
The transmitted light variants fitted with Köhler lighting also have an Abbe condenser which can be centred and adjusted heightwise and an adjustable aperture diaphragm
These binocular microscopes are fitted with a dioptre compensation and various optional eyepieces
A trinocular head is available as an option, so that you can connect a camera
The following optional accessory items are available: Various eyepieces, LWD lenses for a large working distance,etc.
A central feature of this highly-adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
Technical data
· Eyepieces: 3x WF 10x18 mm
· Objectives: 5x / 10x /(100x)andLWD 20x / 40x
· Overall dimensions WxDxH 306x200x448 mm
· Net weight basic configuration approx. 12 kg

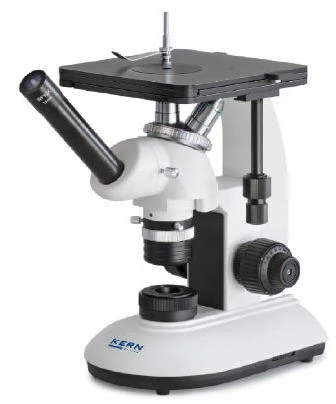

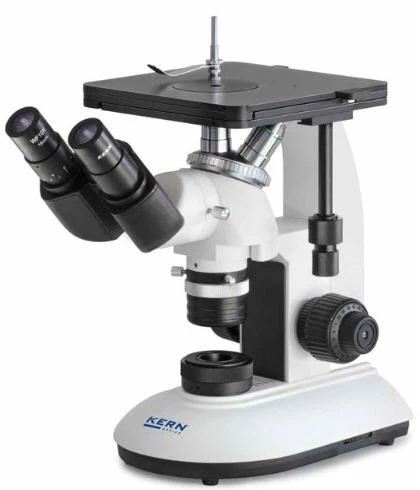

OLE-1 The robust inverse metallurgical product for your training centres or workshop
- The KERN OLE-1 is a stable inverse metallurgical microscope which is very easy to use
- It is suitable for all common routine applications in training companies or workshops and produces excellent images
- You can choose between mono or binocular versions with different eyepieces
- As standard, these microscopes are fitted with planachromatic lenses
- A revolving unit for up to 4 lenses and a large specimen stage are also included with delivery as standard
The following optional accessory items are available: LWD lenses for a large working distance as well as various stage inserts etc.
A powerful 3W LED light is available to provide the lighting
A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
Technical data
· Eyepieces: WF 10x18 mm
· Objectives: 10x / 20x / 40x
· Overall dimensions WxDxH 240x170x311 mm
· Net weight basic configuration approx. 7 kg

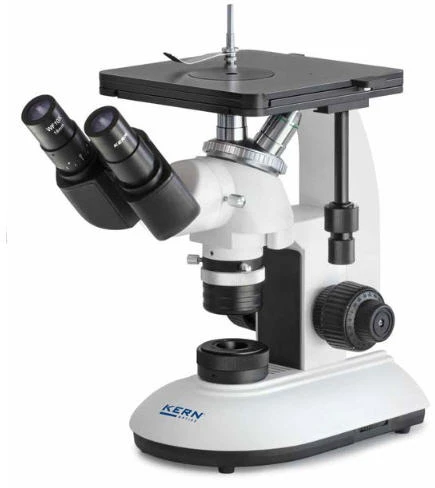

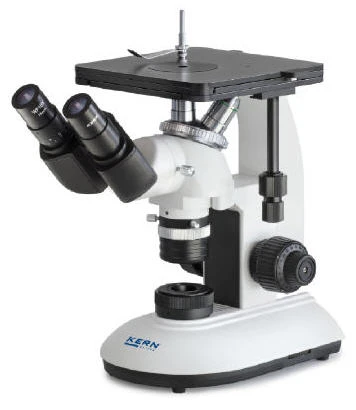

OLF-1 The robust inverse metallurgical product for your training centres or workshop
The KERN OLF-1 is a stable inverse metallurgical microscope which is very easy to use
It is suitable for all common routine applications in training companies or workshops and produces excellent images
You can choose between mono or binocular versions with different eyepieces
As standard, these microscopes are fitted with planachromatic lenses
A revolving unit for up to 4 lenses and a large specimen stage are also included with delivery as standard
The following optional accessory items are available: LWD lenses for a large working distance as well as various stage inserts etc.
A powerful 3W LED light is available to provide the lighting
A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
It is suitable for all common routine applications in training companies or workshops and produces excellent images
You can choose between mono or binocular versions with different eyepieces
As standard, these microscopes are fitted with planachromatic lenses
A revolving unit for up to 4 lenses and a large specimen stage are also included with delivery as standard
The following optional accessory items are available: LWD lenses for a large working distance as well as various stage inserts etc.
A powerful 3W LED light is available to provide the lighting
A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
Technical data
· Eyepieces: WF 10x18 mm
· Objectives: 10x / 20x / 40x
· Overall dimensions WxDxH 240x170x311 mm
· Net weight basic configuration approx. 7 kg
