Color

Coatings & Industry > In-Line Measurement
VeriColor Spectro

Do you change production color frequently and/or face challenges with ensuring fast change-over times and minimal waste of expensive materials? By implementing the X-Rite VeriColor inline spectrophotometer, you can quickly and accurately determine colorant requirements, seamlessly communicating among formulation, production and quality control systems.

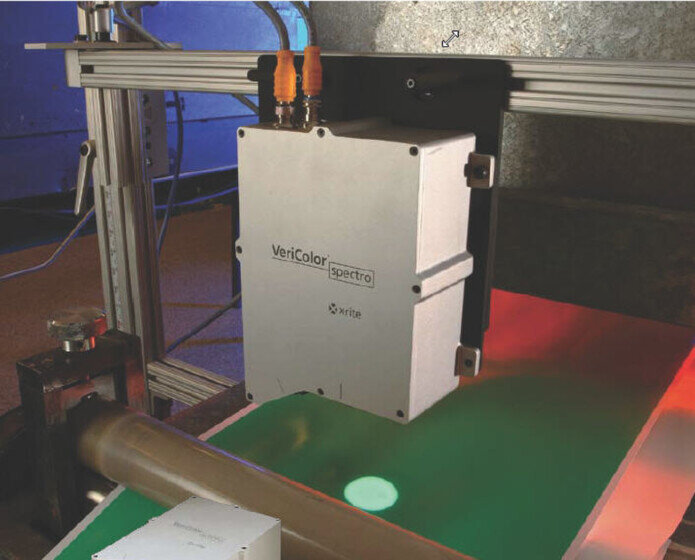

Traditionally, color measurement is performed offline at the quality control department. Vericolor Spectro revolutionizes this process by integrating a color measurement system directly Inline.

  • Accurate and affordable, the VeriColor Spectro is compact and durable, ideal for harsh industrial manufacturing applications.
  • No special lighting or shrouding is required with this all-inclusive solution, which excludes ambient light.
  • You will improve quality control and reduce operating expense with this cost-efficient, in-line non-contact color measurement solution that provides absolute spectral and colorimetric data for process control.
  • It is easy to set up and manage and enables color control in real time to contain and eliminate color problems without disrupting production
Advantages Benefits
VeriColor Spectro Advantages

• High Spectral Resolution. True 31-band spectrophotometer provides absolute color data across the visible spectrum at 10 nm intervals
• Industrial Hardened. Lab-grade performance in a robust industrially hardened design, NEMA 4 / IP67 rated, that withstands shock, vibration and thermal variation
• Patented Technology. Allows accurate in-line capture of color data in the presence of depth variation and dramatic changes in ambient light
• Flexible. System interfacing for PC or PLC based operations

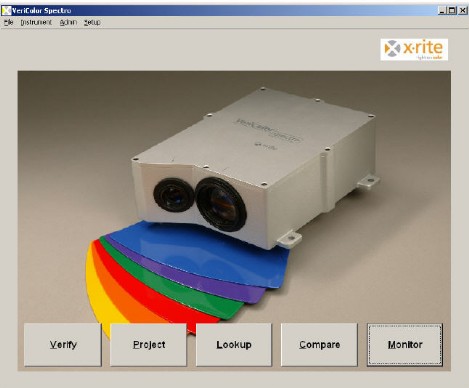

• Intuitive. Includes easy to use windows based Set-Up and Monitoring Software with real-time visual monitoring and trending graphics
VeriColor Spectro Benefits

• Monitor, control and log color during production — in-line, real time
• Analyze and contain color problems — make corrections without stopping production
• Minimize scrap cost — detect and correct before generating excessive waste
• Insure consistent color quality, all the time
Performance General Environmental Scope of supply
Performance Specifications :

Warm-Up Time              2 – 3 minutes typical at 23° C
Measurement Time        750 ms
Cycle Time                    1 sec. (time interval between measurements)
Ambient Light Rejection   3000 Lux
Short Term Repeatability 0.03 avg, / 0.05 max ΔEab (20 measurements at 3 sec. intervals on a white ceramic tile)
Long Term Repeatability  0.15 avg, / 0.20max ΔEab (over the calibration interval)
Inter-Instrument Agreement 0.30 avg., 0.5 ΔEab max. based on 12 BCRA Series ll tiles
Calibration Interval           Validation recommended – 30 days / 50,000 measurements (whichever comes first) More frequent verifications may be required if cleanliness of the system is not maintained.
Measurement Range         0 to 150% Reflectance
Spectral Range                 400 nm to 700 nm
Spectral Interval               10 nm measured, 10 nm output
Product Life                      5 years minimum
LED Life                           >10,000,000 measurements
Operational Random Vibration IEC 60068-2-64 - 1g rms 20-2000 Hz.
Operational Shock                  IEC 60068-2-27 - 30 g amplitude 11 ms duration any axis
General Specifications

Instrument Type                  Spectrophotometer
Geometry                            0/30° , 30/0° (results based on 0/30°)
Monochromator                    Dual beam, 31 channel
Light Source                         Full System LED
Measurements Size               1” at 4” nominal to measuring surface
Measuring Distance               4” nominal to measuring surface
Acceptability to Variation in Depth of Measuring Field : +/- 0.20 inches (maximum 0.2 ΔE)
Operating Temperature Range 0 - 50°C (32 - 122°F) (performance based on 10 – 50°C )
Operating Humidity Range       0 - 85% relative, non-condensing
Storage                                  -20°C – 70° C
Operating Voltage                   24 volt DC +/- 2.0 v
Communication I/O                 RS-232,RS-485, PLC discreet
Functional Size                       3” x 6” x 9”
Weight                                  2.81kg
Mounting Requirements          Manual Fixture
Enclosure                              Designed to meet NEMA 4 / IP56
Environmental

Usage                    Indoor Only
Altitude                  2000 m
Pollution Degree      2
Over Voltage           Category II
Safety Compliance

Underwriters Laboratories                      UL 61010-1
Canadian Standards Assn.                       CSA 22.2  No. 1010.1-92
International Electrotechnical Committee   IEC (EN) 61010-1
System Components

• VS-410 VeriColor Spectro Spectrophotometer

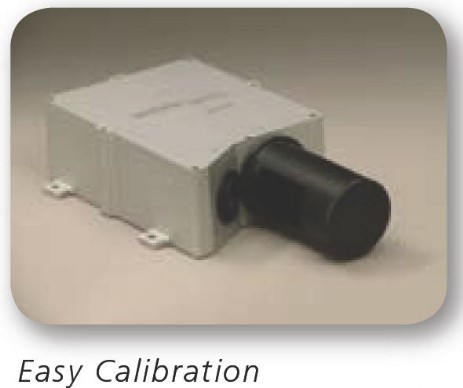

• Calibration tube
• Interface cables
5 meter RS 232
5 meter PLC
• Windows-based setup and monitoring software
• Operation manual

Options

• 1, 3, or 10 meter extension cables
• Environmental enclosure (PN# VS410-801), includes
Enclosure
Mounting hardware
Water/oil separator
Air line (3.05m)
• Mounting stand (PN # VS410-800), includes:
Stand with X, Y, Z and angular measurement control

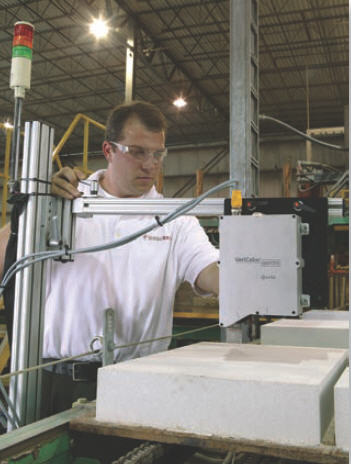

Tree light with Red, Amber and Green LED visual displays
