UV POWER PUCK ® II
The radiometers that first set the standard for the UV industry are now setting a new standard with advanced features and an easy to read display, multiple user selectable modes, and PC communications for data logging and trending capabilities.
UVICURE Plus II and UV Power Puck II are widely used throughout the global UV industry. With user selectable sample rates, these reliable instruments can be used for fast conveyor lines or slower lines.
Easy to Use. Single Button for On/Off and Run
Colorful, Easy to Read Display
Select low, medium, or high intensity for the graphical display brightness.
Operating Ranges
The UV Power Puck II instruments are now available in three operating or dynamic ranges.
The standard (10 Watt) unit works well for high power curing applications.
The new Mid Range unit (1 Watt) works well with lower power arc lamps and applications with lamps that are non-focused or a little further away from the cure surface.
The Low Power unit (100 mW) works well in exposure systems and applications with low power lamps.

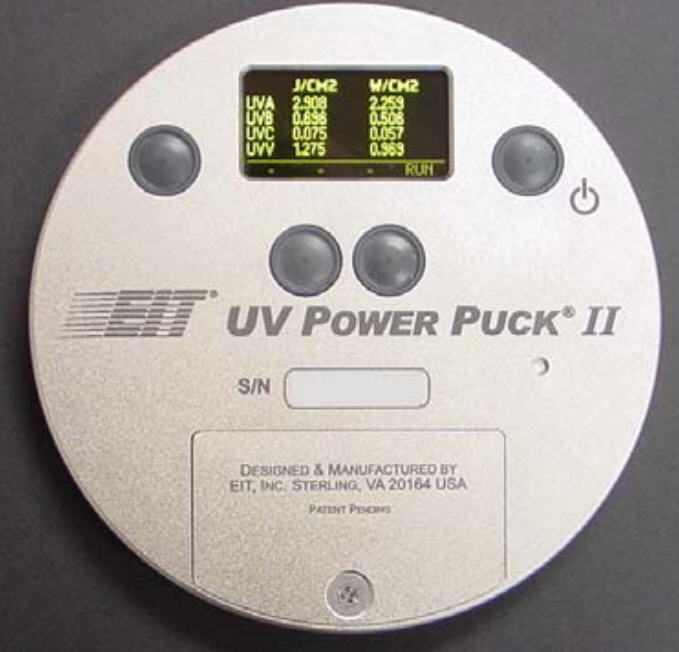

Ref. 280-GEIPPUC2
Standard Features and Benefits Include:
UV Data Displayed on One Screen for Up to 4 Bands.
Data is simultaneously collected for up to 4 bands on the UV Power Puck II, then displayed on a single screen in mW/cm 2 and mJ/cm 2 for quick and easy viewing by the operator. No need to toggle through all eight readings, one screen at a time.
Soft buttons are used for function selections, and are indicated on the bottom of the display for easy operator selection and use.
Standard EIT Bandwidths (UVA, UVB, UVC, UVV) and the introduction of EIT UVA2

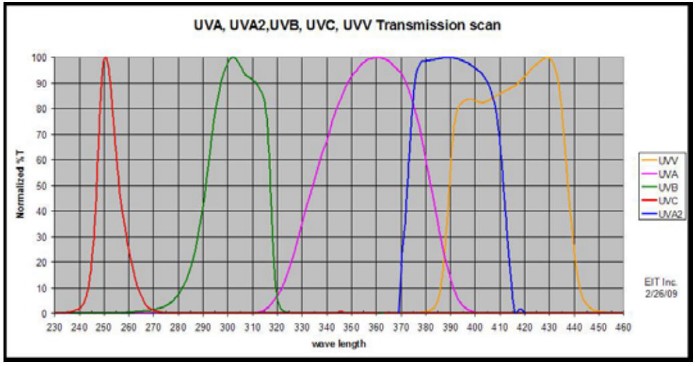

EIT’s standard bandwidths - (UVA (320-390nm), UVB (280-320nm), UVC (250-260nm), UVV (395- 445nm) as well as our new VA2 (380-410nm) bandwidth are available in the UV Power Puck II.
UVA2 can be used to measure LEDs in the +/- 390nm range as well as additive (mercury-iron, mercury gallium) bulbs.
UVA2 is available in a single channel Uvicure Plus II or UV
Power Puck II with UVA, UVA2, UVB, & UVV.
Unit of Measure
The unit of measure is user selectable to provide ease of reading for operators. Display the data as you want to see it. Selections are: mJ/cm 2 , mW/cm 2 , J/cm 2 , W/cm 2 , µJ/cm 2 , µW/cm 2
Setup Function
Provides user selectable instrument default modes for data analysis and comparison, screen, and operational settings.
Graph Mode
A graph illustrating the collected UV irradiance and energy is displayed for each of the UV bands. Data is expressed in mW/cm 2 vs.
time.
User Selectable Sample Rate
Smooth On Data: Compatible with previous sampling rate on Power Puck versions
Smooth Off Data: Compatible with UV PowerMAP sampling rate at over 2000 samples per second.
Reference Mode
Used for comparison between readings. Can be useful for system setup and troubleshooting. The user can store the selected UV reading in the radiometer as a base line or reference reading, then compare that reading to another. The radiometer will display both readings and indicate the percentage of change between readings. Data is displayed in mJ/cm 2 and mW/cm 2 , and percentage.
Communications Port
USB Port
Download collected data to a computer for statistical analysis and data logging. Software provided by EIT.
Specifications
Display Easy to Read, Yellow Text on Black Background Dynamic Range : 10 Watt: UVA, UVB, UVV - 100mW/cm² to 10W/cm²;
UVC - 50mW/cm² to 1W/cm²
Low Power Versions: UVA, UVB, UVC, UVV: 1mW/cm² to 100mW/cm²
Accuracy : +/- 10%; +/- 5% typical
Spectral Response : Approximately cosine
Spectral Ranges : 4-channel continuous monitoring.320-390nm (UVA), 375-415nm (UVA2), 280-320nm (UVB),), 395-445nm (UVV)
Spatial Response : Approximately cosine
Operating Temperature : 0-75°C Internal temperature; tolerates high external temperatures for short periods (audible alarm indicates when temperature has exceeded tolerance)
Time-Out Period : 2 minutes DISPLAY mode (no key activity). A no time-out mode can be activated by EIT-IM.
Battery :Two user-replaceable AAA Alkaline Cells
Battery Life : Approx. 20 hours with display on
Dimensions : 117 mm x 12.7 mm (D x H)
Weight : 289 grams
Package Material : Aluminum, stainless steel
Display | Easy to Read, Yellow Text on Black Background |
Suggested Operating Ranges | Standard High Range: UVA, UVB, UVV - 100mW/cm² to 10W/cm² / UVC - 10mW/cm² to 1W/cm² Mid-Range: UVA, UVB, UVV -10mW/cm 2 to 1W/cm 2 / UVC: 1mW/cm 2 to 100mW /cm 2 Low Power: UVA, UVB, UVV - 1mW/cm² to 100mW/cm² / UVC - 1mW/cm 2 to 100mW/cm 2 Units will “turn on” and display data at irradiance values much lower than the suggested Operating Ranges. The suggested Operating Ranges are where the instrument performs best. |
Accuracy | +/- 10%; +/- 5% typical |
Spectral Ranges (UV Power Puck® II) | 4-channel continuous monitoring .Standard version: 320-390nm (UVA), 280-320nm (UVB), 250- 260nm (UVC), 395-445nm (UVV) / UVA2 Version: 380-410nm (UVA2 replaces the UVC band). |
| Spatial Response | Approximately cosine |
Operating Temperature | 0-75°C Internal temperature; tolerates high external temperatures for short periods (audible alarm indicates when temperature has exceeded tolerance) |
Time-Out Period | 2 minutes DISPLAY mode (no key activity). A no time-out mode can be activated by EIT-IM. |
Battery | Two user-replaceable AAA Alkaline Cells |
| Battery Life | Approx. 20 hours with display on |
Dimensions | 4.60 x 0.50 inches; 117 mm x 12.7 mm (D x H) |
Weight | 289 grams |
Instrument Materials | Aluminum, stainless steel |
Carrying Case Material | Cut polyurethane interior, scuff resistant nylon exterior cover |
Carrying Case Weight | 260 grams |
Carrying Case Dimensions | 274 x 89 x 197 mm (W x H x D). |
