GBath 1800 Thermostatic Bath
Coatings & Industry > CORROSION > Water Baths
Stainless Steel Thank
Baths model SPL and Gbath1800

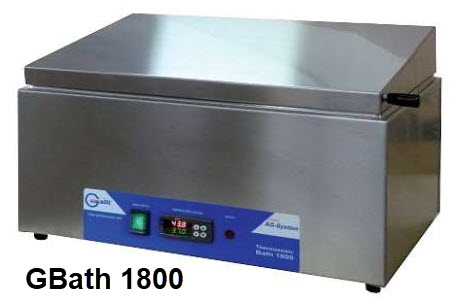

GBath 1800 Laboratory Thermostatic Bath AGS SMART +95,0°C
* Stainless Steel Tank, AISI 304 with rounded corners* Eco-friendly Insulation, high energy saving* Stainless Steel External Structure, AISI 304* Non-Slip Rubber Feet* Drain Tap* Predisposed for the addition of Gable Cover with Hinges (OPTION)* Main Green Switch* Bipolar Fuses
Control System Advanced GalliSystem SMART
* Microprocessor with Digital Double Display* Set Point and Inner Temperature Visualization* Optimized Control Algorithm with PID Actions* Autotuning Function* Platinum PT100 Temperature Probe, Class A* “Zero Crossing” Solid State Relays* Temperature Calibration Function* Independent Safety Thermostat with low level protection
GBath 1800 Laboratory Thermostatic Bath AGS SMART +95,0°C
Code & Description
GBATH1800X06S

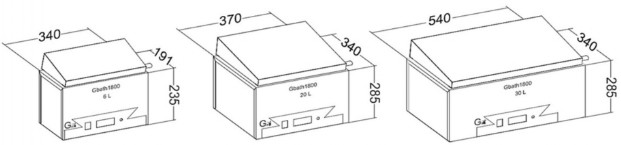

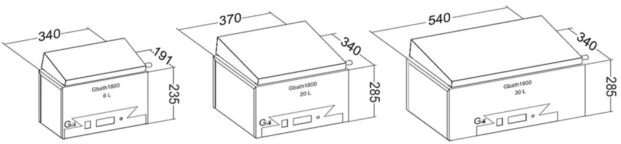

GBath 1800 Thermostatic Bath 300x150x150mm 6L from T.A. +5,0°C to +95,0°C AGSystem SMART Double Display + Safety System NO Drain Tap
GBATH1800X20S
GBath 1800 Thermostatic Bath 330x300x200mm 20L from T.A. +5,0°C to +95,0°C AGSystem SMART Double Display + Safety System WITH Drain Tap
GBATH1800X30S
GBath 1800 Thermostatic Bath 500x300x200mm 30L from T.A. +5,0°C to +95,0°C AGSystem SMART Double Display + Safety System WITH Drain Tap
Options
- GBath 1800 Option Lids and Bottoms
- GBath 1800 Option Darin Tap and Level Control
- GBath 1800 Option Tubeholders and Containers
- GBath 1800 Option Constant Water Level System
- GBath1800 Option Connections on request
Sea Water Tests.
For sea water and for t° up to 95°C a stainless steel tank with SAE 316 stainless steel is the perfect solution.
Available on request.
SAE 316 stainless steel is a molybdenum-alloyed steel and the second most common austenitic stainless steel (after grade 304).
It is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than most other grades of steel without molybdenum. (Internet source)

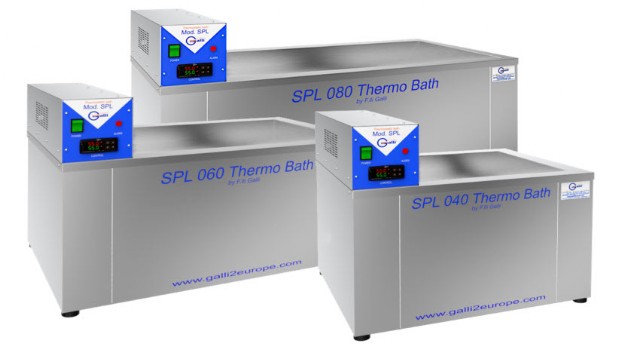

SPL Thermo baths

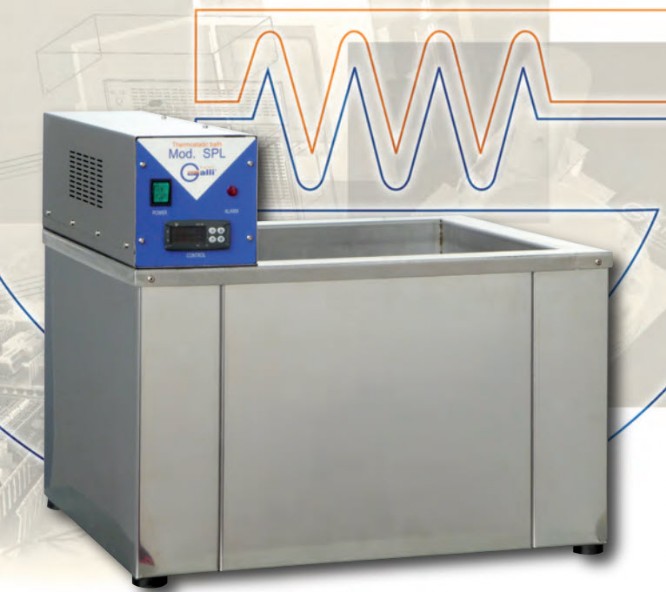

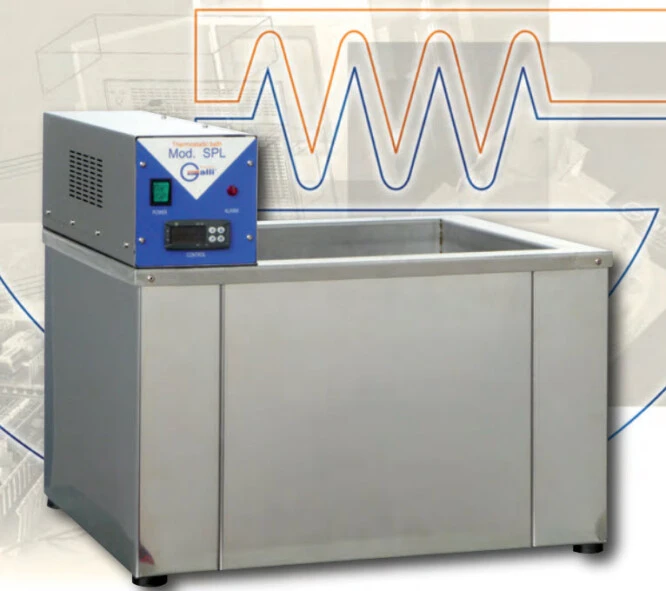

SPL Large Capacity Thermostatic Bath +100,0°C
- Stainless Steel Tank, AISI 304, TIG-welded
- Stainless Steel AISI 304 External Structure
- Bipolar Main Green Switch
- Motorized Stirrer with Deflectors and False Bottom
- Armored heating resistors
- Drain Tap
- Independent Safety Thermostat

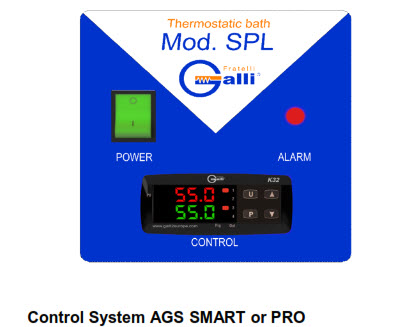

Control System AGS SMART or PRO
- PID Microprocessor with Double Digital Display
- Set Point and Internal Temperature visualization
- Autotuning Function
- Calibration and Offset Function
- Platinum PT100 Temperature Probe, Class A
- “Zero Crossing” Solid State Relays
- Timer 99h 59min.
- Display resolution: ± 0,1°C
- Profiles Selection (PRO version only)
SPL Large Capacity Thermostatic Bath AGS SMART +100,0°C
Code & Description
BSPL0040DSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 400x400x250mm 40L AGSystem SMART +100,0°C
BSPL0060DSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 600x400x250mm 60L AGSystem SMART +100,0°C
BSPL0080DSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 800x400x250mm 80L AGSystem SMART +100,0°C
SPL Large Capacity Thermostatic Bath AGS PRO +100,0°C
Code & Description
BSPL0040PSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 400x400x250mm 40L AGSystem PRO +100,0°C
BSPL0060PSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 600x400x250mm 60L AGSystem PRO +100,0°C
BSPL0080PSXXX
SPL Large Capacity Thermostatic Bath, Digital, with Drain Tap 800x400x250mm 80L AGSystem PRO +100,0°C
Mod. SPL Options
- SPL Option For Water Baths All Volumes Constant Water Level System
- SPL Option All Volumes Cooling Coil
- SPL Option All Volumes Drain Tap
- SPL Option All Volumes Circulating Pump
- SPL Option All Volumes Connection for External Recycling Pump
- SPL Option All Models Silicone Tube with Thermal Isolation, 1mt.
- SPL Option All Models Viton Tube with Thermal Isolation, 1mt.
- SPL Option All Models Tube Ties, 2pcs.
- SPL Option All Volumes Polypropylene Hollow Balls (1000pcs.)
- SPL Option Stainless Steel Flat Cover with Handle for 40L volume
- SPL Option Stainless Steel Flat Cover with Handle for 60L volume
- SPL Option Stainless Steel Flat Cover with Handle for 80L volume
- SPL Option Stainless Steel False Bottom Height-Adjustable for 40L volume
- SPL Option Stainless Steel False Bottom Height-Adjustable for 60L volume
- SPL Option Stainless Steel False Bottom Height-Adjustable for 80L volume
- SPL Option Stainless Steel Adjustable Flat Cover for False Bottom with Handle for 40L volume
- SPL Option Stainless Steel Adjustable Flat Cover for False Bottom with Handle for 60L volume
- SPL Option Stainless Steel Adjustable Flat Cover for False Bottom with Handle for 80L volume
- SPL Option Anti-Drip Stainless Steel Gable Cover with Handle and Hinges for 40L volume
- SPL Option Anti-Drip Stainless Steel Gable Cover with Handle and Hinges for 60L volume
- SPL Option Anti-Drip Stainless Steel Gable Cover with Handle and Hinges for 80L volume
- SPL Option RS485 Interface with ModBus Protocol
