Description
ProSens is a new line of modern industrial instruments, which integrates sensors, converters, meters and controllers functionalities.
Using the latest miniaturisation technologies these compact instruments are able to be equipped with one independent universal input, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol.
Model QM-622 has temperature or temperature and humidity cable probe, Ø12 mm, L=300 mm, stainless steel 316L probe and filter cap.
A large built-in display and output signals mean that the ProSens line units find applications in control systems.
There are many industrial applications, where ProSens can act as stand-alone controller.
It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect instrument for distributed monitoring system.

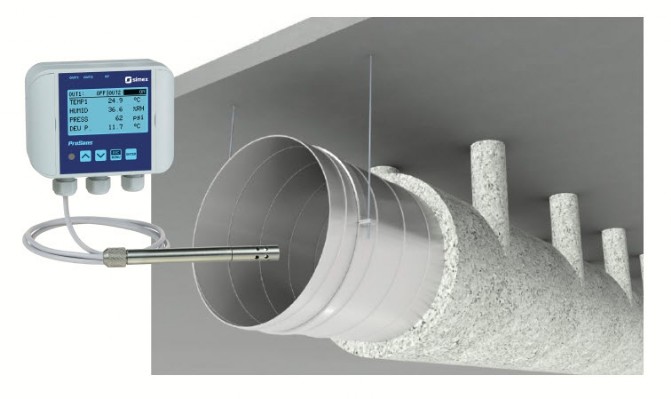

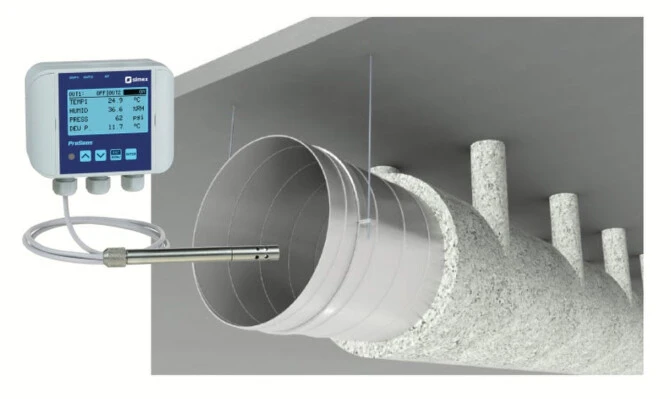

Another example of how the ProSens meter can be used is in measuring temperature and humidity in an air duct of a ventilation system.
What was selected due to a difficult access to the measurement location is a model with a cable probe, and as a result the meter itself can be placed in a more convenient location.
The exemplary application features the following model QM-622-05-1-3-0-33-1-10-3-2 equipped with:
- temperature and humidity cable probe in the 300 mm length and 12 mm diameter variant, made of 316L stainless steel,
- graphic, backlit LCD display,
- two active current outputs,
- built-in RS-485 interface.
The measurement results are presented in a local display of the meter and retransmitted with analogue outputs (4..20 mA) to the ventilation system controller.

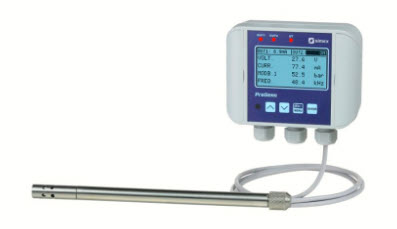

ProSens QM-622
- transmitter, display, meter and controller in one package
- temperature or temperature and humidity cable probe, Ø12 mm, L=300 mm, stainless steel 316L probe and filter cap
- 1 or 2 universal inputs: 0/4-20 mA, 0-10V, 0-150 mV, RTD or TC
- 0, 1 or 2 REL outputs (electronic NO)
- 0, 1 or 2 analogue outputs, passive or active
- RS-485 / Modbus RTU
- option: very clear 2.9’’ graphic LCD display, 128 x 64 points, with backlight
- free configuration software S-Config
Specifications
Display : LCD, 128 x 64 pixels, graphic, with backlight
Power supply
- 11...36V DC
- 16...36V DC (0...10V out.)
Display : LCD, 128 x 64 pixels, graphic, with backlight
Protection class: IP 65
Protection class: IP 65
Operating temperature: -30...+80°C, case with electronics
Case material: polycarbonate + ASA LURAN
Mounting: wall
Case dimensions: 120 x 90 x 50 mm
Case dimensions: 120 x 90 x 50 mm
Power supply
- 11...36V DC
- 16...36V DC (0...10V out.)
Input type: universal
Input range:
Input range:
- 0/4...20 mA
- 0...60 mV, 0...75 mV,
- 0...100 mV, 0...150 mV
- 0/1...5V, 0/2...10V
- Pt100, Pt500, Pt1000: -100...+600°C
- TC
- K: -200...+1370°C,
- S: -50...+1768°C,
- J: -210...+1200°C,
- T: -200...+400°C,
- N: -200...+1300°C,
- R: -50...+1768°C,
- B: +250...+1820°C,
- E: -200...+1000°C
Output type:
- depends on configuration:
- electronic relay NO, 24V AC/35V DC, max. 200 mA
- 0/4...20 mA: active current, operating range 0...24 mA max., load resistance 700 Ω max., resolution 13 bit
- 4...20 mA: passive current, isolated, operating range 2,8...24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit
- 0/1...5V, 0/2...10V: active voltage, operating range 0...11V max., load resistance min. 2000 Ω, resolution 13 bit
Communication Interface: RS-485 / Modbus RTU
Transmission parameters:
- 1200...115200 bit/s,
- 8N1 and 8N2,
- not galvanically isolated
Specification
Type of probe: cable probe L=300 mm, Ø 12 mm, stainless steel 316L probe and filter cap
Probe parameters :
- temperature: -50...120°C (typ. error ±0.5°C @ -10...+80°C)
- temperature and humidity:
- temperature measuring range: -40...120°C
- typ. error ±0.2°C @ 10...60°C;
- 0.4°C @ -30°C;
- 0.7°C @ 120°C
- humidity measuring range: 0...100% RH
- typ. error ±1.8% RH; 20...80% @ 25°C
S-Config
- simultaneous detection of devices in multiple Modbus RTU networks
- license: freeware
- supported devices: all devices provided with Modbus RTU

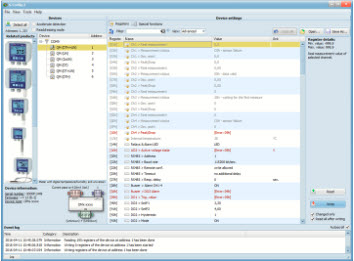

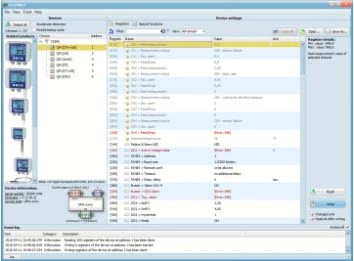

The S-Config 2 software is used for the simultaneous detection of devices in multiple Modbus RTU networks and allows user to change the configuration of most of them.
SimCorder Soft
- license key required
- Basic, Alarm, Network (Server and Terminal) versions
- semiScada module - monitoring of current measurements in a transparent graphical method with the possibility of immediate evaluation and response to the process status
- data downloads from SIMEX products equipped with RS-485 serial communication interface with Modbus RTU protocol

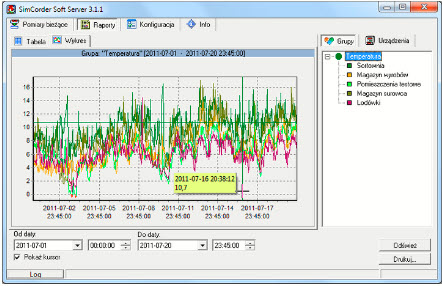

- current measurements displayed in tables, diagrams or visualisation windows
- ability to send email notifications and SMS in the Alarm or Network versions
The SimCorder Soft works with SIMEX products equipped with RS-485 interface.

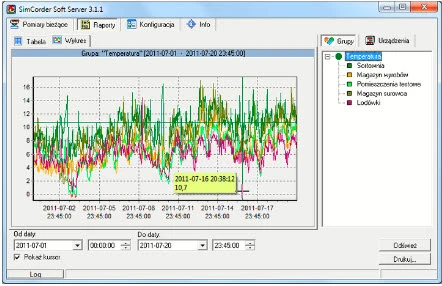

It enables the visualization, archiving and printing of measurements (e.g. temperature, humidity, pressure).
Work with network of units takes place through an RS-485 serial interface.
Connecting a network of units to a serial port (RS-232) or USB port of a PC is possible thanks to a converter (RS-485 to RS-232 or RS-485 to USB) produced by SIMEX.
The new SimCorder PC Software v.4 with semiSCADA module can be equipped with the semiSCADA module, which features presenting current measurements in a clear graphical way.
The semiSCADA funcionality enables you to place various indicators and objects like tanks, thermometers, bars, etc., as well as background images on the plan and show a real appearance of room or object being monitored. You can also observe measurements at different levels of the process or system.

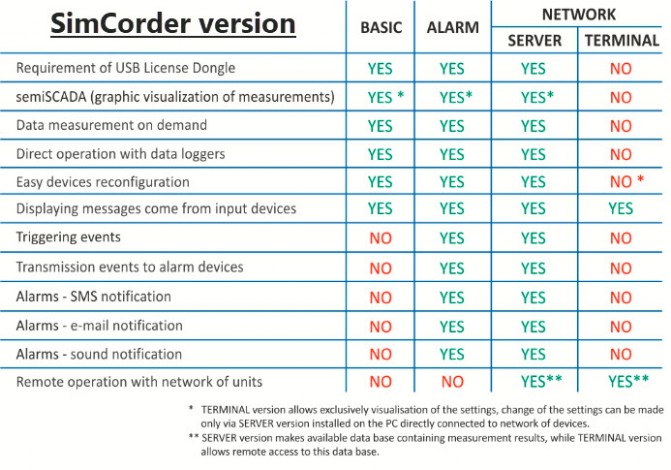

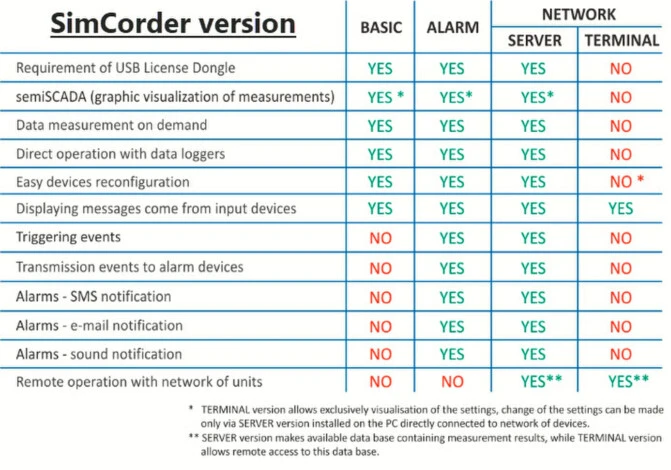

It consists of 3 installation versions of following software:
- The SimCorder BASIC is the elementary version of SimCorder Software with possibility of installation on the PC directly connected to network of units. GSM notification and signalisation of system alarm states is not available in BASIC version. Informations of exceptions and errors are accessible only as text messages (in Device infos tab of Current measures menu).
- The SimCorder ALARM is the version of SimCorder Software with possibility of installation on the PC directly connected to network of units. In comparison with BASIC version ALARM is expanded with GSM notification and signalisation of system alarm states.

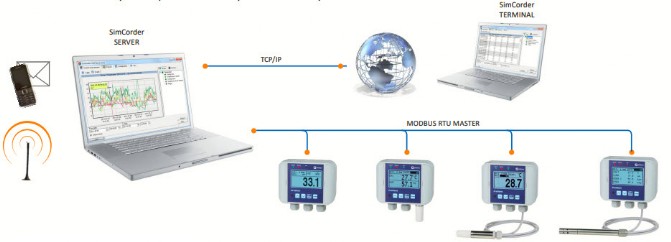

- The SimCorder NETWORK is network version of SimCorder Software with possibility of installation on max. 10 terminal stations. One package named SimCorder Soft NETWORK included the SERVER and TERMINAL versions. The TERMINAL version allows visualization (via internet) of devices working controlled directly by SERVER version. TERMINAL version allows exclusively visualisation of the settings, change of the settings can be made only via SERVER version installed on the PC directly connected to network of devices. SERVER version makes available data base containing measurement results, while TERMINAL version allows remote access to this data base.
