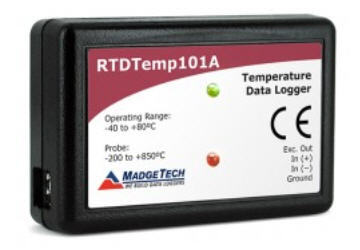

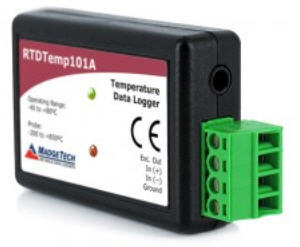

RTDTemp101A Data Logger
RTD Based Temperature Data Logger with a 10 Year Battery Life
Don’t be fooled by the small size, the RTDTemp101A temperature data logger offers a wealth of features with a compact form factor about the size of a matchbox.
When used with an external RTD probe, this data logger measures temperatures from -200 °C to +850 °C.
The low power design of this data logger provides a battery life of up to 10 years but still delivers ultra-fast download speeds.
The RTDTemp101A can store over a million readings and offers a software configurable memory wrap option.
In addition to having a pushbutton start stop, the device also can be programmed to a delay start up to 18 months in advance.

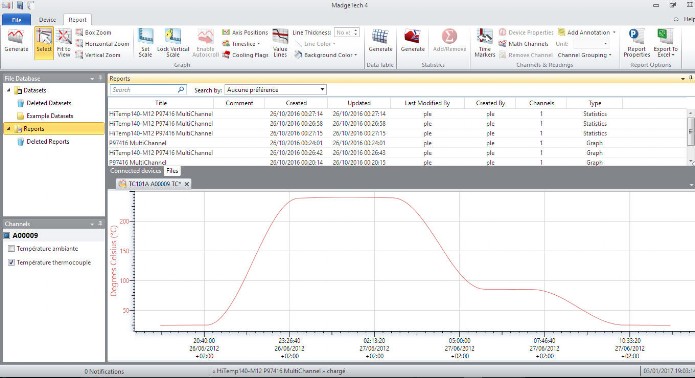

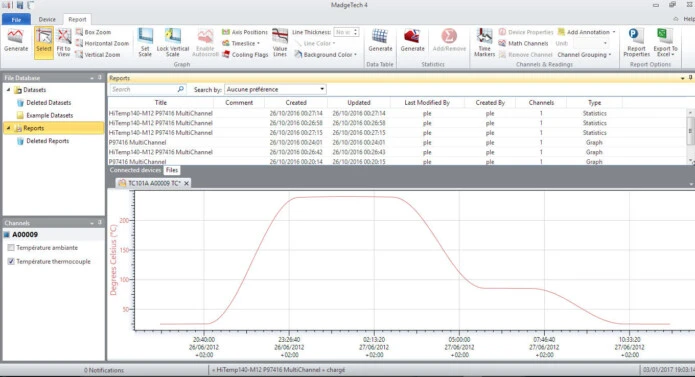

Using the MadgeTech Data Logger Software, data from the RTDTemp101A is easily downloaded, displayed and formatted for reports or the data can be exported to Excel for further presentation customization.
This versatile device can be used for a wide variety of applications such as calibration chamber monitoring, HVAC applications, environmental studies or precision temperature recording for medical and pharmaceutical applications.
RTD probe sold separately.
TEMPERATURE
Temperature Sensor External : 100 Ω RTD (Sold Separately)
Temperature Range : 18 Ω to 400 Ω, -200 °C to +850 °C (Probe Dependent)
Temperature Resolution : 0.0001 Ω, 0.01 °C (Probe Dependent)
Temperature Calibrated Accuracy : ±0.015 Ω, ±0.05 °C (Probe Dependent)
Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C
*Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range.
GENERAL
Memory : 1,340,000 readings; software configurable memory wrap, 670,000 readings in multiple start/stop mode
Reading Rate : 1 reading every second to 1 reading every 24 hours
Alarm : Yes
Baud Rate : 115,200
Channels : 1
LED Indicators : Red & Green
Push-Button Start : Yes
Battery Life : 10 years typical at a 15 minute reading rate
Material : ABS plastic
Dimensions : 36 mm x 56 mm x 16 mm
Operating Environment : -40 °C to +80 °C, 0 %RH to 95 %RH non-condensing
Required Interface : Package IFC200
Approvals : CE
IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.
LTC-7PN Lithium Battery
3.6 Volt, Lithium Battery, 750 mAH. Note: These batteries are only equipped with two leads and the leads have been cut for use with MadgeTech data loggers.
Rugged RTD Probe
100 Ω, 4 wire RTD probe with metal strain relief wrapped. Available with a 6 in or 12 in sheath
RTD Probe
Precision 100 Ω, 4 wire RTD probe, with a 6 in or 12 in sheath
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
LTC-7PN-PK Lithium Battery
3.6 Volt, Lithium Battery, 750 mAH (pack of 14). Note: These batteries are only equipped with two leads and the leads have been cut for use with MadgeTech data loggers.
Waterbox101A
Weatherproof Enclosure for use with 101A Series Data Loggers.
Terminal Block, 4 Position
4 position pluggable terminal block for use with MadgeTech data loggers.
Applications
• Calibration Chamber Monitoring
• HVAC
• Medical/Pharmaceutical
• Environmental Studies
• Precision Temperature Recording
Options
- Calibration Certificate
- Extended Warranty
ORDERING INFORMATION
RTDTEMP101A : RTD Temperature Data Logger
IFC200 : Software, manual and USB interface cable
Calibration Certificate : Calibration Certificate available for data logger
LTC-7PN : Replacement battery for RTDTemp101A
RTDTEMP101A SPECIFICATIONS*
Measurement
Temperature Range: 18 Ω to 400 Ω -200 °C to +850 °C (Probe Dependent)
Temperature Resolution: 0.0001 Ω - 0.01 °C (Probe Dependent)
Calibrated Accuracy: ±0.015 Ω - ±0.05 °C (Probe Dependent)
Calibrated Accuracy Range***: 18 Ω to 200 Ω - -200 °C to +265 °C
Input Connection****: Removable screw terminal; 2, 3 or 4 wire interface
Temperature Effect on Span: < 2 ppm/ºC
Temperature Effect on Offset: < 10 ppm cumulative over entire range
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Memory:
• 1,340,000 readings; software configurable memory wrap
• 666,000 readings in multiple start/stop mode
Wrap Around: Yes
Start Modes:
• Immediate start
• Delay start up to 18 months
• Multiple pushbutton start/stop
Stop Modes: • Manual through software
• Timed (specific date and time)
Multiple Start/Stop Mode:
Start and stop the device multiple times without having to download data or communicate with a PC
Multiple Start/Stop
Mode Activation:
To start the device:
Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging.
To stop the device:
Press and hold the pushbutton for 5 seconds, the red LED will flash for three seconds and then the green LED will flash for two seconds. The device has stopped logging.
Real Time Recording: The device may be used with PC to monitor and record data in real time
Alarm: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits
LED Functionality:
Green LED blinks:
• 10 second rate to indicate logging
• 15 second rate to indicate delay start mode
Red LED blinks:
• 10 second rate to indicate low battery and/or full memory
• 1 second rate to indicate an alarm condition
Password Protection: An optional password may be programmed into the device to restrict access to configuration options.
Data may be read out without the password.
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery included; user replaceable
Battery Life:
10 years typical at a 15 minute reading rate
Data Format: Date and time stamped ºC, ºF, K, ºR
Time Accuracy: ±1 minute/month (at 20 ºC/68 ºF, stand alone data logging)
Computer Interface: USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/Windows 7/Windows 8
Operating Environment: -40 ºC to +80 ºC, 0 %RH to 95 %RH non-condensing
Dimensions: 36 mm x 56 mm x 16 mm
Weight: 24 g
Materials: ABS Plastic
Approvals: CE
