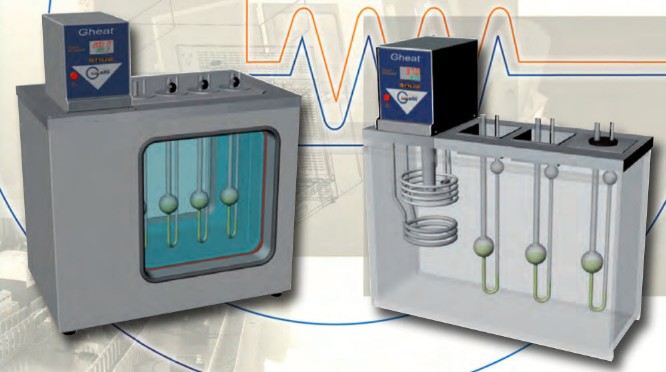

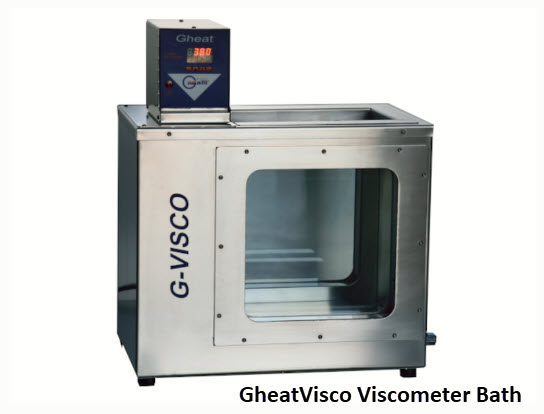

Digital Viscometry Bath GheatVisco
for the measurement of viscosity fluid samples through capillary tubes, as: Cannon-Fenske, Ubbelohde, …
Available also for chemical analysis, physical tests, crystallography, …
PLUS
• AG-System Control PRO: PID Digital Microprocessor, programmable• Double Digital Display visualize simultaneously the set point and the inner temperature. Resolution +/- 0,1°C• Platinum Probe PT100, Class A• Range Temperature: From Amb. Temp. +5,0°C up to + 60,0°C for model with transparent tank or from +5,0°C up to + 100,0°C or +200,0°C for models in stainless steel• Independent Safety Thermostat• Circulation pump• Cooling coil
Features
• AG-System Control: PID Digital Microprocessor, careful and sensitive Version PRO• Thermostatic Group Gheat• Bath with Transparent Tank for temperature +60,0°C• Bath with Stainless Steel Tank for Temperature +100,0°C/+200,0°C• Circulation Pump• Cooling Coil
Standard Equipments
• 1 Supply cable
• 1 Instruction Manual
• 1 CE Conformity Certificate
• 1 Warranty Certificate
• 1 Instruction Manual
• 1 CE Conformity Certificate
• 1 Warranty Certificate
The Cannon CT-518 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 18”
and provides reliable temperature control from 20 °C to 100 °C .
The unit accommodates up to 7 simultaneous viscosity determinations.
Common Applications :
- Formulated oil analysis
- Hydraulic oil analysis
- Additive analysis
- Marine fuel testing
- Base stock analysis
- Light and heavy fuel testing
- Waxes/paraffin
- Crude oil testing
- Glycols

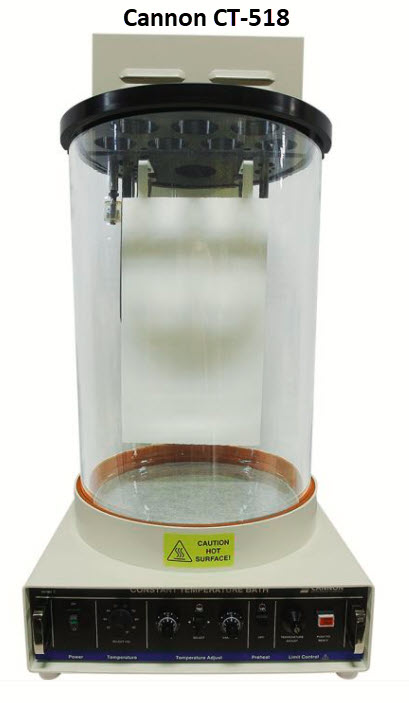

CT-518 Constant Temperature Bath (230 V)
Ref # 9726-A19
For Kinematic Viscosity from 20 °C to 100 °C.
he CT-518 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 18" and provides reliable temperature control from 20 °C to 100 °C .
The unit accommodates up to 7 simultaneous viscosity determinations.
Conforms to test methods ASTM D445/D446 and ISO 3104/3105.
SPECIFICATIONS
UNIT WEIGHT : 22 kg
DIMENSIONS (W X D X H) : 40.7 cm × 36.2 cm × 76.2 cm
SHIPPING DIMENSIONS (W X D X H) : 76.2 cm × 58.4 cm × 55.9 cm
SHIPPING WEIGHT (WITH ALL ITEMS) : 36.3 kg
SAMPLE CAPACITY : 7
TEMPERATURE RANGE AND ACCURACY : 20 °C to 100 °C,± 0.01 °C*,*
Test temperatures < 40 °C and high ambient temperature test environments
require an optional bath cooler
OPERATING CONDITIONS : 15 °C to 30 °C,10% to 75% relative humidity (non-condensing),Installation Category II;
Pollution Degree 2
ELECTRICAL SPECIFICATIONS : 120 Vac,50/60 Hz; 240 Vac,50/60 Hz; 1000 watts power consumption
COMPLIANCE : CE Mark; EMC directive (2004/108/EC); Low voltage directive (2006/95/EC);
HI-POT (1900 Vdc,60 sec.); ROHS
BATH VOLUME : 23.8 L (6.3 gal)
BATH HEIGHT :45,72 cm
FEATURES AND BENEFITS
Precise and accurate temperature control
Temperature range: 20 °C to 100 °C ± 0.01 °C*
Temperature selection is variable between 20 °C and 100 °C or selectable at ten pre-set temperatures (20 °C,25 °C,30° C,
40 °C,50 °C,60 °C,70 °C,80 °C,90 °C,and 100 °C)
Meets ASTM D445 temperature sensitivity requirements for kinematic viscosity determination
Motor driven stirrer ensures a uniform bath temperature
Safe operation
Bath thermistor senses over-temperature fault and removes power
Thermistor disconnection results in removal of bath heater power
Liquid level sensor prevents operation if bath liquid is not at a safe operating level
Efficient,user-friendly design
Seven glass viscometer ports (each 2” in diameter) and two thermometer ports (each 0.4” in diameter) allow up to 7 simultaneous viscosity determinations**
Two electric heating elements quickly heat bath media to the selected temperature
Stainless steel baffle provides a plain reflective viewing background
Convenient drawer provides easy access to electrical controls
Reliable performance
Well tested CANNON bath platform offers reliability and dependable support
All wetted components are manufactured from high quality stainless steel or glass
The heavy duty aluminum frame offers a corrosion-resistant epoxy finish
* Test temperatures < 40 °C and high ambient temperature test environments require an optional bath cooler
** Other port configurations are available as a special order
Accessories & Consumables
Description Part #
Thermoelectric Bath Cooler (external)
CBC-100 with U.S. plug 9726-D05
CBC-100 with non-U.S. plug 9726-D10
Storage drawer 9726-A50
Port cover set (7 covers; 2 thermometer holders) 22.39
Bath oils
IBF oxidation resistant bath oil (22.7 L/6 gal) 9726-L20
Silicone bath oil, 10 cSt (18.9 L, 5 gal) 9726-L30
Silicone bath oil, 20 cSt (18.9 L, 5 gal) 9726-L33
Silicone bath oil, 50 cSt (18.9 L, 5 gal) 9726-L36
Dostmann digital thermometer 61.5600
Standard thermometer probe 61.5601
CANNON pressure/vacuum pump 9726-L96
3VM vacuum manifold, 3 valves 9726-V10
4VM vacuum manifold, 4 valves 9726-V05
Neoprene vacuum tubing, 10 ft (1/4 in bore x 5/8 in OD) 9726-V23
DVR-1000 (requires vacuum source) : Available in vertical/horizontal 240 VAC configurations
DVR-1500 (with built-in vacuum pump) : Available in vertical/horizontal 240 VAC configurations
