TC 1 channel
Temperature > T° Monitoring
Back to the TEMPERATURE MENU

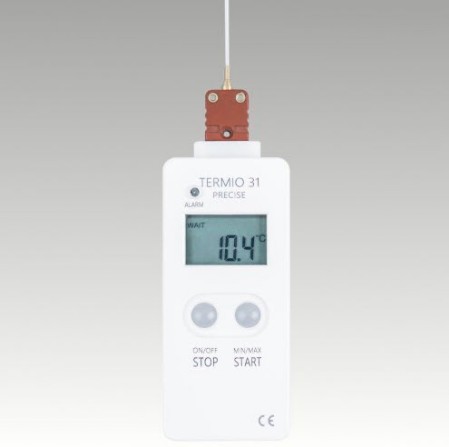

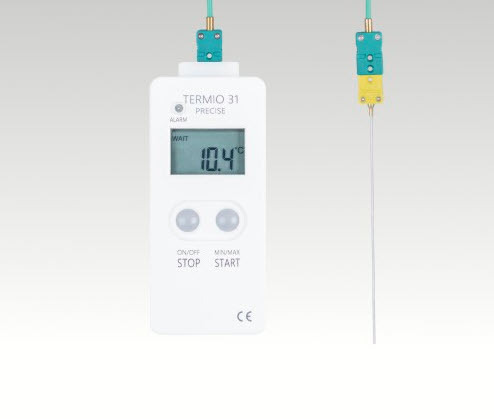

Temperature recorder TERMIO-31
THERMOCOUPLE DATALOGGER 1 CHANNEL
Functions:
- temperature measurement -200°C to 1400°C
- temperature recording with 0.1°C resolution from -200°C to 1000°C in the remaining 1°C range
- accuracy of 0.6°C in the range of -10°C to 150°C :
- signalization of registration with LOG sign on the display
- display of information about exceeded limit values
- start directly from the computer with time delay or START/STOP from the button
- recording frequency from 1 second
- access to maximum and minimum values
- signaling of low battery status
- signaling of exceeded temperatures with blinking diode
- built-in microUSB port
- LogSoft application for reading/programming:
- Windows 10 operating system
APPLICATION:
- laboratories,
- warehouses,
- cold stores,
- vaccine transport,
- vaccine storage,
- refrigerators
- oven
Specifications
Measured temperature range : -200°C to 1200°C
Operating temperature range : -30°C to 70°C
Thermocouple sensor : type K
Resolution : 0.1°C in the range -200°C to 1000°C
in the rest 1°C
Accuracy °C : 0.6°C from -10°C to 150°C
Recording frequency ; from 1 second
LCD : display
Memory of : 32000 measurements
Power supply : 1/2 AA 3.6V battery
Battery life : approx. 4 months
USB : interface
Case dimensions : 45x100x19 mm
Degree of protection of the case: IP65
Weight : 85g
Downloadable software: Logsoft
Termio-1 and Termio-31 interval is from 1 sec. Termio-2 and Termio-15 interval is from 1 min.
OPTIONS :
Calibration certificat : Standard calibration certificate - temperature measurement (manfufacturer)
PCA calibration certificate

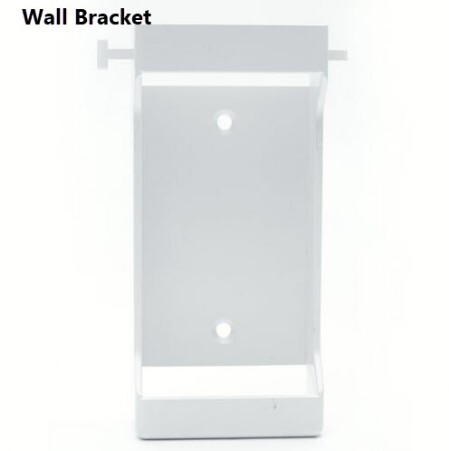

Termio recorder holder (bracket)
Security padlock : Allowing to secure the measuring device against theft. Dedicated for the holder /individually on sale/ used in the installation of thermometers and recorders manufactured by Termoprodukt: TERMIO, TERMIOPLUS, TERMIOPLUS5, TERMIO-1, TERMIO-2, TERMIO-15, TERMIO-31. TERMIK, TERMIKPLUS meters and DT-1, DT-2 thermometers.

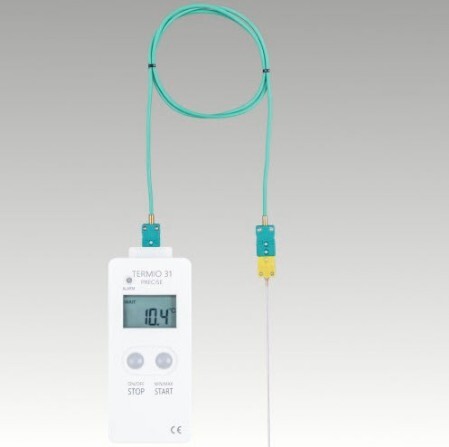

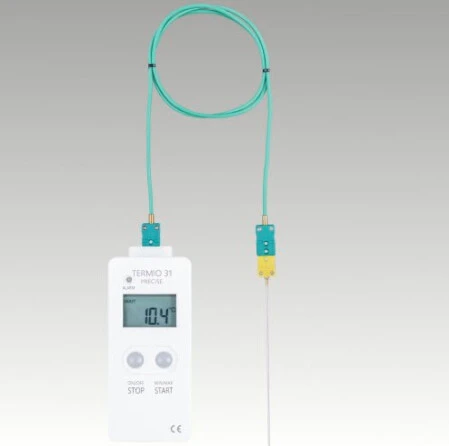

Extension cable for K-type thermocouple 1m
- Green color
- Temperature min. -50°C
- Temperature max. 100°C
- Plug/socket / Plug and socket
- Female/male connector type
PROBES AVAILABLE
321-ST01 type K probe
Measured temperature range : -50°C to 250°C
Probe length :120mm or 300 mm
Probe diameter : 3.3mm
Drip probe 321-ST-15 type K
Product code: 321-ST-15
Measured temperature range -75°C to 260°C
Type of PTFE cable
Mini Plug
Cable length 1,2,3,4,5 meters
Blade diameter Ø2 mm
Sensor length 50 mm
Probe 321-ST-17 type K
Measured temperature range -75°C to 260°C
PTFE cable type
Mini plug
321-ST-17 type K : also with cable attachment
Temperature probe ST-K-800-300 type K -200°C to 800°C
Range: -200°C to 800°C
APPLICATION: high temperature measurement of 800°C
The price of the sensor includes all options marked as (standard).
Measurement range: -200°C to 800°C
Type of measuring element: thermocouple wire type K cl.1
Blade material: acid resistant steel 321
Cable type: glass in steel braid -60 to 400°C
Wire length: typically 1m
Blade material: 321 acid-resistant steel
Blade length: 300mm
Blade diameter: 4mm
Length of blade + handle L=... 350mm
Surface temperature probe STP01 type K: 0°C to 250°C
For temperature measurement in the range of 0°C - 250°C.
Dimensions: 10x20x31mm
Surface probe STP03 type K probe: 0°C to 500°C
For temperature measurement in the range of 0°C - 500°C.
accuracy of measurement: +/-2,5°C
response time: < 15sec
diameter of the measuring probe: 15mm
length of measuring probe (metal part): 145mm
total length of measuring probe (including handle): 275mm
total length of probe with cable: 80cm
handle material: bakelite
Surface probe 321-STP04 type K
For temperature measurement in the range of 0°C - 500°C.
accuracy of measurement: +/-2,5°C
response time: < 15sec
diameter of the measuring probe: 15mm
length of measuring probe (metal part): 180mm
total length of measuring probe (including handle): 275mm
total length of thermocouple with cable: 80cm
handle material: bakelite
Air temperature probe ST-20 -100°C to 200°C
Thermocouple probe for measuring air temperature ST-20.
The probe works with ST-90 thermocouple thermometer and Termio-31 temperature logger.
Type of probe : measurement of air temperature
Measuring range : -100°C to 200°C
Cable type : silicone
Cable length : 1 m
LOGSOFT
Recorder info - Programming - Recording - Recording playback - Data export - Maintenance (battery change) - Time update
